M5Stack Servo Module Board 12 Channels [Discontinued]

A stackable servo control module for use with M5Stack Core development boards.

This module can drive up to 12 servo motors, with a max load of 14W. It also has a DC input for adding extra power. It's possible to power the M5Stack Core board through the servo module.

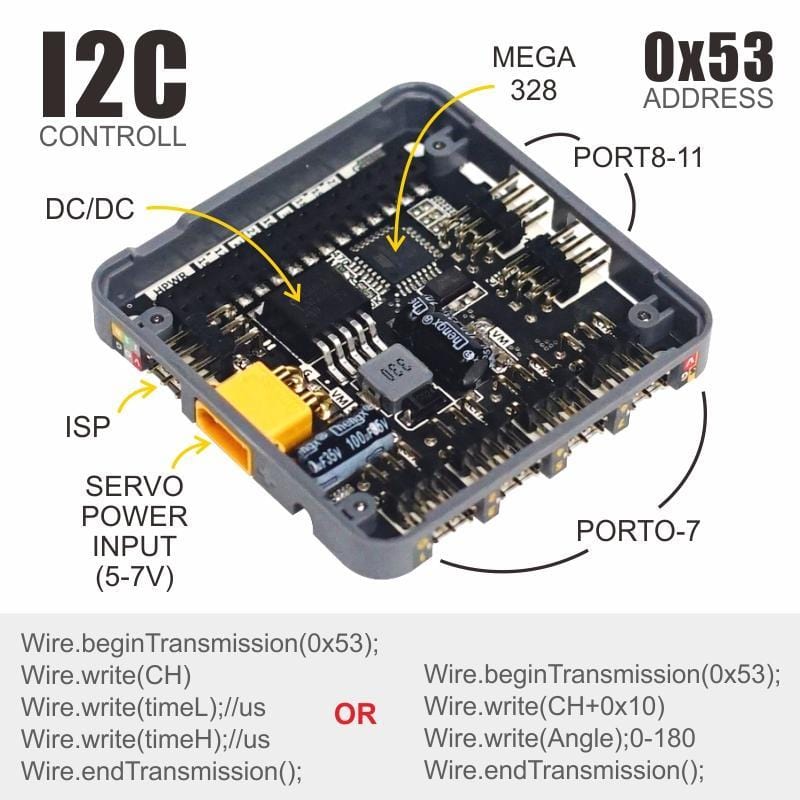

This module uses a MEGA328 chip to communicate with the M5Stack Core board via I2C (0x53).

For more information and for help getting started, click here

Product Features

• 12x servo ports
• DC power input: 5-7V
• DC Connector Type: XT30 (female)
• Power adapter interface: 5.5mm x 2.1mm
• Product Size：54.2mm x 54.2mm x 12.8mm
• Product weight：24.5g

Includes

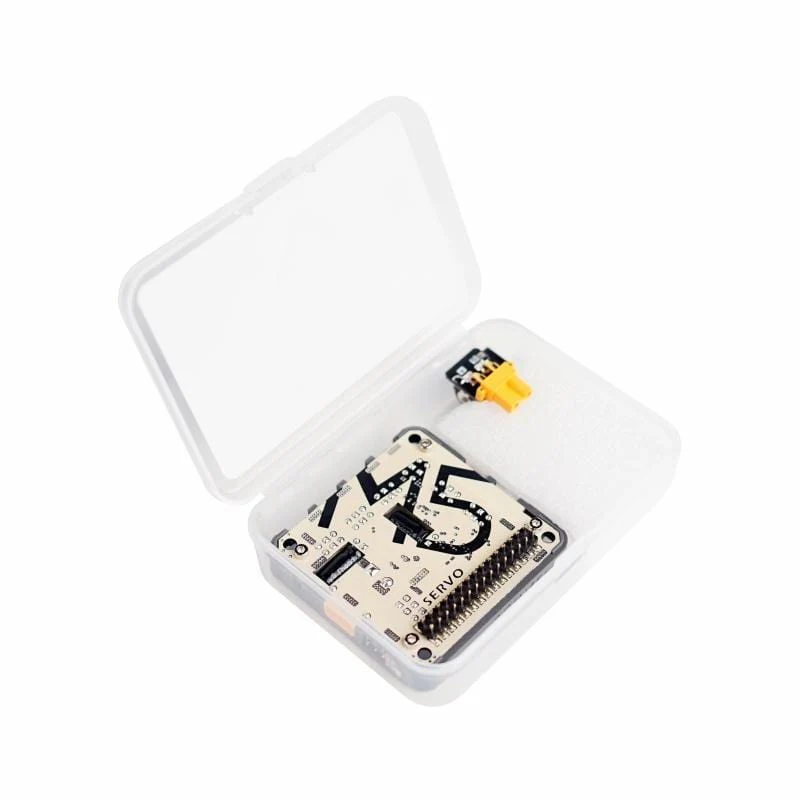

• 1x M5Stack Servo Module
• 1x Common Male to XT30 Male DC convertor

Applications

• Humanoid robot
• Bionic multi-joint robot
• Triaxial Camera Cradle
