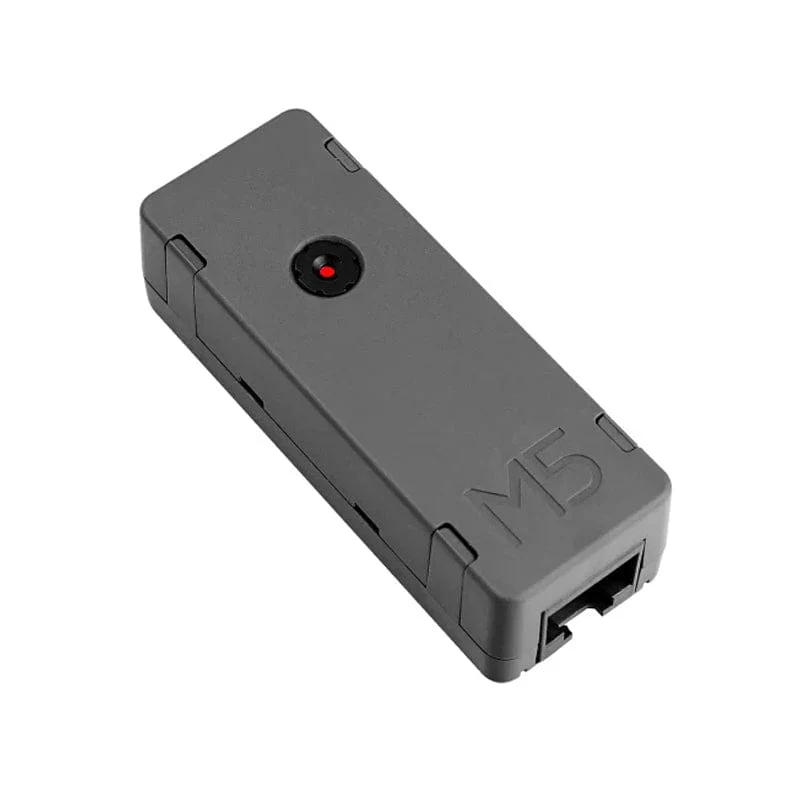

M5Stack PoE Camera with Wi-Fi (OV2640)

The PoE Camera is an open source, fully programmable camera, that integrates PoE (Power Over Ethernet) and Wi-Fi. This item is an ESP32 based webcam with a W5500 embedded Ethernet controller, plus a 2M pixel image sensor (OV2640). It is equipped with a combination of an 8MB PSRAM + 16MB flash memory. With this flexible power supply, you can get a stable image by connecting the network cable in just 2 steps.

Features

• Built-in ESP32 MCU
• 2 million pixel camera
• Ethernet chip W5500
• LAN speeds up to 10M or 100M (depending on the line provided)
• PoE IEEE802.3 AF specification (Maximum power 6W）
• Built-in prompt LED light
• Development platform: Arduino, ESP-IDF
• Ethernet standard interface RJ45
• Standard LEGO interface and camera mount

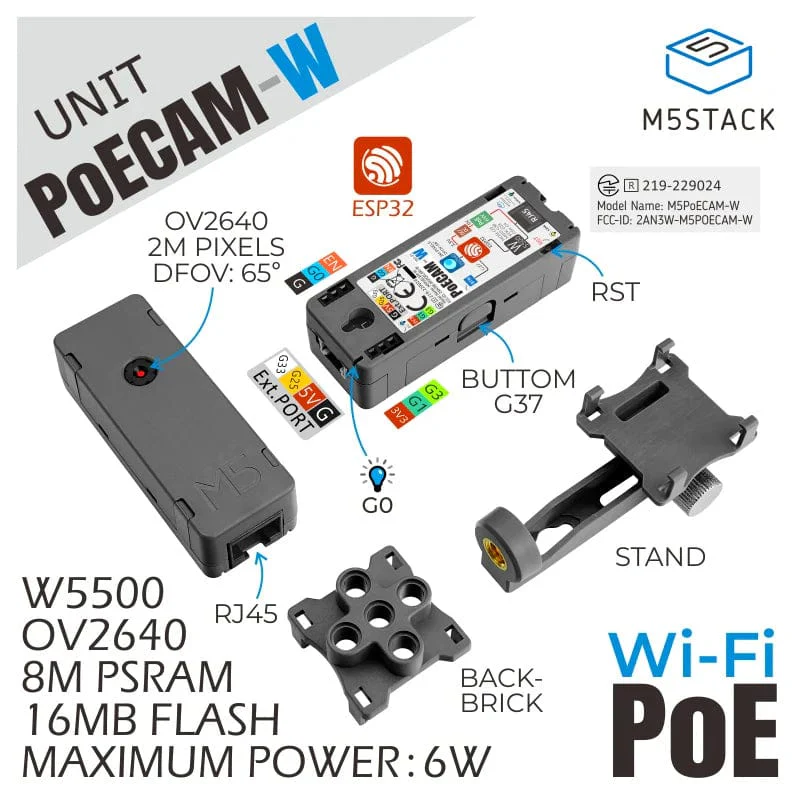

Package Contents

• 1x PoECAM-W

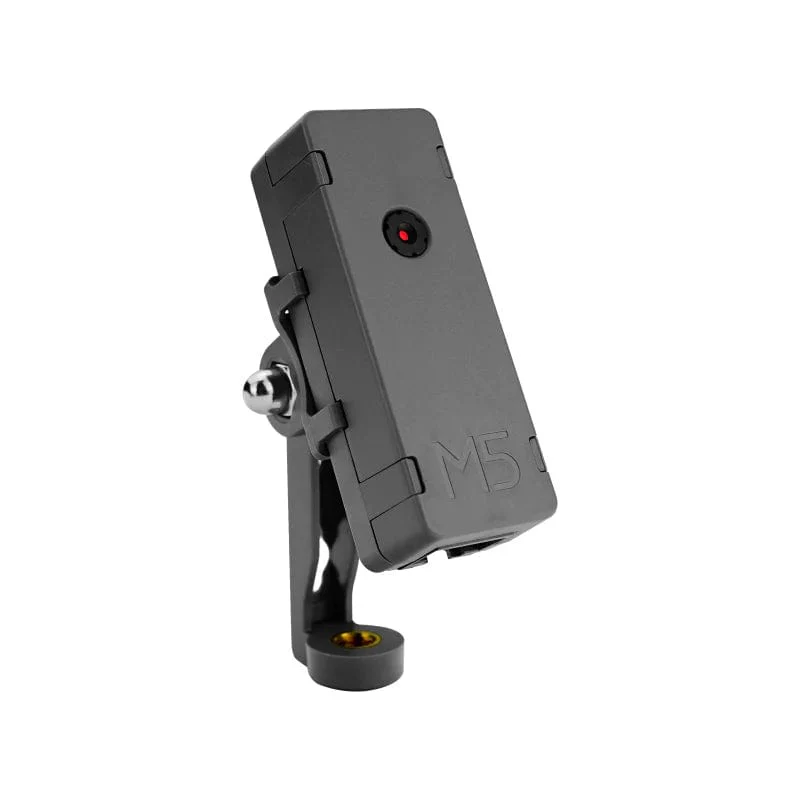

• 1x Camera mount clip

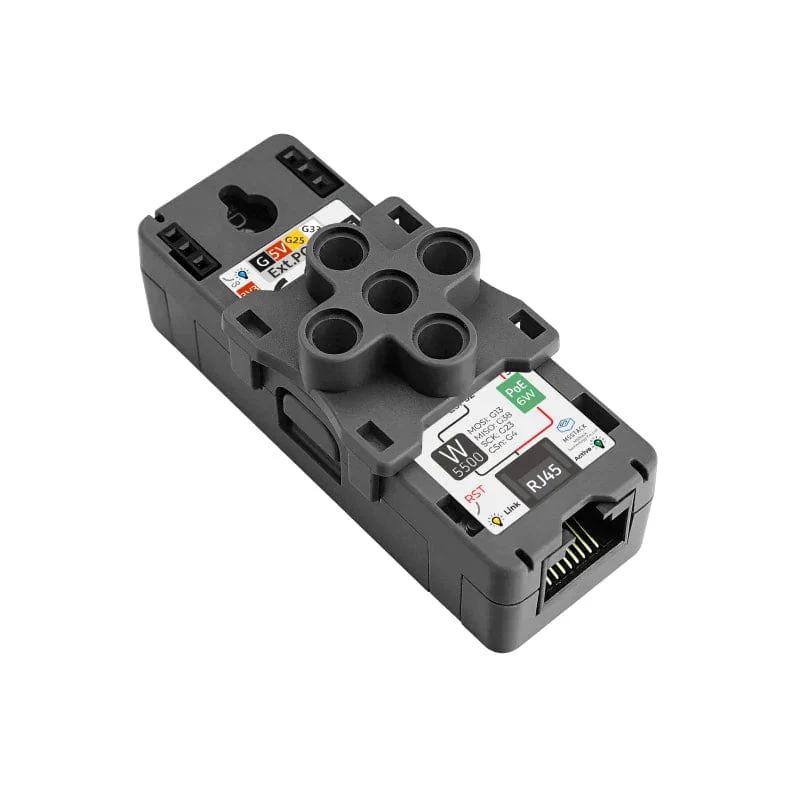

• 1x Brick compatible clip

Specifications

Resources	Parameters
MCU	ESP32-D0WDQ6-V3
Camera Module	OV2640
Ethernet Chip	W5500
FLASH	16MB
PSRAM	8MB
Pixel Size	2.2 µm x 2.2 µm
Automatic image control functions	Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
Supports Hardwired TCP/IP Protocols	TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
DFOV	65°
Output Formats（8-bit）	• YUV(422/420)/YCbCr422 • RGB565/555 • 8-bit compressed data • 8-/10-bit Raw RGB data
Ethernet interface specifications	RJ45
MAXIMUM POWER	6W
Product Size	64mm × 24mm × 18mm
Package Size	80mm × 37mm × 32mm
Product Weight	38g
Package Weight	45g
