M5Stack Panel Frame for M5Core

The Panel Frame from M5Stack is a frame construction for fixing the Core 1, Core 2 and Tough series of M5Core units, offering two installation methods of screw and double-sided adhesive tape.

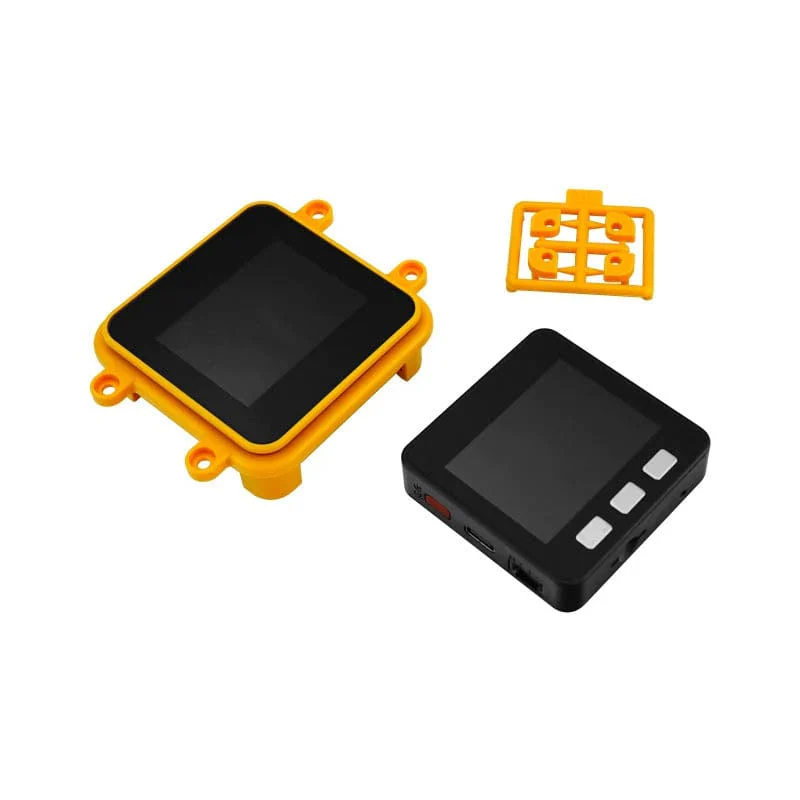

For M5Tough installation, 3M waterproof double-sided adhesive tape can provide a waterproof function. For the M5Core (Core1, Core2), four plastic pads are to be installed into four corners of the frame, to make the M5Core surface in parallel with PanelFrame.

Users can choose the method of cutting holes, with the help of attached card paper.

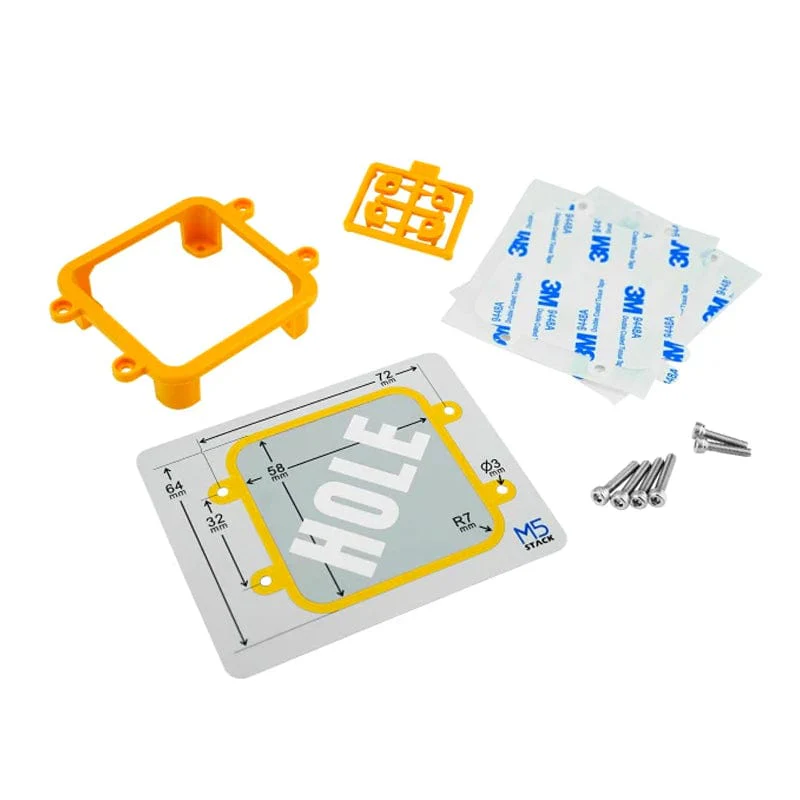

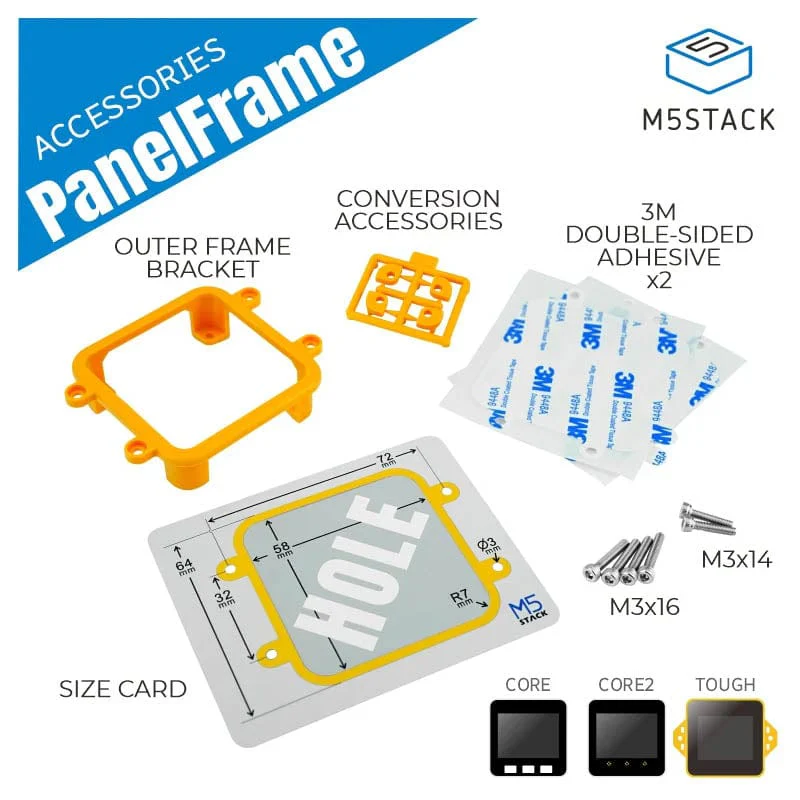

Package Contents

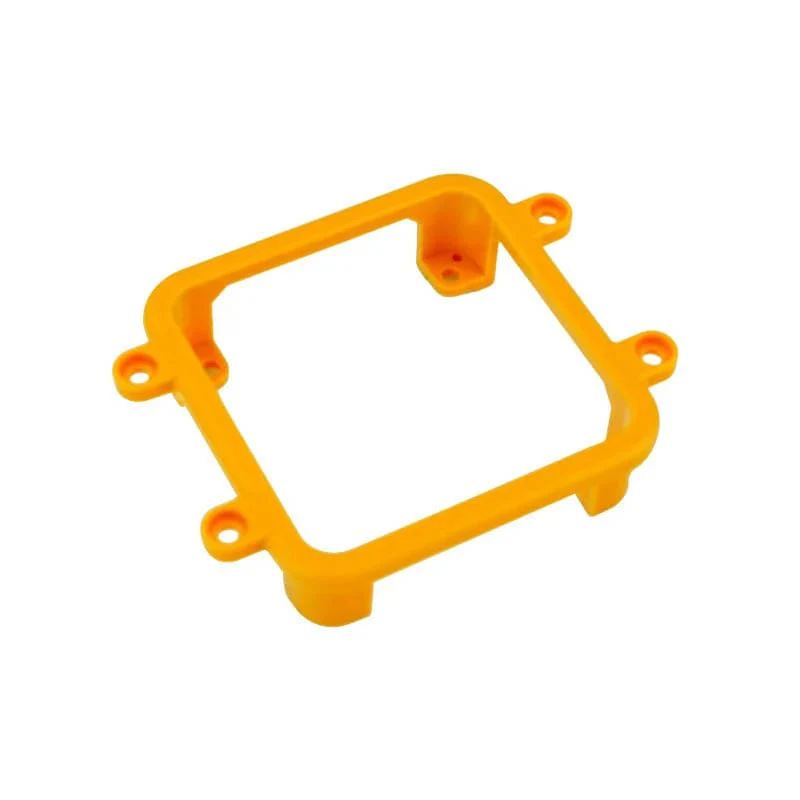

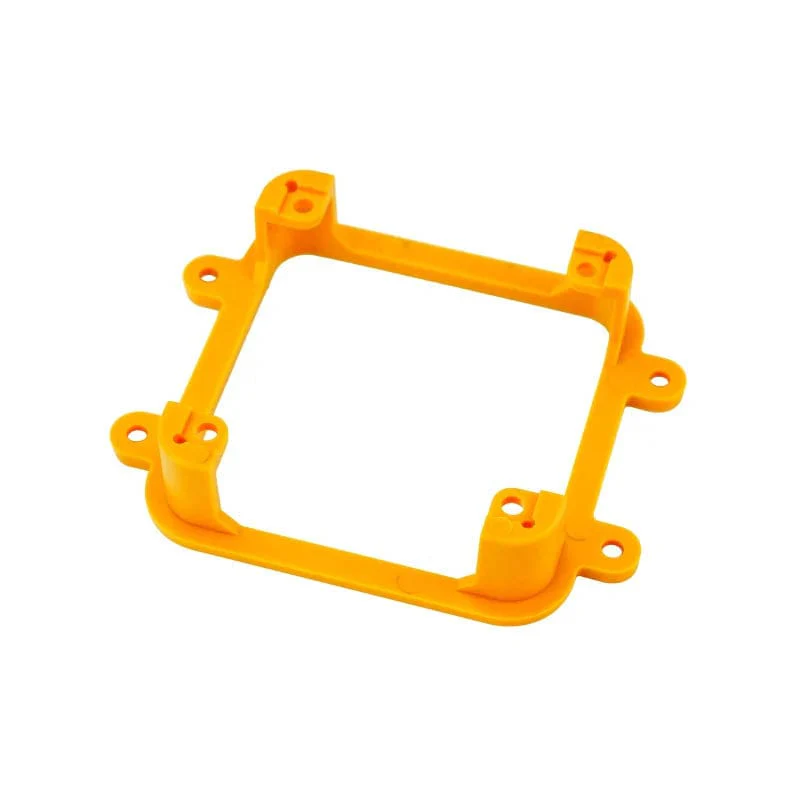

• 1 x Panel Frame

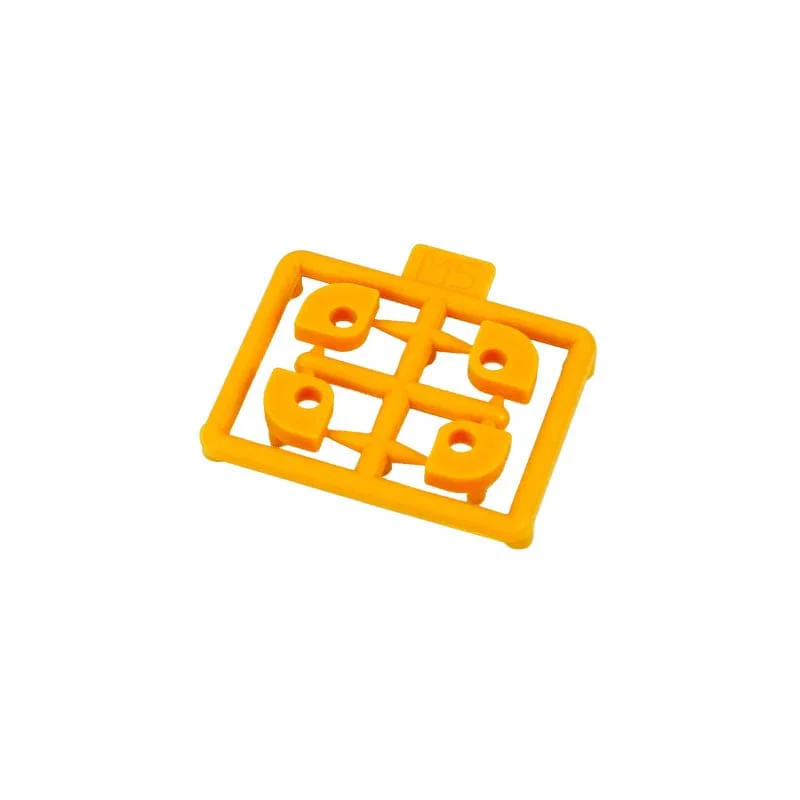

• 1 x Plastic Pad part (4 pcs included)
• 2 x Die-cut 3M Waterproof Double-sided Adhesive Tape

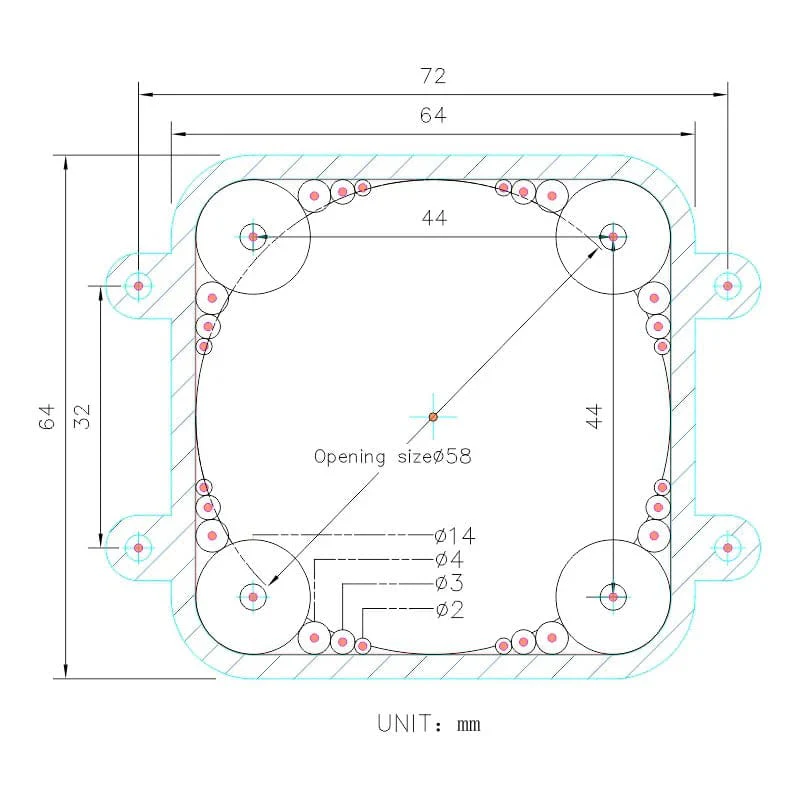

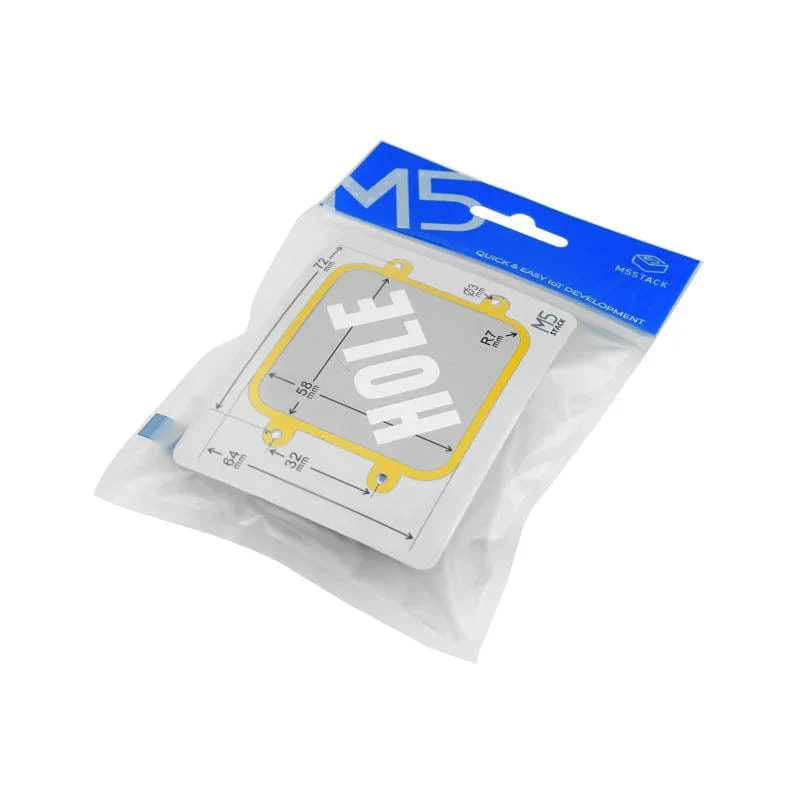

• 1 x Card Paper with Dimension Indication
• 4 x M3 x 16 stainless steel hexagon screws
• 2 x M3 x 14 stainless steel hexagon screws

Core unit not included

Specifications

Net Weight	8.96g
Gross Weight	24g
Product Size	72mm x 64mm x 18.4mm
Package Size	165mm x 118mm x 19mm

Resources

• Product documentation and assembly instructions
