M5Stack Encoder Unit

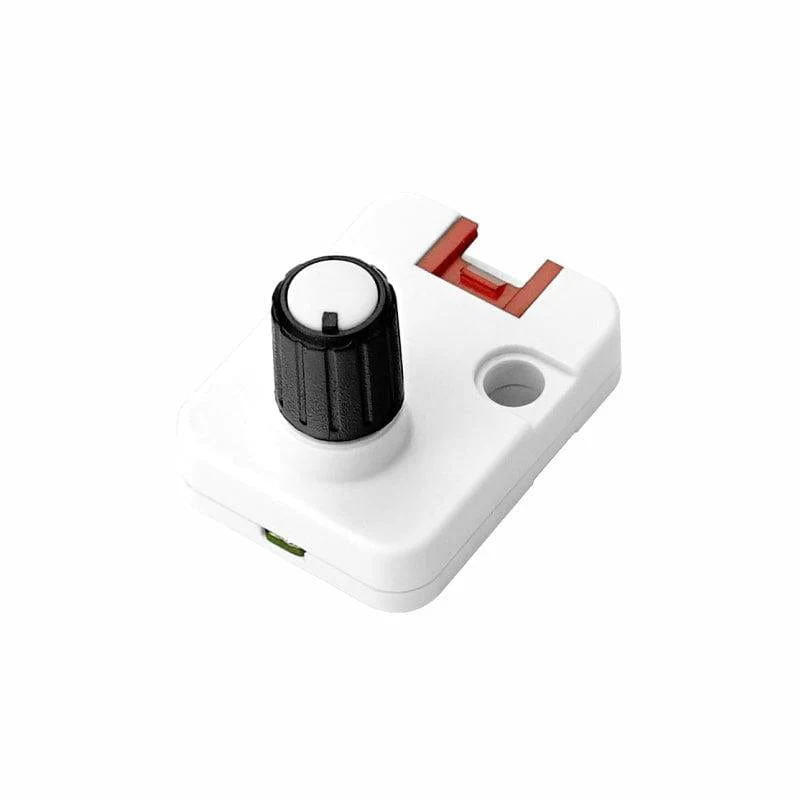

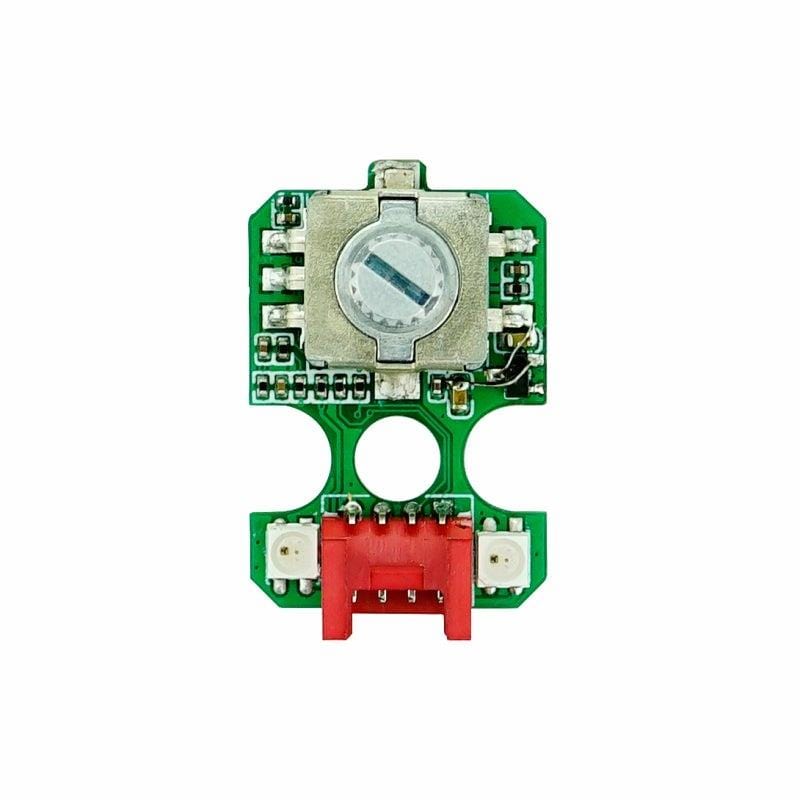

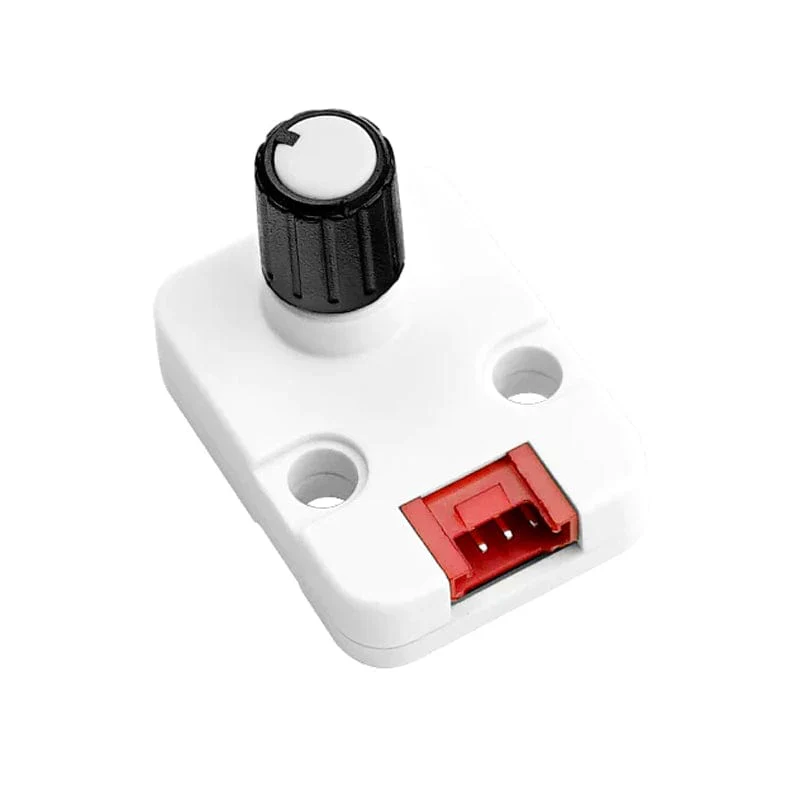

The M5Stack Unit Encoder is a rotary encoder expansion unit with an I2C interface, integrated with a 30-bit pulse encoding knob (with button function) and 2 x SK6812 programmable RGB LEDs.

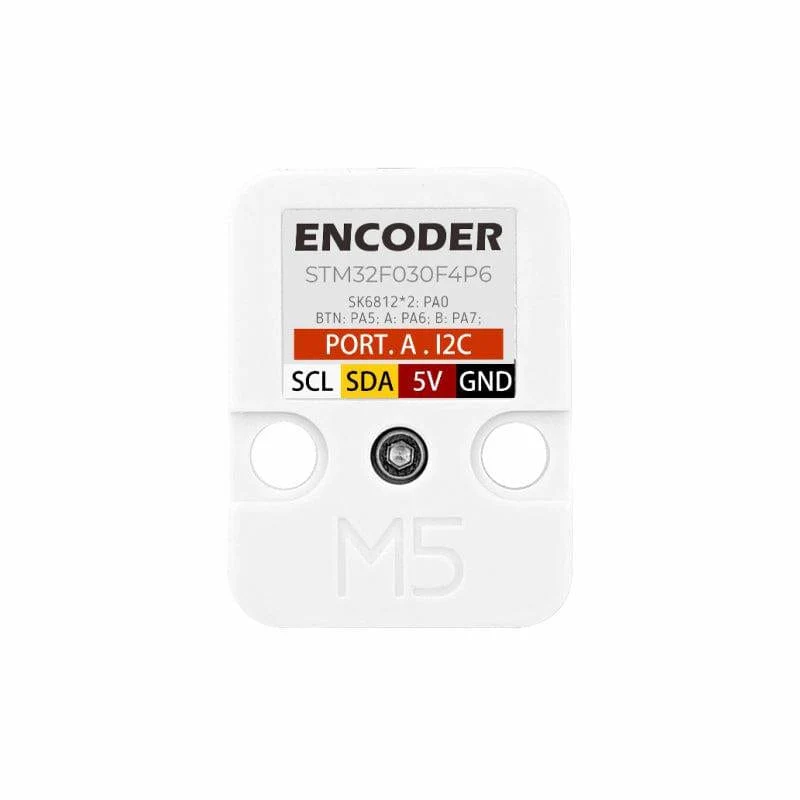

The built-in STM32F030 flashed with the encoder pulse acquisition firmware, allowing users to obtain the encoded value directly via I2C. Suitable for scale value control/volume adjustment and other control scenarios.

Features

• 30-bit pulse encoding knob (30 pulses per rotation)
• 2x SK6812 programmable RGB LEDs
• 1x Button input

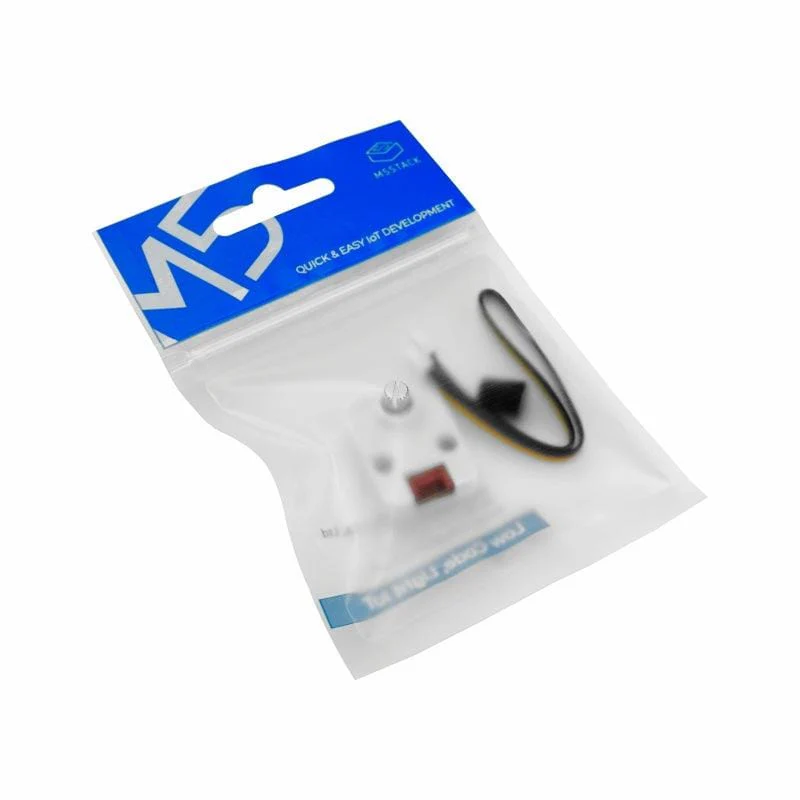

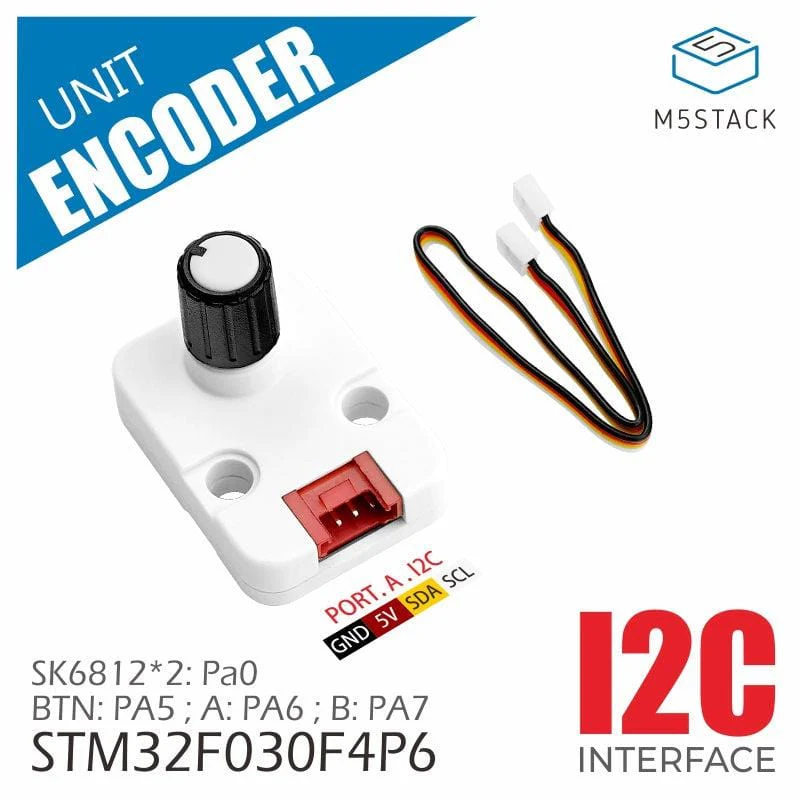

Package Contents

• 1x Unit Encoder
• 1x HY2.0-4P cable (20cm)

Applications

• Human Machine Interaction (HMI)
• Volume knob

Specification

Specifications	Parameters
Pulse encoder knob	30-bit pulse encoder knob (with key input)
Programmable RGB LED	2x SK6812
Working current	Encoder working (DC-5V@17mA)
Net weight	7.4g
Gross weight	12.3g

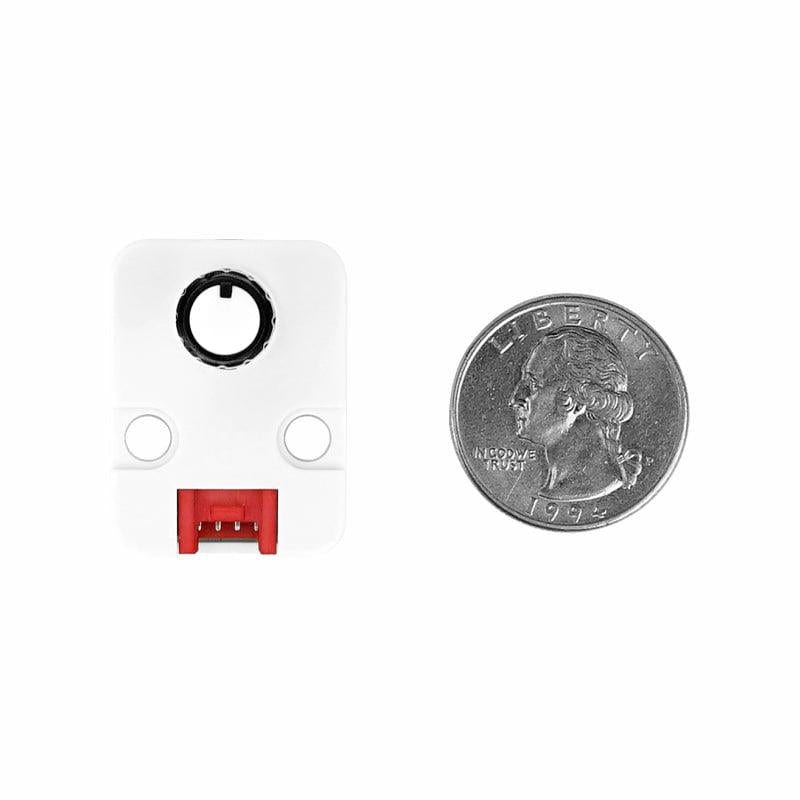

Product size	32 * 24 * 22mm
Packing size	93 * 138mm

Resources

• Product Documentation
• Arduino Examples
  • Unit Encoder Library
  • Unit Encoder Test With M5StickC
