M5Stack Display Module 13.2

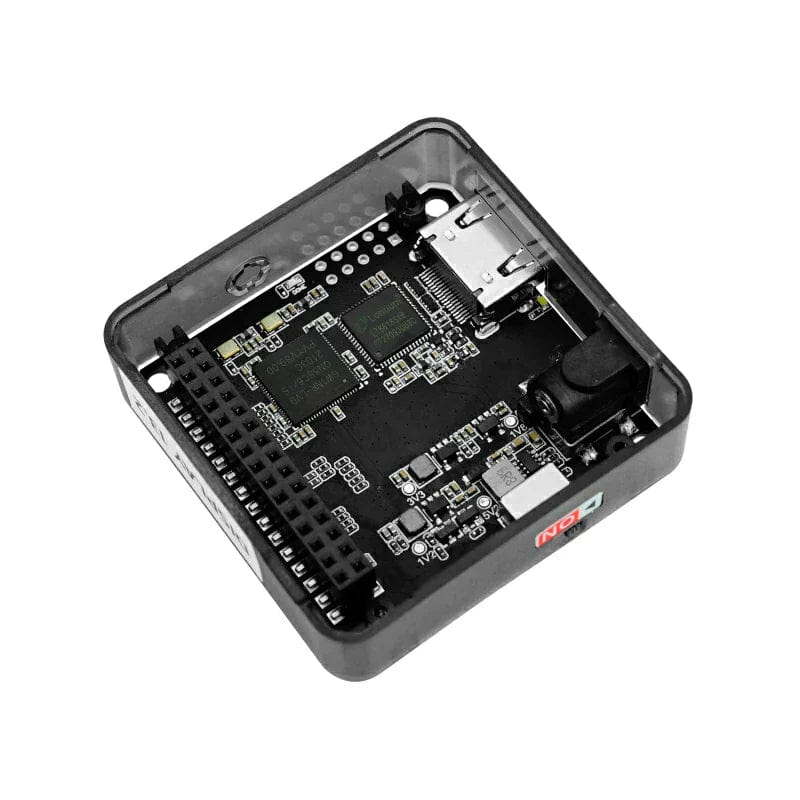

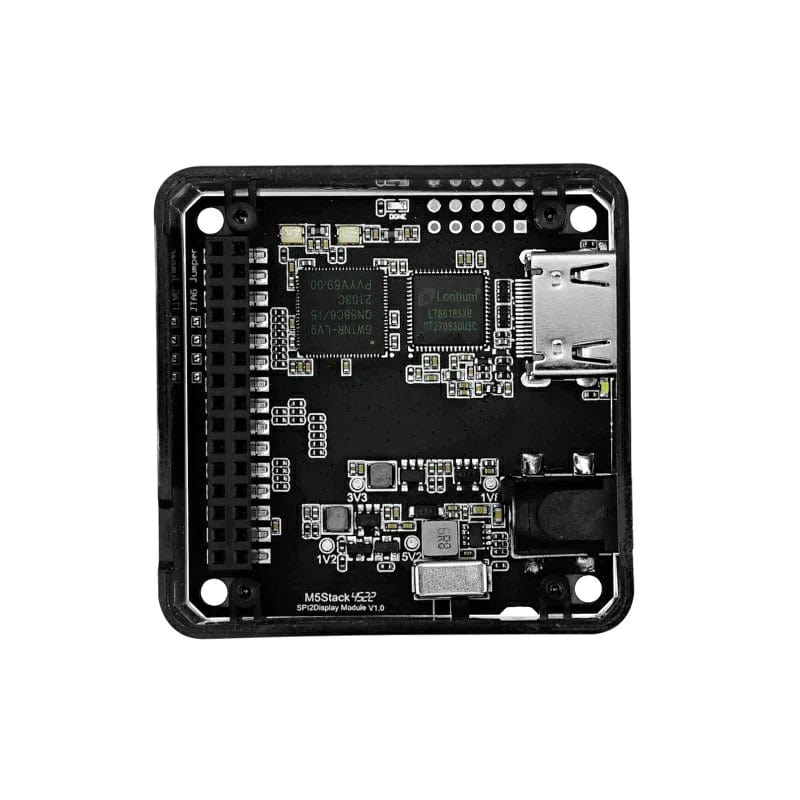

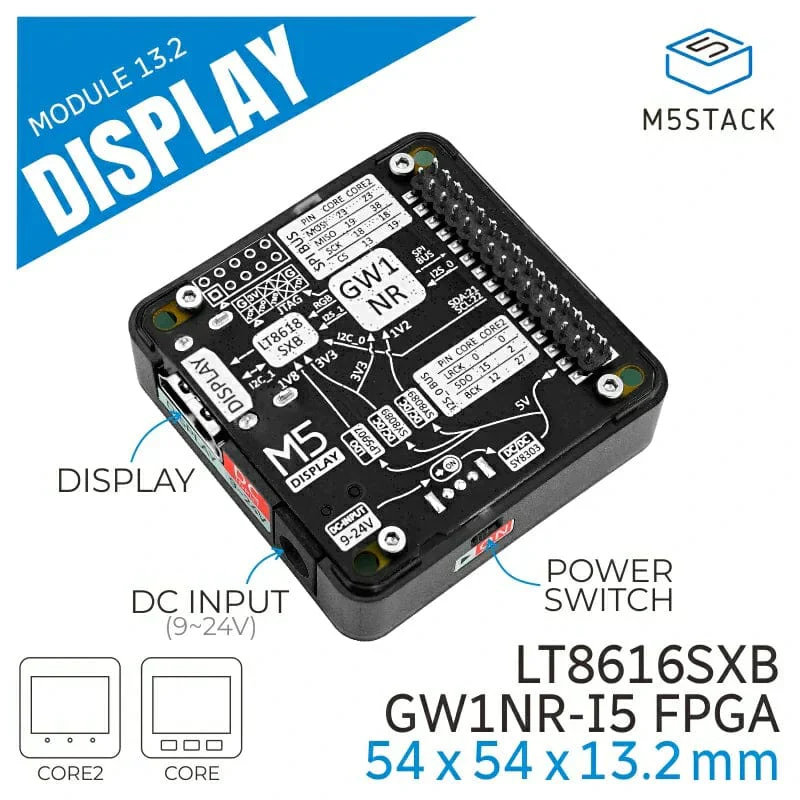

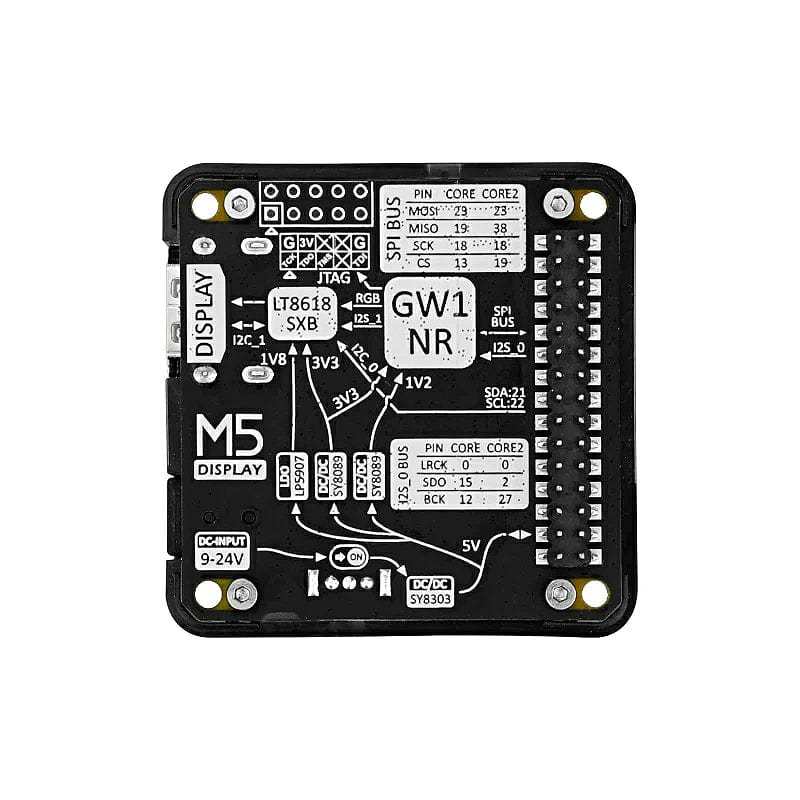

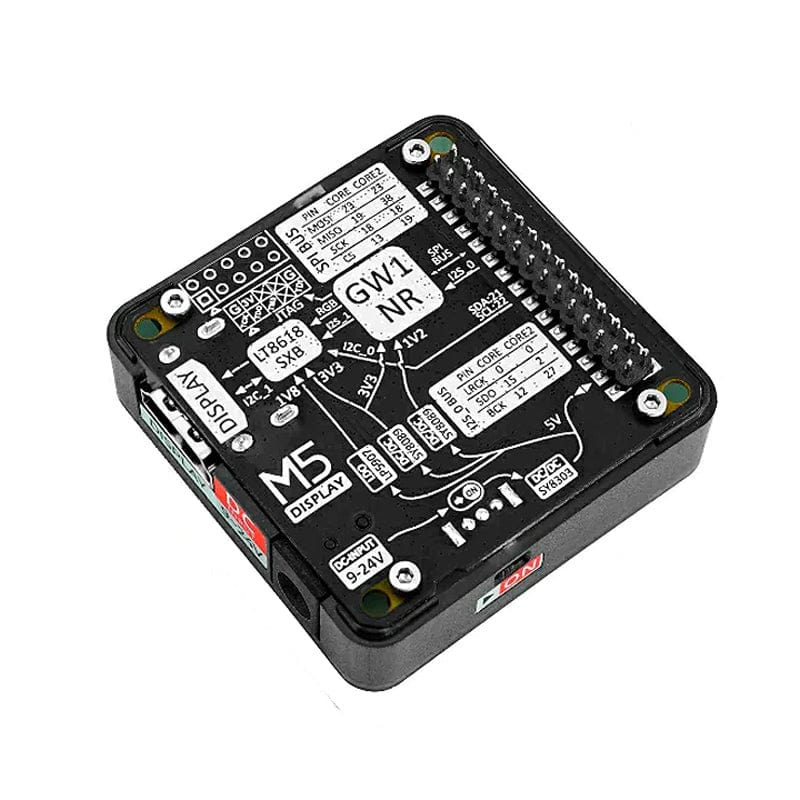

The Display Module 13.2 is an expansion module for HD audio and video, using the GAOYUN GW1NR series FPGA chip to output the display signal, and using the LT8618S chip as signal output conditioning, which has a 24-bit colour depth display signal, an 8-channel audio signal output, and a resolution of up to 1080P.
Features
- Supports 24-bit RGB input
- Resolution of up to 1080P
- Supports up to 8 channels of audio input
- Includes 9-24V to 5V, 3.3V and 1.2V DC-DC circuits, and 5V to 1.8V LDO circuits
- HD audio and video interface, JTAG download interface
- 9-24V DC power interface
- Power switch
Specifications
| Resources | Parameters |
| Audio and video signal acquisition chip | GW1NR-LV9QN88C6-I5 FPGA |
| Audio and video signal processing chip | LT8616SXB |
| 9-24V to 5V DCDC buck chip | SY8303 |
| 5V to 3.3V and 1.2V DCDC buck chips | SY8089 |
| 5V to 1.8V LDO buck chip | LP5907 |
| Resolution | MAXIMUM 1080P (1920x1080) |
| The power supply | 9-24V |
| Product Size | 54mm Ă— 54mm Ă— 14.2mm |
| Package Size | 93mm Ă— 63mm Ă— 25mm |
| Product Weight | 21.6g |
| Package Weight | 41.2g |
Resources
- Product Wiki
Package Contents
- 1x Display Module 13.2
