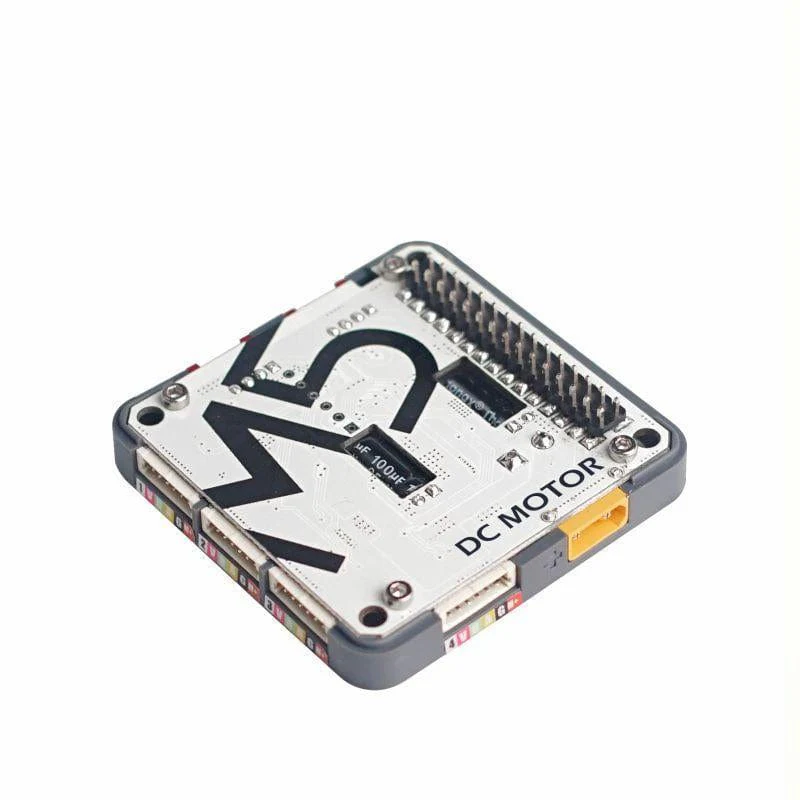

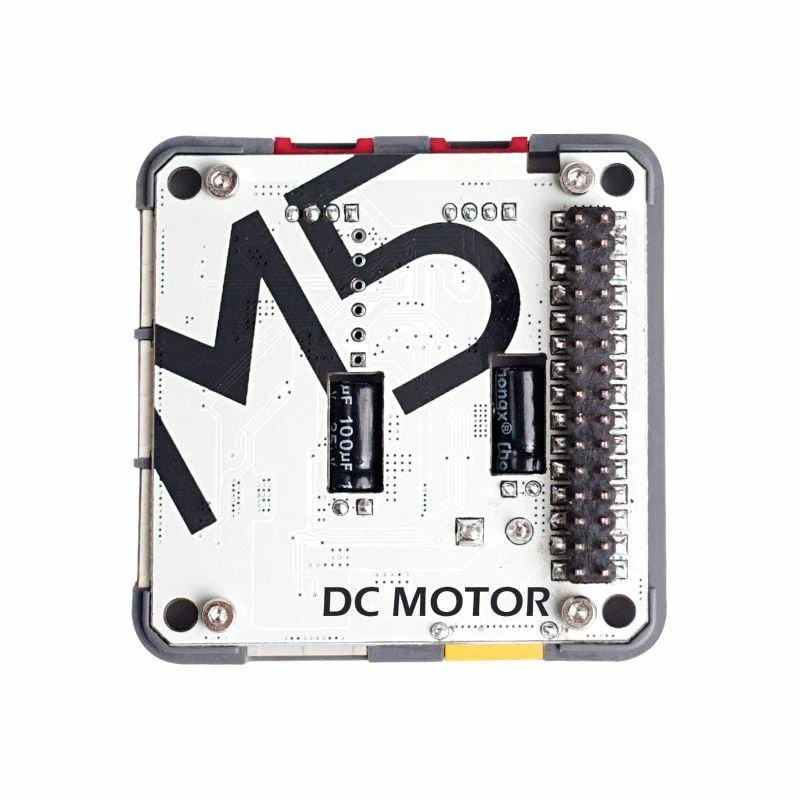

M5Stack DC Encoder Motor Module 4 Channels [Discontinued]
A stackable encoder motor control module for use with M5Stack Core development boards. It's also building brick compatible!
This module can drive up to 4 channels of RJ12 encoder motors and it has a chunky DC power input that will accept up to 12V. It's possible to power the M5Stack Core board through the motor module.

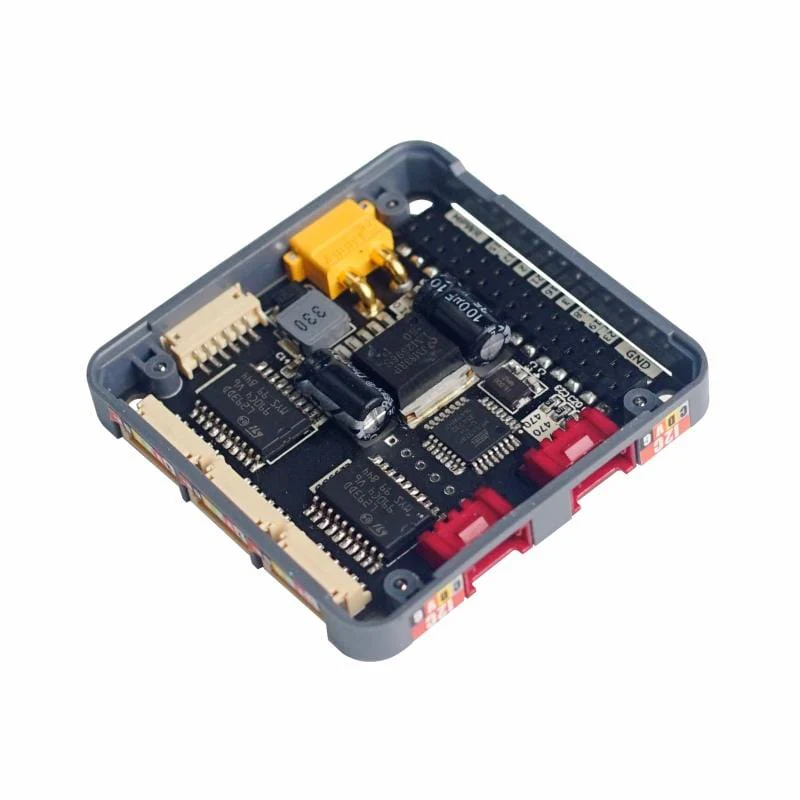

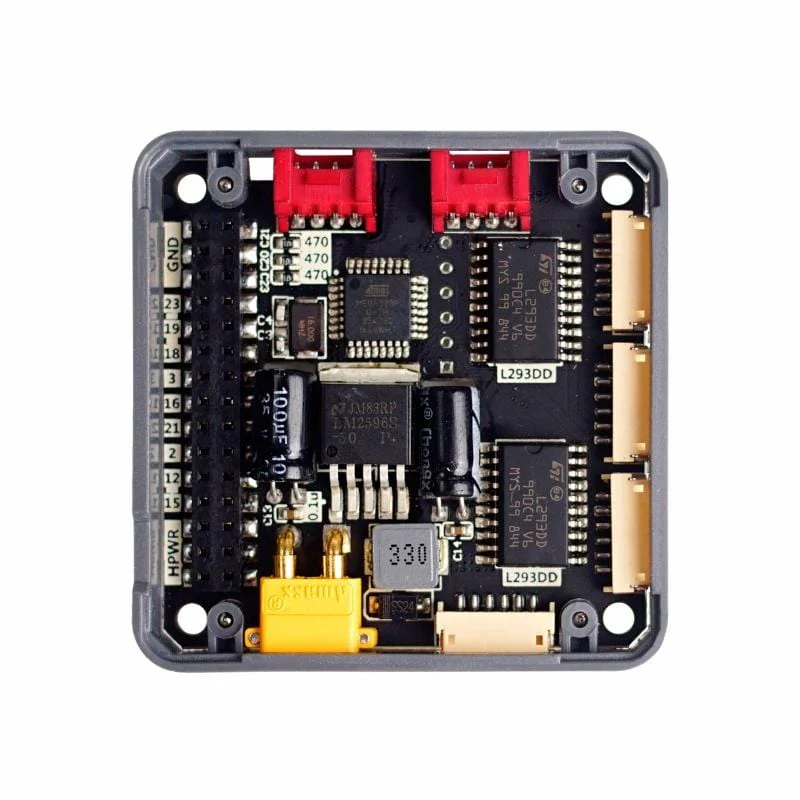

It uses MEGA328 and L293DD chips and communicates with the M5Stack Core board via I2C (0x56).
For more information and for help getting started, click here
Product Features
- DC Power input: 6-12V
- DC Connector Type: XT30 (female)
- 4x Motor port

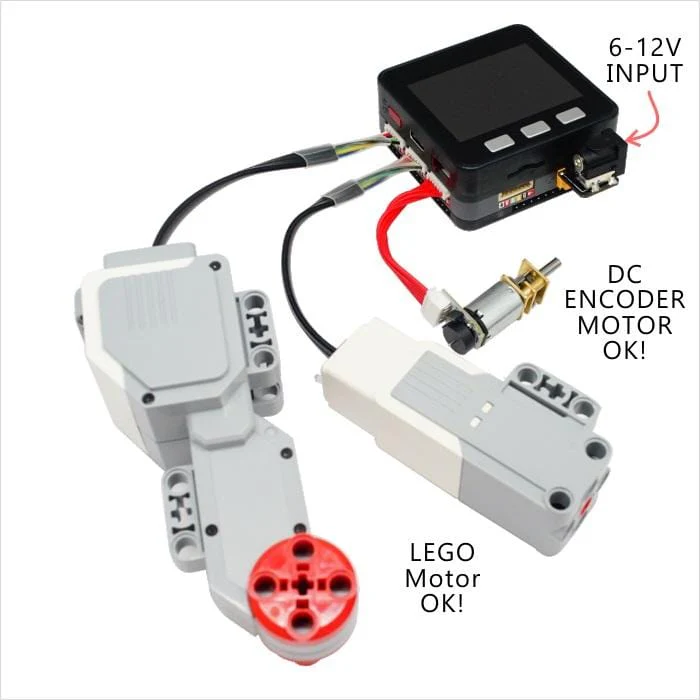

- Compatible with building brick ev3 motor
- 2x IIC GROVE port (extend PORTA from M5 Core)
- L293DD: PUSH-PULL Driver Chip

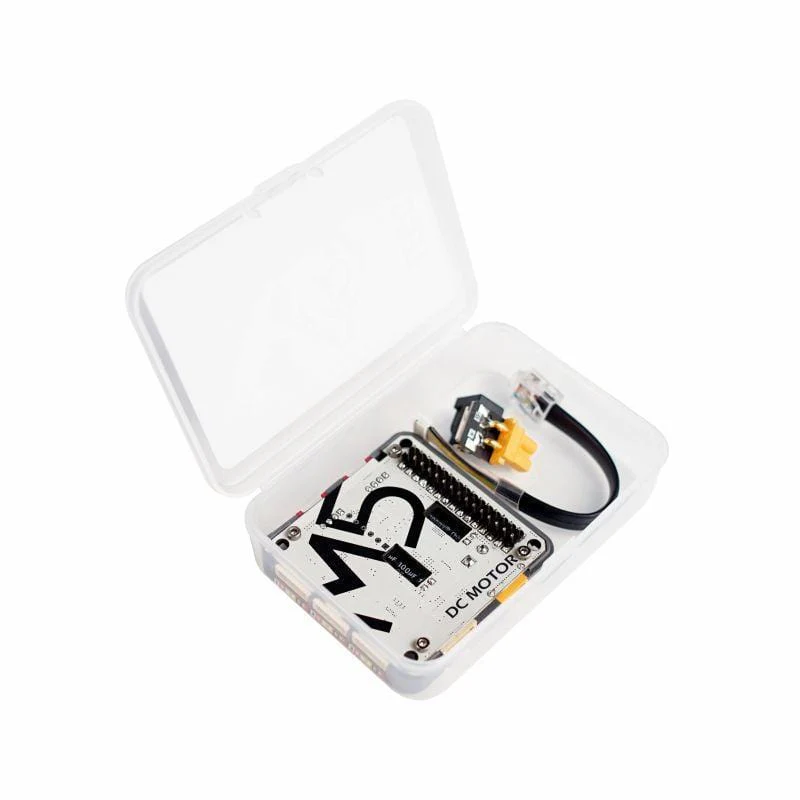

Includes
- 1x DC MOTOR module
- 1x 10cm motor cable
- 1x DC connector
Specification
| Resources | Parameter |
| net weight | 17g |
| Gross weight | 48g |
| Product Size | 54x54x12mm |
| Package Size | 95x65x25mm |
