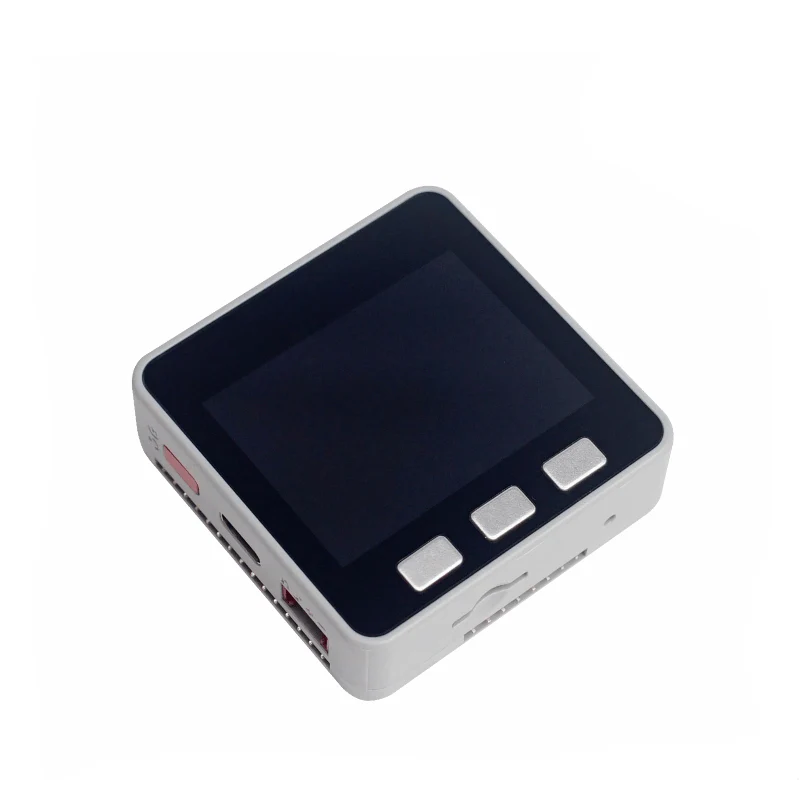

M5Stack Core ESP32 IoT Development Kit - Grey (9Axis Sensor) [discontinued]

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

A starter kit for the modular, stackable, and portable M5Stack IoT development board series, with a range of inbuilt motion sensors.

Powered by an ESP-32 dual-core processor, M5Stack is open source, low cost, and easily expandable with a variety of stackable modules. All Core starter kits come with an industrial-grade case, onboard Wi-Fi & Bluetooth and an inbuilt lithium battery.

The Grey kit includes a built-in 9-Axis IMU sensor (6-Axis posture acceleration measurement and 3-Axis magnetic measurement), which lets you detect acceleration, angle, and trajectory - ideal for collecting sports data or a 3D remote gesture controller.

For more information and for help getting started, click here

Product Features

• ESP32-based
• Built-in Speaker, Buttons, LCD
• TF card slot (Up to 16GB support)
• Battery Socket & Lipo Battery
• Extendable Pins & Holes
• M-Bus Socket & Pins
• Development Platform UIFlow, MicroPython, Arduino

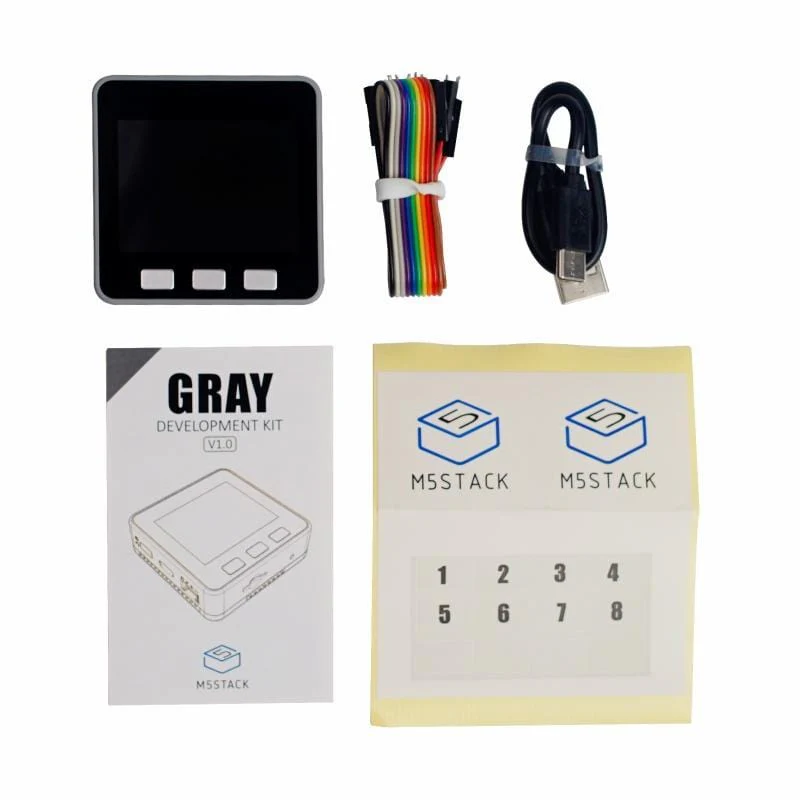

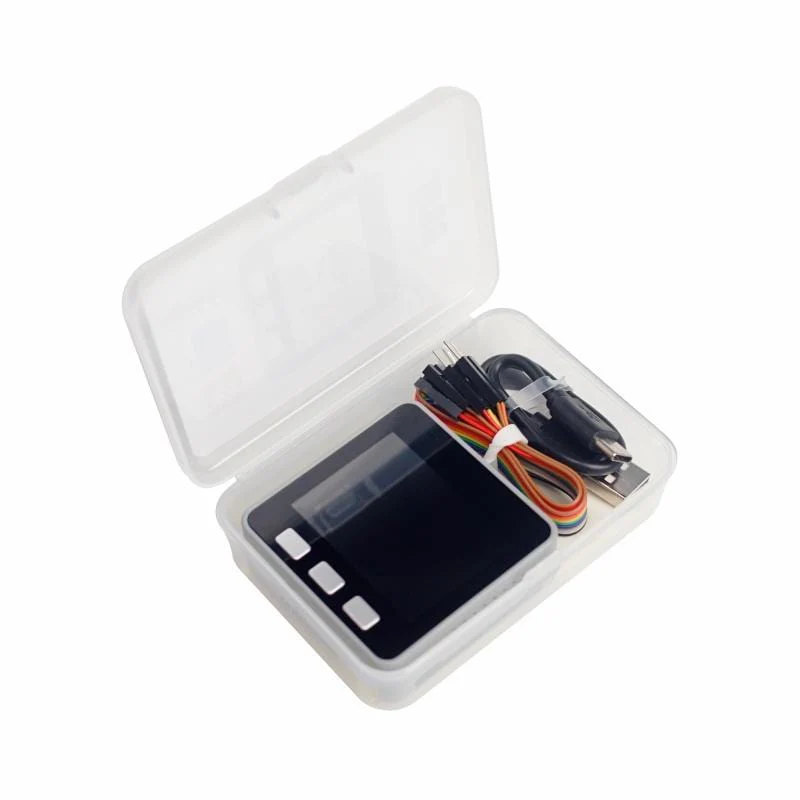

Includes

• 1x Gray
• 10x Female-male Dupont connectors

• 1x Type-C USB cable (20cm)
• 1x User Manual
• 1x Sticker

Applications

• Internet of things terminal controller
• Stem education product
• DIY creation

Specification

Resources	Parameter
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash Memory	16MB (old: 4MB)
Power Input	5V @ 500mA
Port	TypeC x 1, GROVE(I2C+I/0+UART) x 1
IPS Screen	2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit
Speaker	1W-0928
Button	Custom button x 3

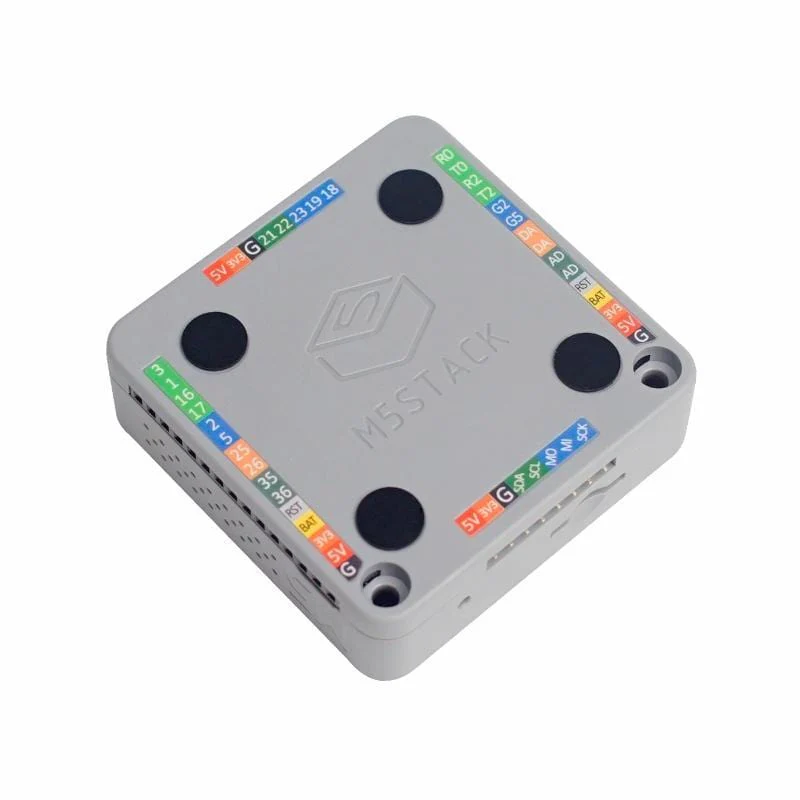

Core Bottom Port	PIN (G1，G2，G3，G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36)
MEMS	BMM150 + MPU6886
Battery	110mAh @ 3.7V
Antenna	2.4G 3D Antenna
Operating Temperature	32°F to 104°F ( 0°C to 40°C )
Size	54.2 x 54.2 x 17.9mm
Weight	49.2g
Case Material	Plastic ( PC )
