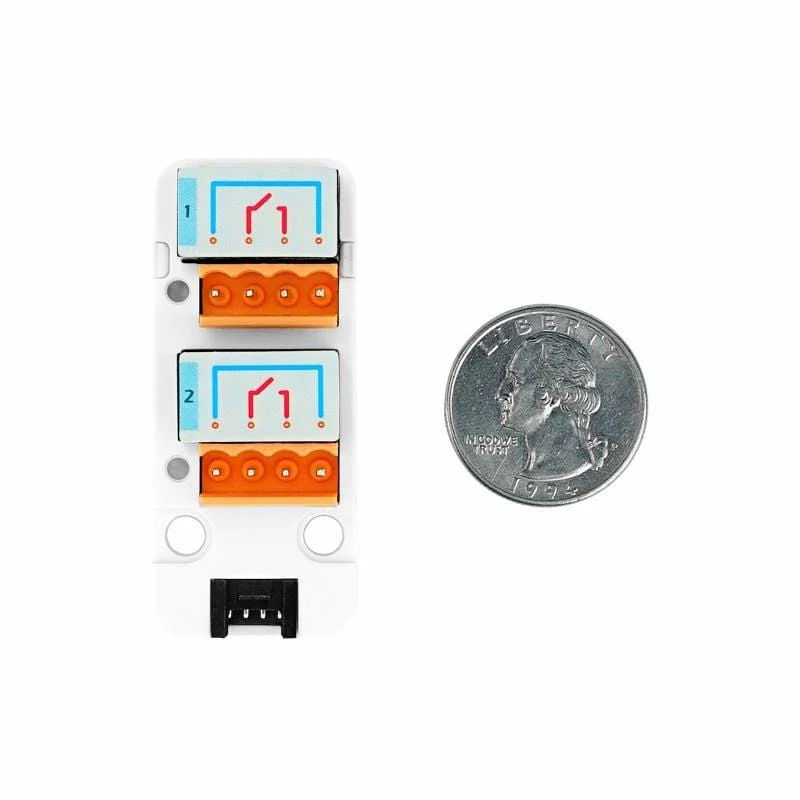

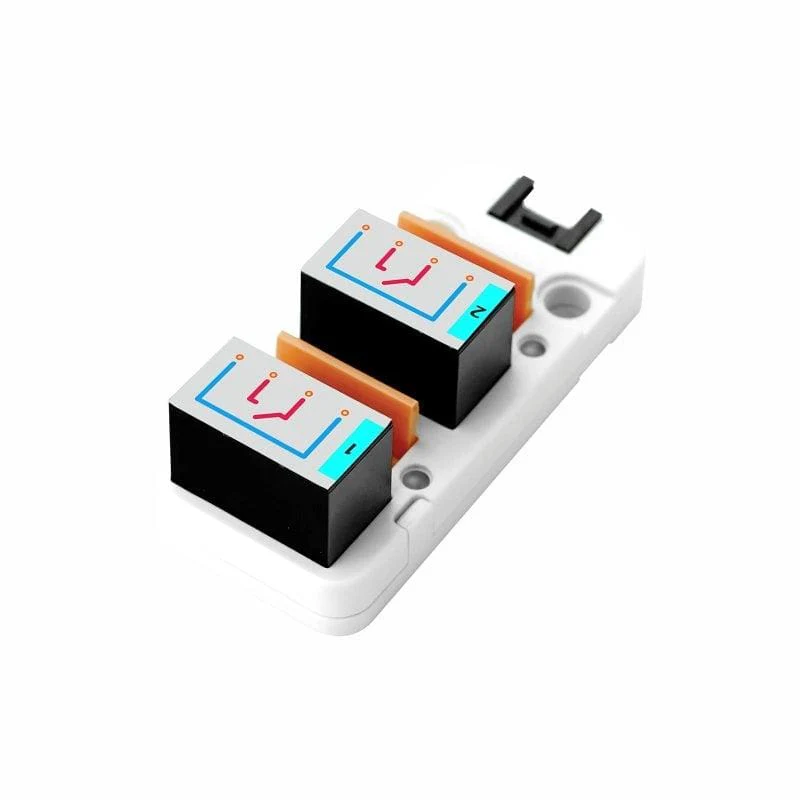

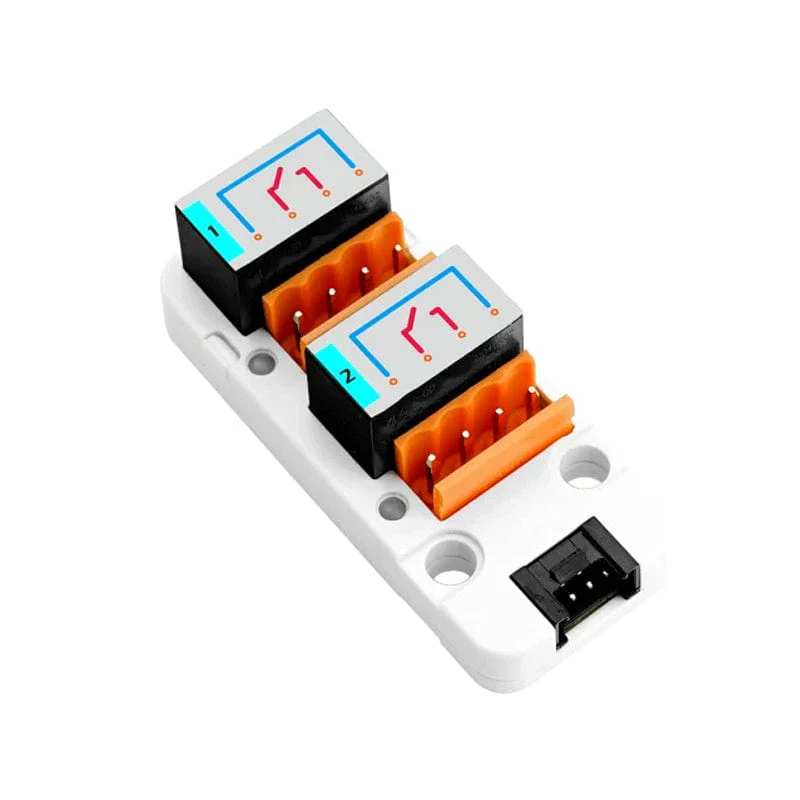

M5Stack 2-Channel SPST Relay Unit

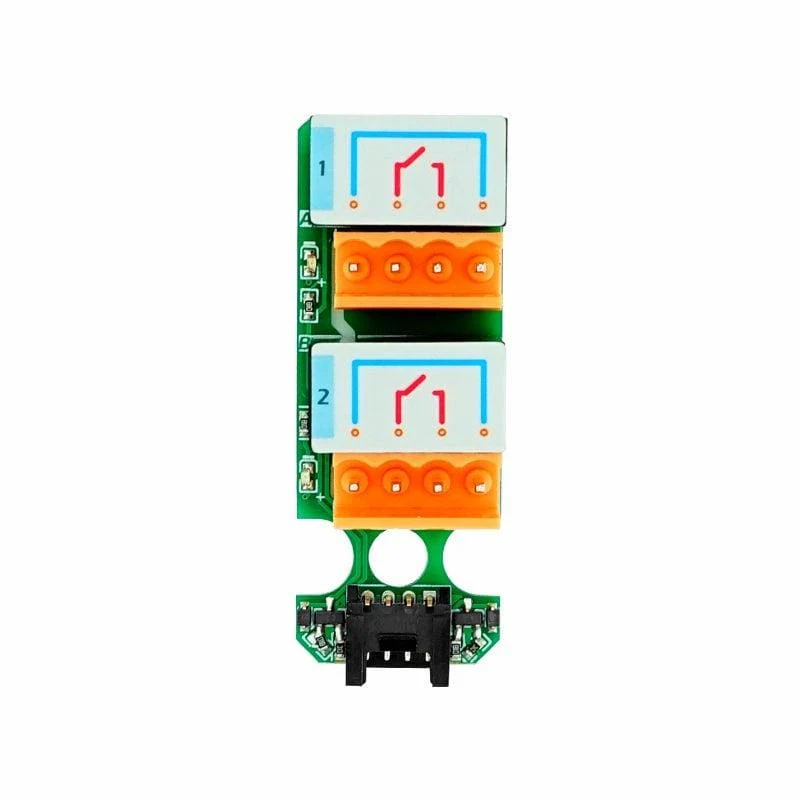

The 2-Channel SPST Relay Unit from M5Stack is a 2-channel SPST relay module equipped with two high-current relays that work under AC250V 8A or DC28V 8A.

Each relay adopts independent IO control and status indicator LED. It's suitable for home appliance power control or ON/OFF switch for industrial equipment.

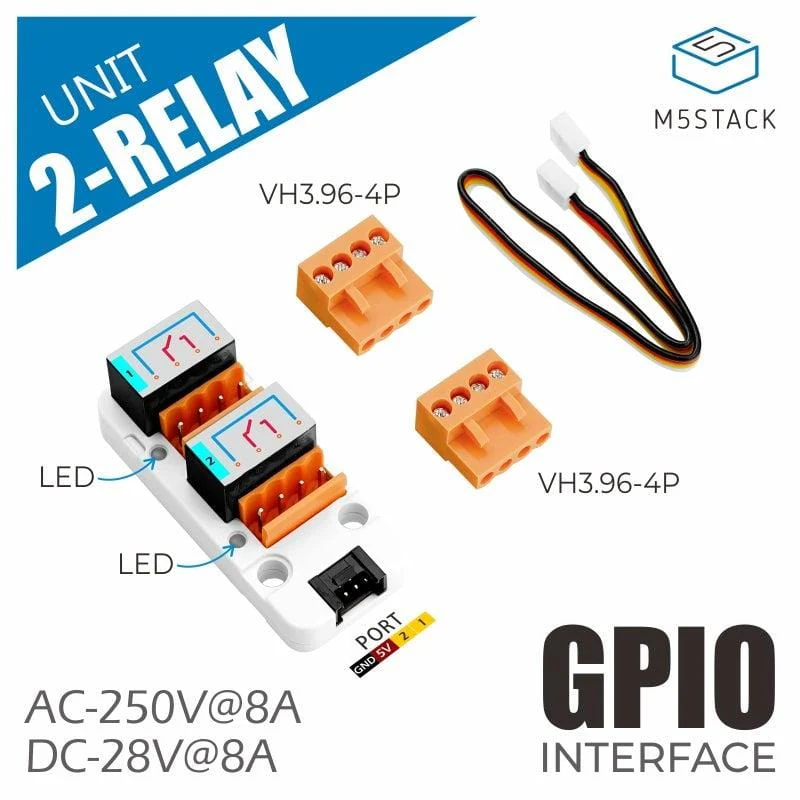

The module comes with connector blocks and a cable.

Features

• 2-channel relay
• AC-250V/DC-28V @ 8A
• Status Indicator LED

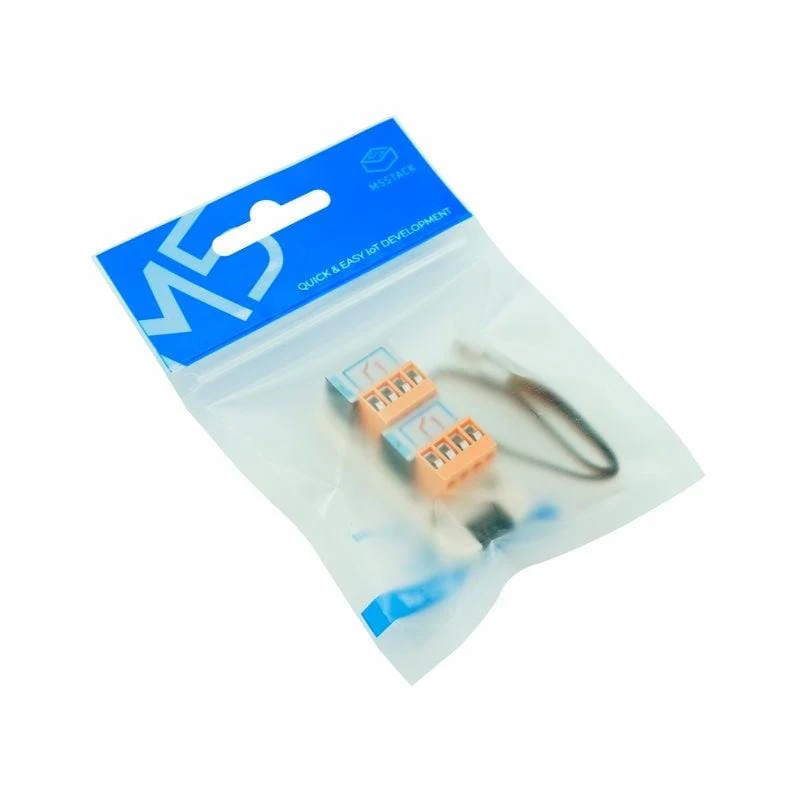

Package Contents

• 1x 2-RELAY Unit
• 1x HY2.0-4P cable (20cm)
• 2x VH3.96-4P Plug terminal

Specification

Specifications	Parameters
Maximum on-off voltage	AC-250V/DC-28V
Rated current	8A
Coil control voltage	DC5V
Coil power consumption	5V@154mA
Coil action time	≤ 8ms
Coil release time	≤ 5ms
Contact form	A normally open type
Contact material	AgSnO2
Relay indicator	Blue x2
Net weight	20g
Gross weight	31g
Product size	56 * 24 * 19mm
Packing size	93 * 138mm

Resources

• Documentation page
