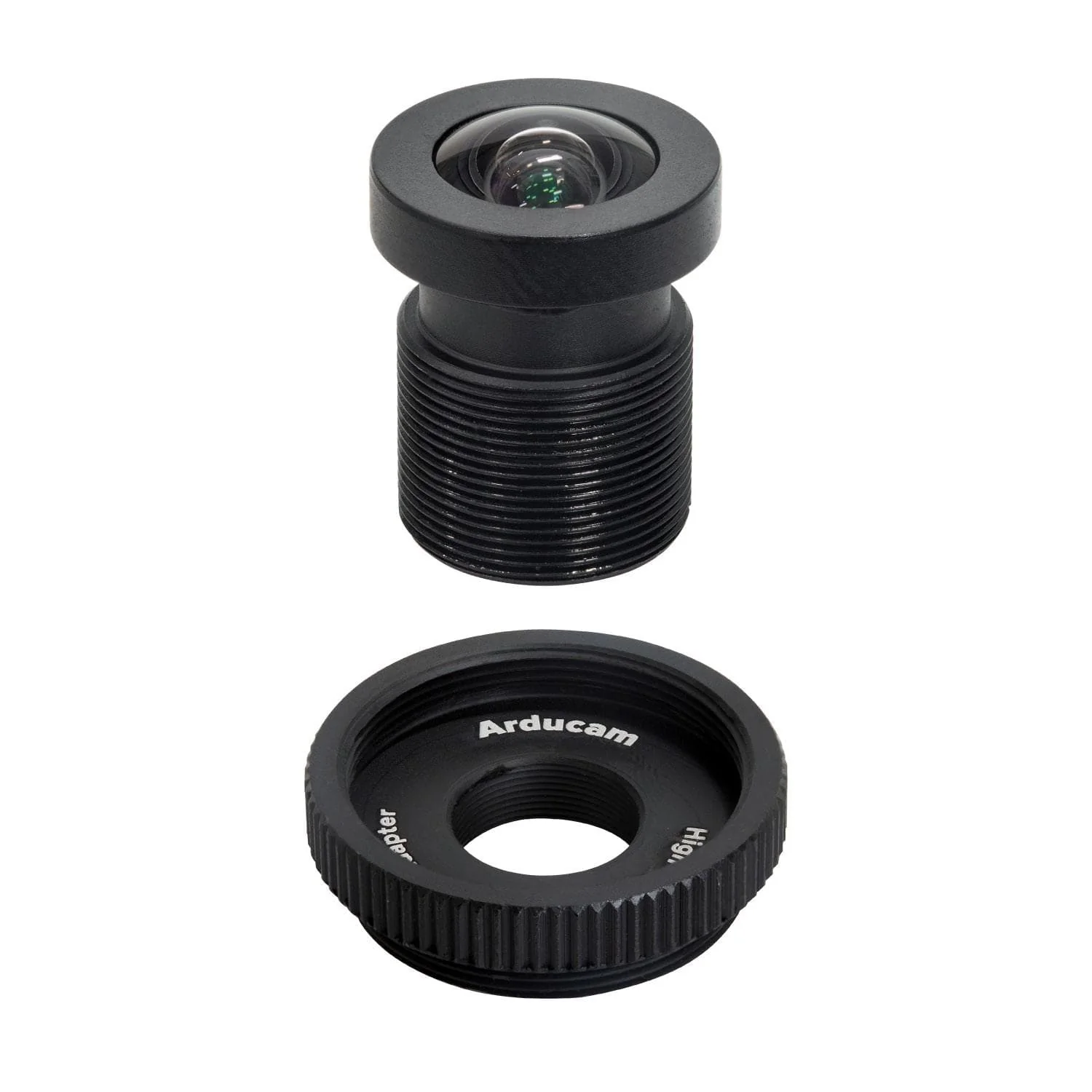

M12 Lens - 90-Degree Wide Angle with Raspberry Pi HQ Camera Adapter

This 90-degree wide-angle M12 lens is an inexpensive lens option for the Raspberry Pi High Quality Camera, which can be fitted using the included HQ Camera adapter...or just use the M12 lens with the M12 version of the HQ Camera

The lens can also be used as an alternative lens option for the Arducam Mini High Quality Camera.

The lens has a 90° FoV is capable of capturing a 2 x 1.5 m (6.56 x 4.92 ft) scene at a 1-meter (3.28 ft) distance.

Why an M12 lens?

• Lightweight: M12 lenses are tiny and take up less space than traditional C-mount lenses
• Cost-effective: M12 lenses are generally cheaper than most C-mount lenses
• Project-centric: Different projects require different lens requirements. M12 lenses provide a more affordable way to collect lenses for different scenarios.

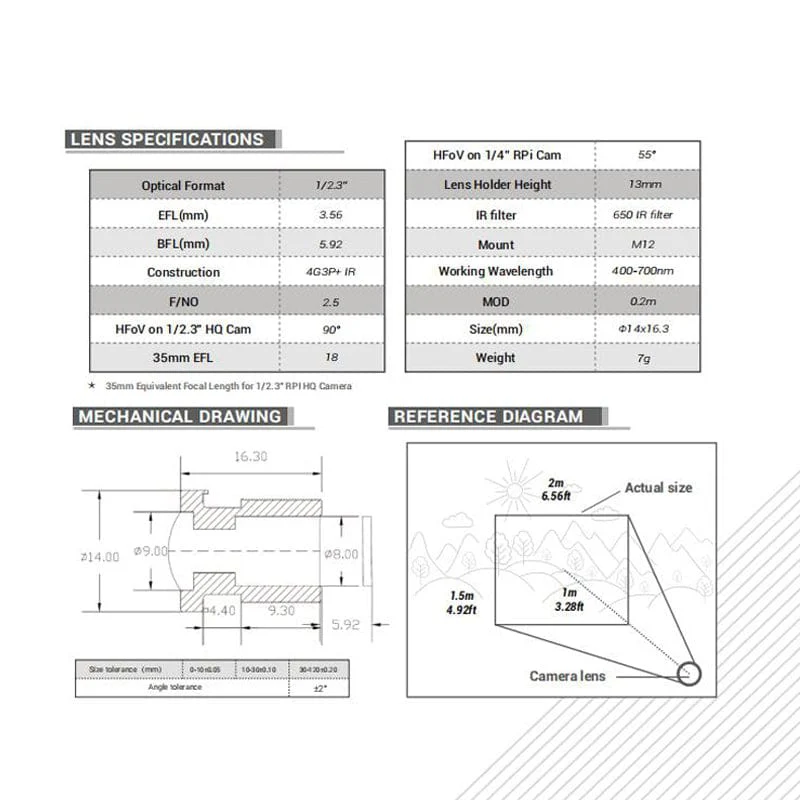

Specification

• Optical Format: 1/2.3”
• Focal Length: 3.56mm
• Aperture: F2.5
• Field of View (FOV): 90° (H) on Raspberry Pi High Quality Camera, 55°(H) on Arducam B0103 camera
• Mount: M12 mount
• Back Focal Length: 5.92mm
• MOD: 0.2m
• Dimension: Φ14×16.3mm
• Weight: 7g
• IR Sensitivity: sensitive to visible light, with 650nm IR filter
• Model No: M23356H09

Note: High Quality Camera not included
