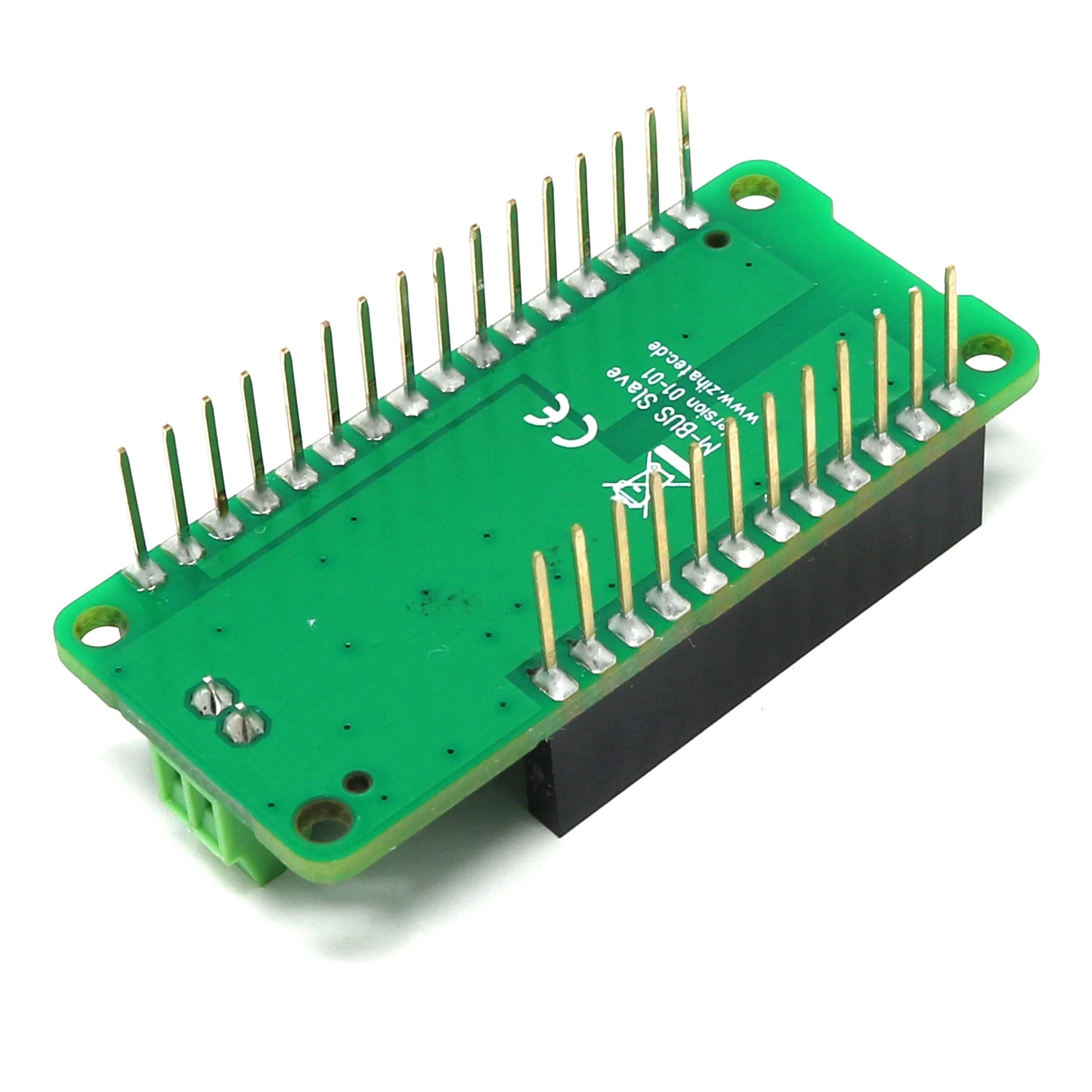

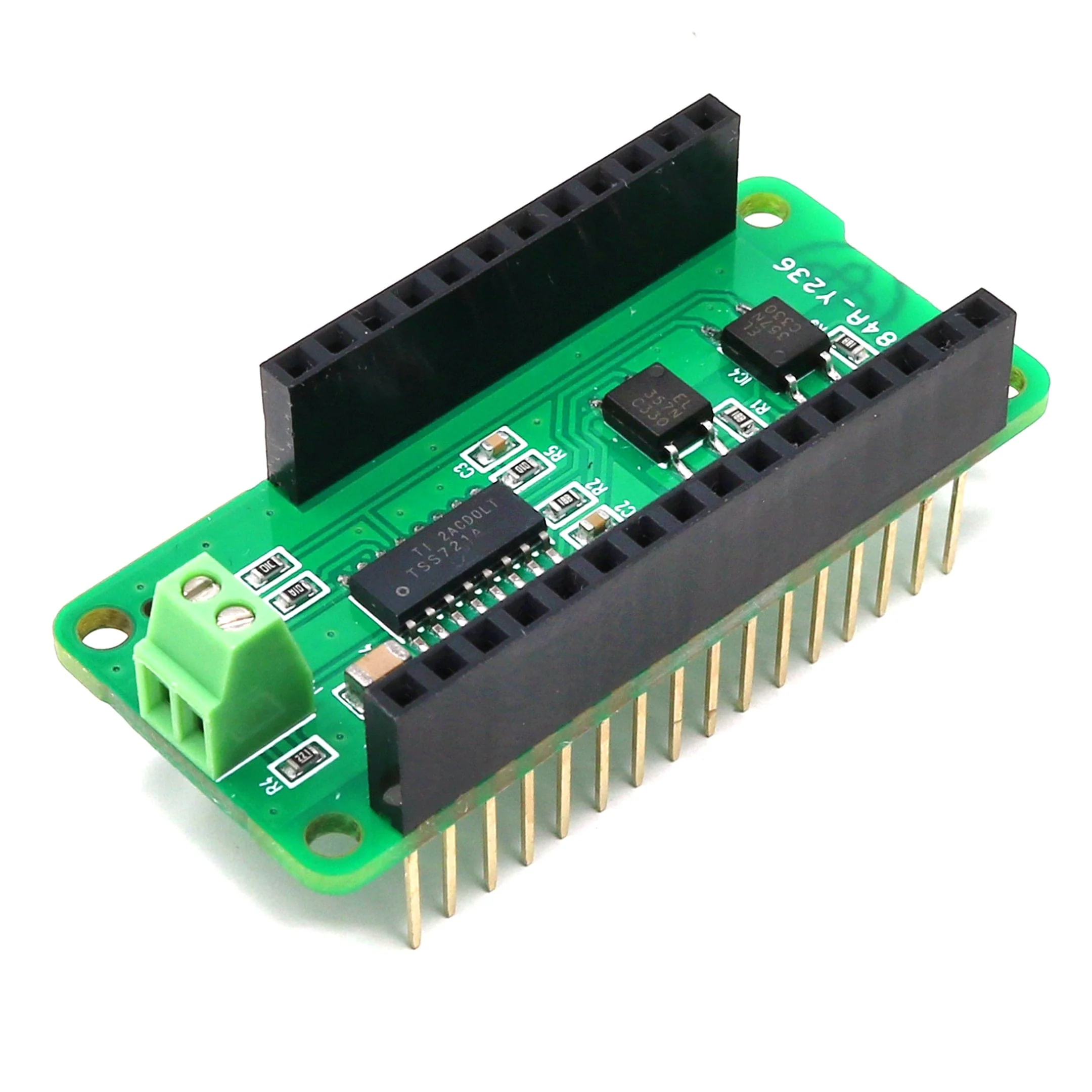

M-BUS Slave FeatherWing

This M-BUS Slave is an add-on board for Feather microcontroller boards, which act as M-Bus (meter bus) slave nodes. It uses the TSS721 M-Bus Transceiver IC and has an isolated interface.

This FeatherWing can read consumption meters with a P1 customer interface, such as electricity meters, or be used to create custom M-Bus meters. Software support includes example codes for the Arduino IDE to read meters and implement simple meter functionalities.

The M-Bus Master FeatherWing can be found here

Features

• M-Bus Slave Node
• Based on the TSS721 M-Bus Transceiver IC from Texas Instruments
• Isolated Interface

Connection Example - Electric Meter with P1 Port

Resources

• Datasheet

Software

• Arduino IDE
  • On our GitHub account we have provided example code for reading consumption meters with P1 customer interface and DLMS/COSAM protocol
  • The Arduino M-BUS meter example shows how you can program your own simple meters
