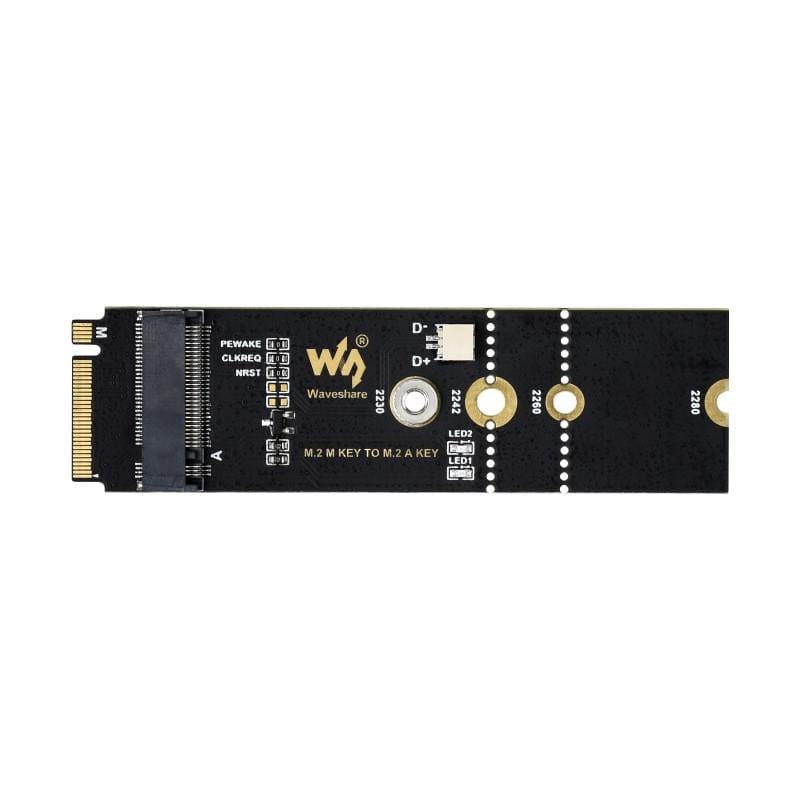

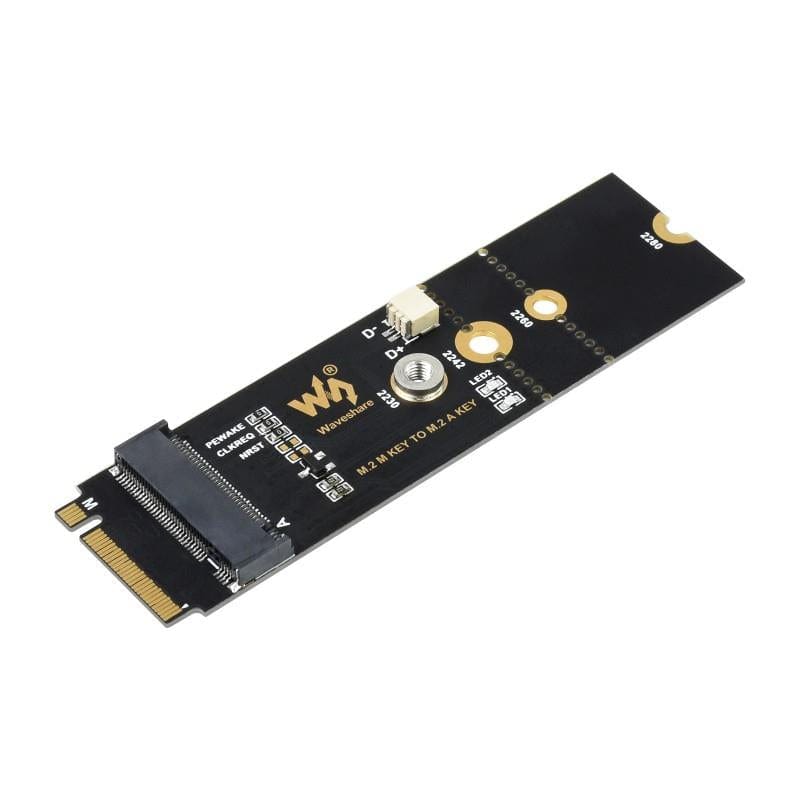

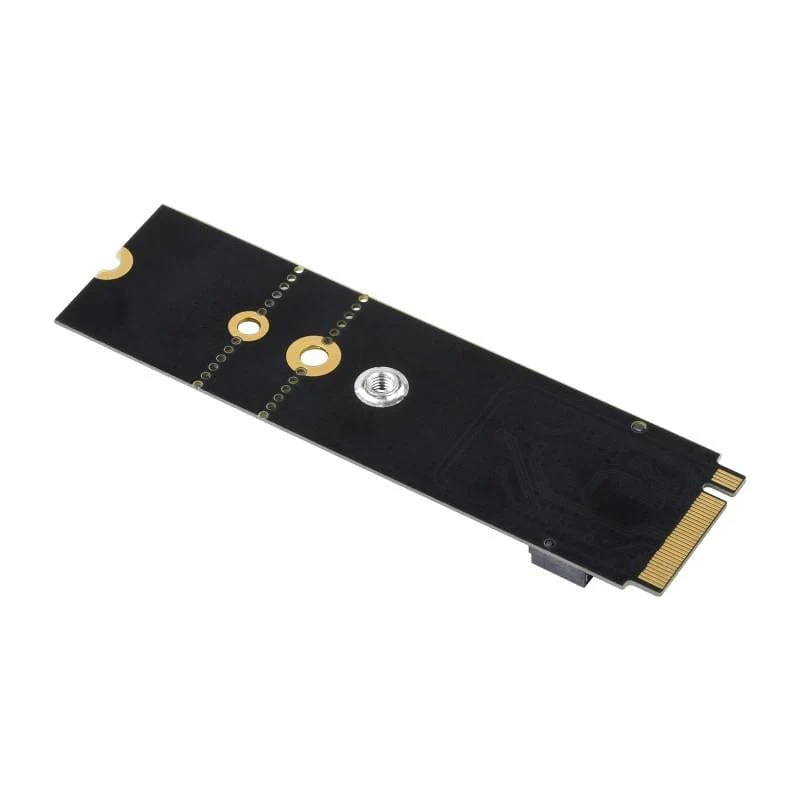

M.2 M-Key to A-Key Adapter (for PCIe Devices)

This is an M.2 M-Key to A-Key adapter for PCIe devices, including a USB conversion cable.

M. 2 SSDs utilize three common keys: B, M, and B+M key. This adapter converts a standard M.2 M-Key to accept an M.2 A-Key compatible module into a standard M.2 PCIe port, and also supports USB conversion.

The adapter also features two LED indicator lights that illuminate when the device is successfully connected and functioning.

Features

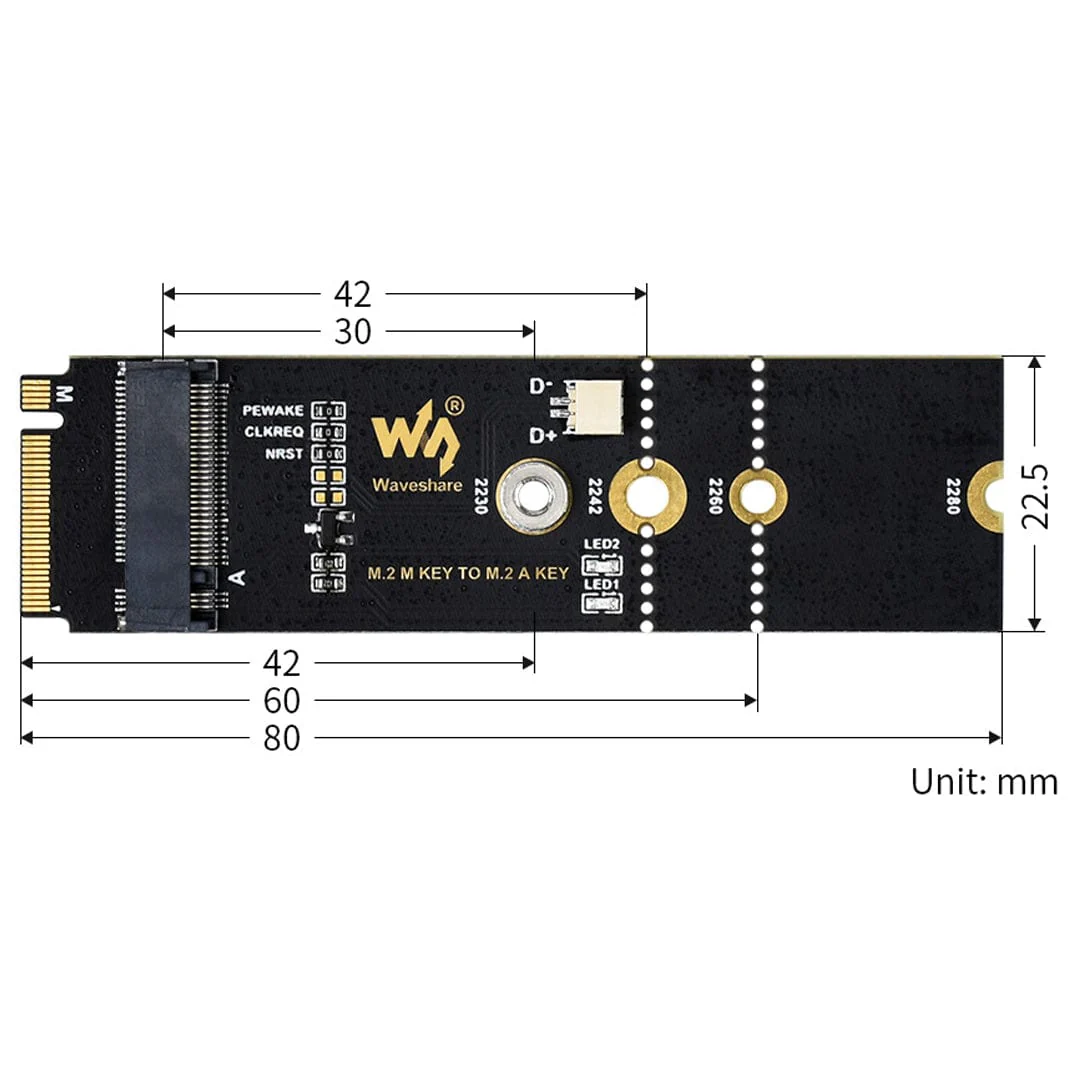

• Compatible with multiple M.2 specifications: M.2 (A-Key) 2230/2242 to M.2(M-Key) 2260/228
• LED indicators:
  • LED1 will illuminate the device is successfully connected and functioning,
  • LED2 stays off by default

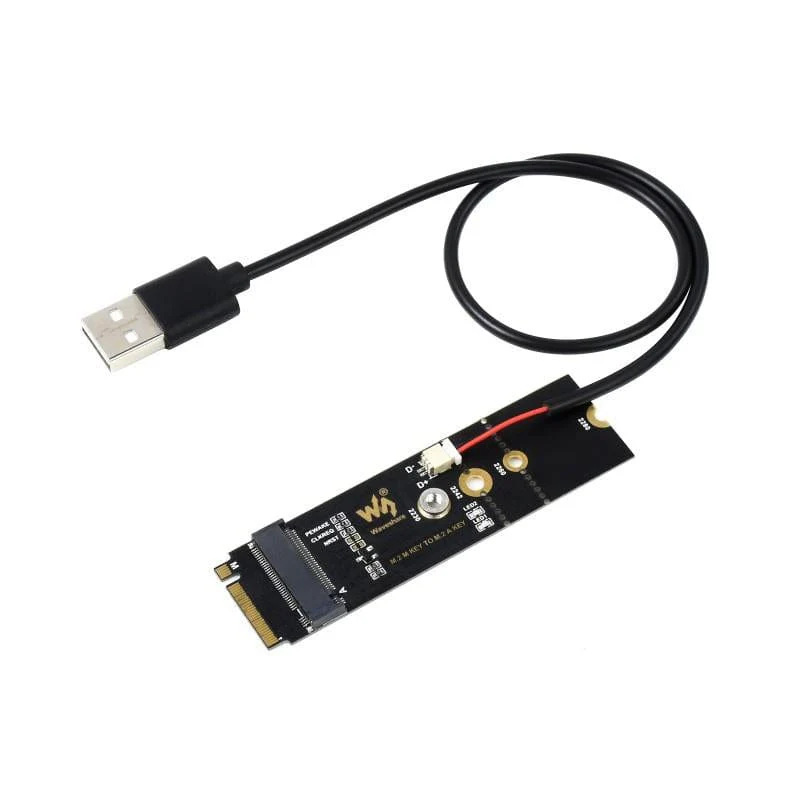

•  Supports USB conversion: connected via included USB adapter cable

Compatibility

USB Conversion

Package Contents

• 1x M.2 M-Key to M.2 A-Key module
• 1x USB-A to SH1.0 2-pin cable
• 1x Screws pack
