I2C 16x2 LCD Module

LCD displays are a fun way to learn how to code with a Raspberry Pi, Arduino and most development boards, however, they usually come with a lot of pin connections.

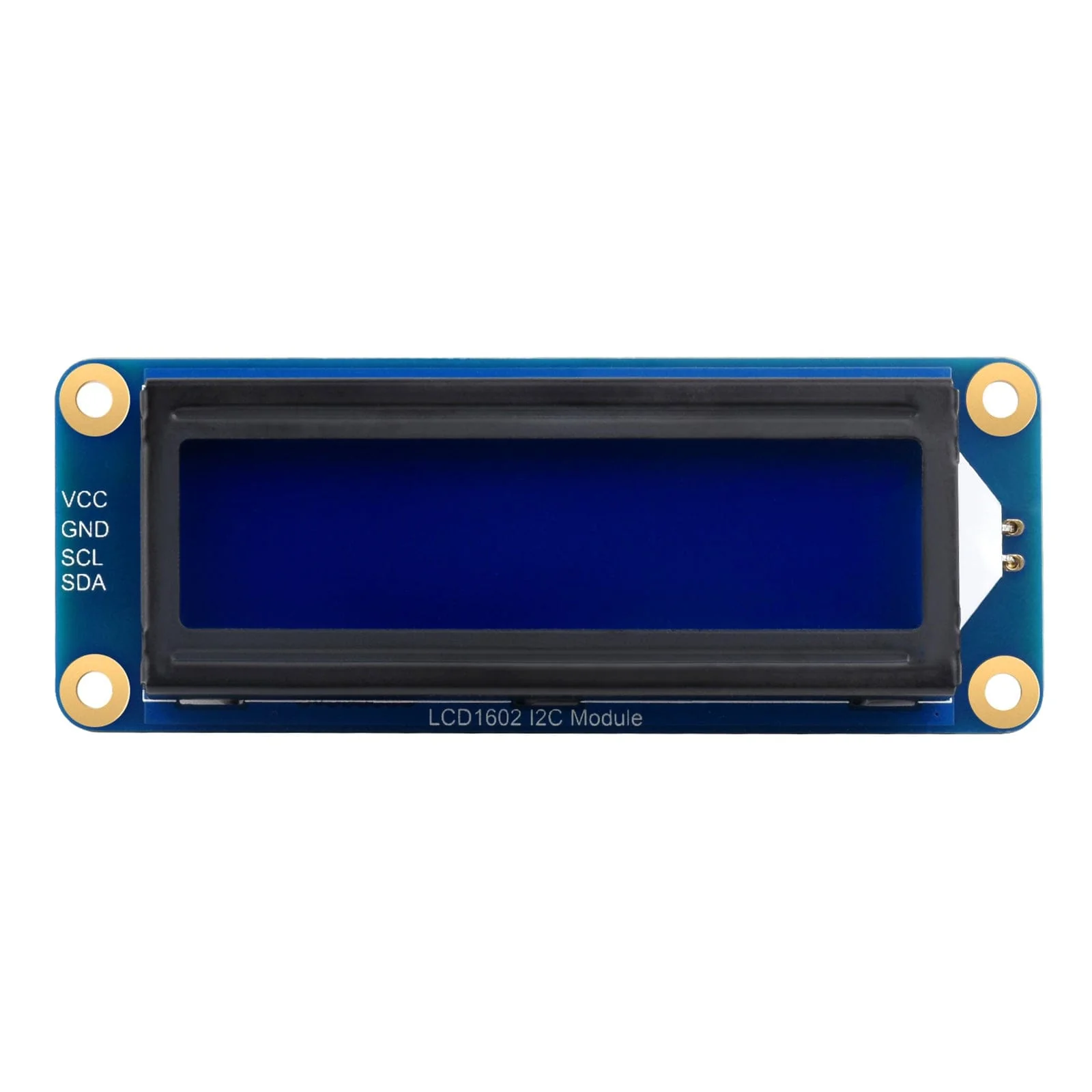

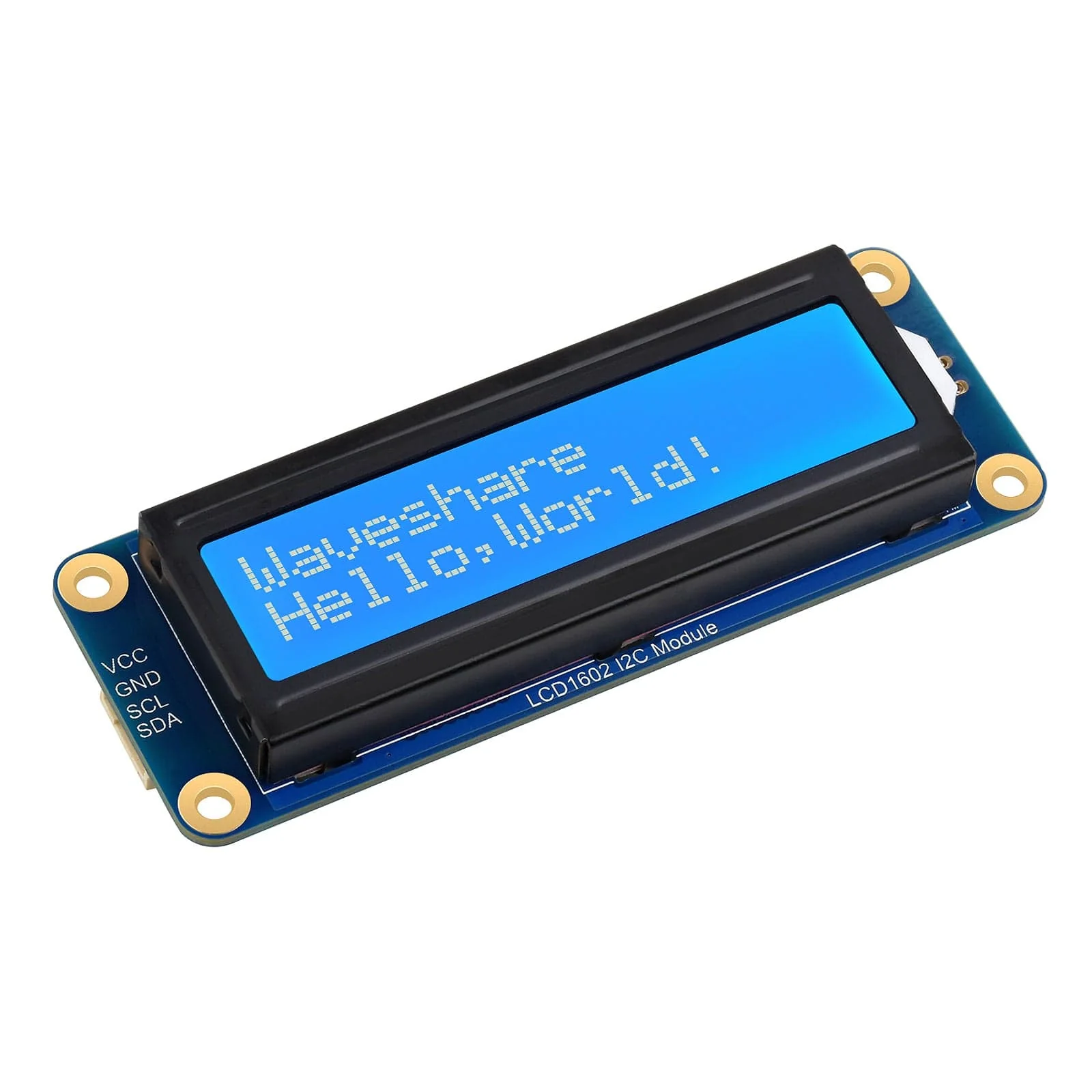

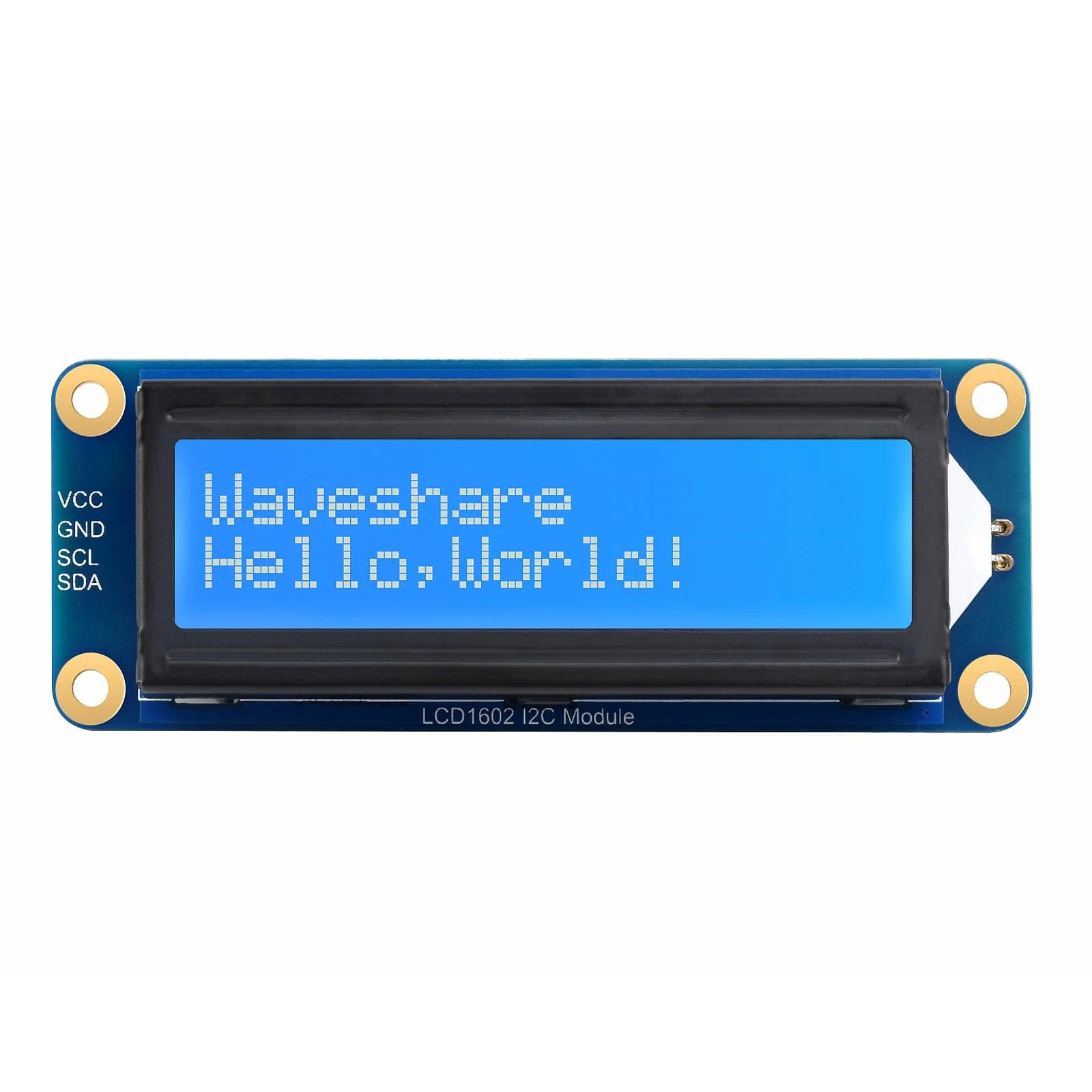

This 16x2 Waveshare LCD1602 LCD module, based on the AiP31068L display driver, has white text with a lovely sky-blue background. It also features an I2C interface requiring just 4 pin connections, making wiring your project not only much easier but also leaving more room for other devices.

Add the smooth rounded edges, handy M3 mounting holes and included jumper wire and you've just found the ultimate LCD upgrade!

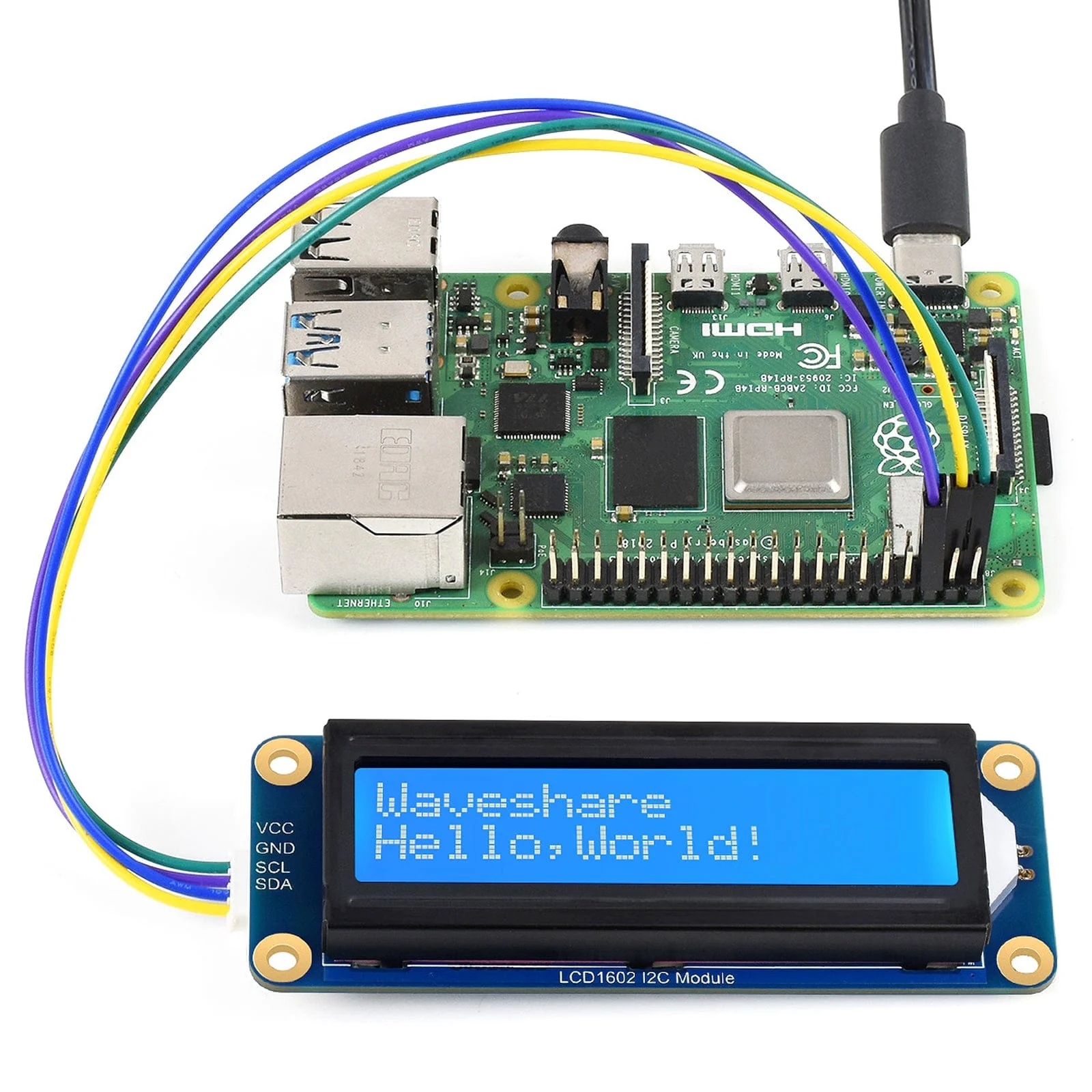

The online resources provide demo code for the Raspberry Pi, Pico, Arduino, ESP32 and more.

Note: Raspberry PI is NOT included

Features

• 16x2 LCD panel LCD1602
• I2C control interface, only two signal pins are required
• Compatible with 3.3V/5V operating voltage
• Rounded edges
• M3 Mounting holes

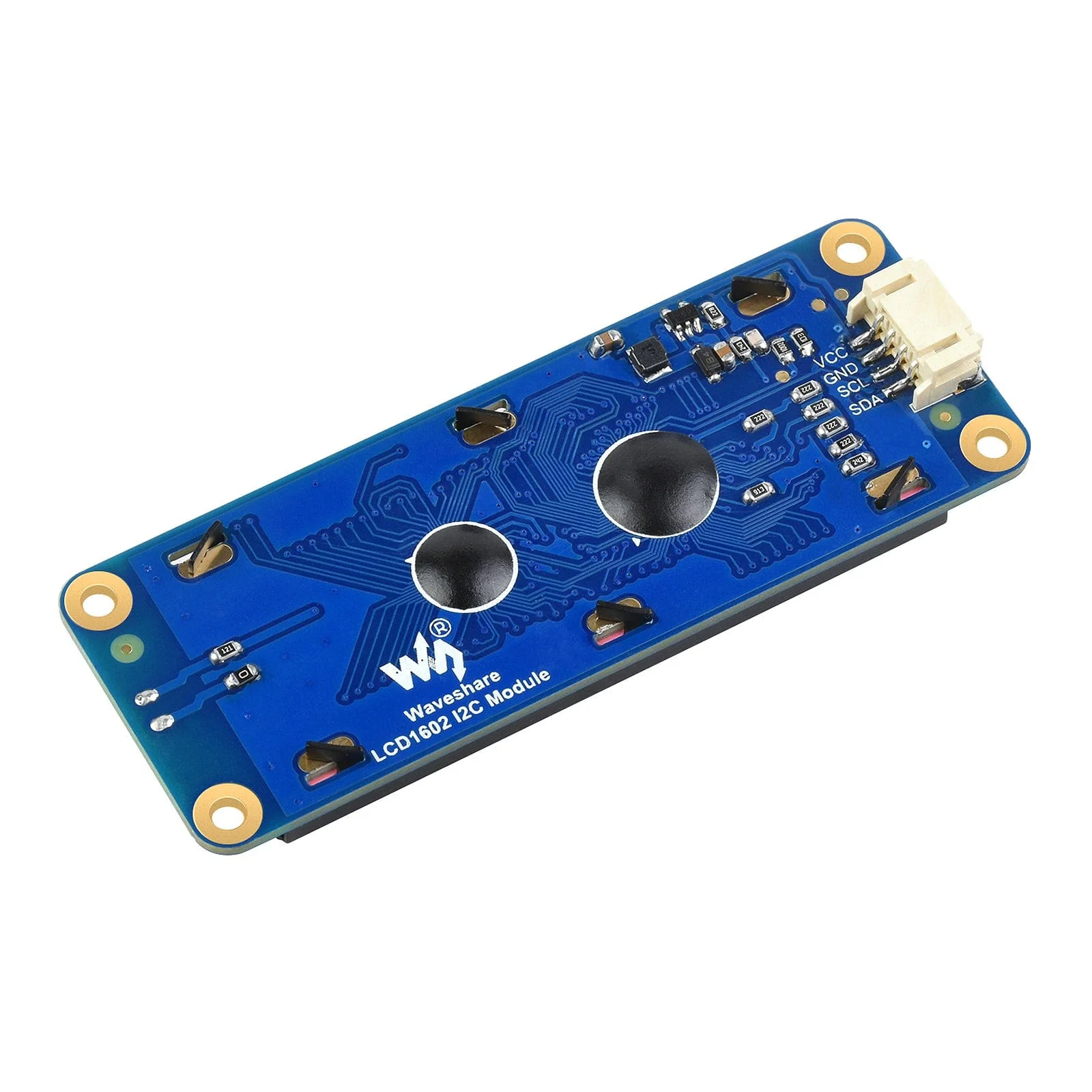

• Onboard AiP31068L LCD driver chip
• Online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

I2C Control Interface

Pinout

VCC	3.3V ~ 5V power input
GND	GND
SCL	I2C clock pin
SDA	I2C data pin

Specifications

Communication Interface	I2C
Operating Voltage	3.3 ~ 5V
Display Panel	character LCD
Characters	16 × 2
LCD Controller	AiP31068
Operating Temperature	-20 ~ +70℃
Display Size	64.5 × 16.0mm

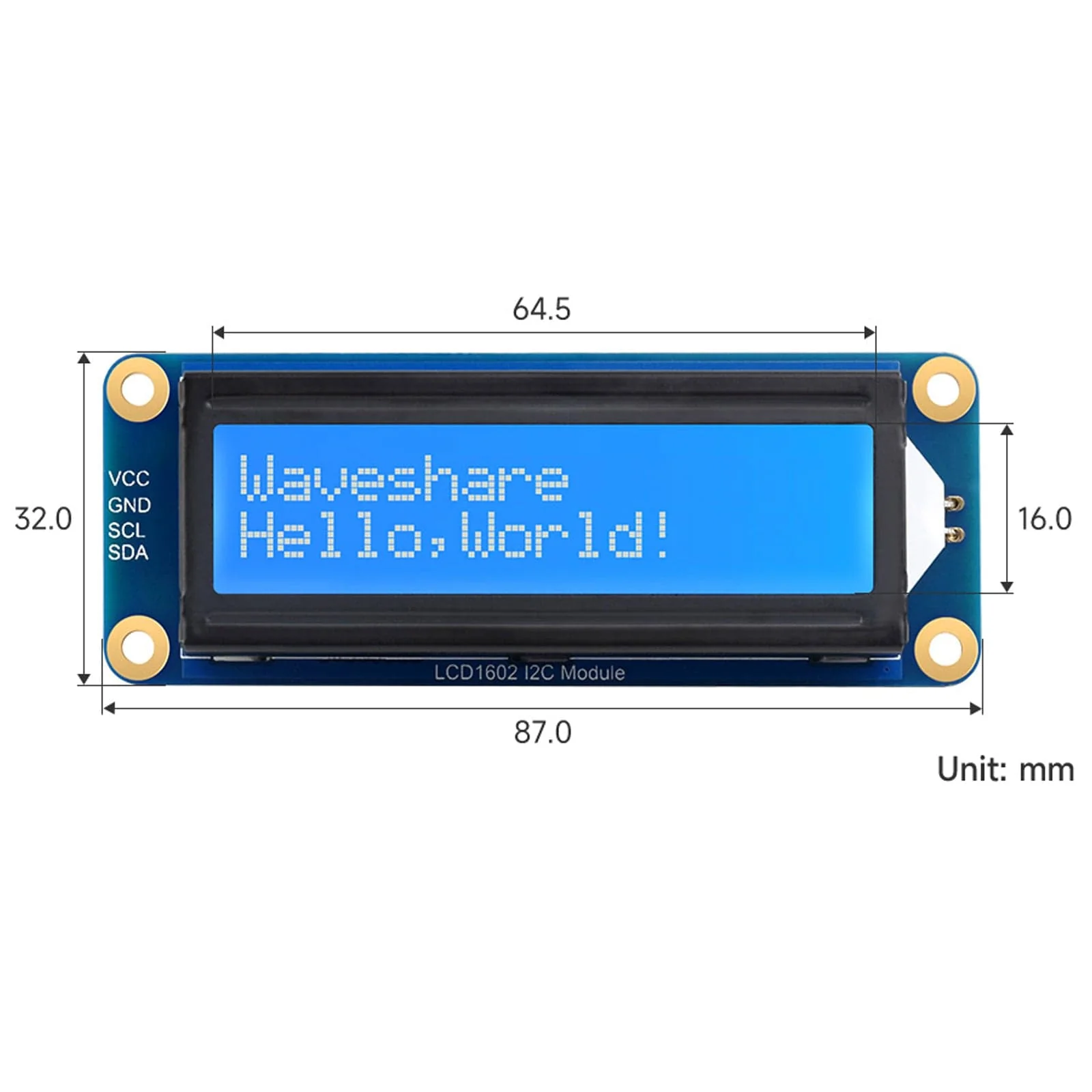

Dimensions	87.0 × 32.0 × 13.0mm

Resources

• Product Wiki
• Datasheet

Package Contents

• 1x LCD1602 RGB Module
• 1x PH2.0 4-pin wire
