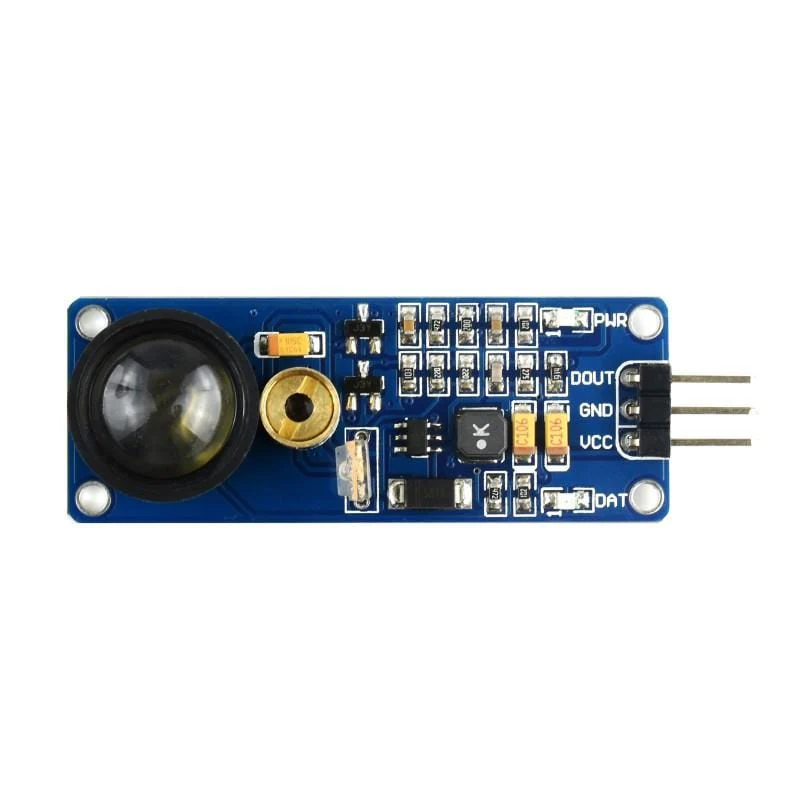

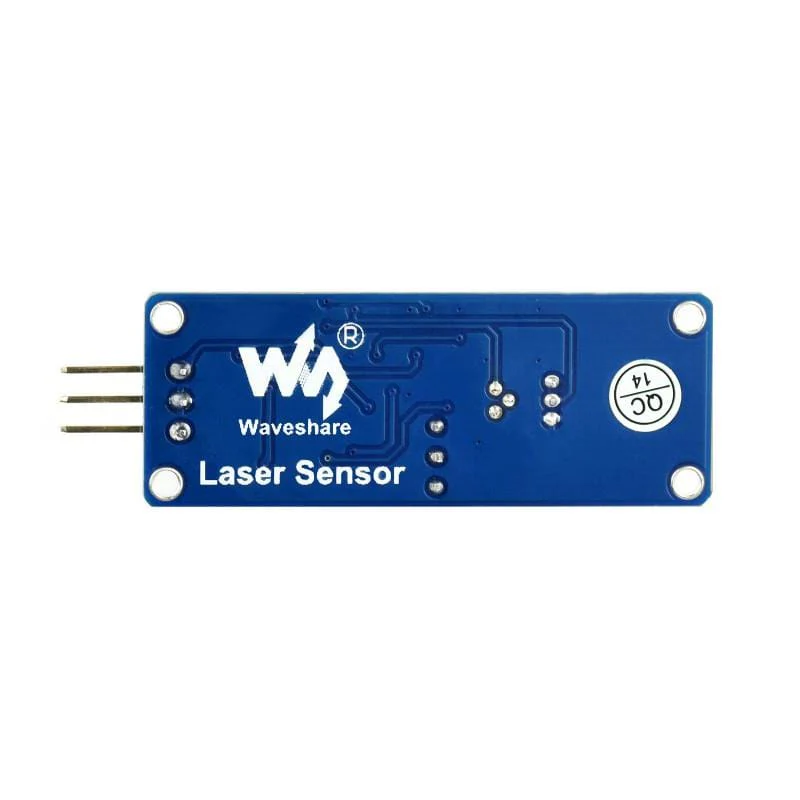

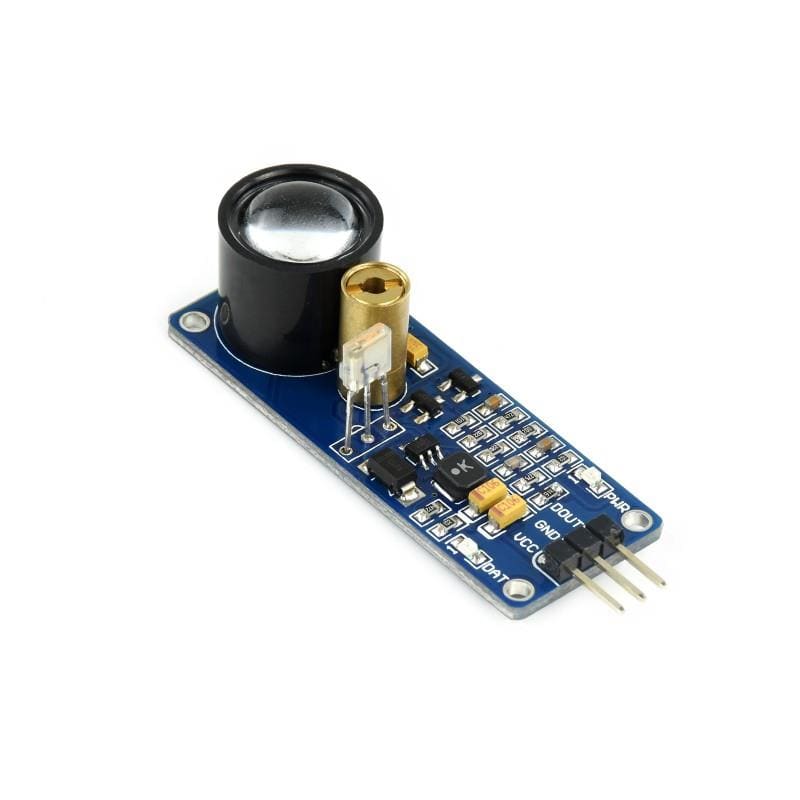

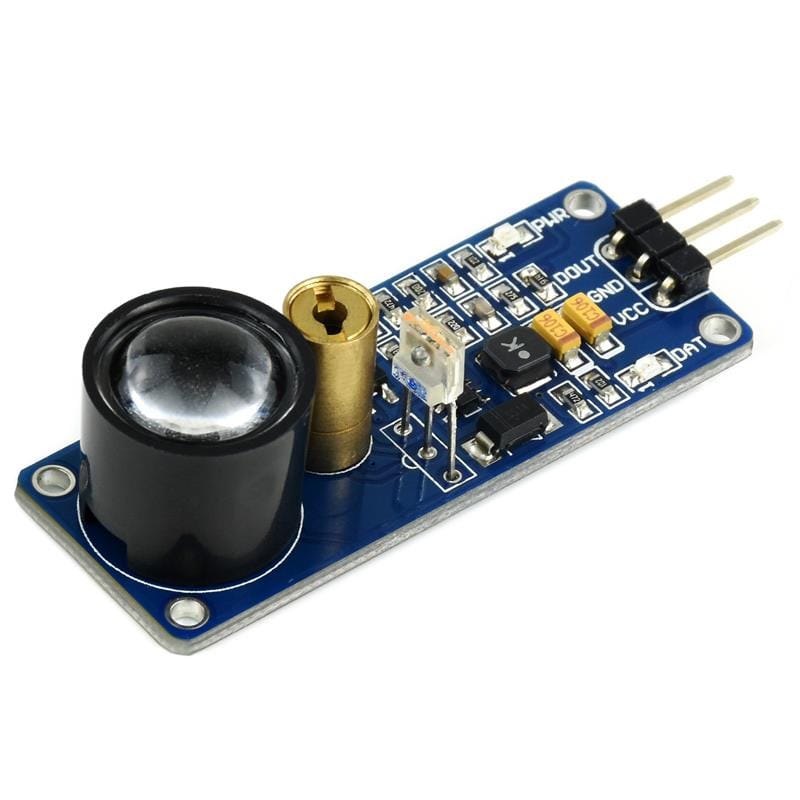

Laser Sensor

This laser sensor features a boost circuit and signal output indicator. It can function from an effective distance of 0.8m (typical, and around 1.5m (max).

This kind of sensor can be useful for object detection in robots and similar object sensing project needs. Output is digital (not analogue).

Note: Sensor does not come with a cable

Features

• Boost circuit
• Signal output indicator
• M2 mount holes

Resources

• Product Wiki, FAQ and manual

How to Use

In the case of working with an MCU:

• VCC ↔ 2.5V ~ 5.0V
• GND ↔ power supply ground
• DOUT ↔ MCU.IO (digital output)

Specifications

• Effective distance: 0.8m(typ), 1.5m(max)
• Power: 2.5V ~ 5.0V
• Dimension: 47.7mm * 17.9mm
• Mounting holes size: 2.0mm

Application Examples

• Obstacle detection
• Pipeline counter
• Smart robot
• Obstacle-avoiding car
