KJH-04-M6 Pneumatic Connectors (5-pack)

Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.

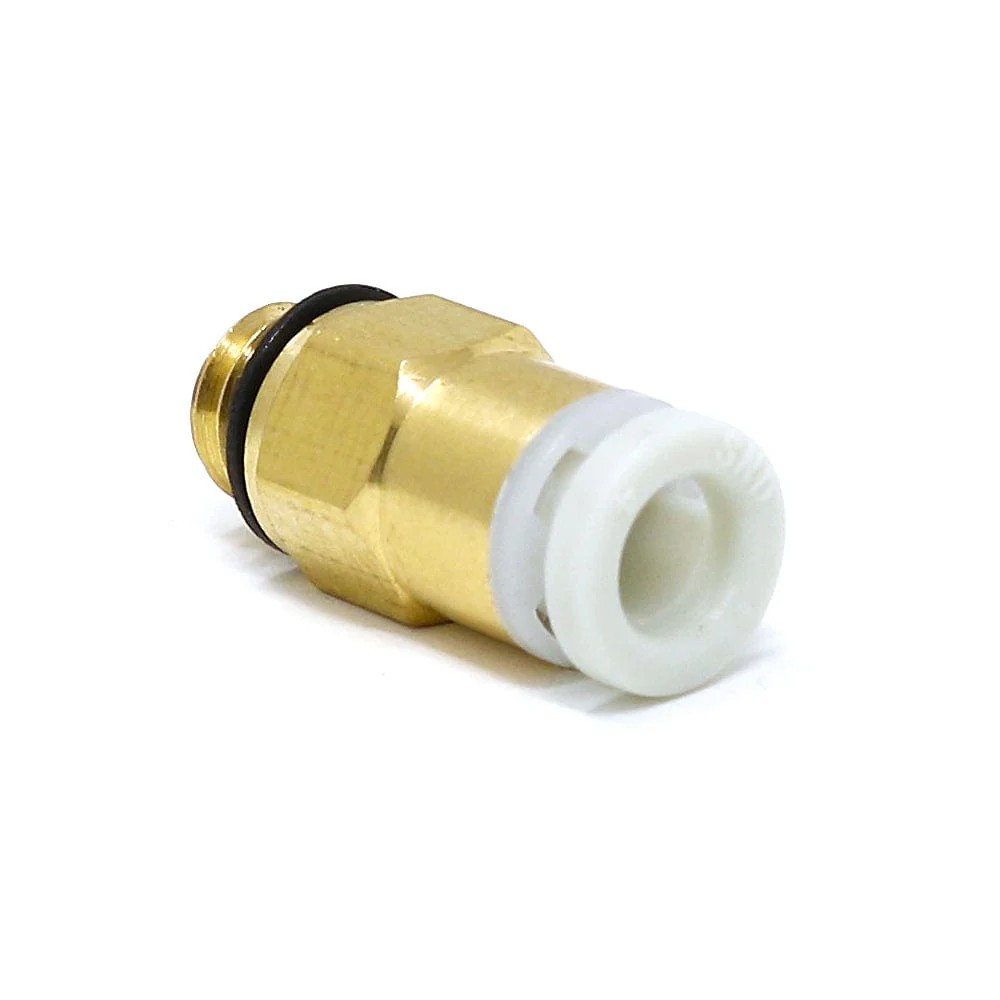

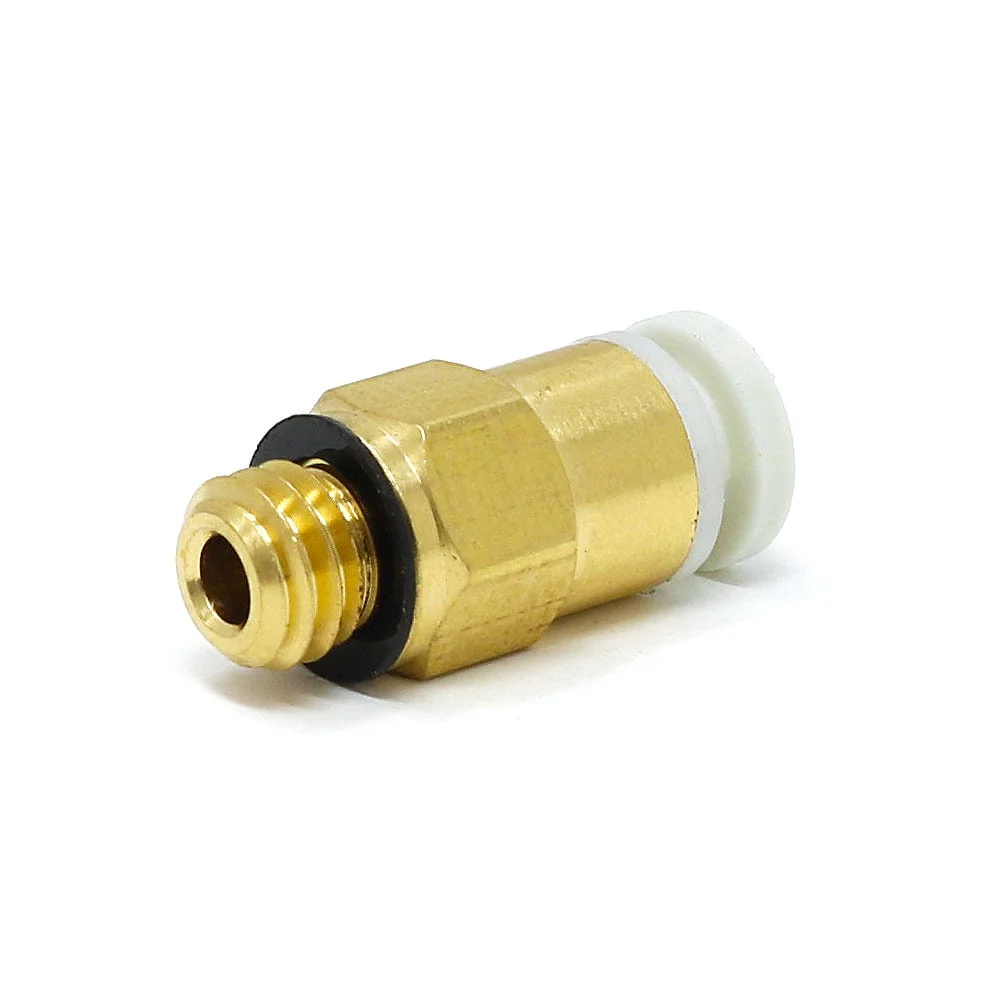

This is a pack of five KJH-04-M6 pneumatic connectors which accept Bowden tubes with a 4mm outer dimension (4mm OD) and 2mm inner dimension (2mm ID), such as the tubes we sell in the store.

We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!

Specifications

• Type: KJH-04-M6
• Thread OD: 5.9mm
• Height: 18.8mm
• Nut OD: 8mm
• Thread length: ~3.9mm
• Input diameter (thread end): 2.8mm
• Compatible PTFE: 4mm OD / 2mm ID
• Weight (per connector): 2.5g

Package Contents

• 5x KJH-04-M6 (Black) pneumatic connectors
