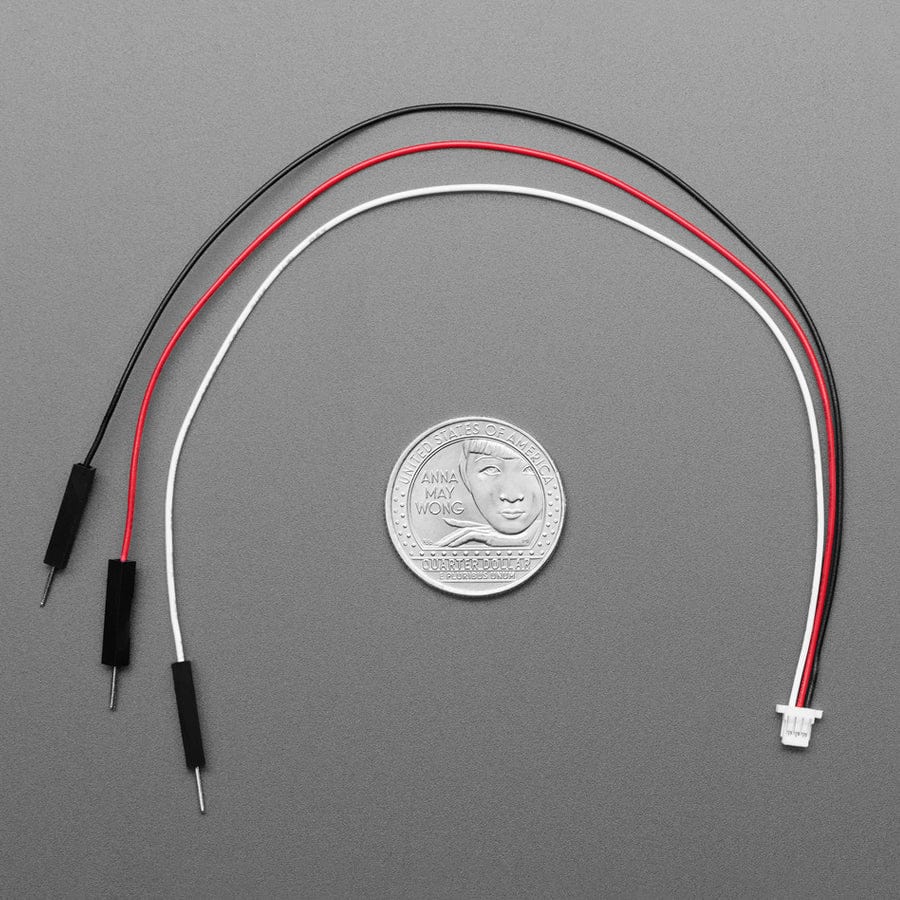

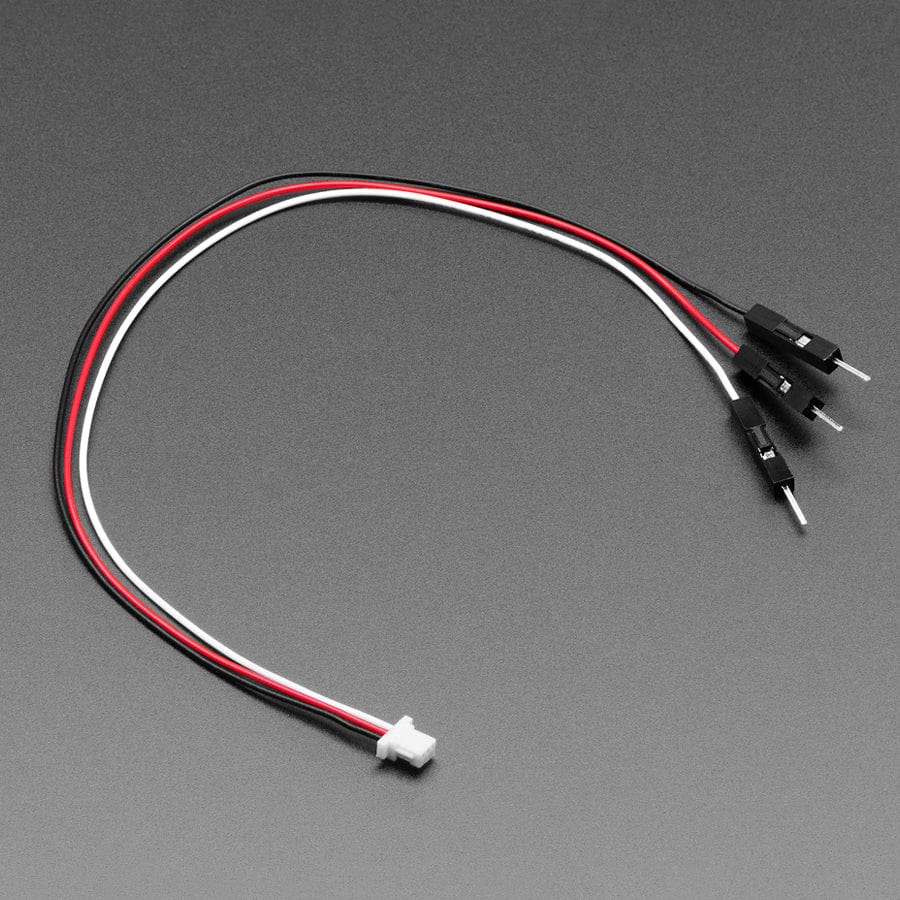

JST SH Compatible 1mm Pitch - 3 Pin to Premium Plug Header Cable - 200mm long

The JST SH 3-Pin to 0.1" Plug Cable features a 1mm pitch JST SH connector on one end and 0.1" plug connectors on the other, suitable for NeoPixel breakouts, UPDI Friend, Sparkle Motion, Pico WH debug ports, and Pico Debug Probe connections.

---

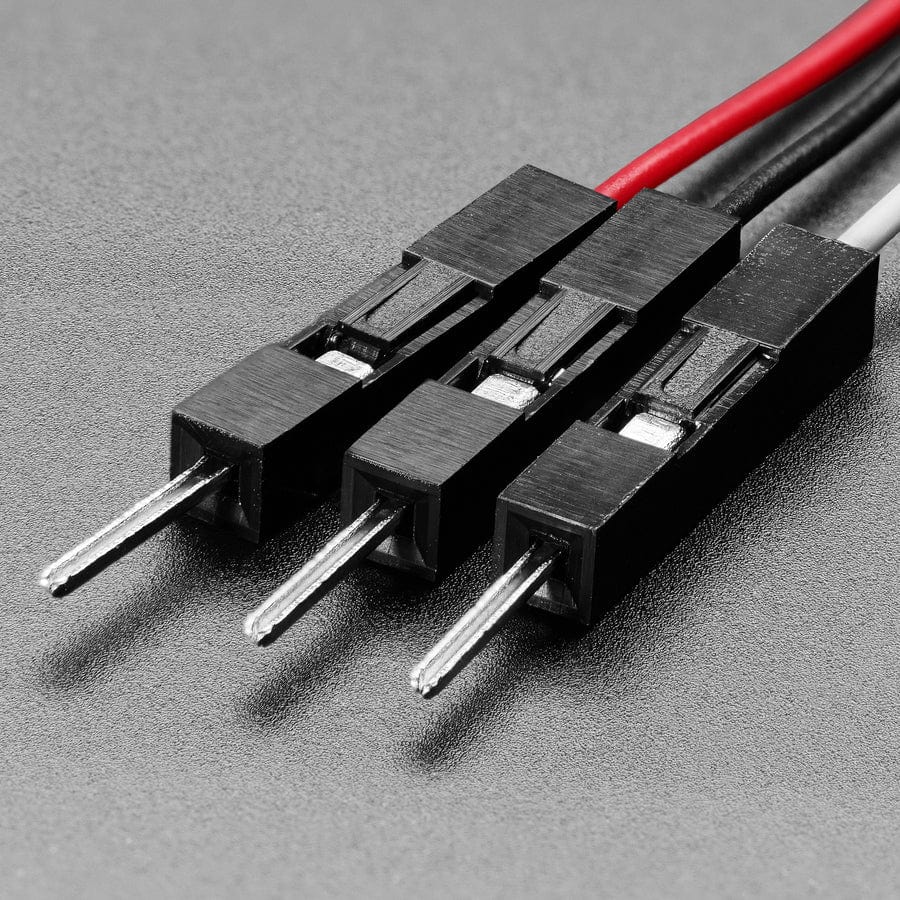

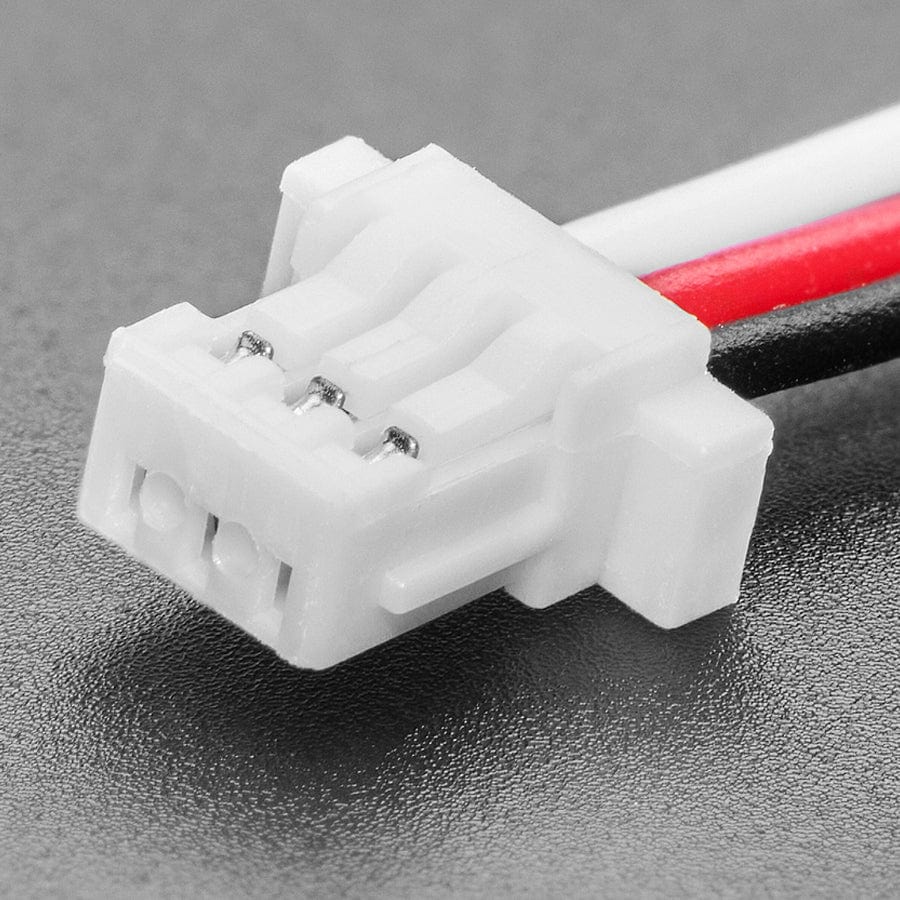

If you want to connect to anything else with a JST SH-compatible 3-pin connector, this cable will do the trick. For example, our NeoPixel JST Breakout boards, or UPDI Friend, or Sparkle Motion, or other boards we have with JST SH connectors on them for simple digital/analog IO. It has a 1mm pitch JST SH connector on one end, and 0.1" pitch plug/pin connectors on the other.

You can also use these on the debug port on a Pico WH or the two ports on a Pico Debug Probe. Note that the colours we got are somewhat matchy with our 2mm PH-sized STEMMA cables, so if you are using them for the Debug Probe port, the colors will be as follows:

1. White - SWCLK or UART TX
2. Red - Ground (yeah, we know this isn't ideal)
3. Black - SWDIO or UART RX

Resources

• JST PH - Series Descriptions
• JST SH - Specifications

Package Contents

• 1x JST SH Compatible 1mm Pitch - 3 Pin to Premium Plug Header Cable - 200mm long
