JP4-01 Pneumatic Connectors (5-pack)

Product image 1
Product image 2
Product image 3

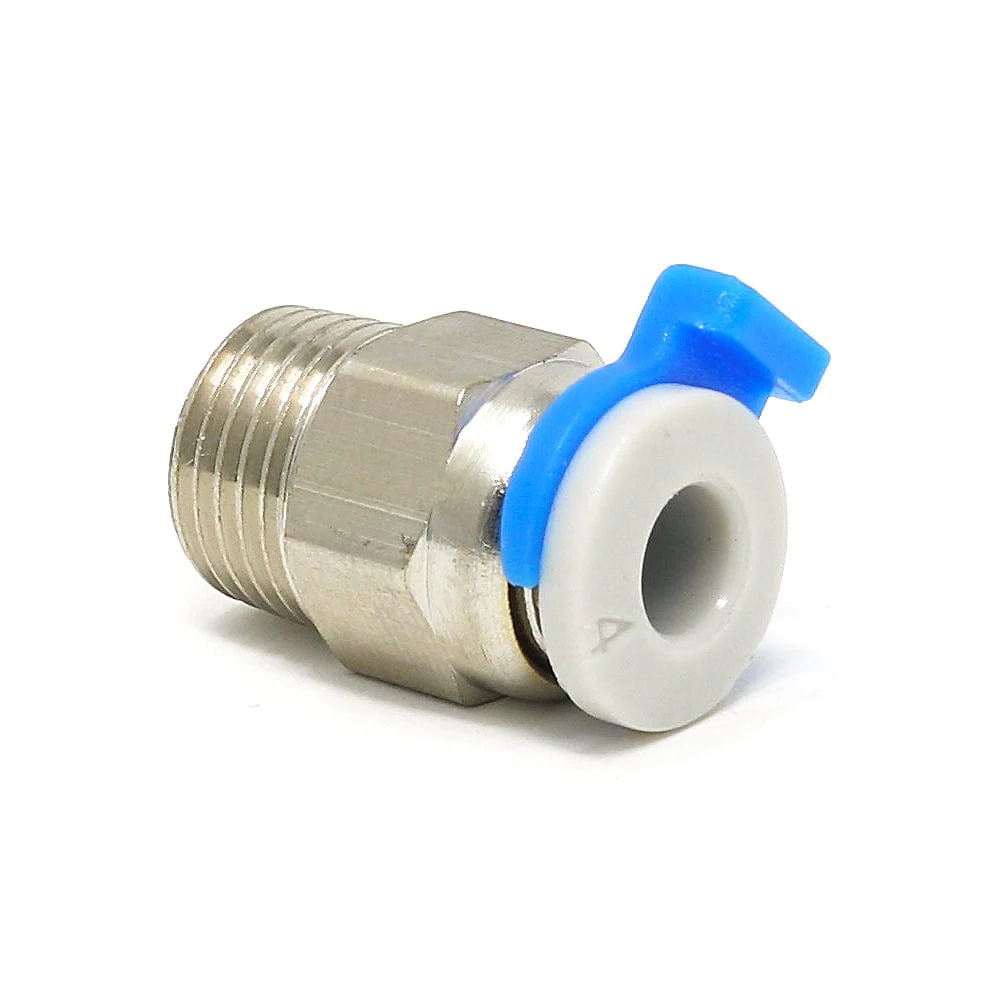

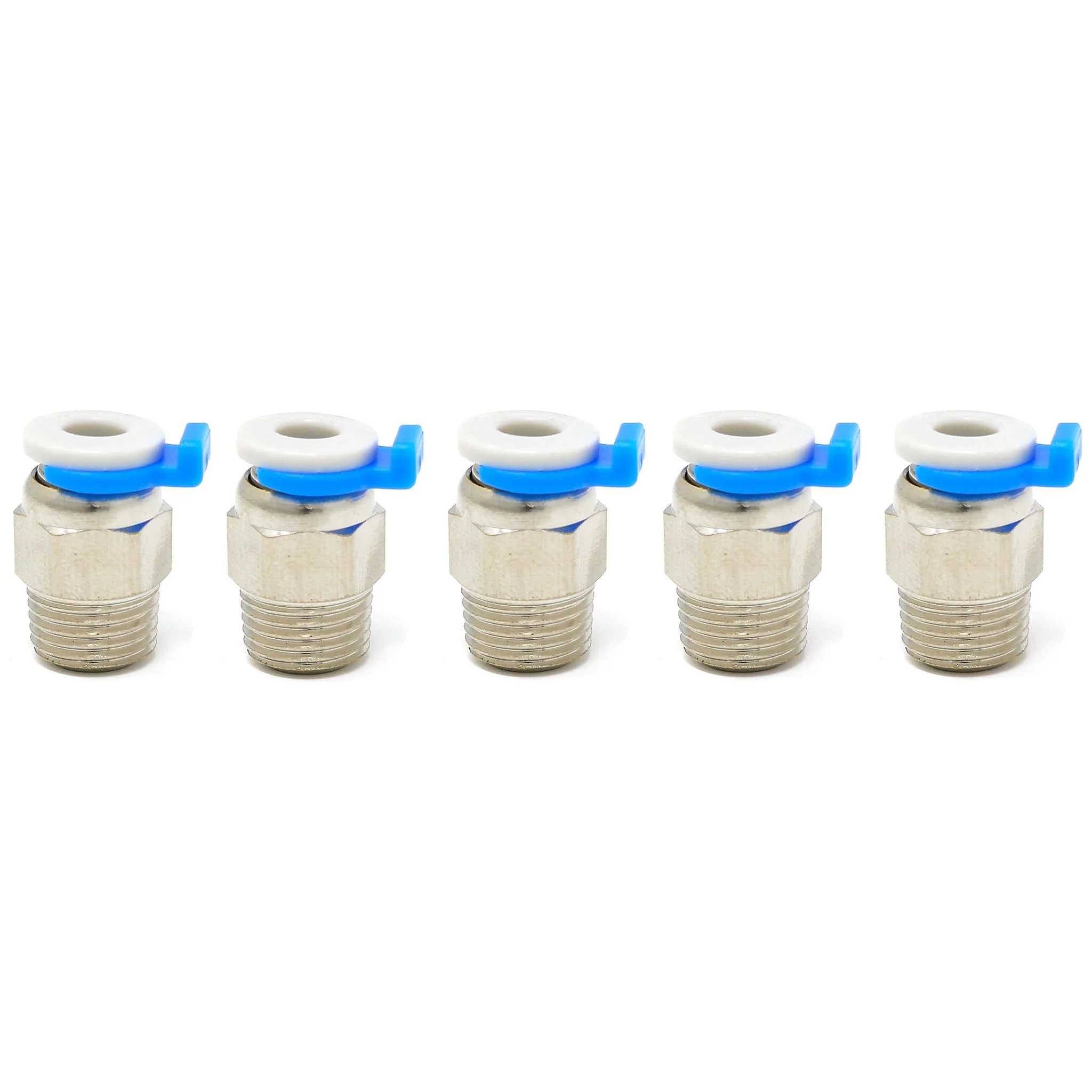

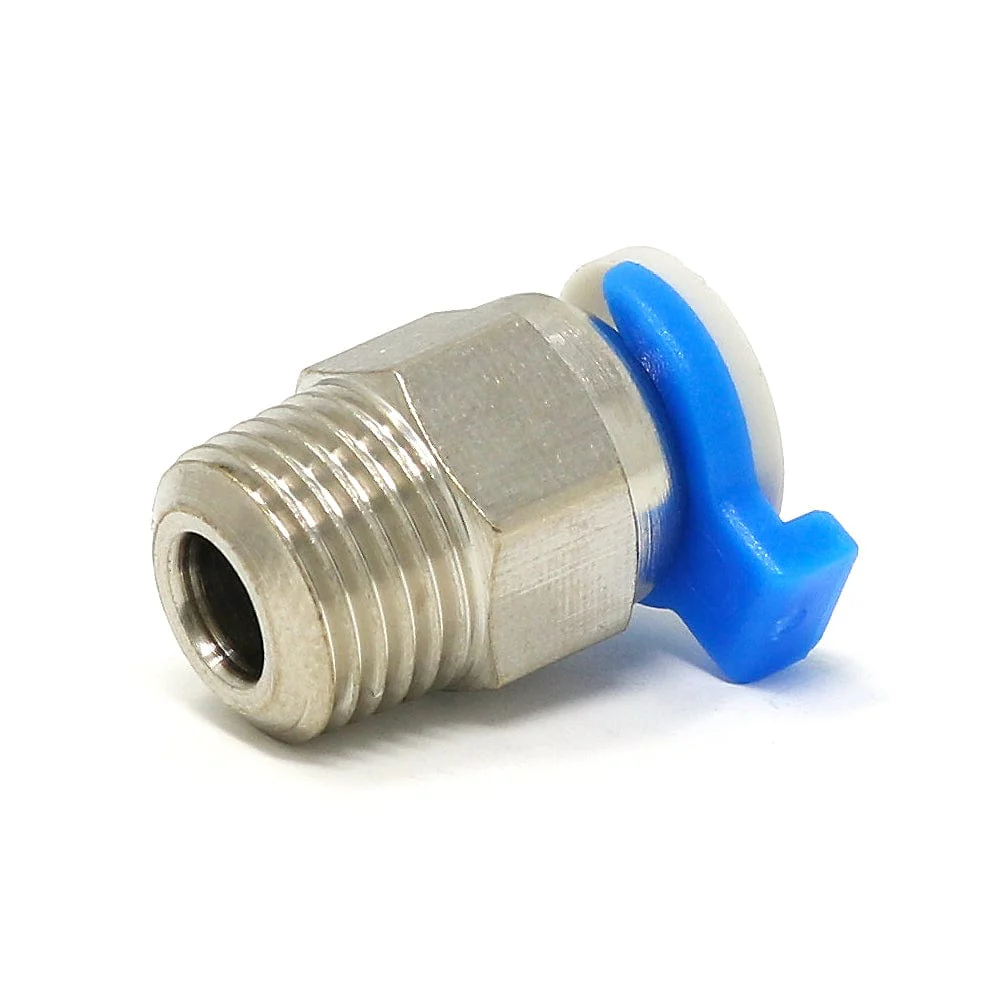

JP4-01 Pneumatic Connectors (5-pack)

Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.

This is a pack of five JP4-01 pneumatic connectors which accept Bowden tubes with a 4mm outer dimension (4mm OD) and 2mm inner dimension (2mm ID), such as the tubes we sell in the store.

We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!

Specifications

  • Type: JP4-01
  • Thread OD: 9.7mm
  • Height: 17.7mm
  • Nut OD: 10mm
  • Thread length: ~6.15mm
  • Input diameter (thread end): 4.3mm
  • Compatible PTFE: 4mm OD / 2mm ID
  • Weight (per connector): 5g

Package Contents

  • 5x JP4-01 pneumatic connectors
$1.22

Original: $4.08

-70%
JP4-01 Pneumatic Connectors (5-pack)—

$4.08

$1.22

Product Information

Shipping & Returns

Description

Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.

This is a pack of five JP4-01 pneumatic connectors which accept Bowden tubes with a 4mm outer dimension (4mm OD) and 2mm inner dimension (2mm ID), such as the tubes we sell in the store.

We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!

Specifications

  • Type: JP4-01
  • Thread OD: 9.7mm
  • Height: 17.7mm
  • Nut OD: 10mm
  • Thread length: ~6.15mm
  • Input diameter (thread end): 4.3mm
  • Compatible PTFE: 4mm OD / 2mm ID
  • Weight (per connector): 5g

Package Contents

  • 5x JP4-01 pneumatic connectors
