IDC Breakout Helper - 2x20 (40 pin)

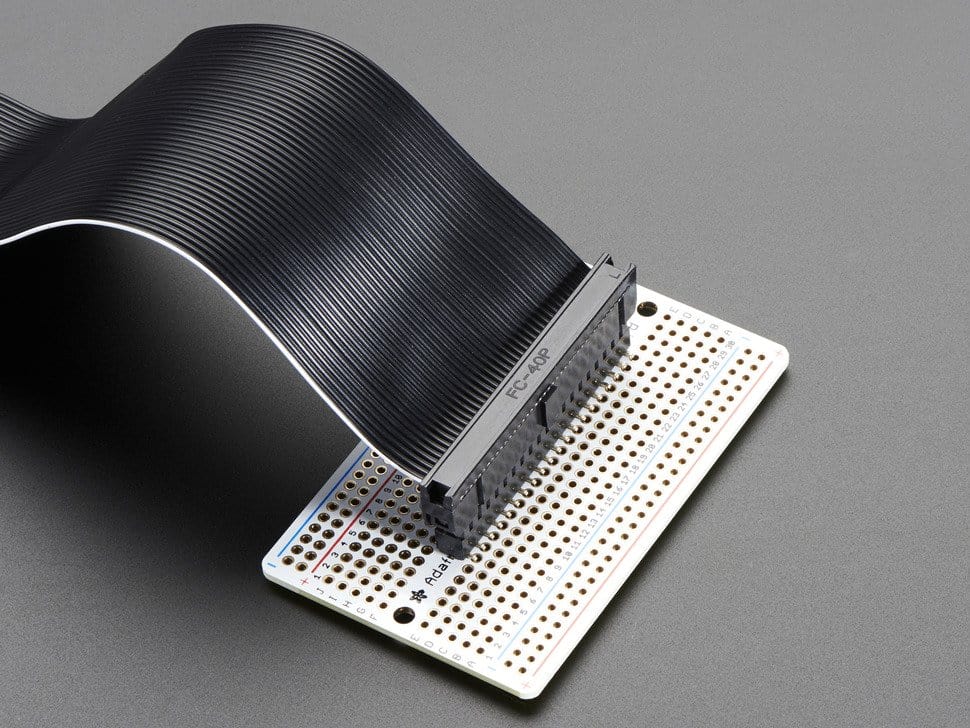

The "poor woman's" Raspberry Pi A+ / B+ / Pi 2 cobbler! This combo of 2x20 pin (0.1 spaced) header and socket is for our popular GPIO Ribbon Cable for Raspberry Pi (40 pins).

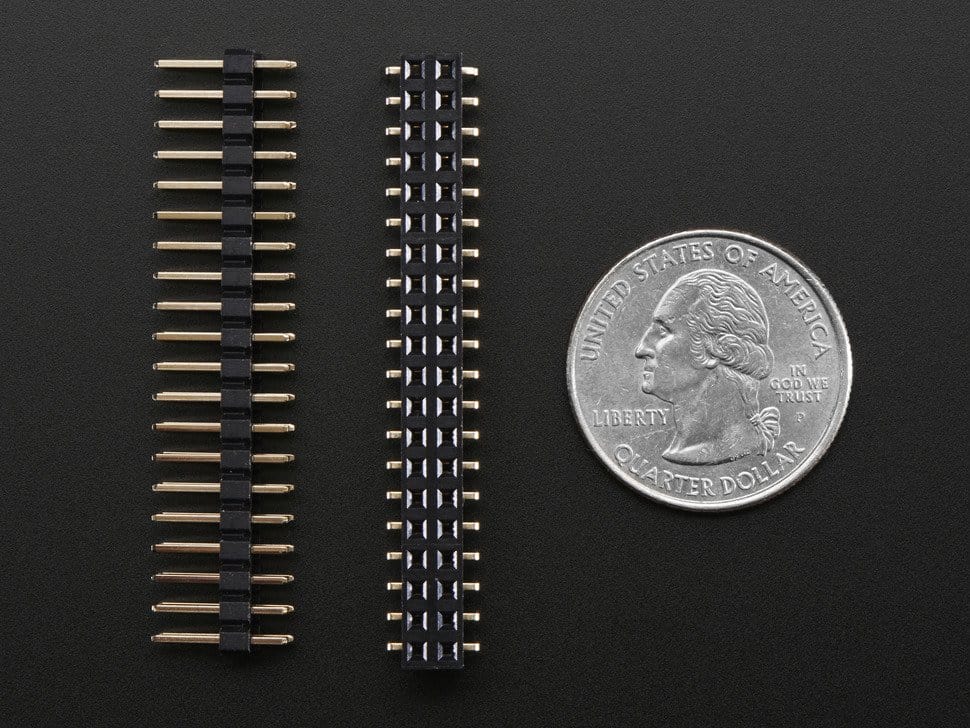

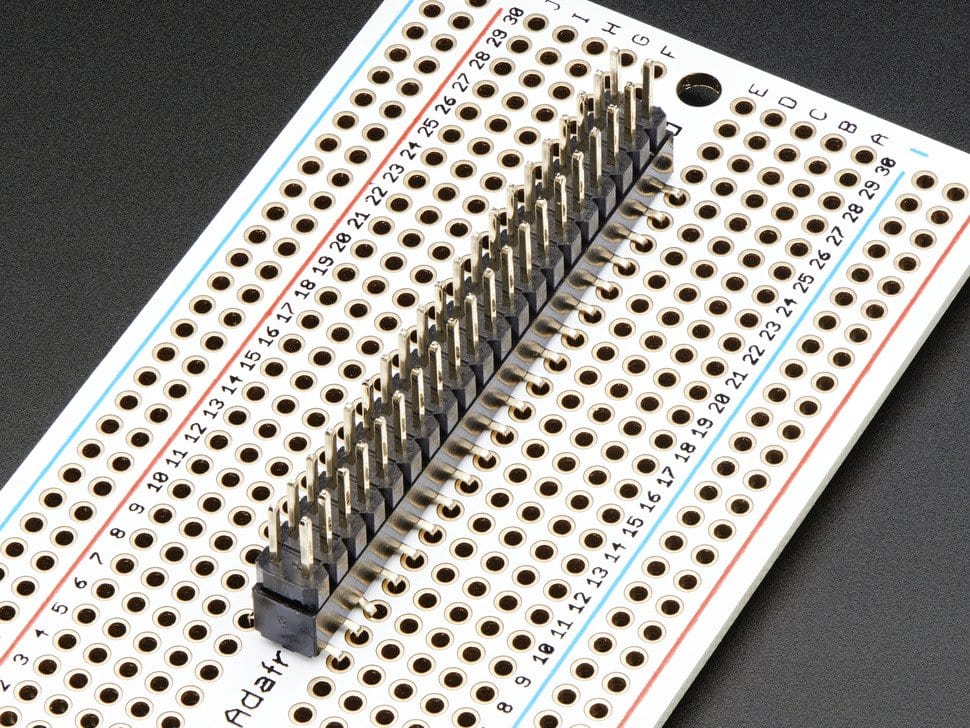

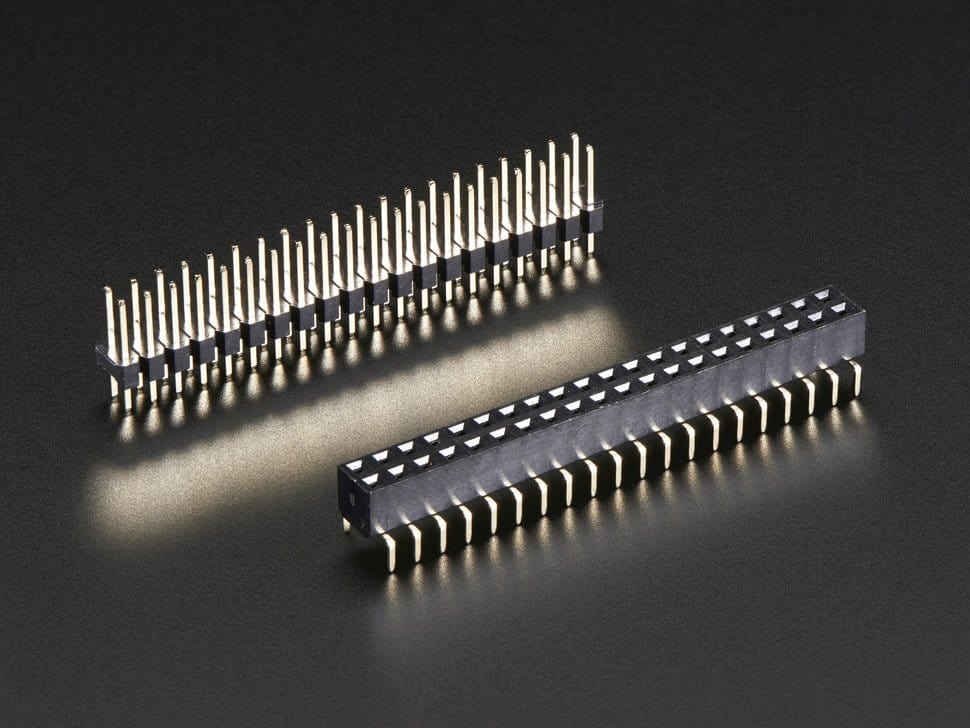

It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the centre of aĀ Perma-ProtoĀ and then the header plugs into the top of the socket.
Works best when soldered in place (they don't always stay put in a breadboard).
Each order comes with one socket and one header.Ā Perma Proto and IDC cable not included!
Technical details
- Dimensions (assembled): 51mm x 8mm x 17mm
- Dimensions (header): 51mm x 5mm x 12mm
- Dimensions (socket): 51mm x 8mm x 8mm
- Weight (assembled): 4.5gĀ
