Brass Motor Shaft Hub - 6mm [discontinued]

Brass hub kits for connecting 12mm hex fitment wheels (RC-style wheels) to motors! All of our brass motor shaft hubs look almost identical but have different sized motor shaft diameters ranging from 3mm to 7mm.

Please measure your motor shaft size carefully before buying these hubs.

This is a 6mm hub, good for use with most 37D and 25D motors (with a 6mm shaft) and 12mm Hex fitment wheels.

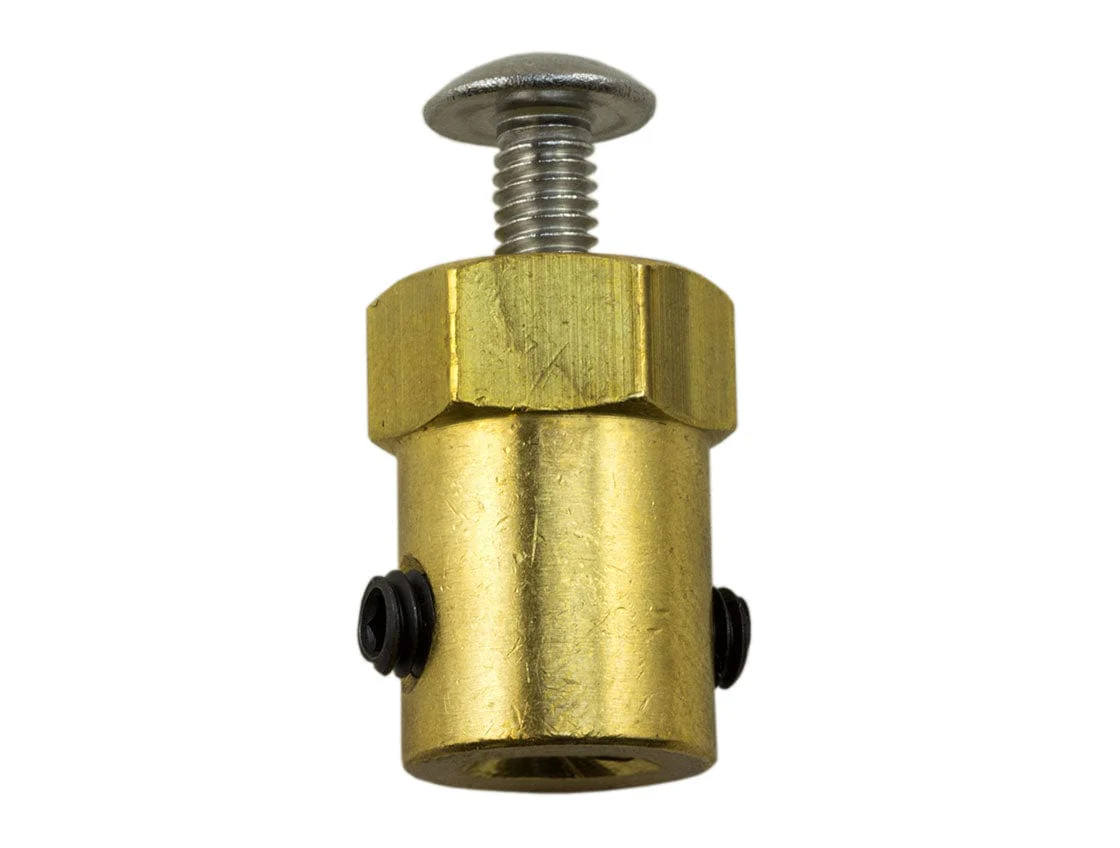

The hubs feature a motor shaft input hole on one end, and a 12mm hex and M4 screw point for fixing on the other. Most 1/10 scale RC wheels are 12mm hex.

Coupler and screws only.

Compatible with

• Most 37D motors
• Most 25D motors
• Most motors with a 6mm shaft

Features

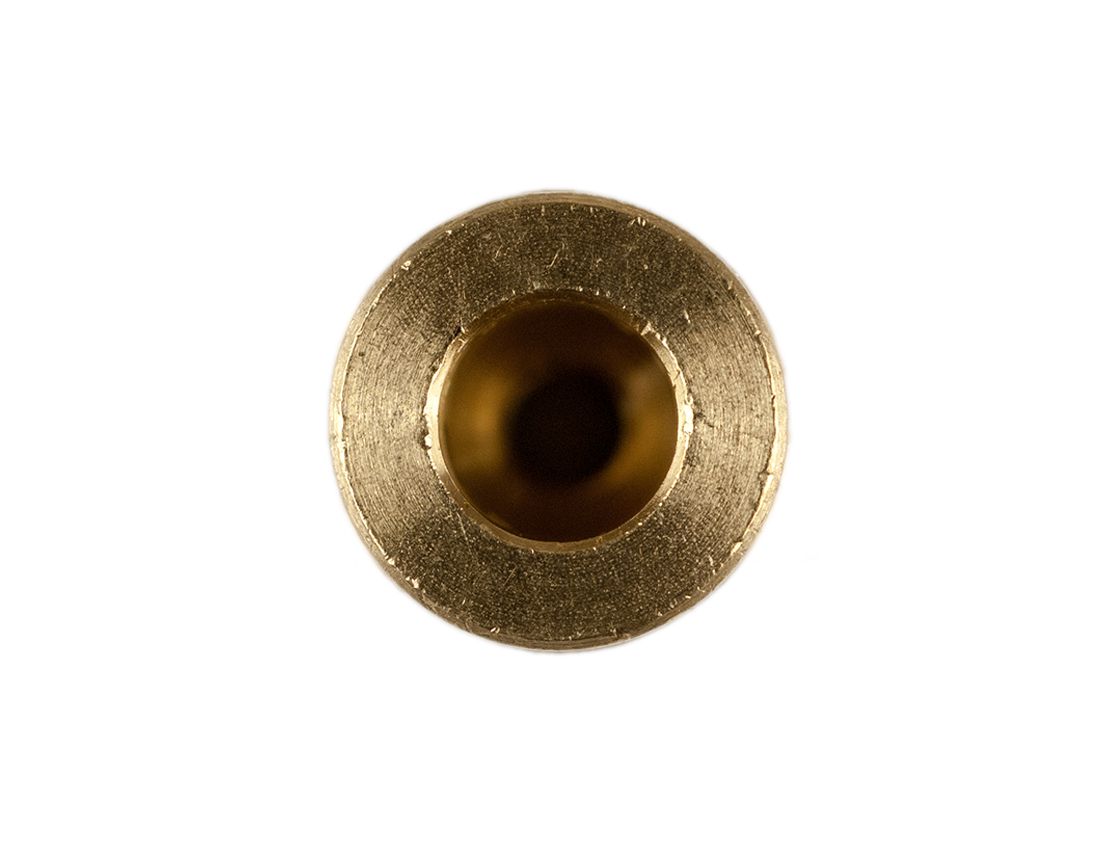

• 6mm Diameter hole for 6mm motor shafts
• 1 x Brass Coupler
• 1 x M4 Screw
• 2 x M4 Grub Screws

Specification

• Material: Brass
• Length: 18mm
• Hex Mount: 12mm
• Cylinder Outer Diameter: 11.5mm
• Shaft Fixing Thread: M4
• Hex Fixing Thread: M4
• Weight: 31g

Resources

• Assembly Guide
