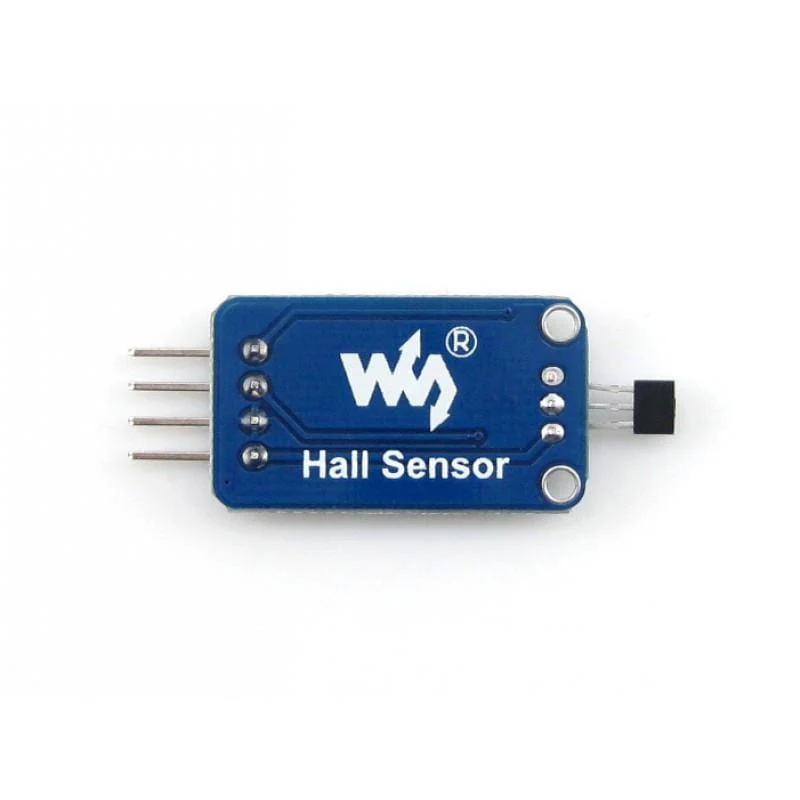

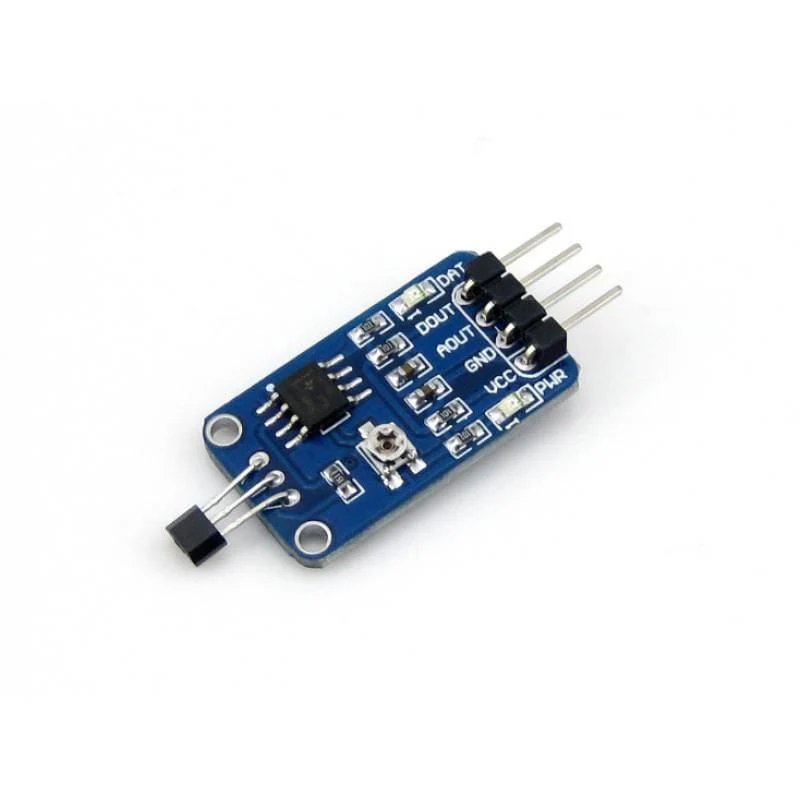

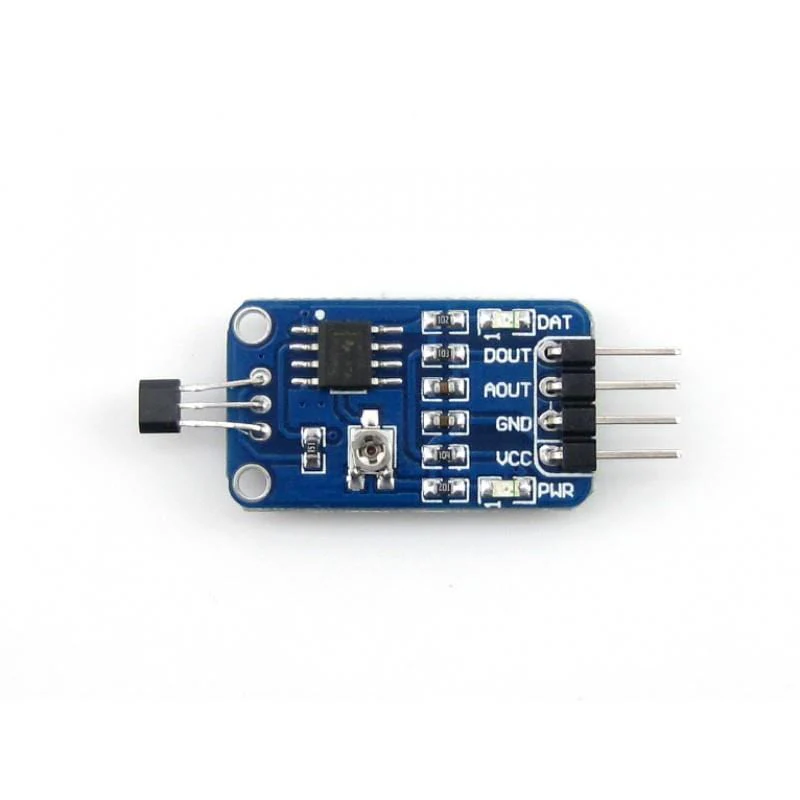

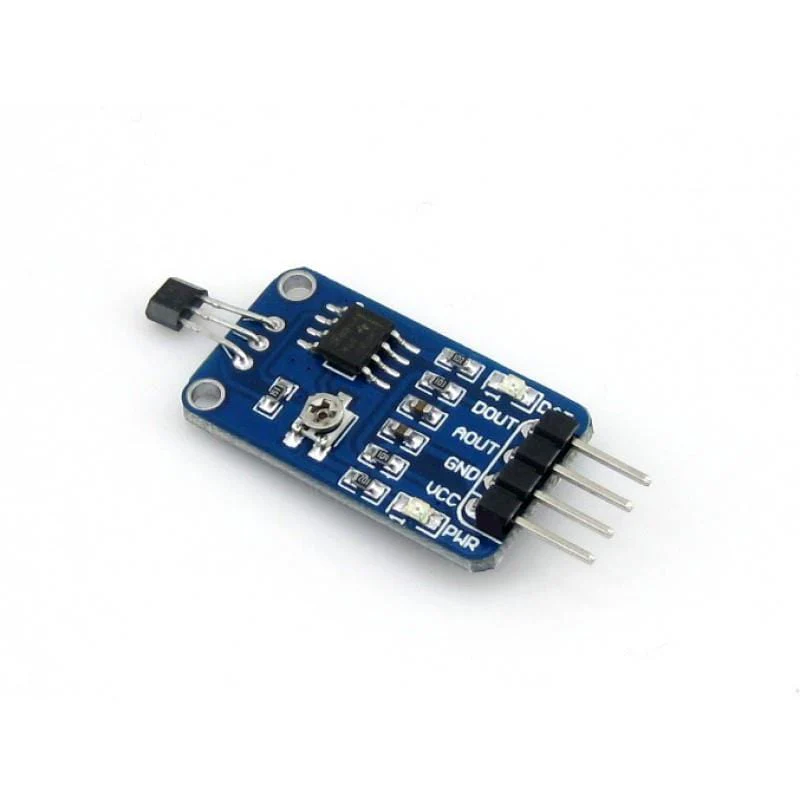

Hall Sensor

Hall sensors are used to detect and measure magnetic fields - the output signal level is proportional to the magnetic field intensity.

This Hall Sensor from Waveshare uses an LM393 wide-range voltage comparator and features adjustable sensitivity and a signal output indicator LED.

Comes with a 4-pin jumper cable for connecting to your development board.

Features

• 49E hall sensor
• Features a wide-range voltage comparator (LM393)
• Adjustable sensitivity
• Signal output indicator
• Male pins pre-soldered

Resources

• Product Wiki

How to Use

In the case of working with an MCU:

• VCC ↔ 2.3V ~ 5.3V
• GND ↔ power supply ground
• AOUT ↔ MCU.IO (analog output)
• DOUT ↔ MCU.IO (digital output)

Package Contents

• 1x Hall Sensor Module
• 1x 4-pin cable

Specifications

• Power: 2.3V ~ 5.3V
• Dimensions: 27.0mm * 15.5mm
• Mounting holes size: 2.0mm (M2)
