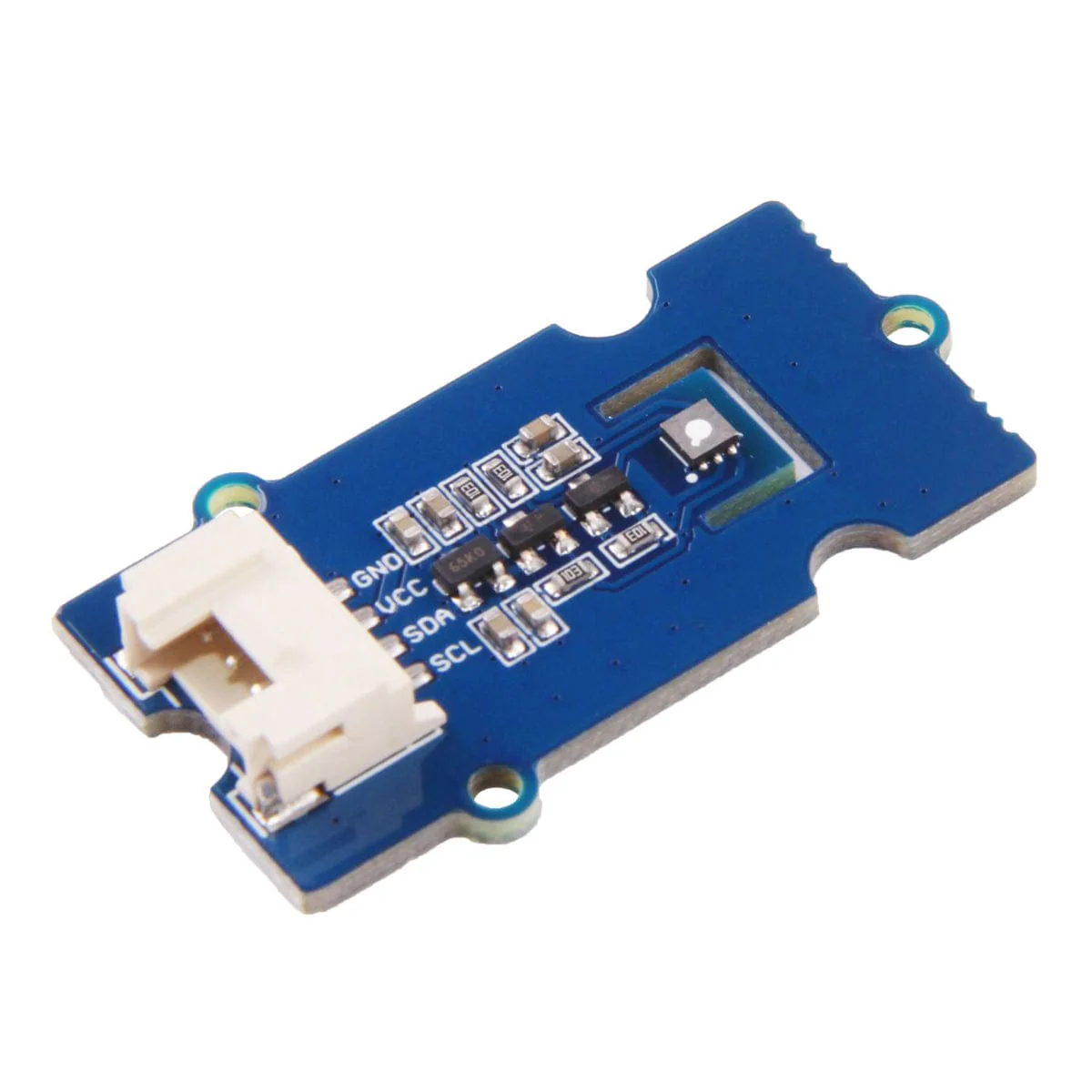

Grove - VOC and eCO2 Gas Sensor (SGP30)

This VOC and eCO2 Gas Sensor has dual-channel NDIR technology to detect carbon dioxide concentrations. Built with the Sensirion SGP30, a multi-pixel gas sensor, it is ideal for indoor air quality projects. Its low power consumption of just 48 mA at 1.8V provides excellent long-term stability.

It has high measurement accuracy thanks to its baseline compensation algorithm and on-chip calibration parameters. The Grove unified socket allows for easy "Plug and Play" integration, making it adaptable to a wide range of projects.

Powered by Sensirion’s CMOSens® technology, it has a complete sensor system on a single chip, with a digital I2C interface, a temperature-controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor with multiple sensing elements on one chip, the SGP30 provides more comprehensive information about air quality.

Features

• Dual-channel NDIR technology to detect carbon dioxide concentration
• Sensirion SGP30, a multi-pixel gas sensor for indoor air quality projects
• Works with Arduino and Raspberry Pi (Only with Grove Base Hat for Raspberry Pi)
• Supports 48 mA at 1.8V which enables excellent long-term stability
• Using dynamic baseline compensation algorithm and on-chip calibration parameters
• The sensor ensures "Plug and Play" and could be versatile for various projects
• Product Number: Seeed 101020512

Specifications

Dimensions	135mm x 85mm x 10mm
Weight	G.W 9g
Battery	Excluded
Working Voltage	3.3V/5V
Output Range	TVOC: 0 ppb to 60000ppb / CO₂ eq:400 ppm to 60'000 ppm
Sampling Rate	1HZ
IIC Address	0X58

Resources

• Product Wiki
• Eagle File
• SGP30 Datasheet
• BSS138L Datasheet
• SGP30 Driver Integration Guide HW I2C

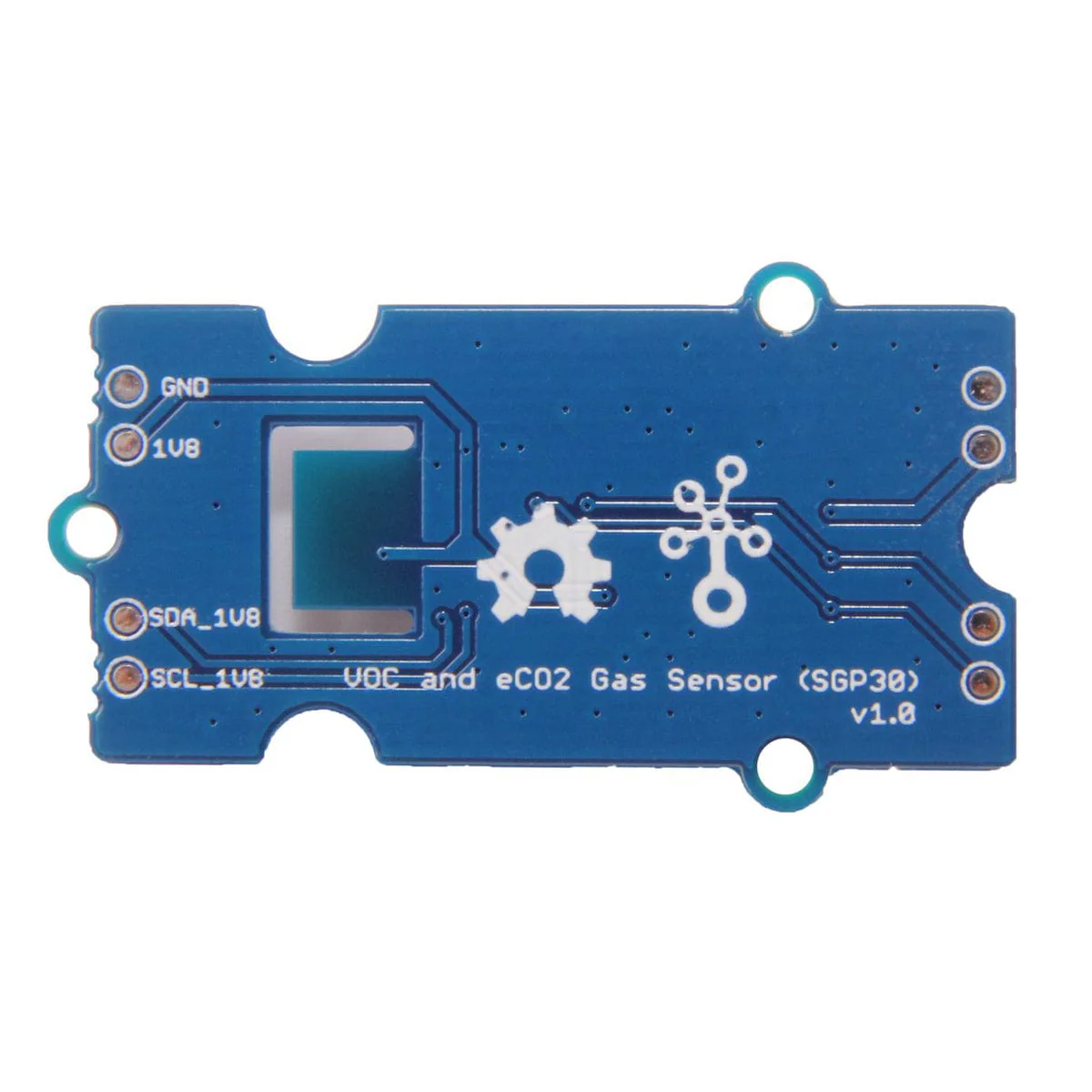

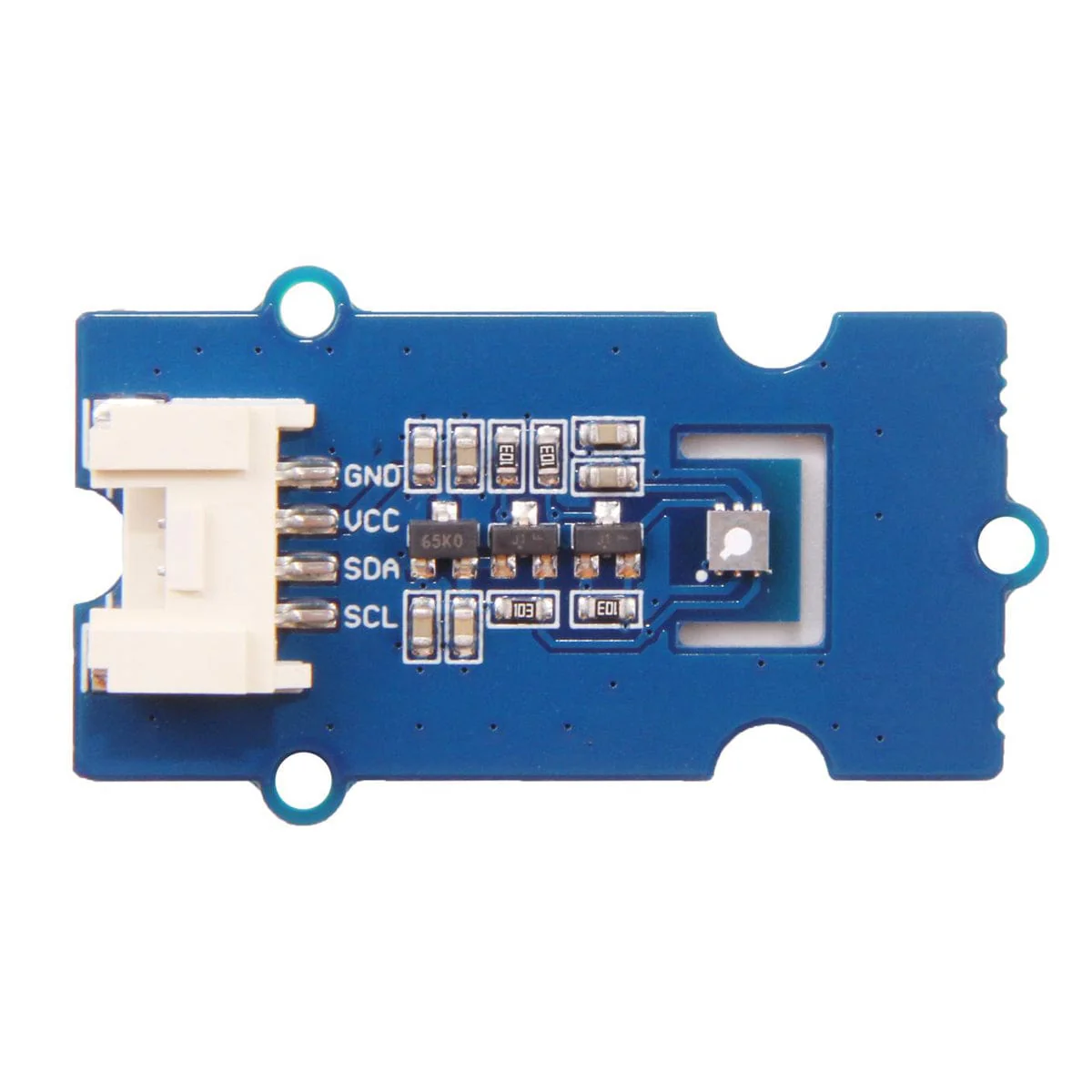

Pinout

Package Contents

• 1x Grove - VOC and eCO2 Gas Sensor (SGP30)
• 1x Grove Cable
