Grove - Red LED Matrix with Driver

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Grove - Red LED Matrix with Driver

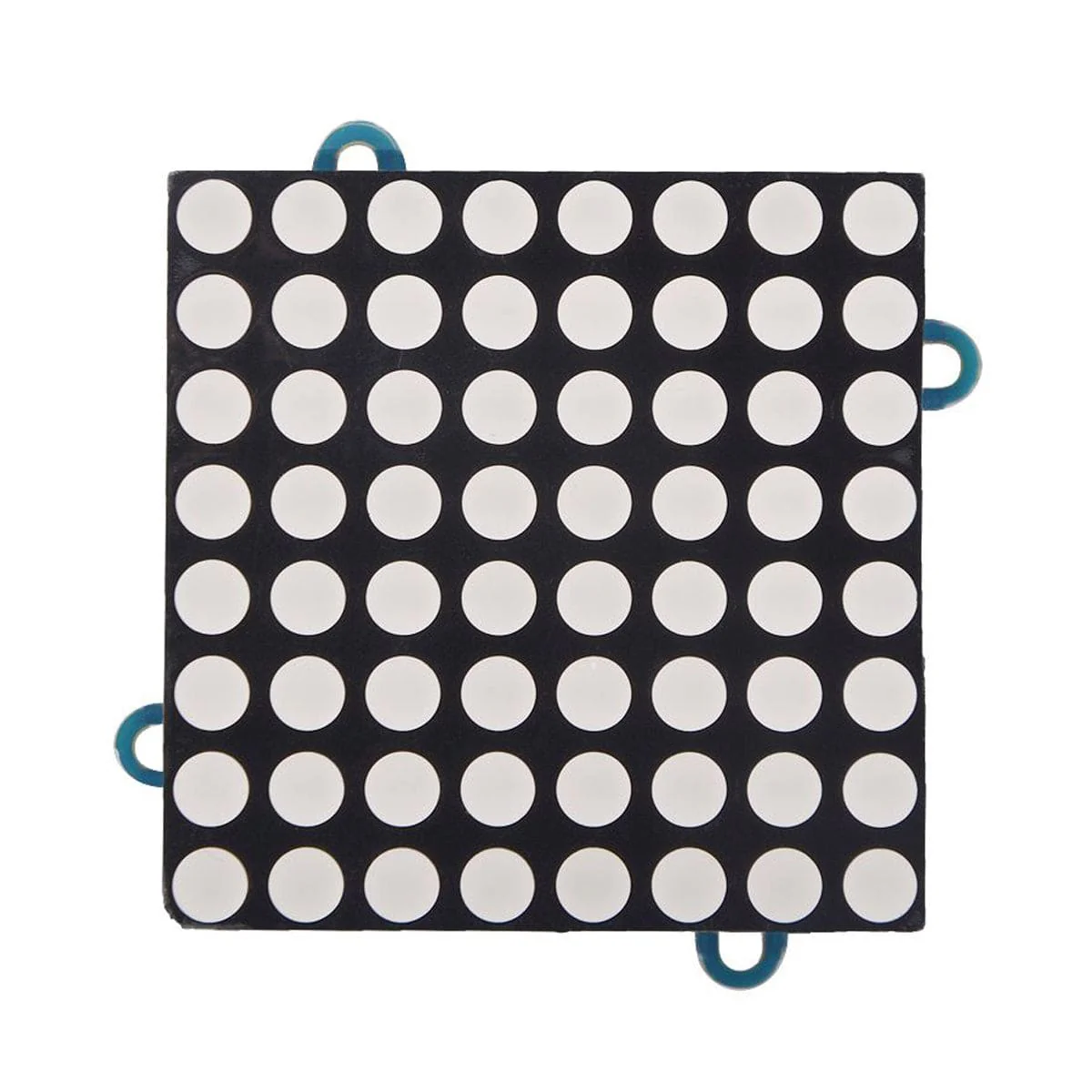

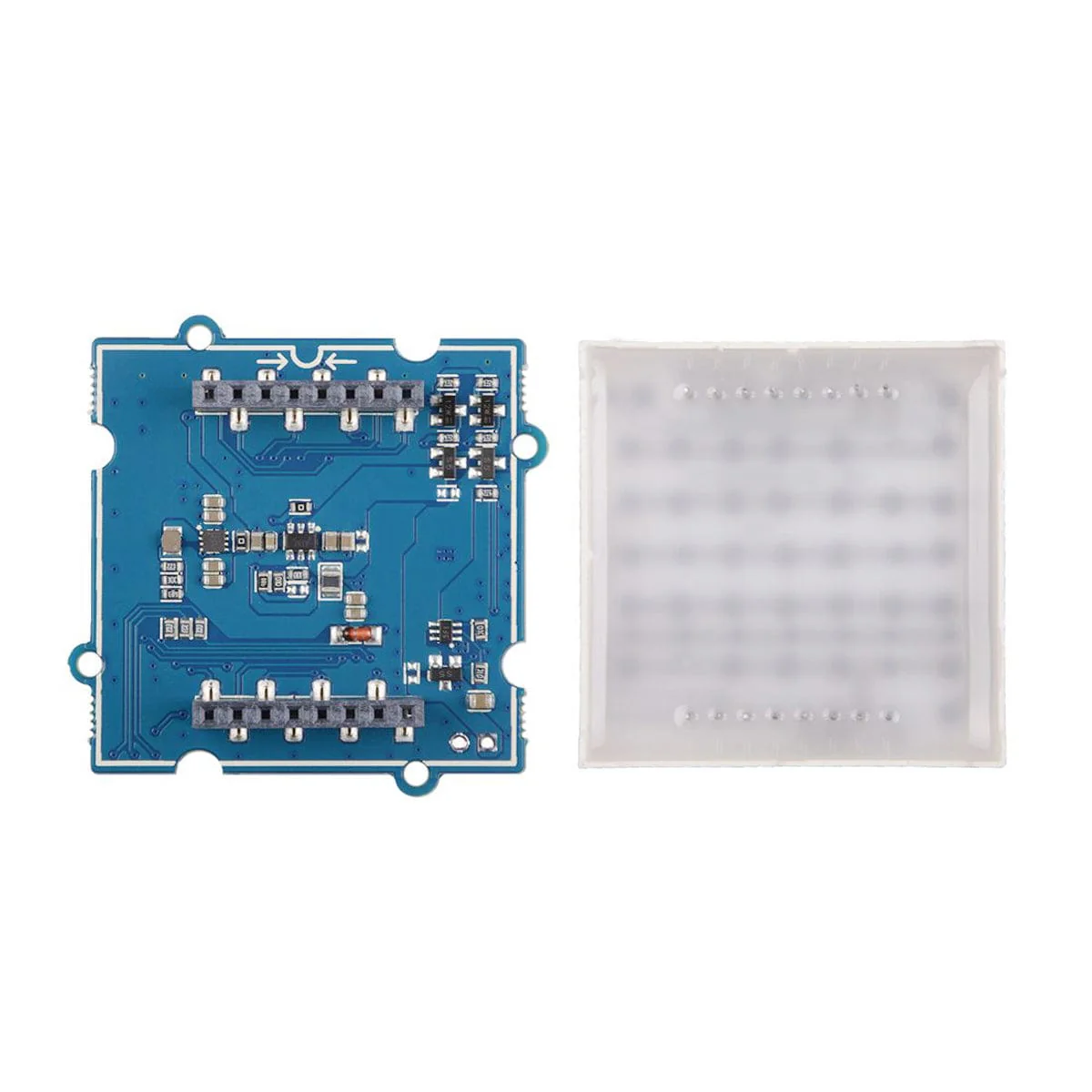

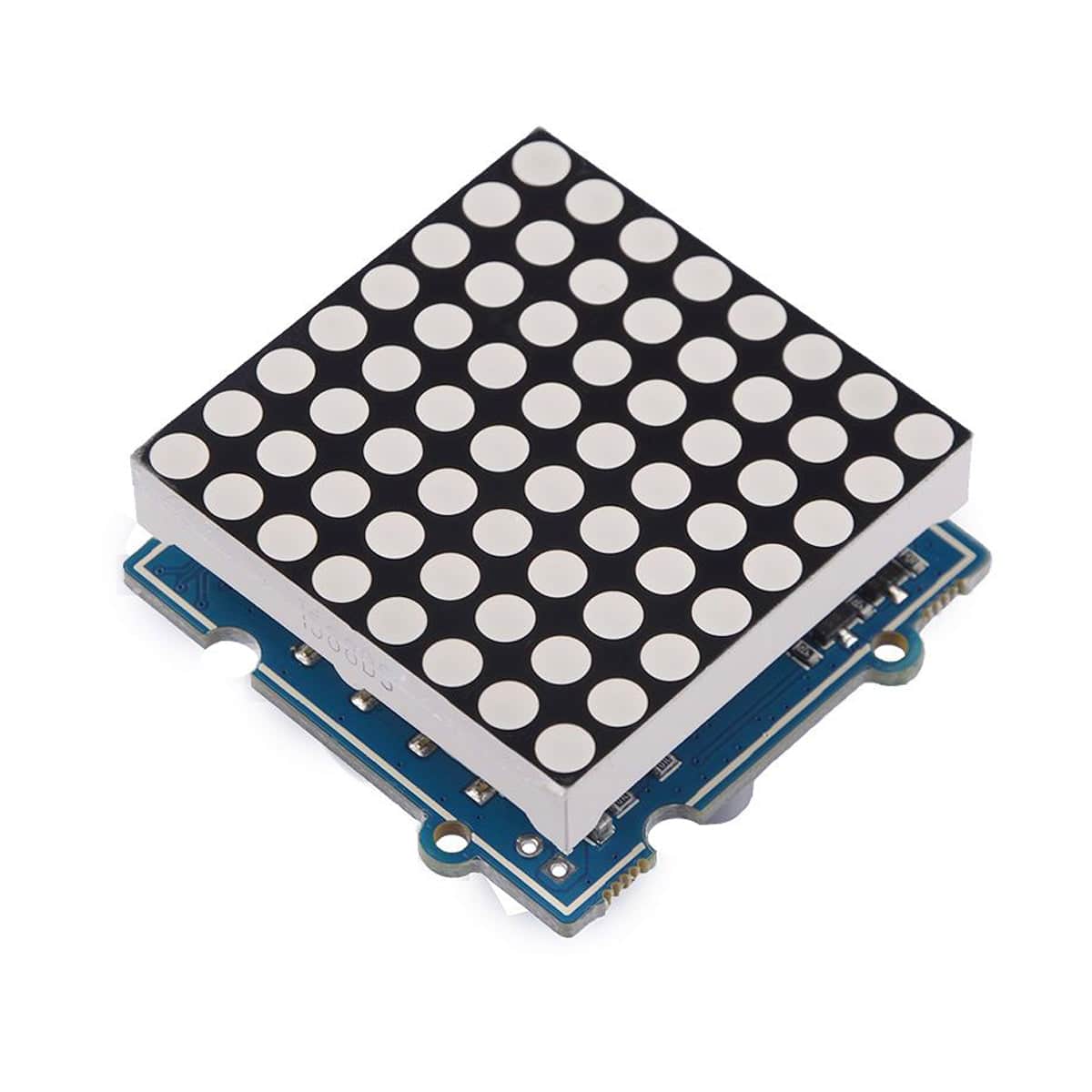

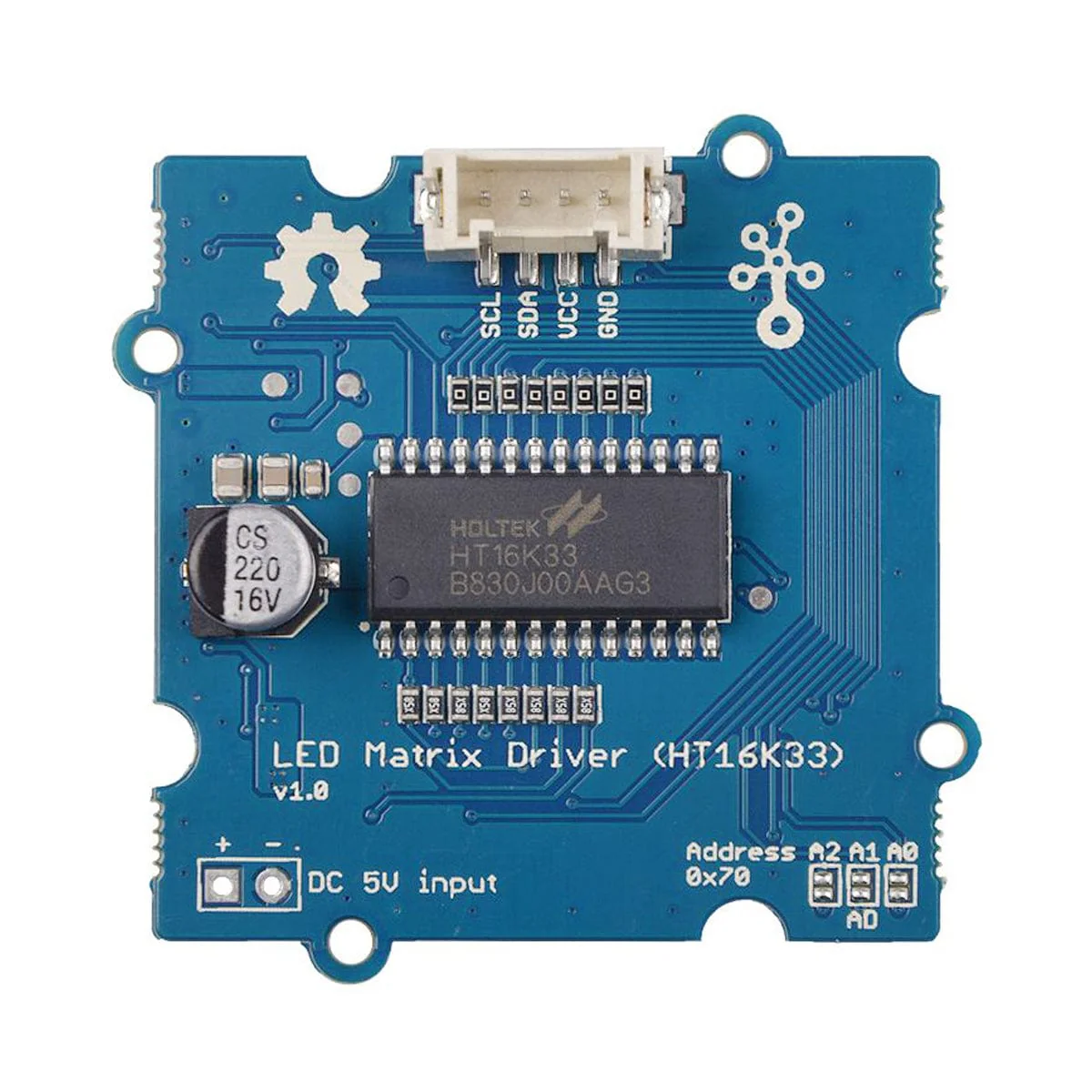

This LED Matrix combines an 8 x 8 red LED matrix with the Grove LED Matrix Driver. The driver uses the HT16K33, a memory-mapped, multifunctional LED controller that allows easy matrix control through provided libraries or custom libraries.

The HT16K33ā€™s software configuration suits various LED projects, such as modules and display systems. It communicates with most microcontrollers via a two-line I2C bus.

If you're looking for a matrix with multiple colours, click here to find it in our shop.

Features

  • Integrated RC oscillator
  • R/W address auto increment
  • Max. 8 x 8 patterns
  • I2C-bus interface
  • Product Number: Seeed 104020089

Specifications

Supply Voltage 3.3V / 5V
LED Matrix Dot 8 x 8
Operating temperature -40 - 85ā„ƒ
Storage temperature -50 - 125ā„ƒ
Interface I2C
I2C address 0x70 (default)
0x71 - 0x77 (configurable)

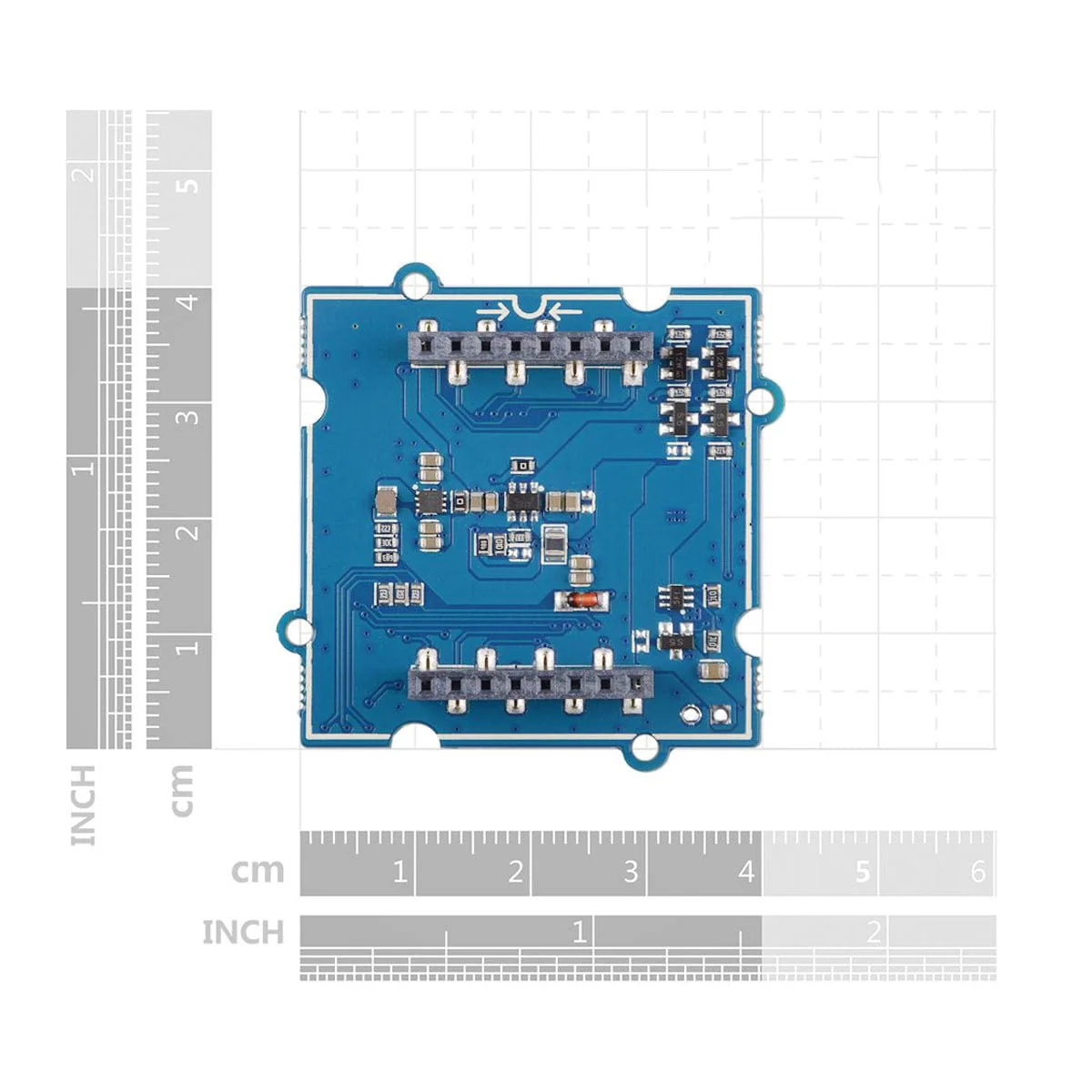

Size L: 40mm W: 40mm H: 21mm
Weight 17.4g
Package size L: 140mm W: 90mm H: 20mm
Gross Weight 24g

Resources

  • Product Wiki
  • Eagle Files
  • HT16K33 Software Library
  • Datasheet HT16K33

Pinout

Package Contents

  • 1x Grove - Red LED Matrix with Driver
