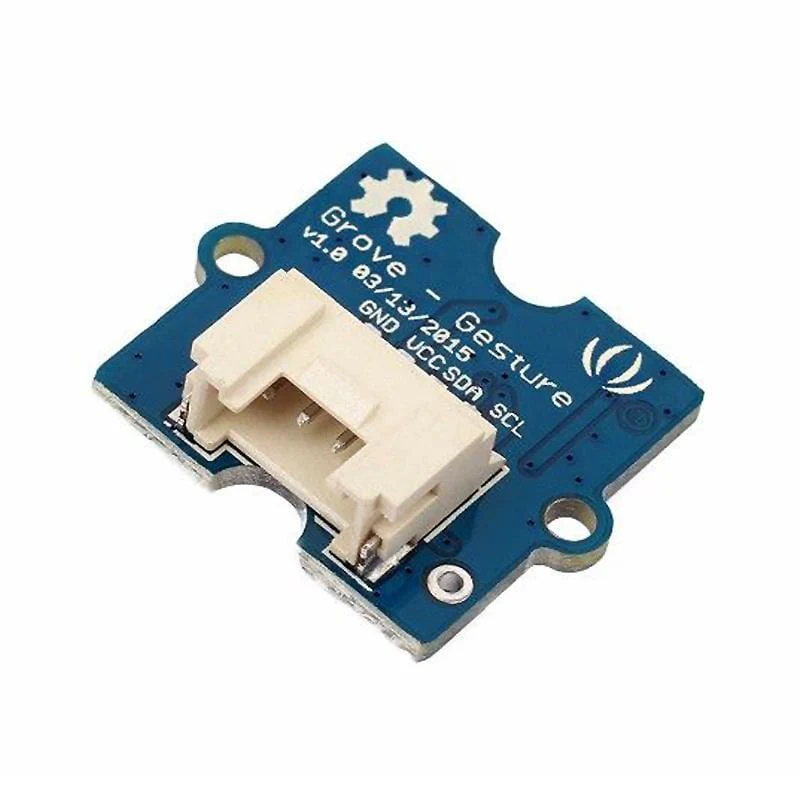

Grove - Gesture Sensor (PAJ7620U2)
The Grove Gesture is based on the PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including moving up, moving down, moving left, moving right and more, with a simple swipe of your hand.
We can use the gesture to adjust the sound volume, control a robot, direct an application and more. We can also make a remote-control unit, which is able to operate many devices at the same time using gestures
Features
- 9 gestures recognition
- Built-in proximity detection
- Grove compatible
- Product number: Seeed 101020083
Specifications
- Interface: IIC
- 9 gesture recognition
- Operating voltage: 5V

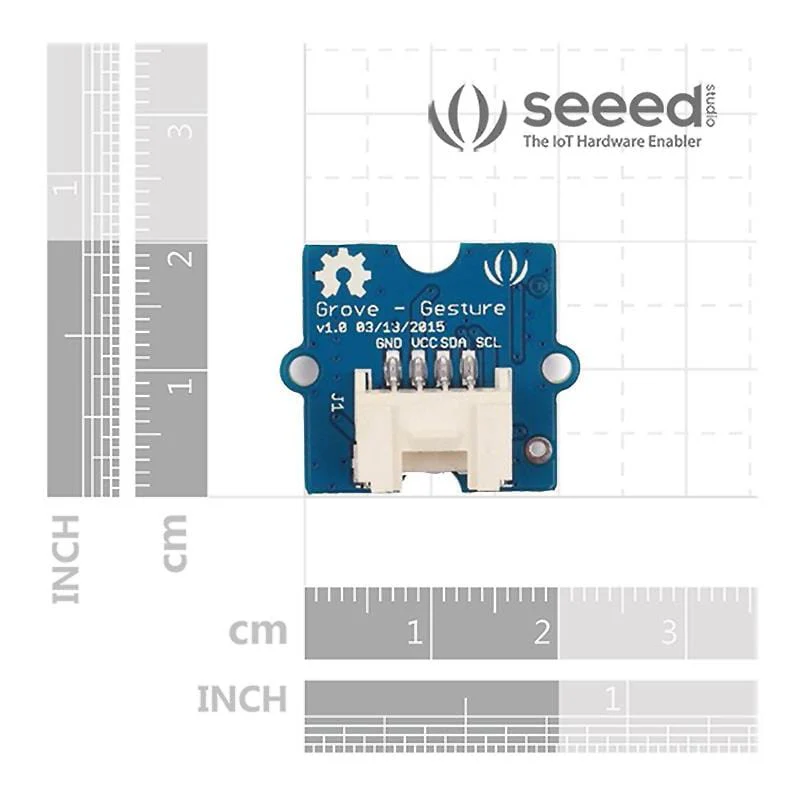

- Dimensions: 20x20mm

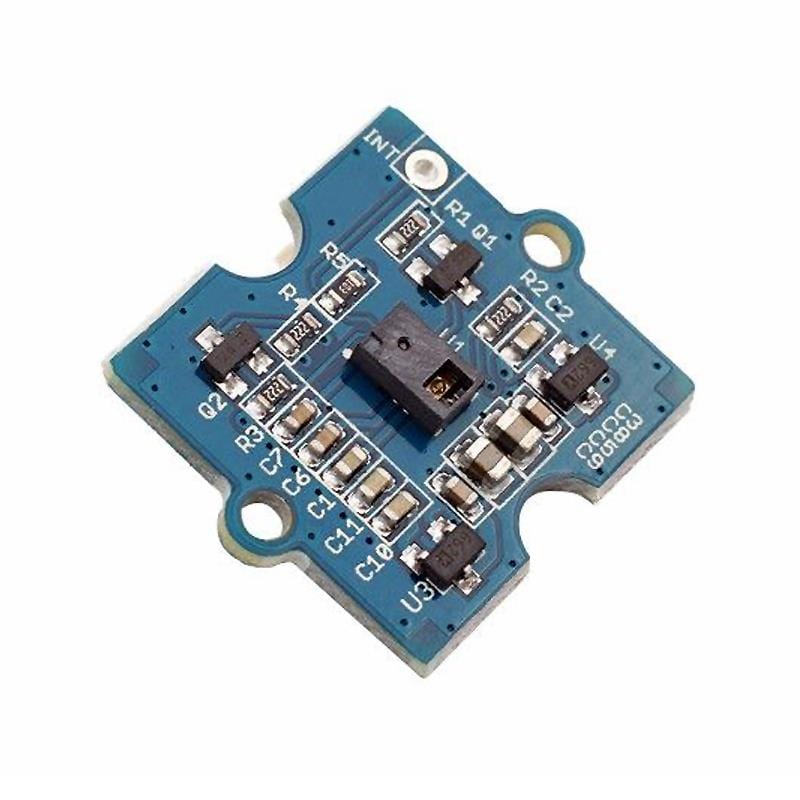

- Sensor: PAJ7620U2
- Detecting range: 5-10cm
- Ambient light immunity: < 100k Lux
Resources
- Product Wiki

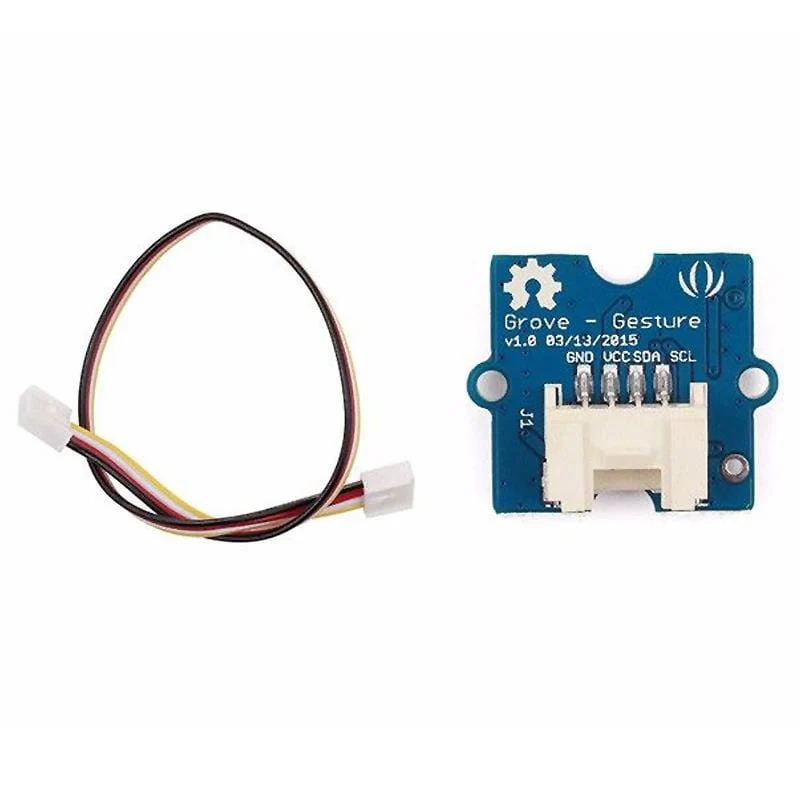

Package Contents
- 1x Grove Gesture Sensor
- 1x Grove Cable
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Grove Gesture is based on the PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including moving up, moving down, moving left, moving right and more, with a simple swipe of your hand.
We can use the gesture to adjust the sound volume, control a robot, direct an application and more. We can also make a remote-control unit, which is able to operate many devices at the same time using gestures
Features
- 9 gestures recognition
- Built-in proximity detection
- Grove compatible
- Product number: Seeed 101020083
Specifications
- Interface: IIC
- 9 gesture recognition
- Operating voltage: 5V
- Dimensions: 20x20mm
- Sensor: PAJ7620U2
- Detecting range: 5-10cm
- Ambient light immunity: < 100k Lux
Resources
- Product Wiki
Package Contents
- 1x Grove Gesture Sensor
- 1x Grove Cable
