Grove - Current Sensor

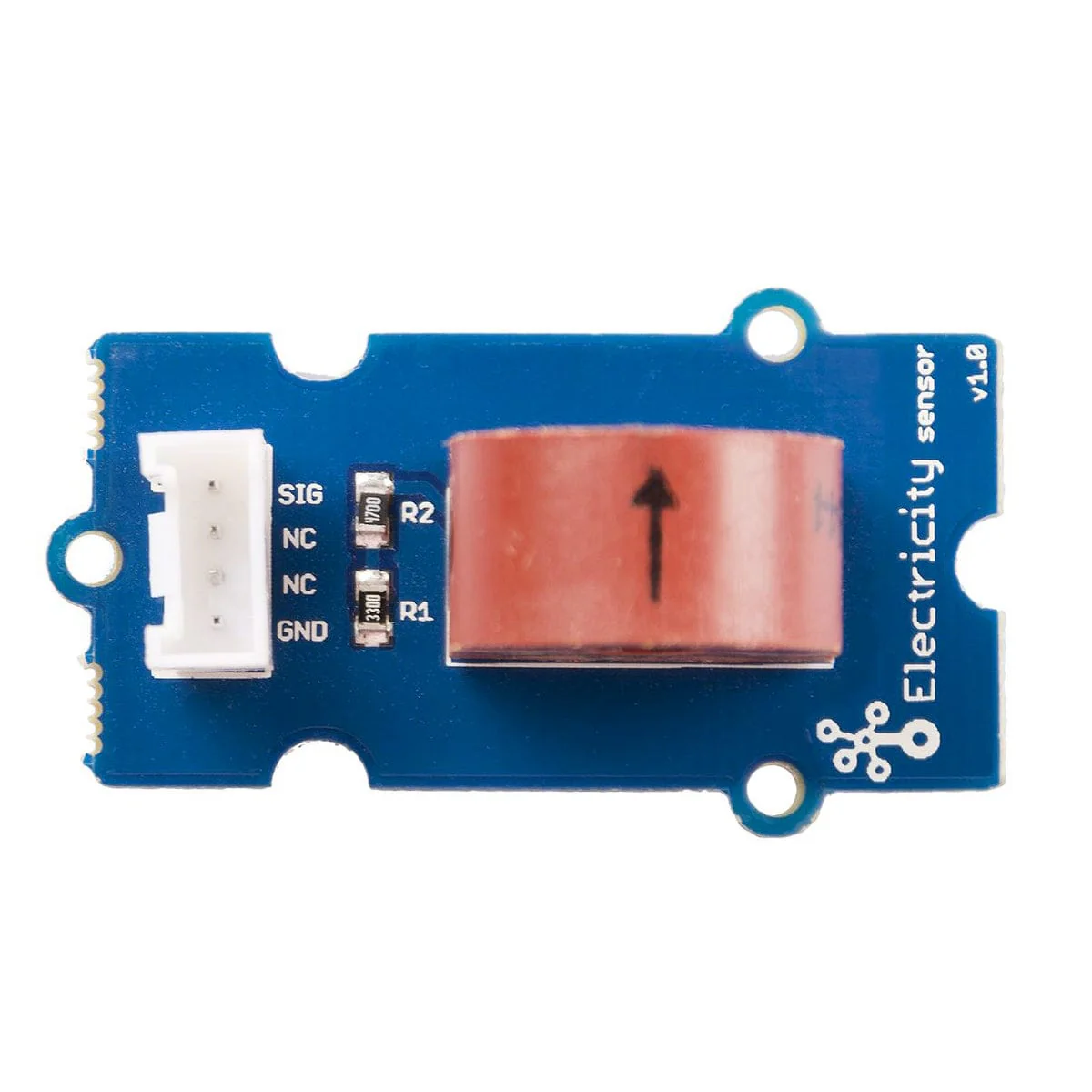

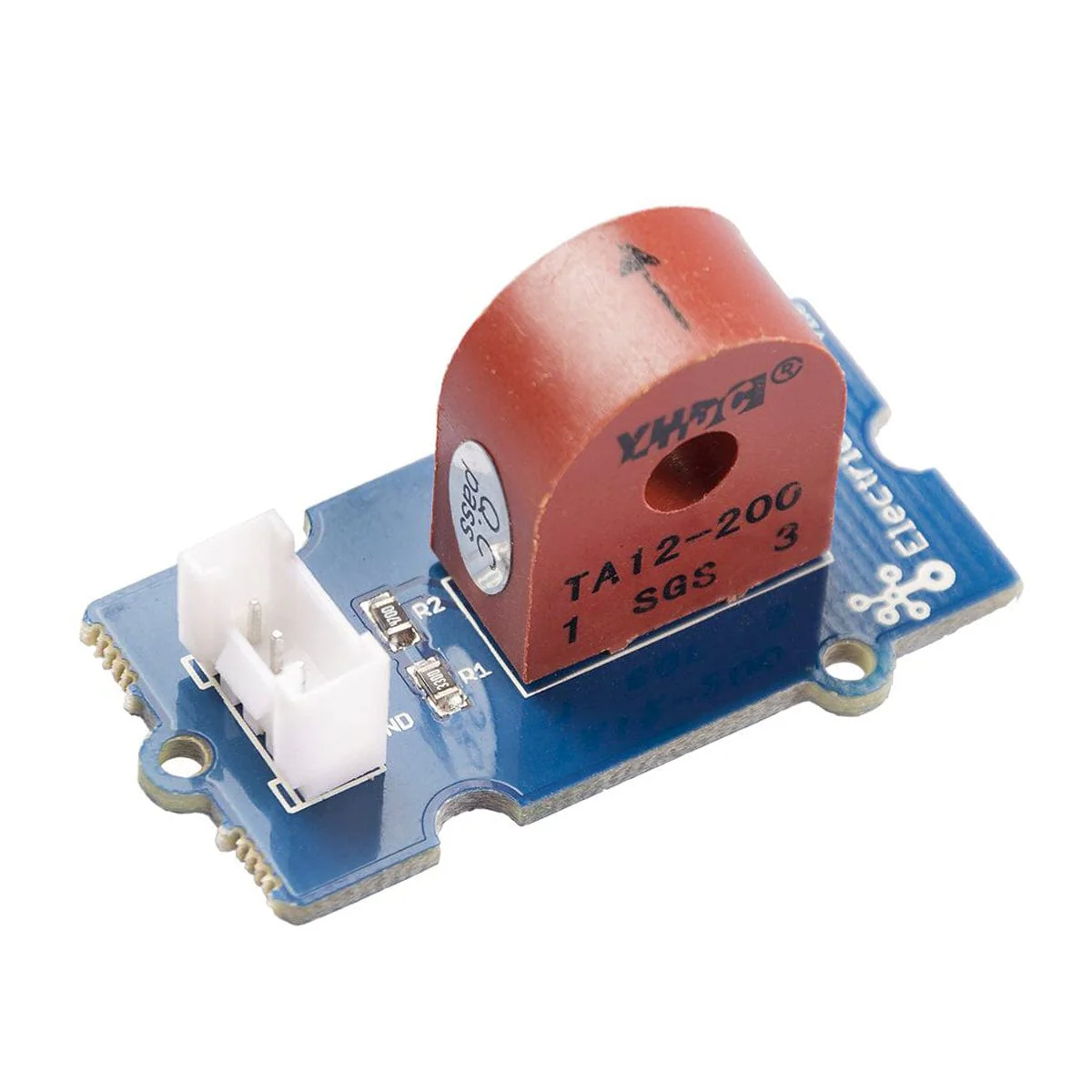

This electricity sensor is built around the TA12-200 current transformer, which converts large alternating currents into smaller, manageable signals.
It's perfect for measuring AC currents of up to 5A, making it very useful for testing and monitoring electrical systems. It is compatible withĀ ArduinoĀ (With aĀ Grove - Base Shield)Ā orĀ Raspberry PiĀ (Only with theĀ Grove-Base HAT)
Features
- Grove Compatible Interface
- Maximum 5A Input
- High Accuracy
- Small Size
- Product Number: Seeed 101020027
Specifications

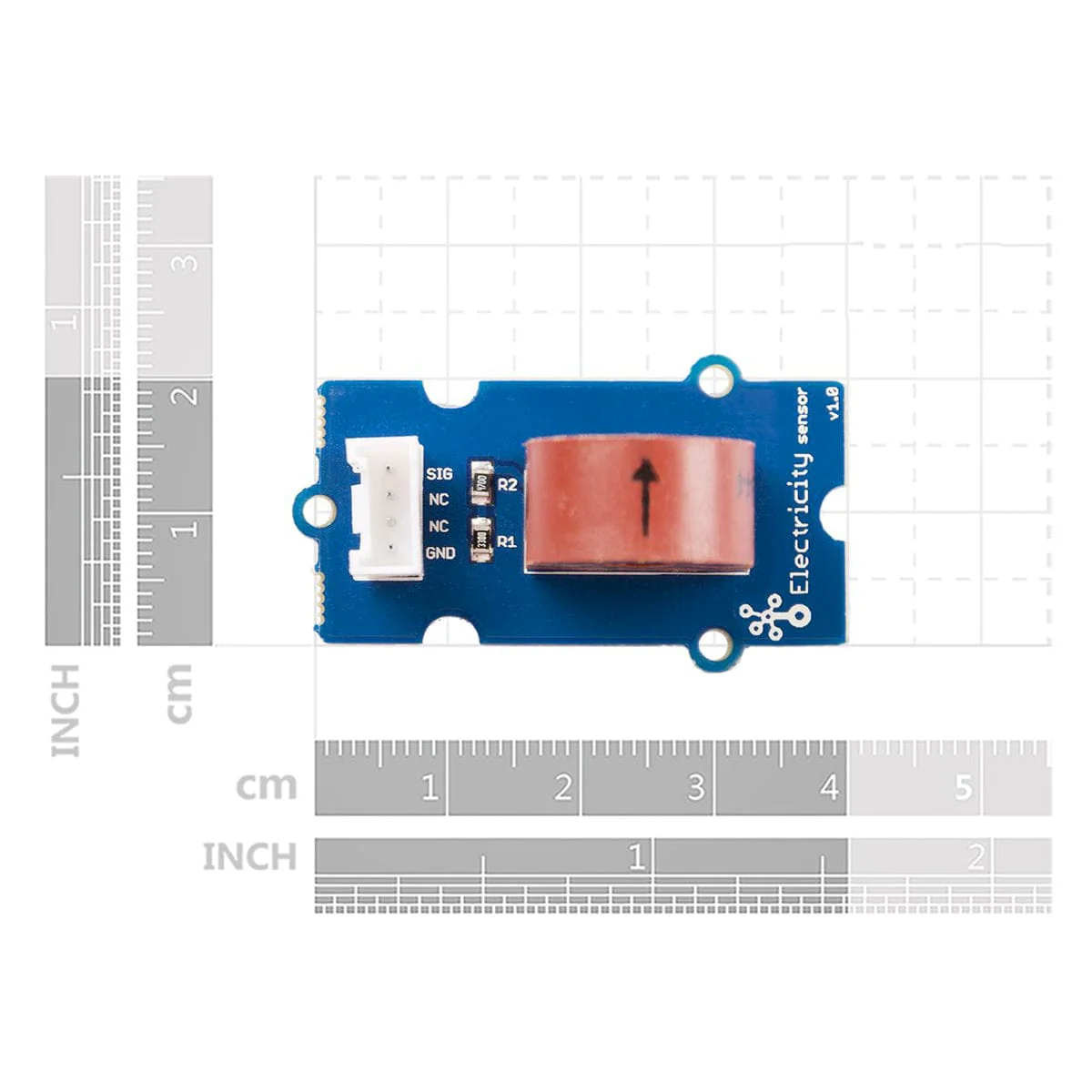

| PCB Size | 2.0cm x 4.0cm |
| Interface | 2.0mm pitch pin header |
| IO Structure | SIG, NC, NC, GND |
| RoHS | Yes |
| Dimensions | 130mm x 90mm x 24mm |
| Weight | 16g |
Resources
- Product Wiki
- Eagle File
- Schematic in PDF
Package Contents
- 1x Grove - Electricity Sensor
- 1x Grove Cable
