Grove - EL Driver [Discontinued]

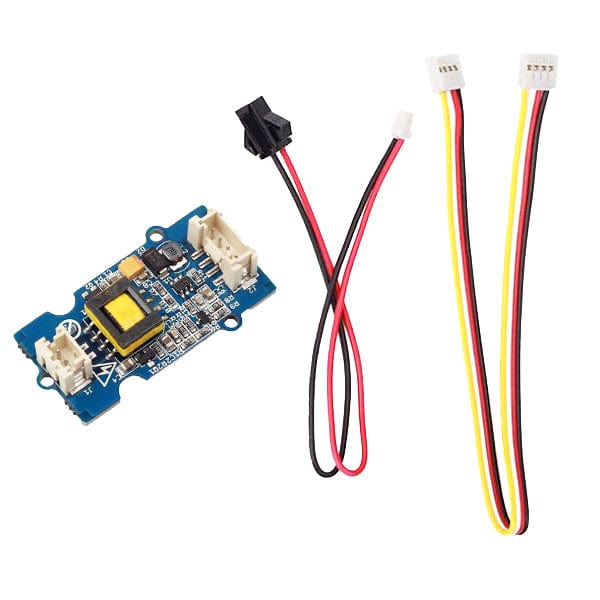

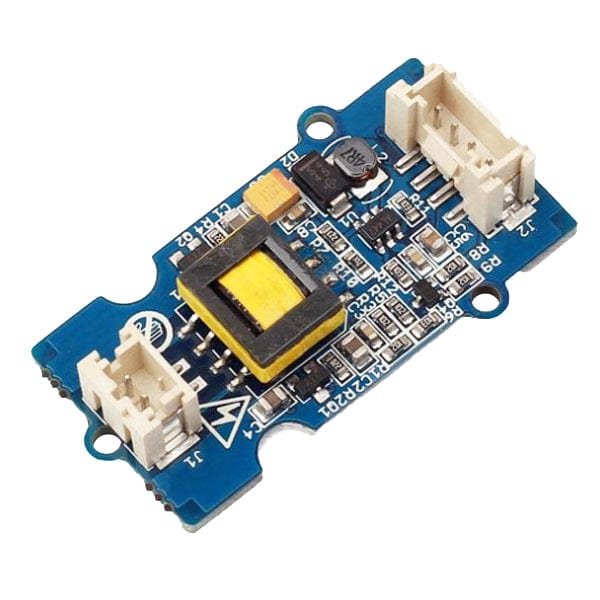

Grove - EL Driver is designed for driving EL Wires.It integrates a very small inverter to drive the EL Wire, so you can easily light up the EL Wire with just one single Grove cable.

Features:

• Grove compatible interface
• 3.3V/5V Compatible
• Integrated Inverter Transformer
• Product number: Seeed 105020005

Specifications:

• Input Current: 300mA Max (According to the load)
• Input Voltage 3~5Vdc
• Output Voltage:70~110Vpp
• Output frequency: 8~20kHz
• Supported max EL Capacitance: 15nF

Resources

• Product Wiki
