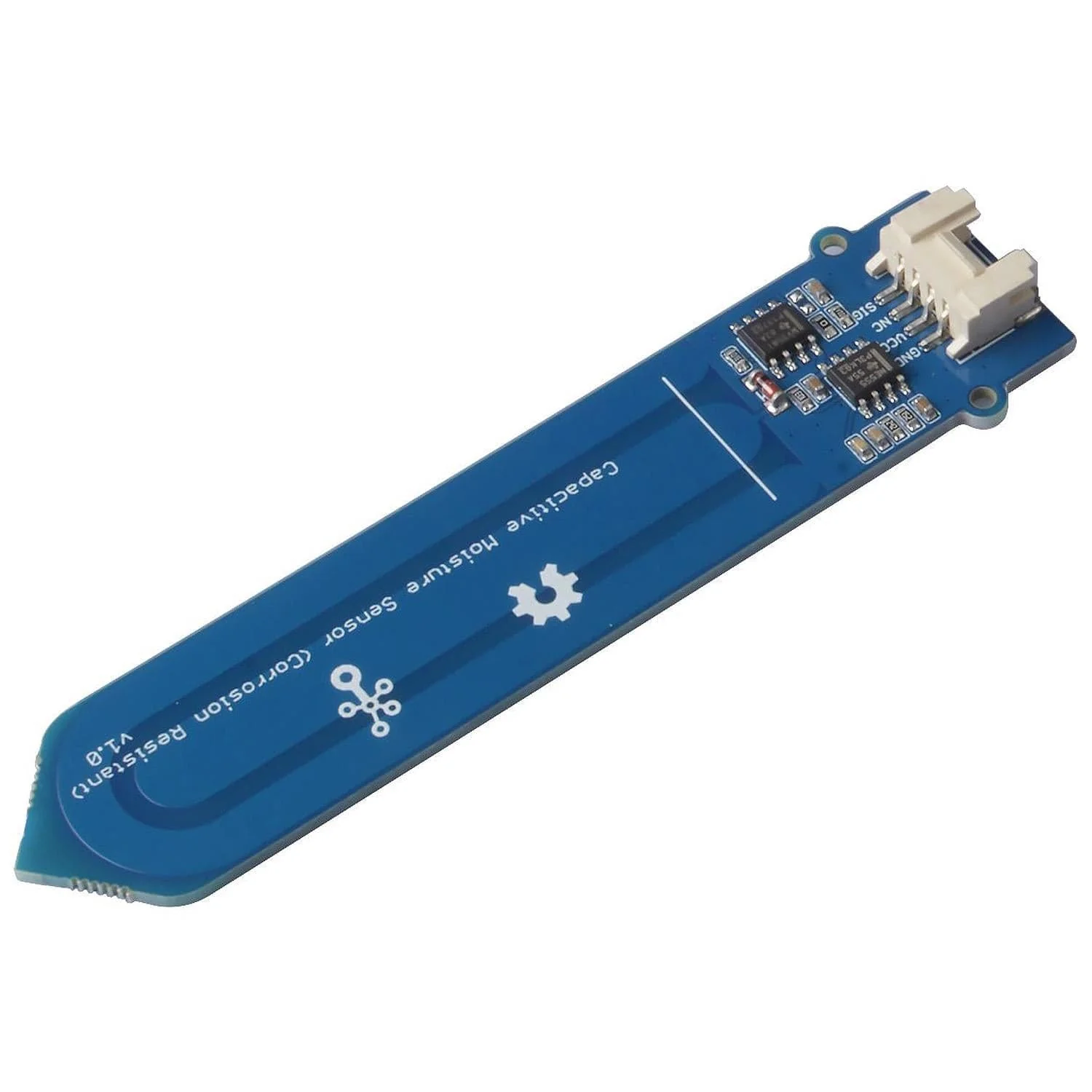

Grove - Capacitive Soil Moisture Sensor
A soil moisture sensor can detect the volumetric water content of your plant's soil. The Seeed Grove Capacitive Soil Moisture Sensor is a soil moisture sensor based on capacitance changes. Compared with resistive sensors, capacitive sensors do not require direct exposure to the metal electrodes, which can significantly reduce the erosion of the electrodes.
It is important to note that this sensor can only qualitatively test the humidity of the soil and cannot measure quantitatively. When the humidity of the soil rises, the value of the output decreases; conversely, when the humidity decreases, the output value becomes higher.
Features
- Capacitive Style
- Corrosion Resistant
- Built-in Amplifier
- Product number: Seeed 101020614

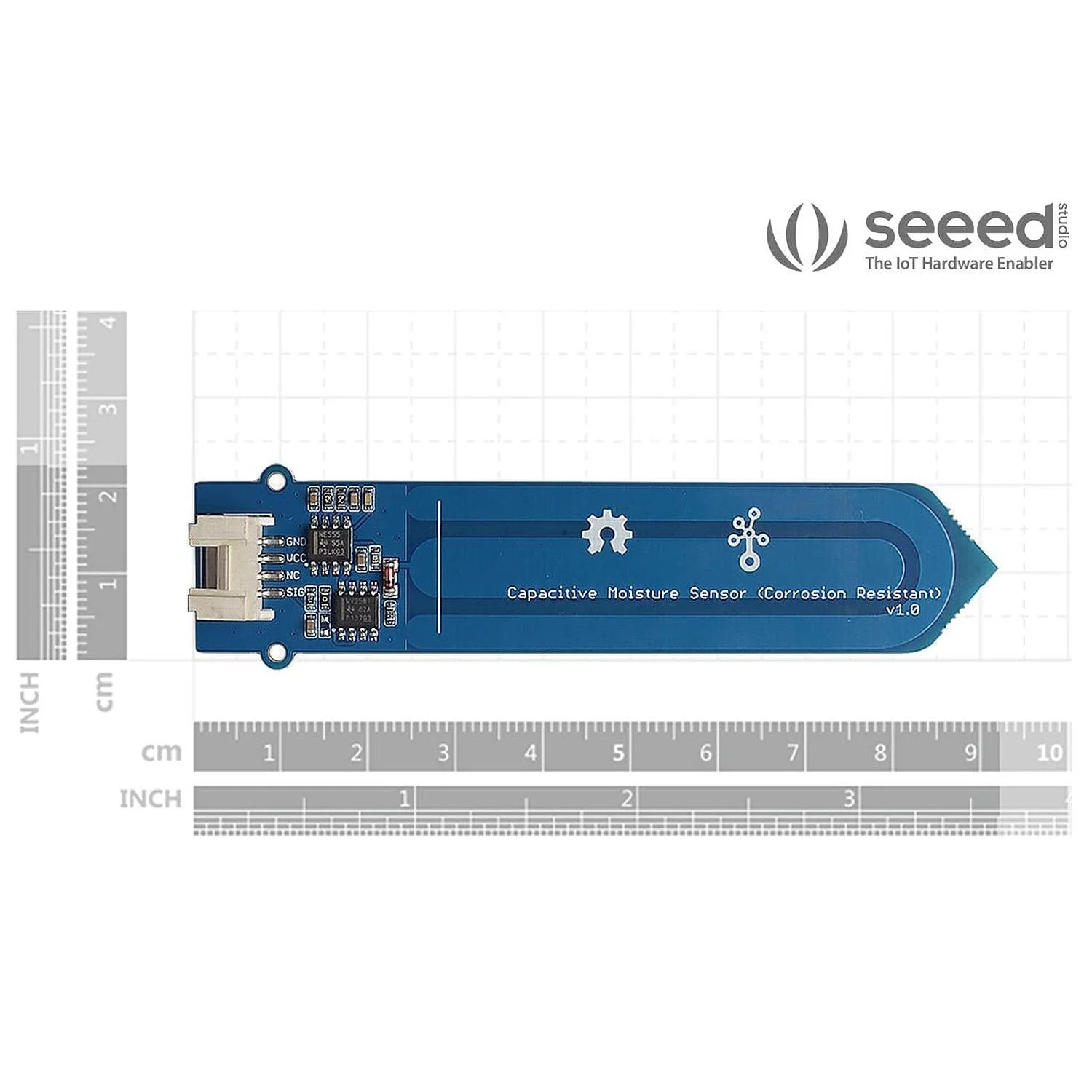

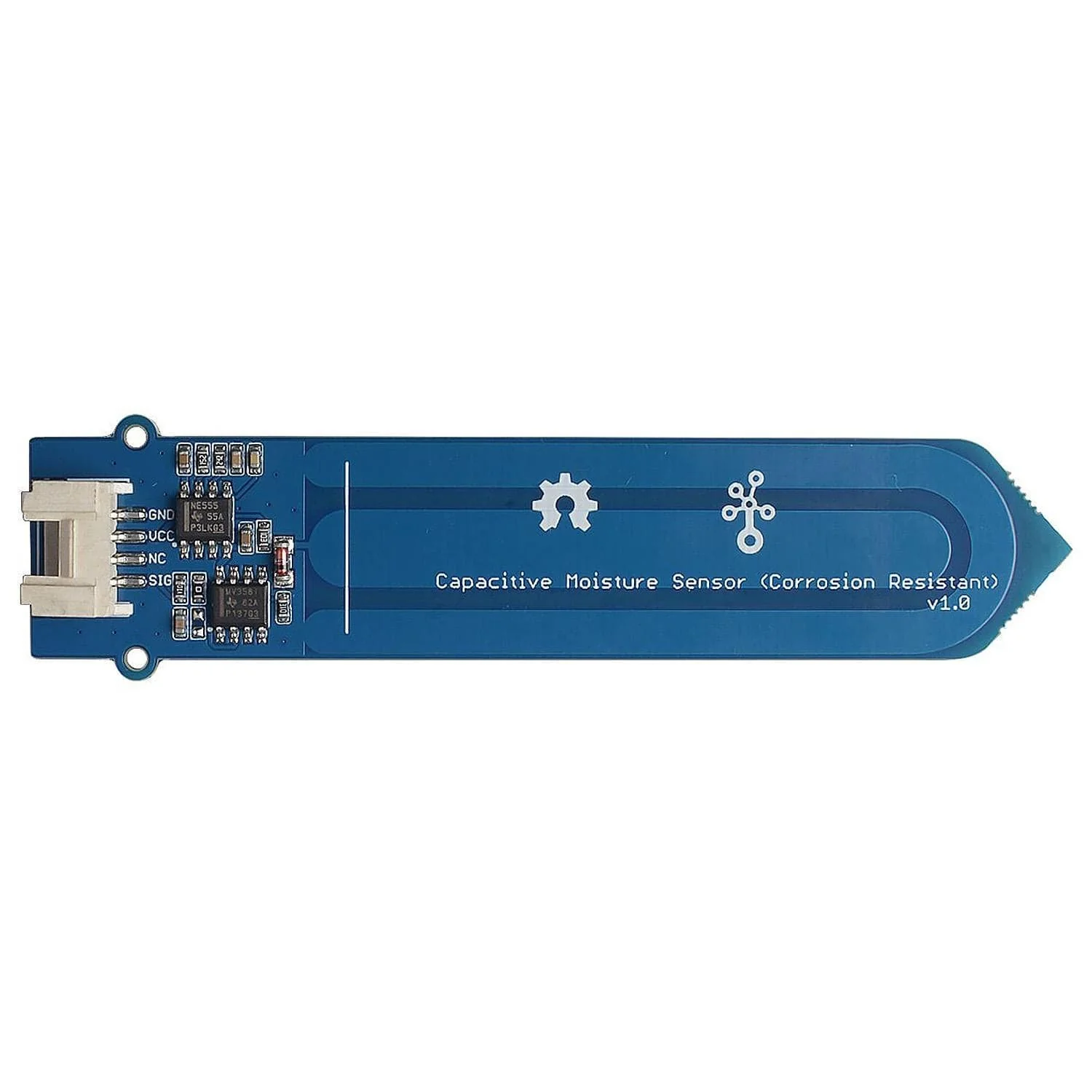

Pinout

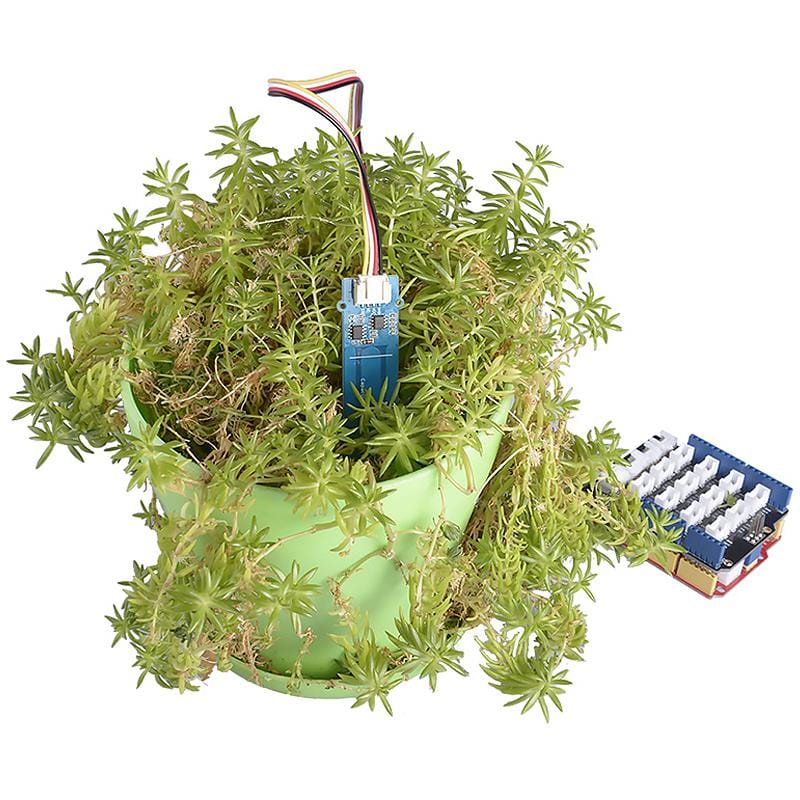

Note: The part of the sensor inserted into the soil cannot exceed the highest position line.
Resources
- Product Wiki
- Grove - Capacitive Moisture Sensor Eagle Files
- NE555DR Datasheet
