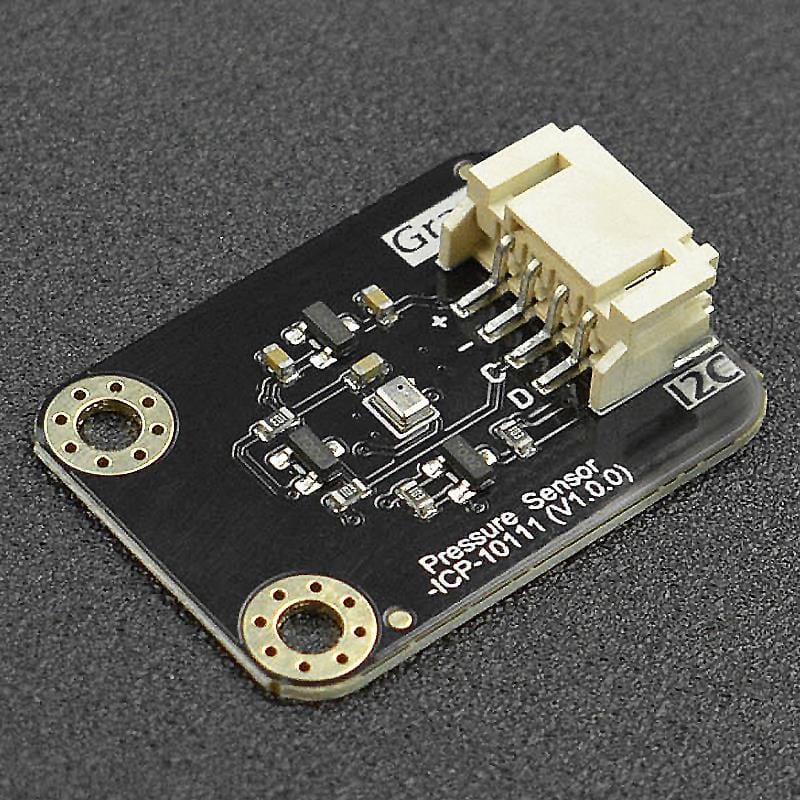

Gravity: ICP-10111 Pressure Sensor
This barometric pressure temperature sensor is equipped with TDK's newly-launched ICP-10111 barometric pressure sensor, which is based on MEMS capacitor technology to achieve ultra-low power consumption, industry-leading relative accuracy and temperature offset coefficient.
The Gravity: ICP-10111 barometric pressure temperature sensor can measure the pressure difference with an accuracy of ±1Pa, an accuracy enabling altitude measurement differentials as small as 8.5 cm, less than the height of a single stair step.
The pressure noise can be as low as 0.4Pa, and the read data will be more stable. There is a built-in temperature sensor for air pressure compensation. The ICP-10111 offers a temperature coefficient offset of ±0.5 Pa/°C, more stable for long-term use. The combination of high accuracy, low power, and temperature stability in a small footprint enables higher performance barometric pressure sensing for sports activity identification, mobile indoor/outdoor navigation and altitude-hold in drones.
The easy to use Gravity interface makes it simple to connect to your favourite development board when used in conjunction with a gravity interface board.
Connection Example (Arduino)
Features
- Relative accuracy ±1Pa, as small as 8.5cm height measurement difference
- ±0.5Pa/℃ temperature coefficient offset, high stability for long-term use
- 0.4Pa Pressure noise, more stable data
Specifications
- Working Voltage: 3.3V~5.5V
- Working Current: ＜2mA
- Communication: I2C
- I2C Address: 0x63
- Barometric Pressure Measurement Range: 30~110kPa
- Relative Barometric Pressure Measurement Accuracy: ±0.01 hPa (950hPa~1050hPa, 25℃)
- Absolute Barometric Pressure Measurement Accuracy: ±1 hPa (950hPa-1050hPa, 0℃~65℃)
- Temperature Coefficient Offset: ±0.5 Pa/℃ (100kPa, 25℃~45℃)
- Absolute Temperature Measurement Accuracy: ±0.4℃
- Working Temperature: -40℃~85℃

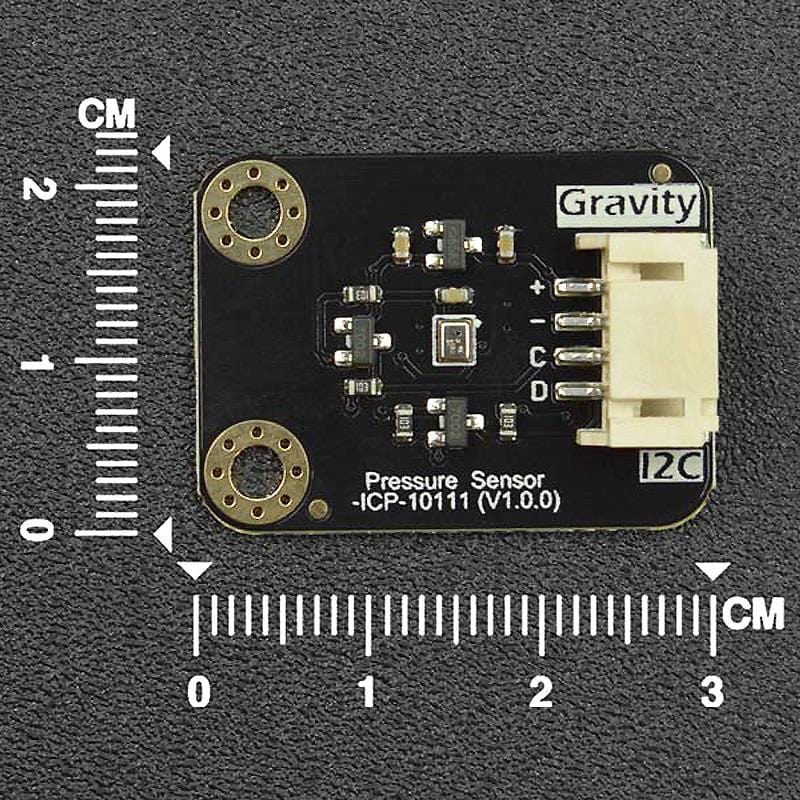

- Dimensions: 30mm x 22mm/1.18 x 0.87inch
Package Contents

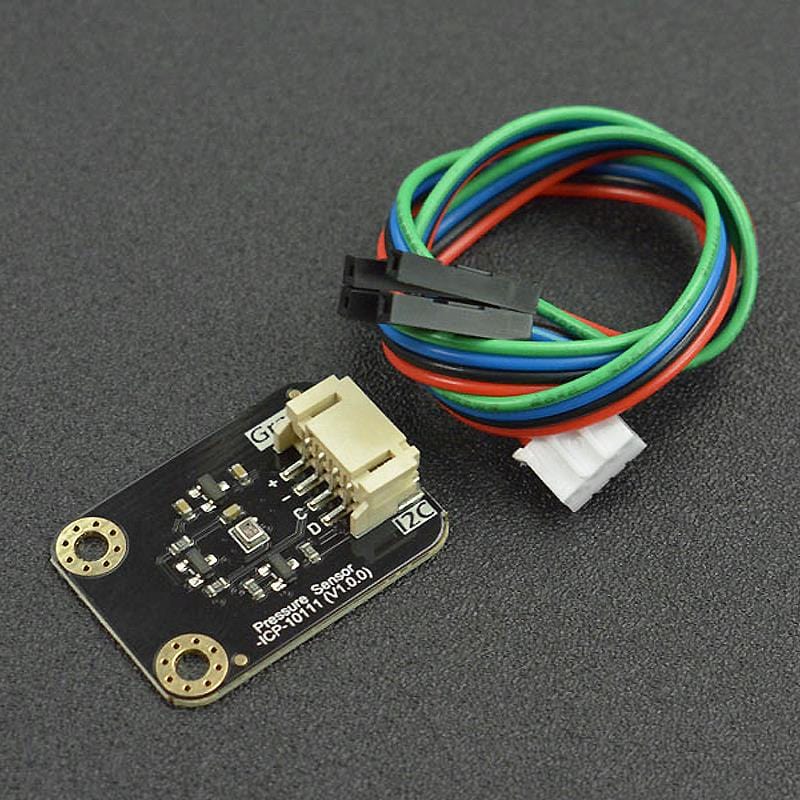

- 1x Gravity: ICP-10111 Pressure Sensor
- 1x 2.54-4P I2C/UART Sensor Connector
Resources
- Product wiki
- Schematics
- Dimension
- ICP10111 Datasheet
