Gravity: I2C/UART 4-pin PH2.0 to Female Jumper Cables (10 pack)

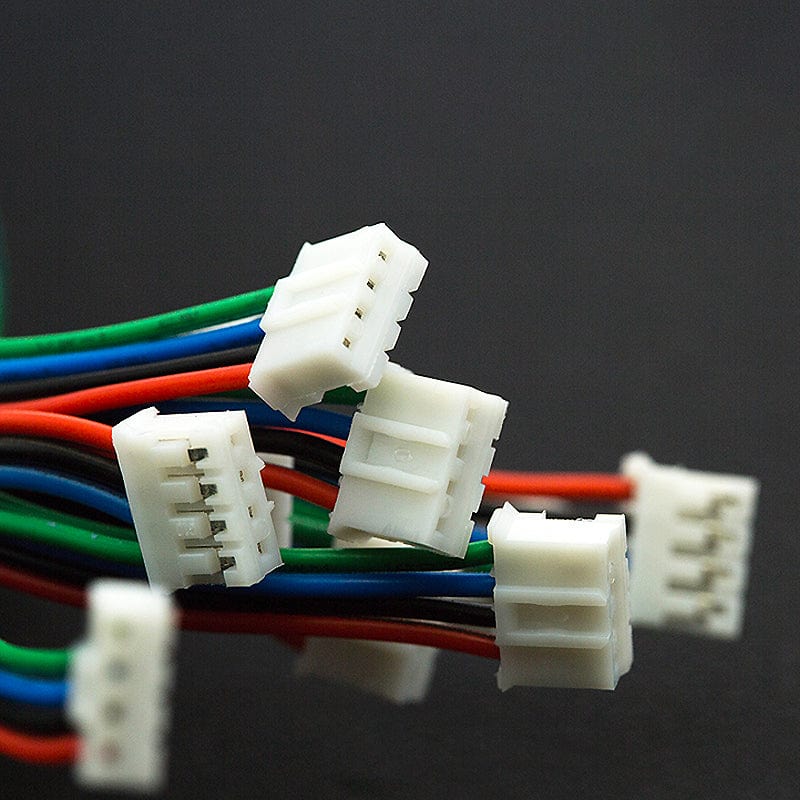

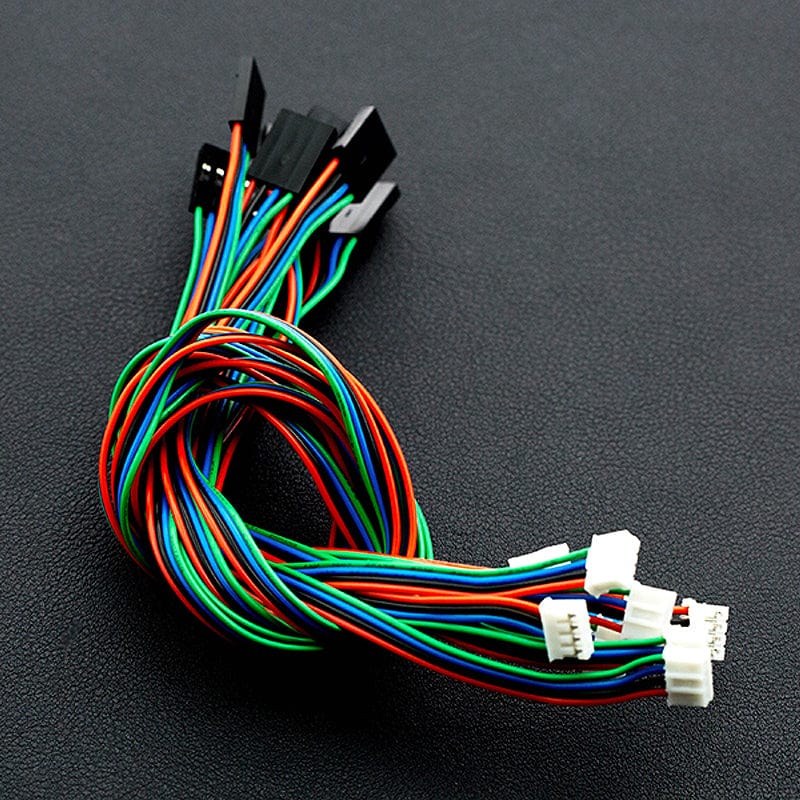

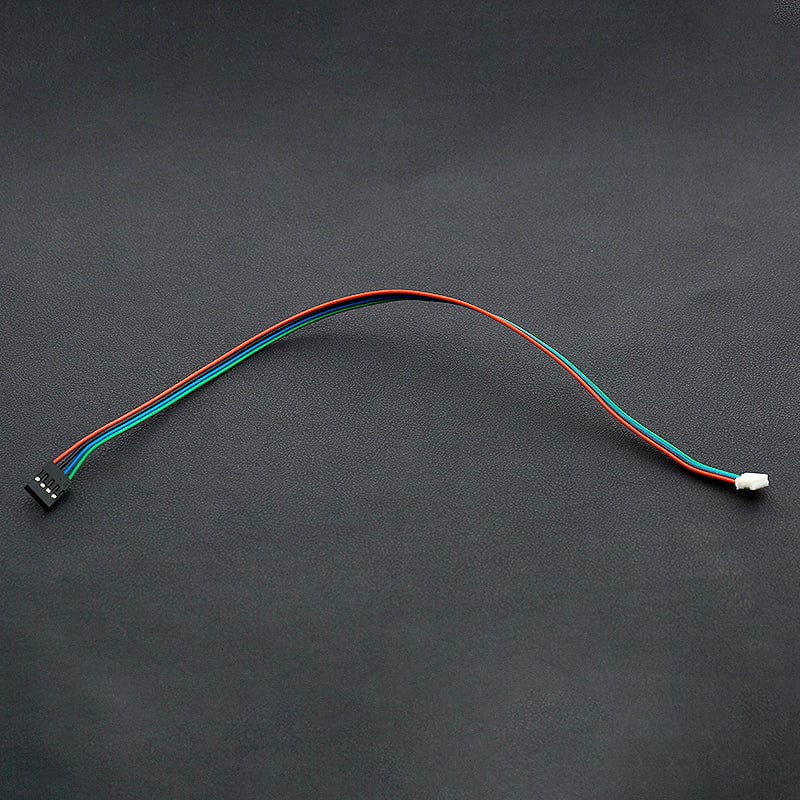

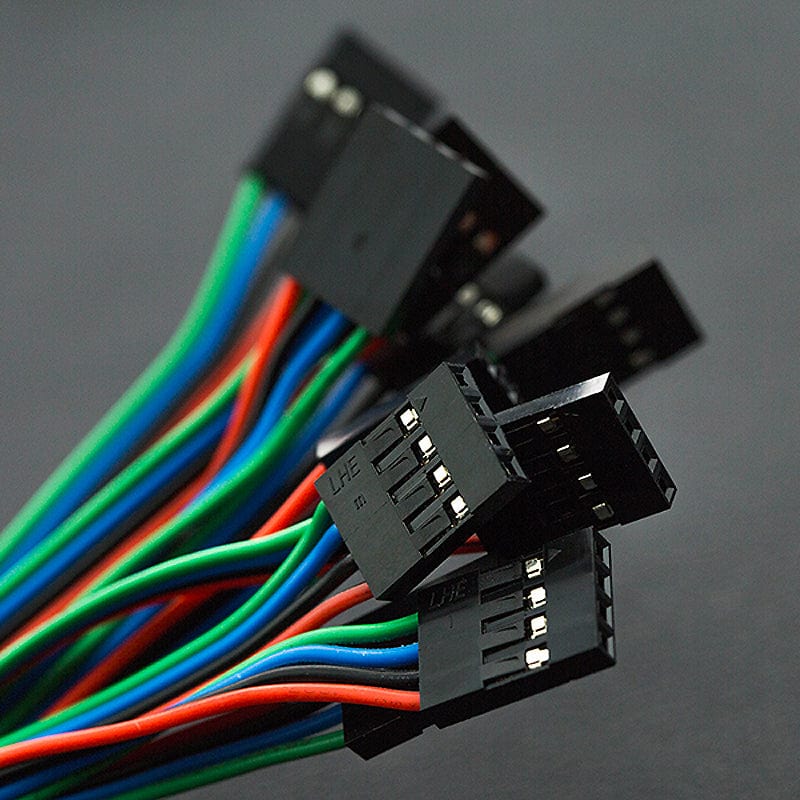

The Gravity 4-Pin I2C/UART sensor cable is a standard DFRobot Gravity cable with a 30cm length. One side has a 4-pin PH2.0 connector and the other side has a female XH2.54 DuPont port.
These cables are compatible with standard 2.54mm pin pitch, which makes it easy to construct your project.
The cable uses a colour-coded design to distinguish between the positive and negative power supply, I2C SDA SCL, UART RX TX. Easy to recognise and use.
This product is a whopping great pack of 10 cables!
Specifications
- Withstand Voltage: 50V
- Withstand Current: 1000mA
- Length: 30cm
- I2C/UART Pin Order: Red --- VCC
- Black --- GND
- Blue --- SCL/RX
- Green --- SDA/TX
Package Contents
- 10x Gravity 4-Pin I2C/UART Sensor Cable
Original: $7.90
-70%$7.90
$2.37Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Gravity 4-Pin I2C/UART sensor cable is a standard DFRobot Gravity cable with a 30cm length. One side has a 4-pin PH2.0 connector and the other side has a female XH2.54 DuPont port.
These cables are compatible with standard 2.54mm pin pitch, which makes it easy to construct your project.
The cable uses a colour-coded design to distinguish between the positive and negative power supply, I2C SDA SCL, UART RX TX. Easy to recognise and use.
This product is a whopping great pack of 10 cables!
Specifications
- Withstand Voltage: 50V
- Withstand Current: 1000mA
- Length: 30cm
- I2C/UART Pin Order: Red --- VCC
- Black --- GND
- Blue --- SCL/RX
- Green --- SDA/TX
Package Contents
- 10x Gravity 4-Pin I2C/UART Sensor Cable
