Fermion: MEMS Microphone Module

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Fermion: MEMS Microphone Module

This tiny MEMS microphone has an amplifier gain of 66. When there is no sound detected, it outputs voltage around 0.66*VCC. When speaking, you can easily get the acoustic waveform by ADC sampling. The module can be used on all kinds of 3.3V/5V main-controllers.

Connection Example - DFRduino UNO

Specifications

  • Signal Type: Analog signal
  • Power Supply: 3.3V/5V
  • Directivity: All-round
  • Sensitivity: -42dB
  • S/N Ratio: 59dBA
  • Frequency Range: 100Hz~8KHz

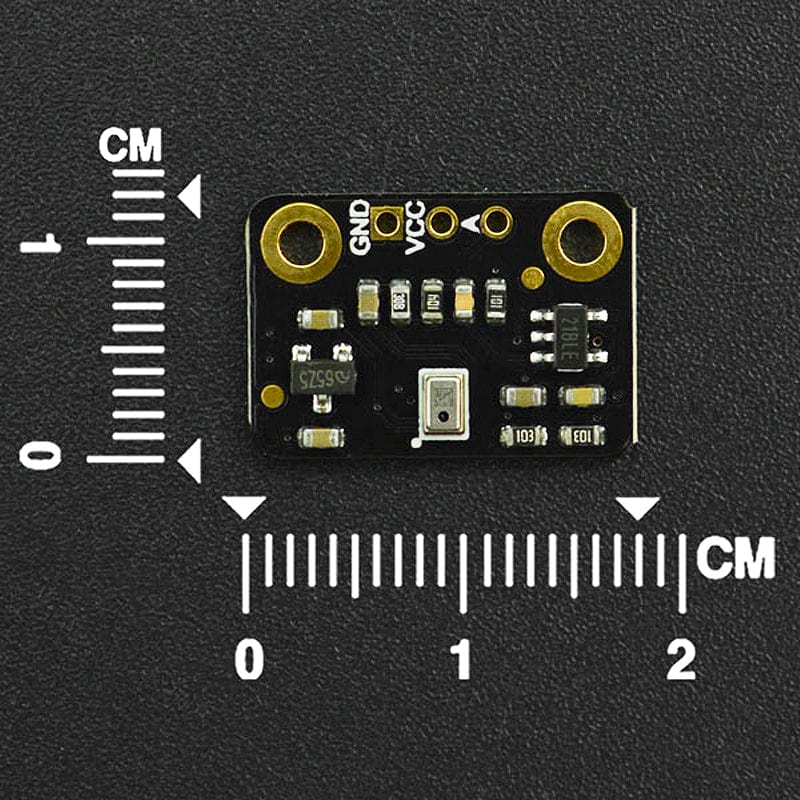

  • Dimension: 18 x 12.5 mm

Resources

  • Product Wiki

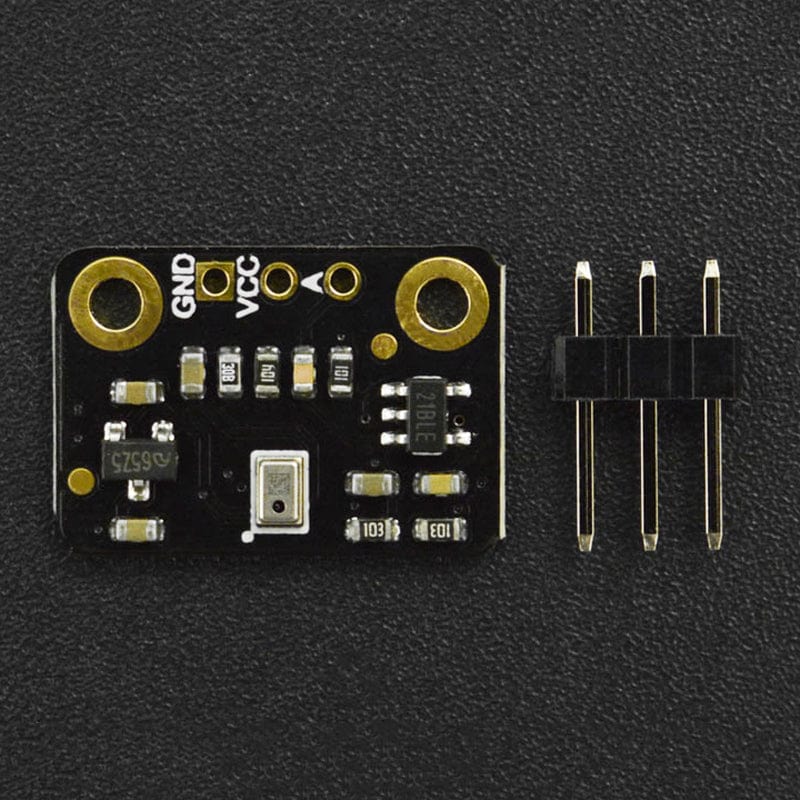

Package Contents

  • 1x Fermion: MEMS Microphone Module
  • 1x 2.54-3P Black Single Row Pin Header
$1.14

Original: $3.81

-70%
Fermion: MEMS Microphone Module—

$3.81

$1.14

Product Information

Shipping & Returns

Description

This tiny MEMS microphone has an amplifier gain of 66. When there is no sound detected, it outputs voltage around 0.66*VCC. When speaking, you can easily get the acoustic waveform by ADC sampling. The module can be used on all kinds of 3.3V/5V main-controllers.

Connection Example - DFRduino UNO

Specifications

  • Signal Type: Analog signal
  • Power Supply: 3.3V/5V
  • Directivity: All-round
  • Sensitivity: -42dB
  • S/N Ratio: 59dBA
  • Frequency Range: 100Hz~8KHz
  • Dimension: 18 x 12.5 mm

Resources

  • Product Wiki

Package Contents

  • 1x Fermion: MEMS Microphone Module
  • 1x 2.54-3P Black Single Row Pin Header
