M5Stack ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988)
The ENV III unit is an environmental sensor that integrates the SHT30 and QMP6988 to detect temperature, humidity, and atmospheric pressure data. The SHT30 is a high-precision and low-power digital temperature and humidity sensor, and supports I2C interface (SHT30:0x44 , QMP6988:0x70). The QMP6988 is an absolute air pressure sensor specially designed for mobile applications, with high accuracy and stability, it is suitable for environmental data collection and detection projects.
Features
- Simple and easy to use
- High accuracy
- I2C communication interface
- HY2.0-4P interface, support platform UIFlow , Arduino
- 2x LEGO compatible holes

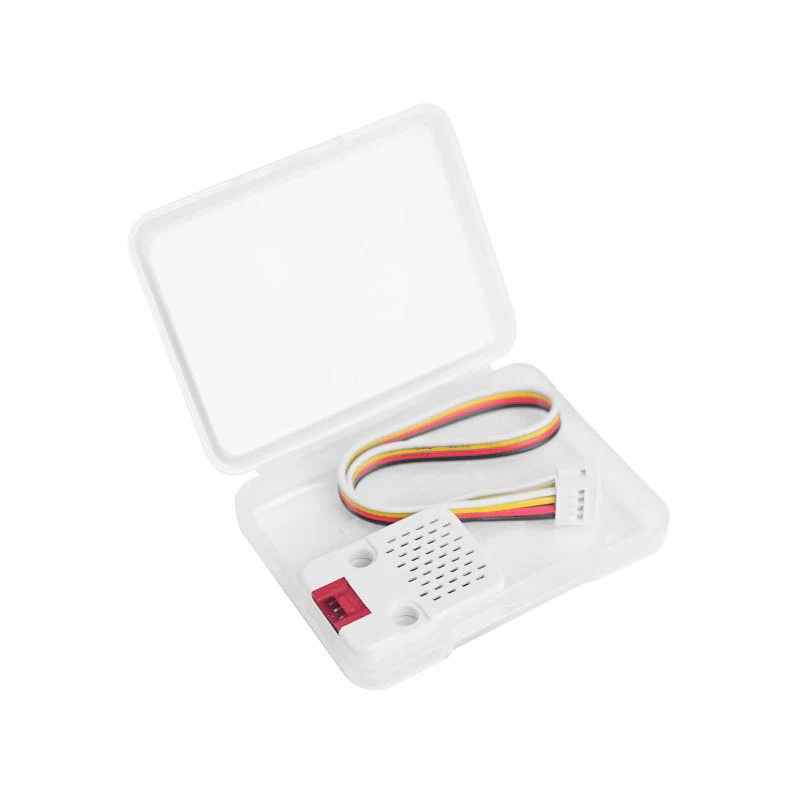

Package Contents
- 1x ENV-III Unit
- 1x HY2.0-4P Cable
Specifications
| Resources | Parameter |
|---|---|
| Maximum temperature measurement range | -40 ~ 120 ā |
| Highest measurement accuracy | 0 ~ 60 ā/Ā±0.2ā |
| Humidity measurement range/error | 10 ~ 90 %RH / Ā±2% |
| Maximum measured value of air pressure/resolution/error | 300 ~ 1100hPa / 0.06Pa / Ā±3.9Pa |
| Communication protocol | I2C: SHT30(0x44), QMP6988(0x70) |
| Working temperature | 32Ā°F to 104Ā°F (0Ā°C to 40Ā°C ) |
| Net weight | 5g |
| Gross weight | 17g |
| Product Size | 24.2*32.2*8.1mm |
| Package Size | 67*53*12mm |
| Case Material | Plastic ( PC ) |
