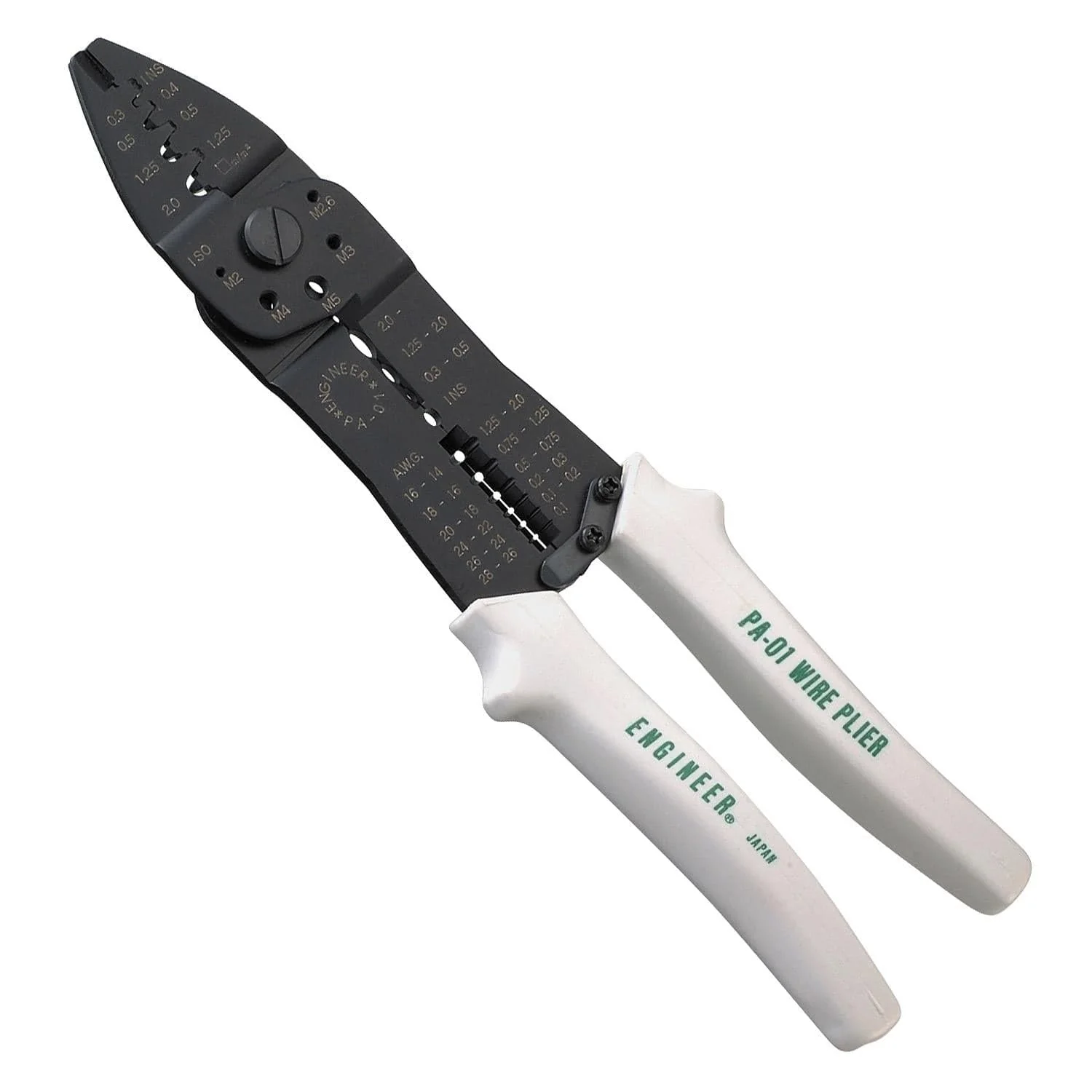

Engineer® PA-01 6-in-1 Crimping/Wiring Multi-tool [Discontinued]

Engineer has been manufacturing high-quality Japanese precision tools since 1948. If you're looking for the very best precision hand tools for your projects - look no further. Check out our full range of Engineer tools here!

The Engineer PA-01 is a versatile 6-in-1 Multi-function Wiring Tool.

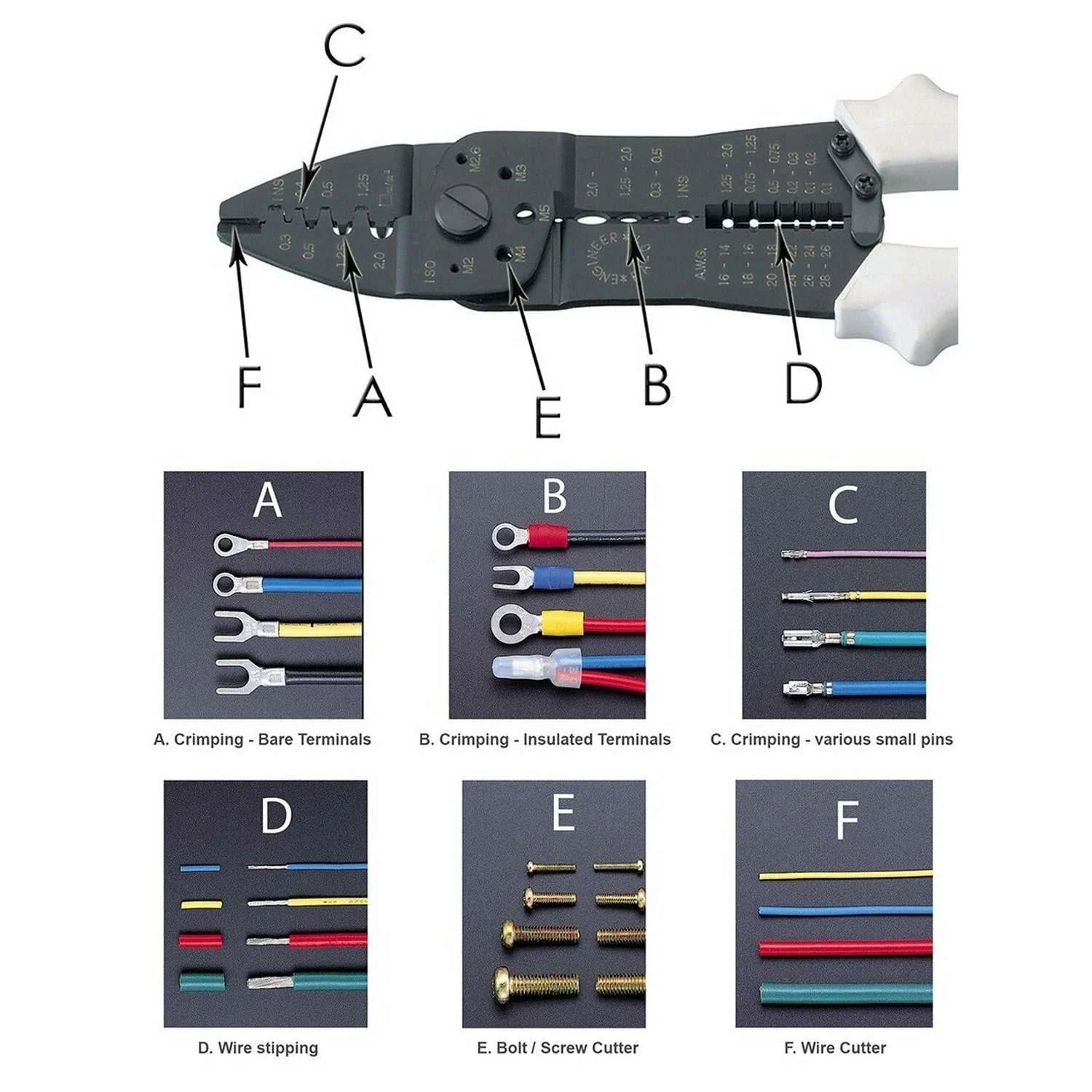

The PA-01 offers the following functionality:

• Crimping tool for bare terminal crimps

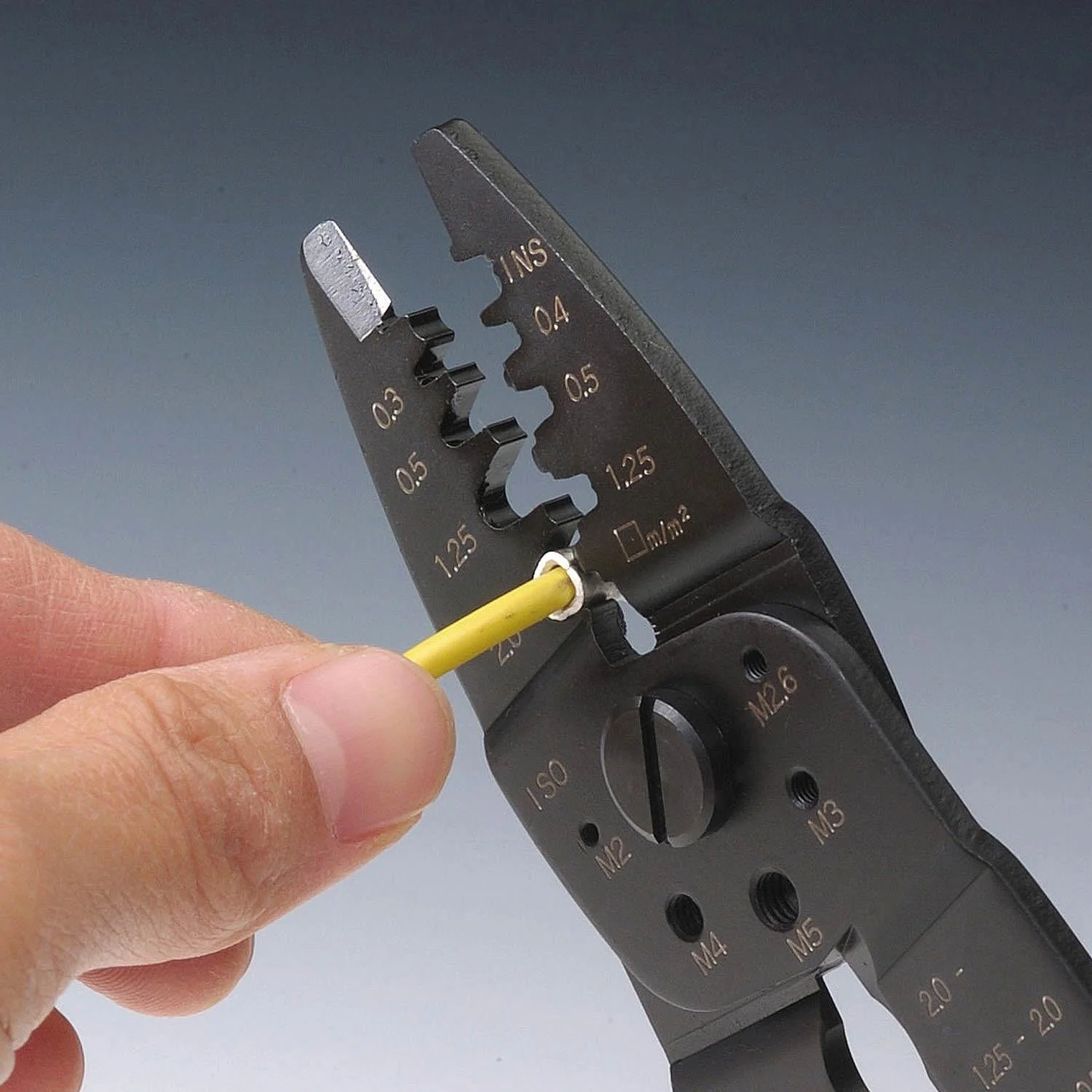

• Crimping tool for insulated terminal crimps
• Crimping tool for open barrel type mini and micro terminal pins
• Wire Stripping jaws
• Screw Cutter** for M2, M2.6, M3, M4, M5 metric screws
• Wire cutter jaws.

(**screw cutter feature is not recommended for stainless steel screws)

Features and Specifications

• 6-in-1 multi-purpose wiring tool
• Crimps open barrel terminal pins (0.3mm~1.25mm²)
• Crimps insulated terminal pins (0.3mm~over 2.00mm²)
• Crimps bare terminal pins (0.5mm~2.00mm²)
• Screw cutter - neatly cuts M2, M2.6, M3, M4 & M5 metric screws down to the required length
• Wire stripping jaws - AWG28~14 (0.1mm~2.00mm²)
• Wire cutting jaws
• Made in Japan (ROHS compliant)
