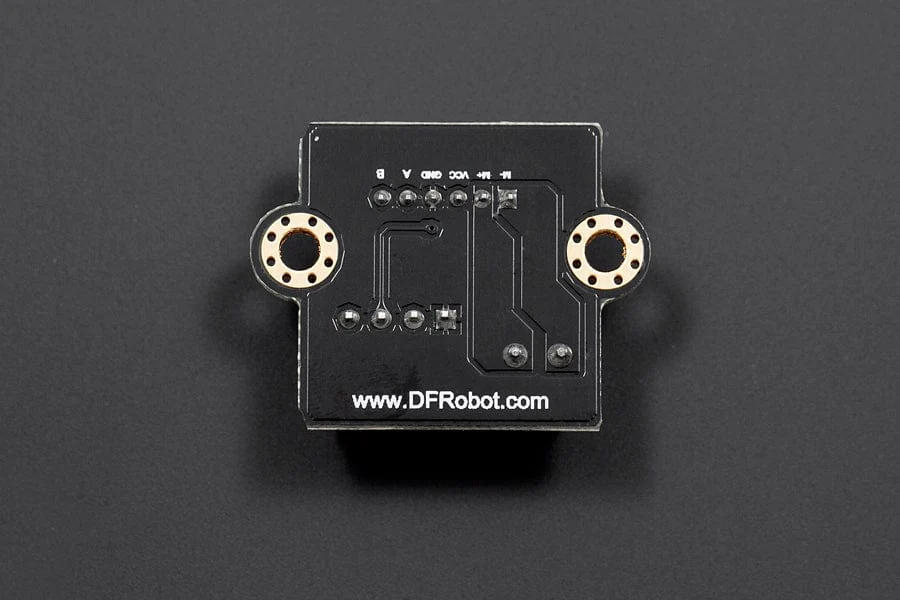

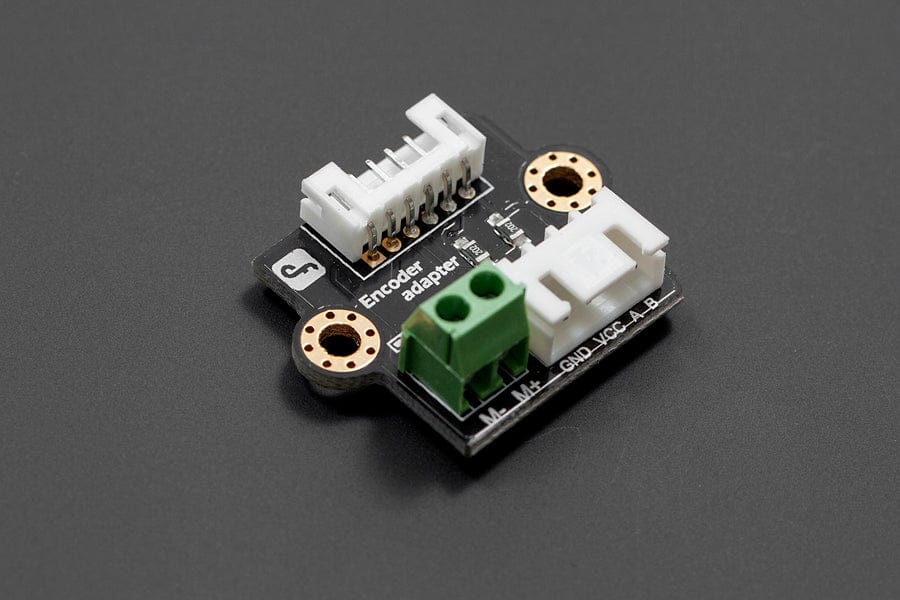

Encoder Adapter [Discontinued]
This adapter is especially designed for DFRobot 12V DC Motors, adding the compatibility factor for those products without customized connectors or external power supplies.
This adapter integrates an external pull-up resistor, which raises the output voltage when the transistor is turned off. This board has two built-in pull-up resistors.
This adapter integrates an external pull-up resistor, which raises the output voltage when the transistor is turned off. This board has two built-in pull-up resistors.
Specification
- Compatible with open collector output encoder
- Size:31x24mm(1.22x0.94")
Documents
- Wiki Doc
- Schematic
Shipping List

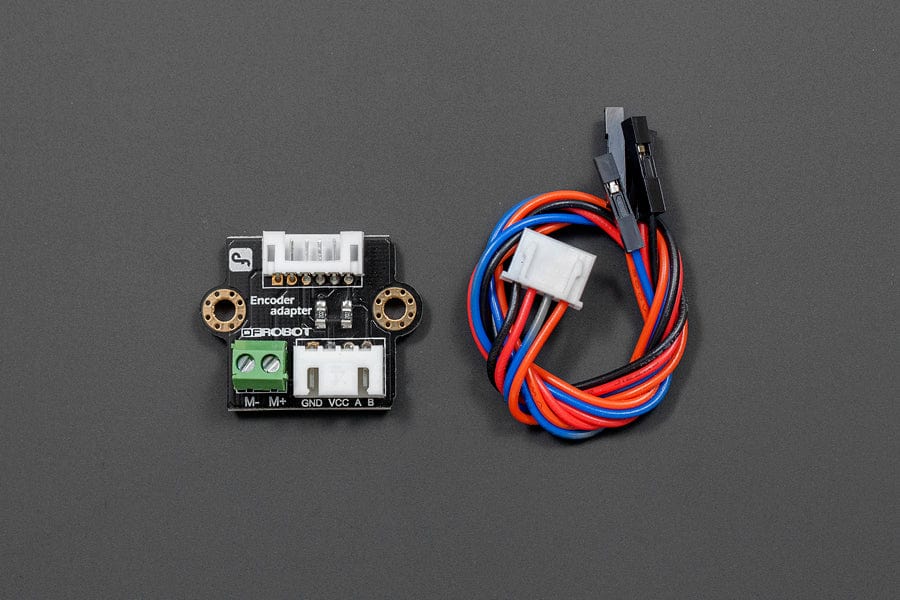

- Encoder Adapter x1
- Cable x1
