Breadboard Pi Bridge [Discontinued]

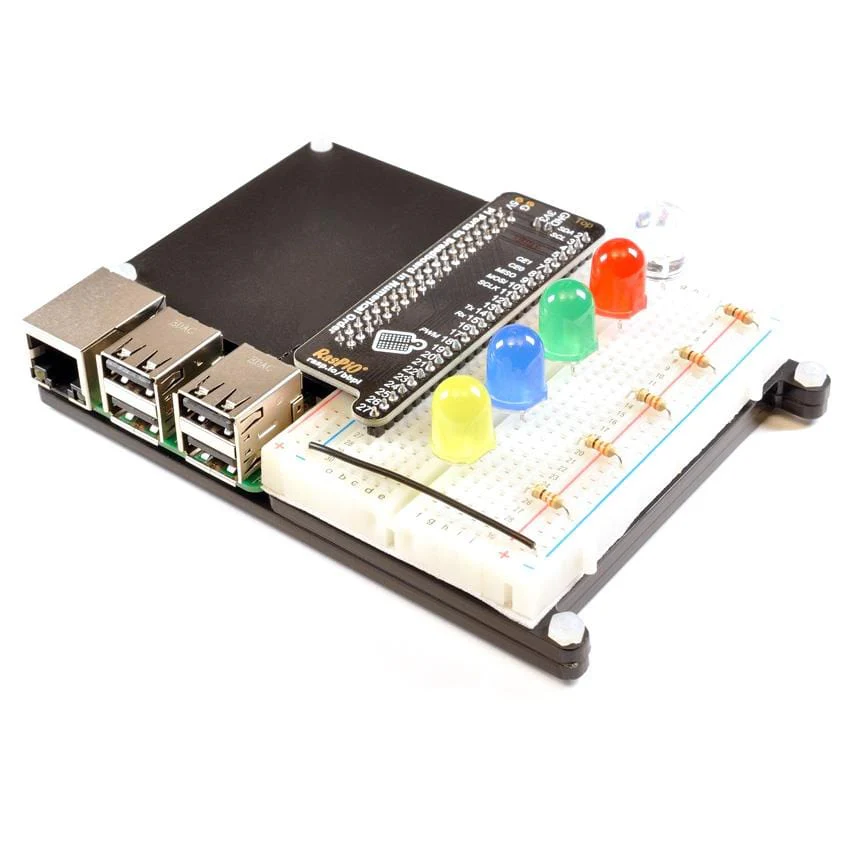

The RasPiO Breadboard Pi Bridge is ideal for experimenting with Raspberry Pi circuits, prototyping and learning. The bridge PCB connects all available Raspberry Pi GPIO ports to a half-size breadboard, with an elegant Perspex platform and cover holding it all neatly and robustly together.

Note: This is the full kit. We also sell a PCB + header only option.

The RaspberryPi GPIO ports connect to the breadboard in numerical order (2-27), which means no pin counting and fewer wiring errors - just add your components to the breadboard and start controlling it with your Raspberry Pi!

Note - soldering will be required to attach the Raspberry Pi header, the header for the 26 GPIO pins and the 3V3/GND header

Features

• Fits All 40-pin Pi Models
• 3V3 and GND connect to the breadboard power rails
• Build and control a circuit with very few additional wires
• Attach a breadboard to your Pi neatly, robustly and reversibly
• Make prototype circuits quickly and easily
• Make far fewer wiring errors, saving debugging time and potential damage

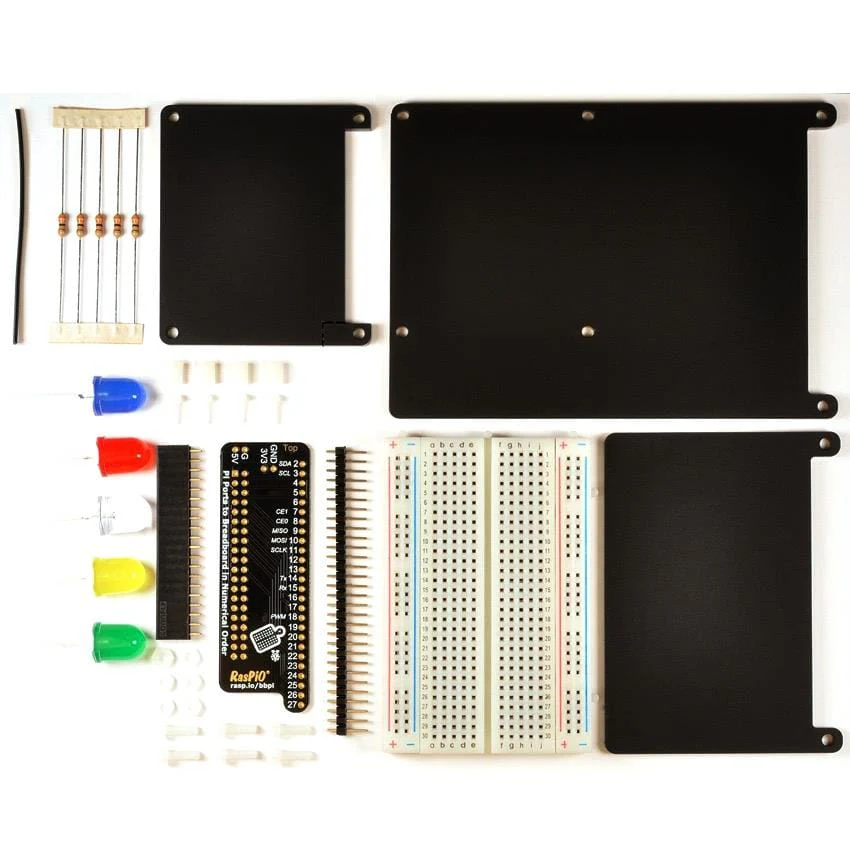

Kit Contents

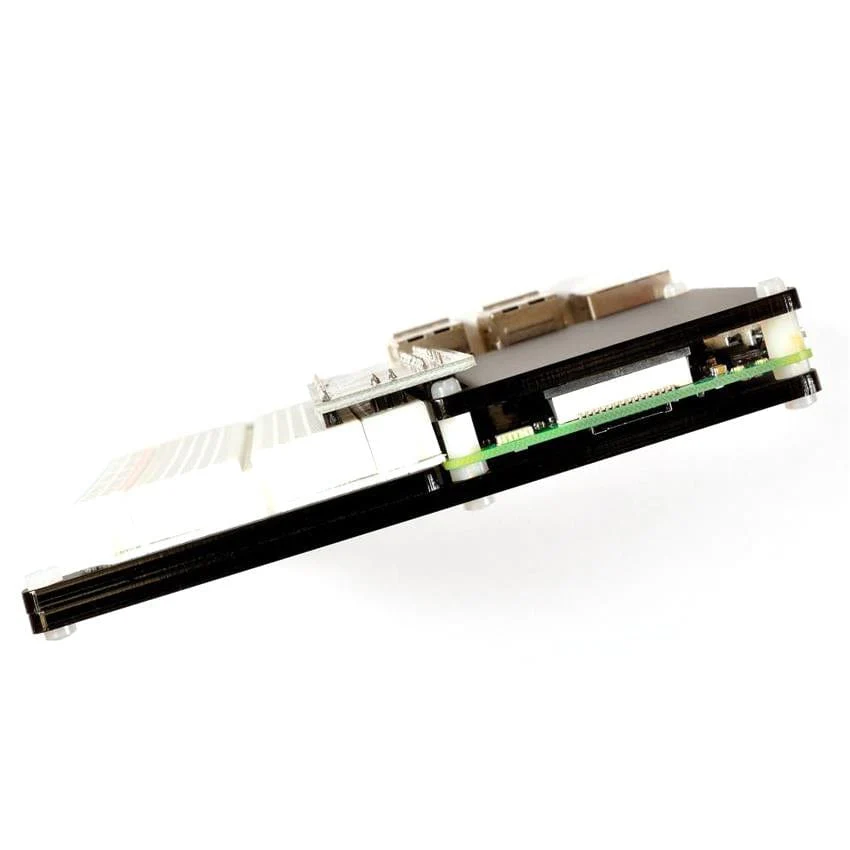

• Perspex base, breadboard platform and Raspberry Pi cover
• Half size breadboard (400 points)
• Nylon nuts bolts and spacers to hold it all together

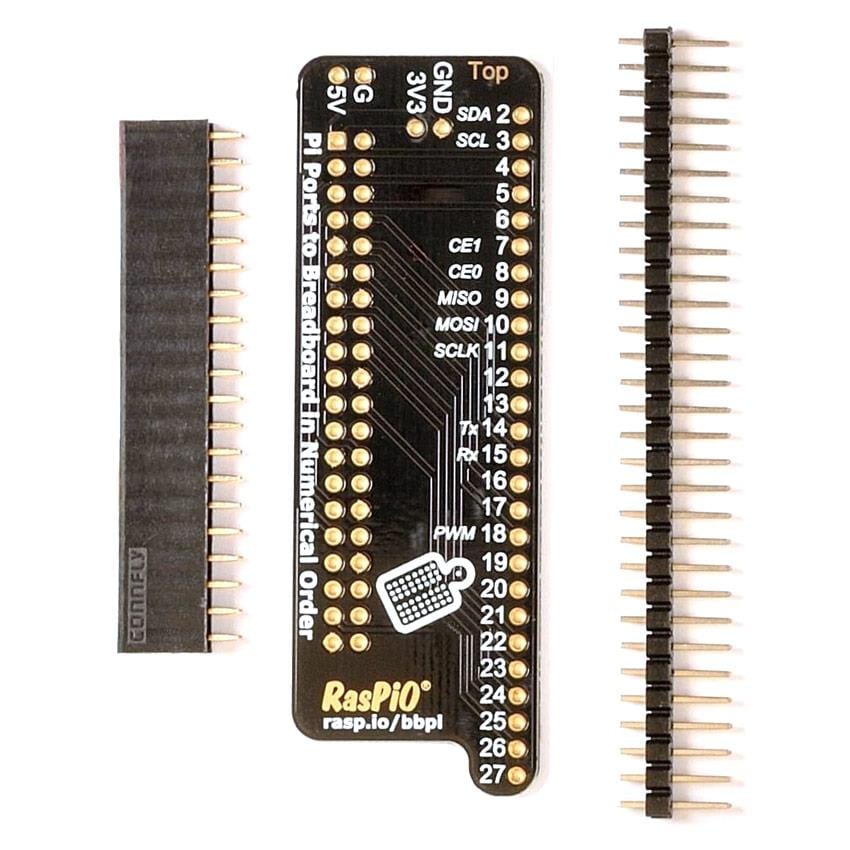

• RasPiO Breadboard Pi Bridge PCB
• 30-way male header
• 2x20-way female header
• 5x10mm LEDs + resistors
• GND wire to connect the ground rails together

Assembly
