ATOMIC RS232 Base
The Atomic RS232 Base is a specialised TTL-RS232 level converter, made for use with Atom Series controllers. It provides communication between computers and peripheral devices, adhering to the industry-standard RS-232 protocol for serial communication.

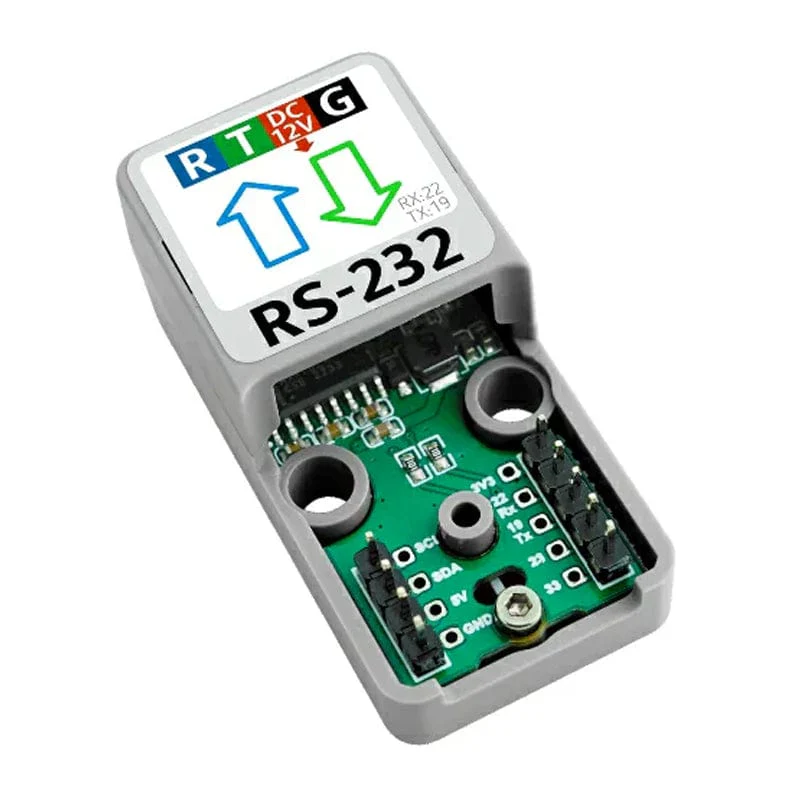

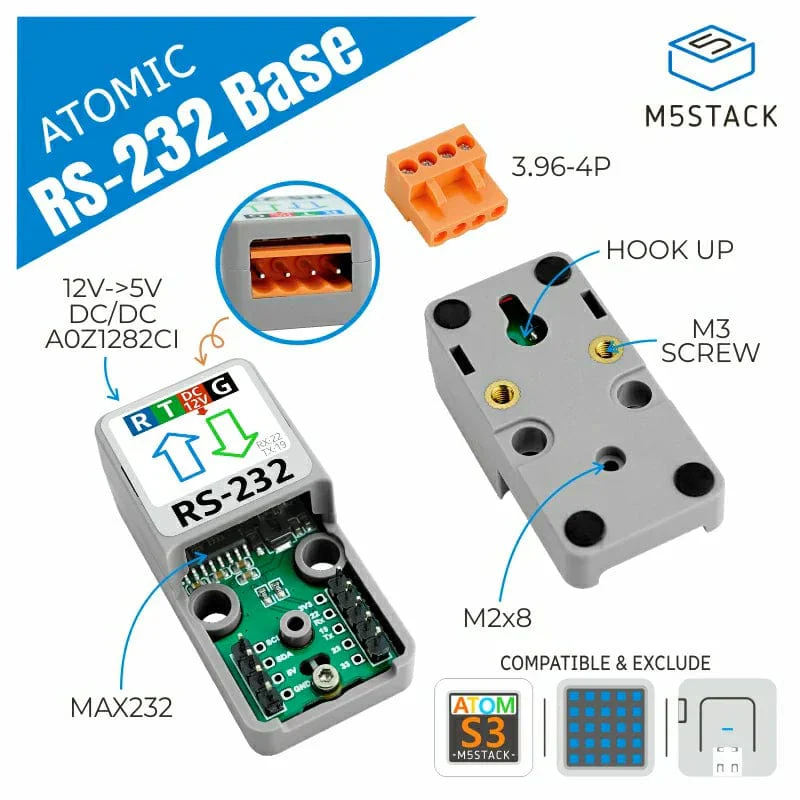

At the heart of the Atomic module is the MAX232 chip, to run it effectively. This chip provides a bidirectional conversion between TTL and RS232 voltage levels, which significantly enhances the compatibility and functionality of your Atom Series controller with RS232-compatible devices.
We've enhanced the module's capabilities by integrating an internal DC-DC buck voltage regulator chip. This provides power to your ATOM device using an external 12V source, greatly enhancing convenience and providing added flexibility in its use.
Features
- Compatible ATOM Matrix/ATOM Lite/ATOMS3 Lite/ATOMS3
- Built-in DC/DC
- Full-duplex communication
Specifications

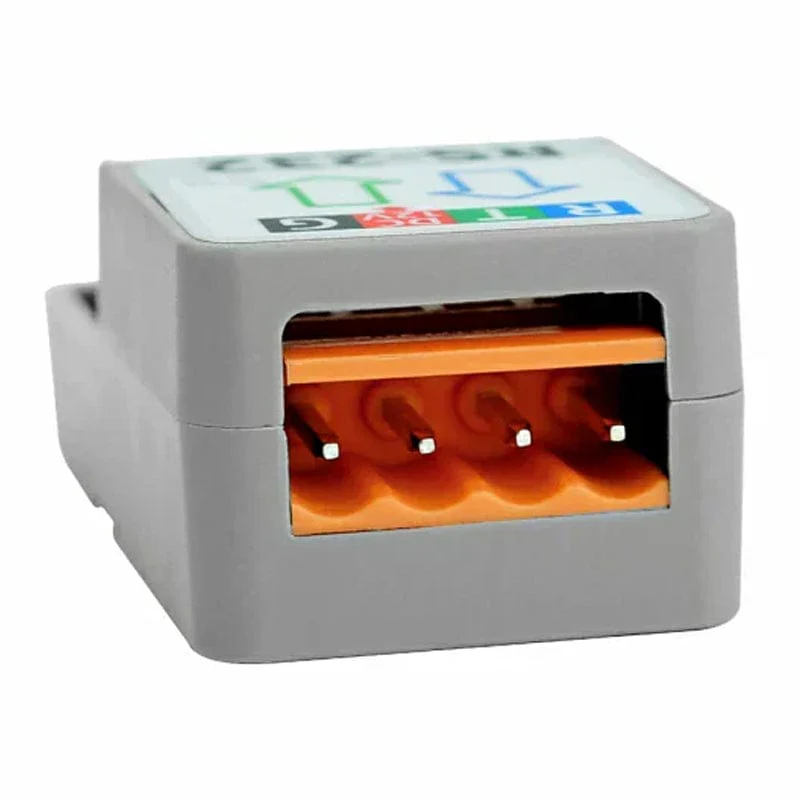

| External port | VH-3.96 4P |
| Level-conversion IC | MAX232 |
| DC-DC | A0Z1282CI |
| Case Material | Plastic (PC) |

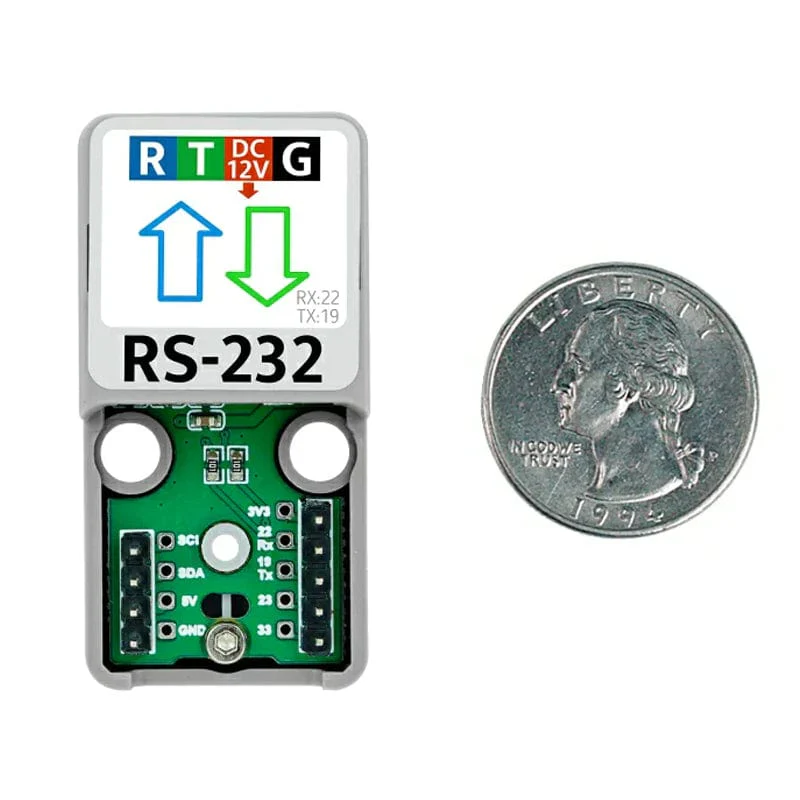

| Product Size | 24 x 48 x 18mm |
| Package Size | 136 x 92 x 13mm |
| Product Weight | 18g |
| Package Weight | 28g |
Resources
- Product Wiki
Package Contents
- 1x Atomic RS232 Base
- 1x VH3.96-4P
