M5Stack ATOMIC Proto Kit

A prototyping kit for use with the ATOM development kits, perfect for connecting custom circuits or external hardware.

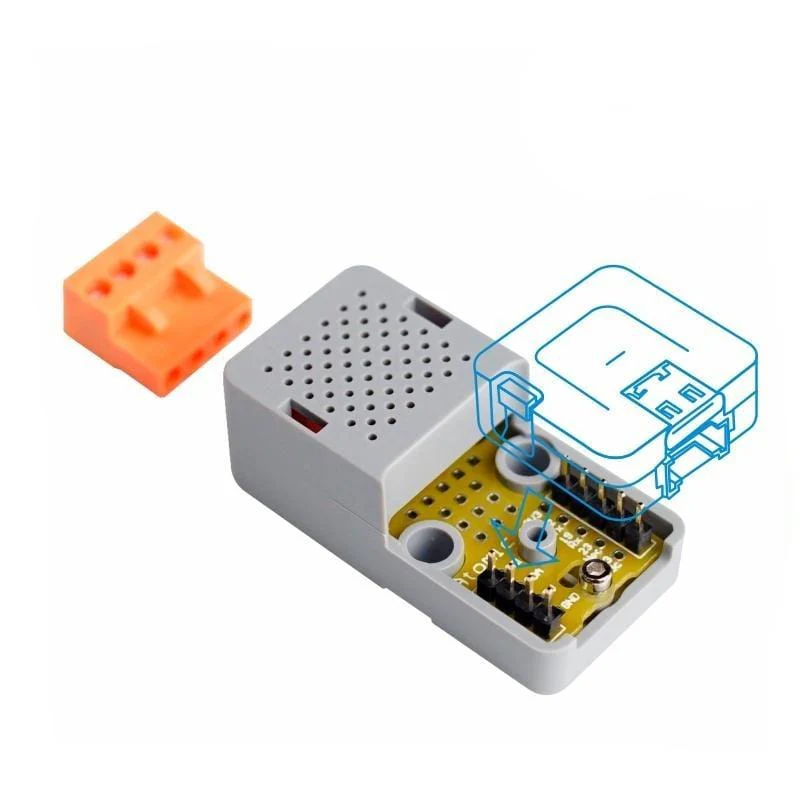

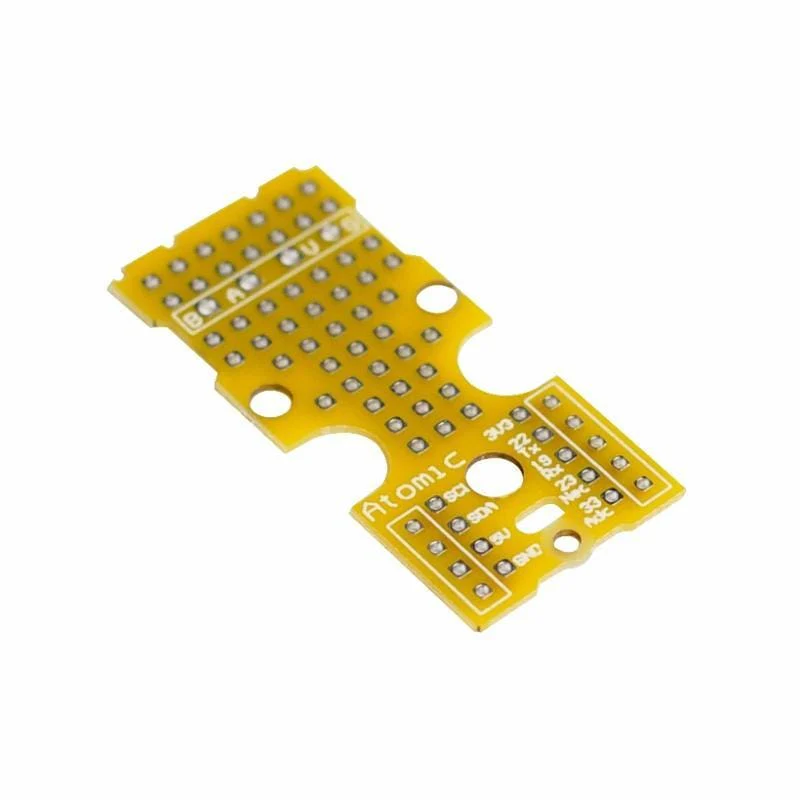

It can be stacked with ATOM boards directly via the 9 pins on the base. Two blank proto boards with over 60 connections are included, along with a pair of 3.96 4 pin connectors for adding an external power connection.

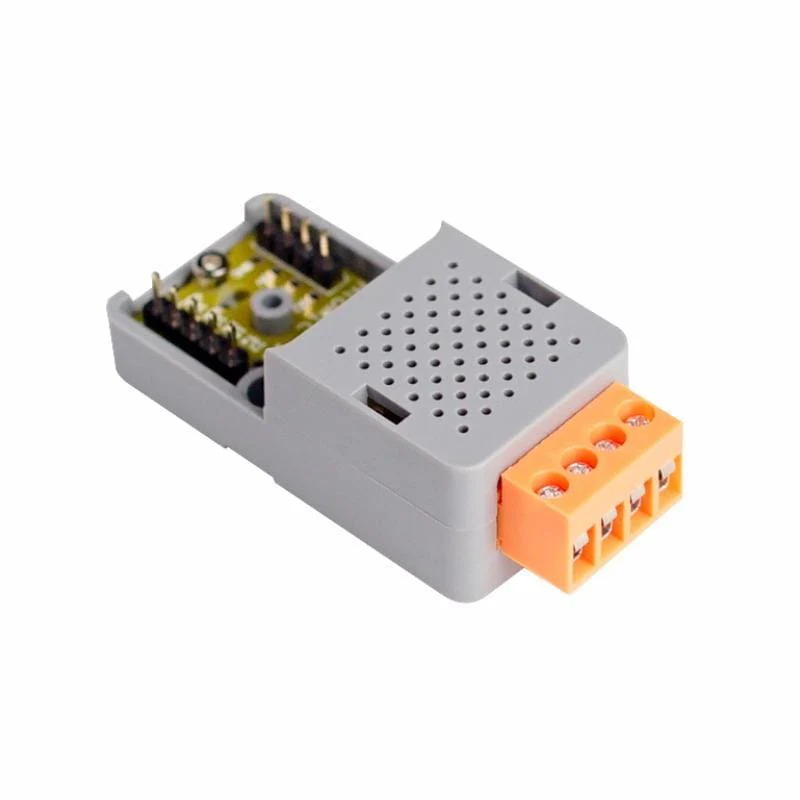

The case has ventilation holes for heat dissipation and to allow for more accurate readings from sensors, it also allows for a variety of mounting options (including building brick compatible holes!) - great for constructing a mini controller.

For more information and for help getting started, click here

Features

• Compatible with ATOM
• Compact form factor
• DIY Style
• Built-in Infra-red
• Open design

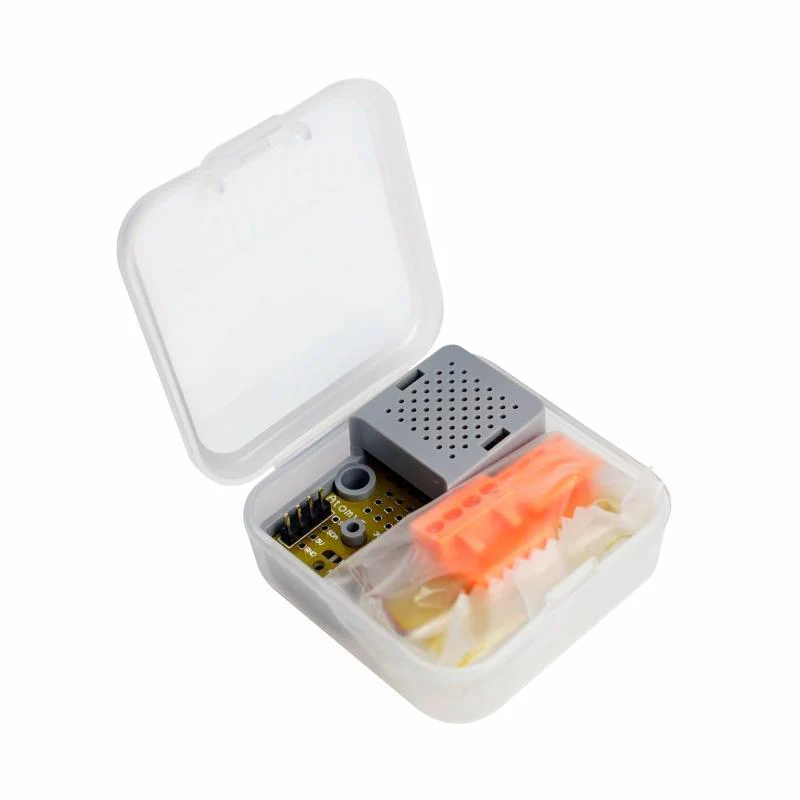

Package Contents

• 1x Proto Board
• 1x Proto Board(soldered pin/finished product)
• 1x 4P VH-3.96 Plug + Plug Base
• 1x 4P 2.0 Pins
• 1x 5P 2.0 Pins
• 1x ATOMIC Case
• 1x M2*3mm Self tapping screw
• 1x M2*8mm Screw

Specifications

Specification	Parameter
External port	VH-3.96 4P
Size	47 x 34 x 18mm
Weight	42g
Case material	Plastic ( PC )
