Argon Industria HMI 5C - Enclosure for 5" Touch Display 2

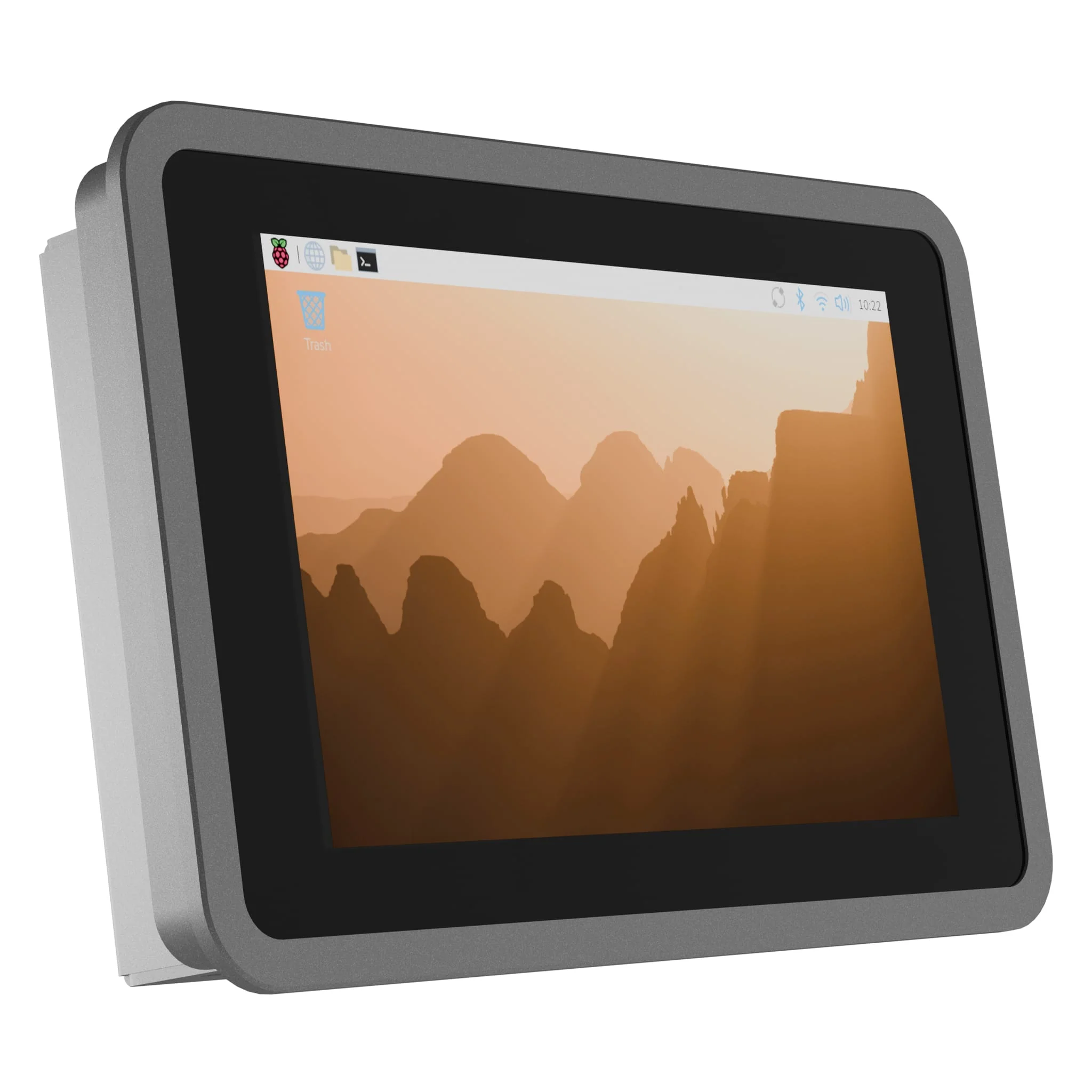

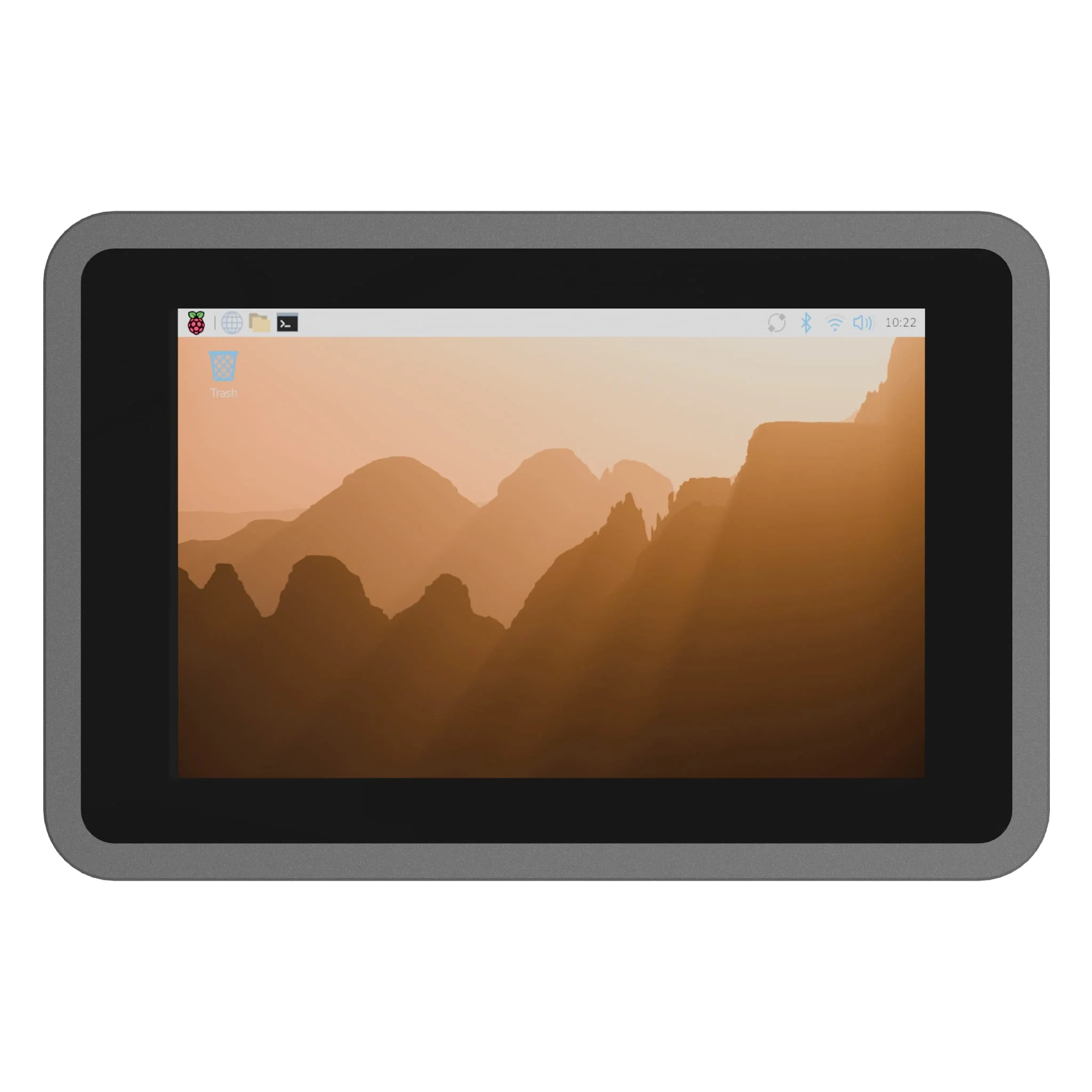

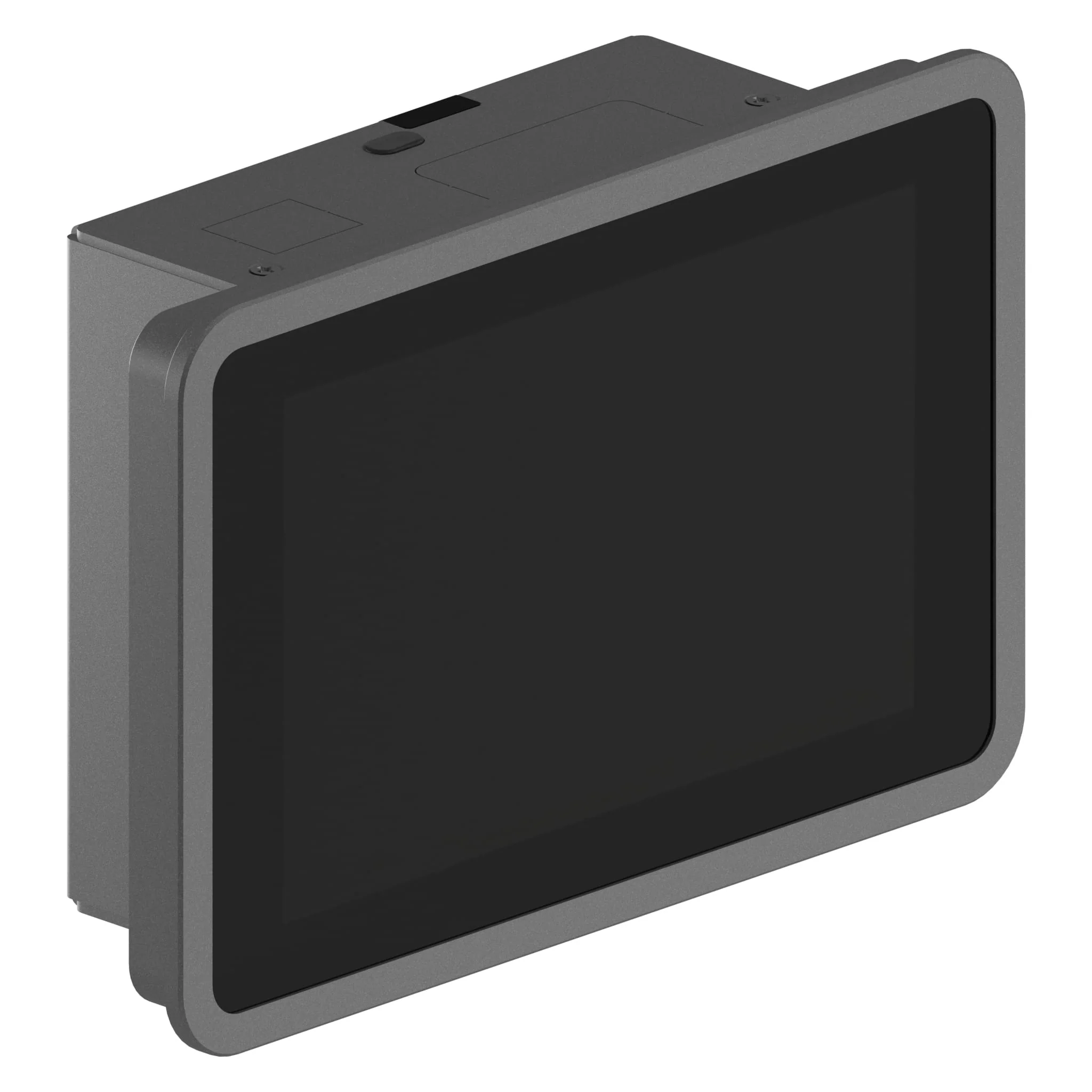

The Argon Industria HMI 5C is an industrial-spec, solid aluminium enclosure for your Raspberry Pi 5 and 5" Raspberry Pi Touch Display 2, ideal for HMI (Human Machine Interface) deployments and other VESA/panel mounted Raspberry Pi display projects.

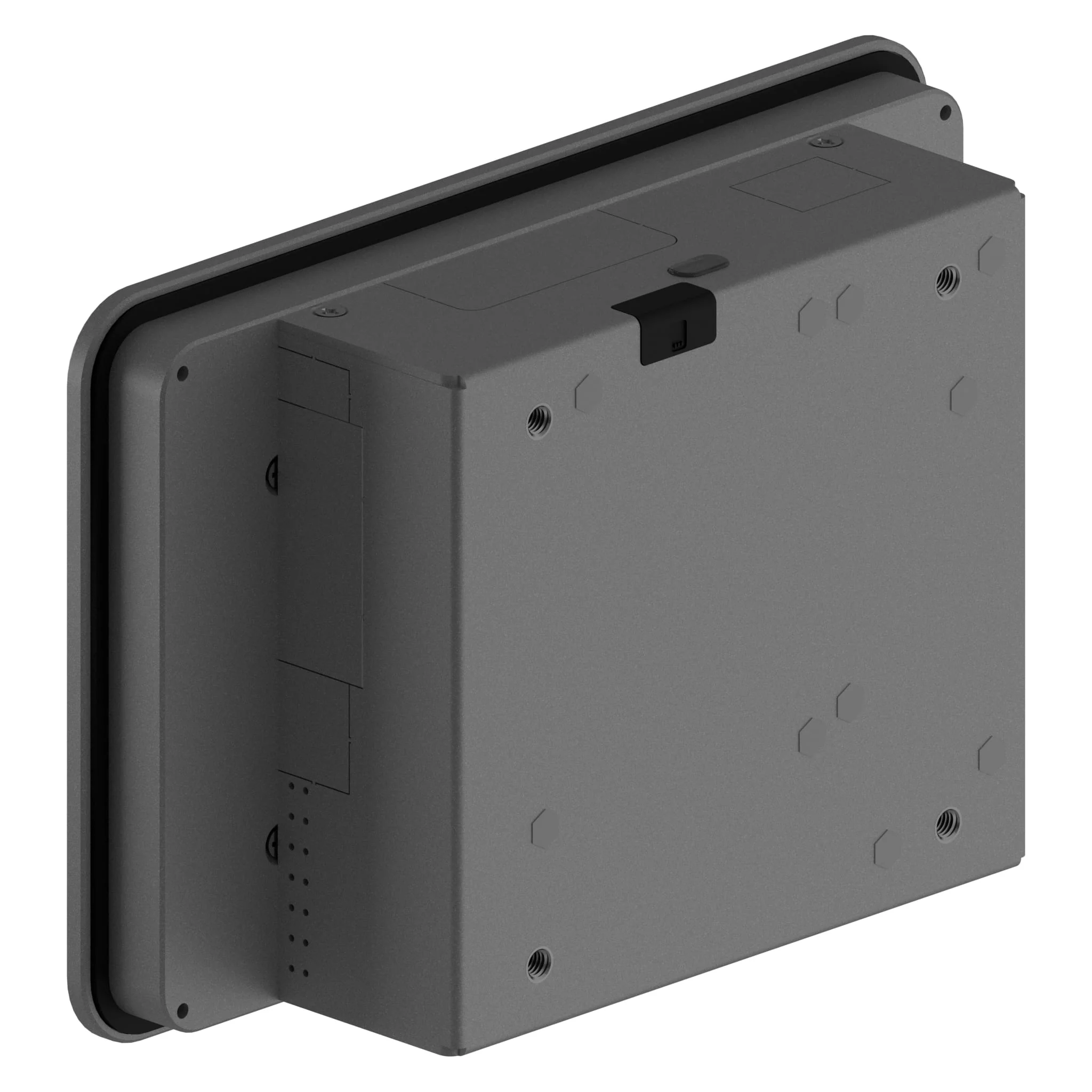

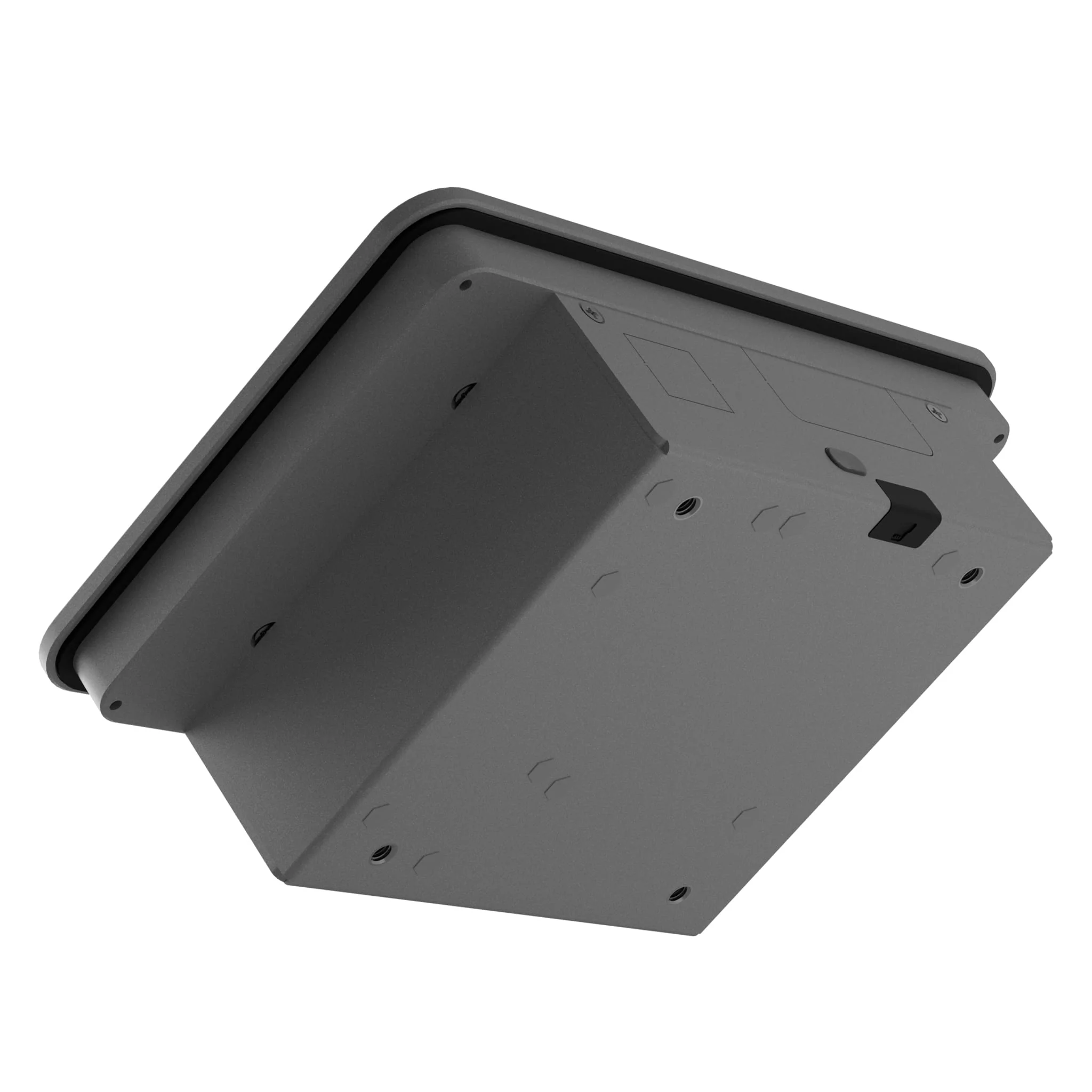

Designed for panel and VESA mounting with its lipped profile and soft foam gasket, it provides best-in-class protection for your Raspberry Pi 5 display interface/project whilst providing excellent passive cooling options, HAT compatibility, re-routed port access and cable punch-outs.

The thick aluminium body is efficient in transferring heat away from the internal hardware, however you also have the option to fit the included custom 'passive CPU cooling column' to turn the case into a passive heatsink, transferring heat away from the Pi 5 CPU to the body of the case via an included thermal pad. Please note that using the passive CPU cooling column removes the ability to fit HATs. If you do need to use HATs, just remove the passive CPU cooling column and consider heatsinks or active coolers if required.

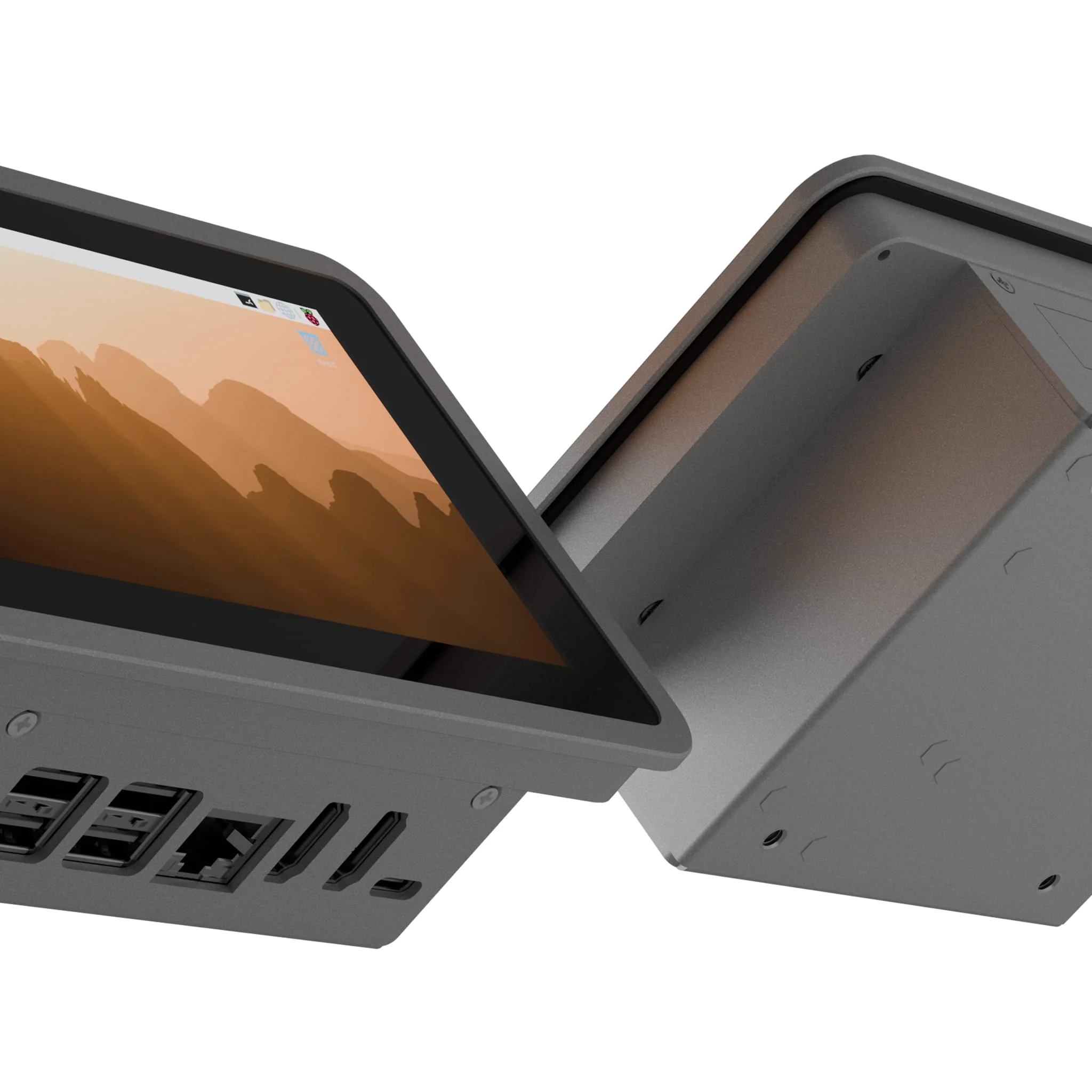

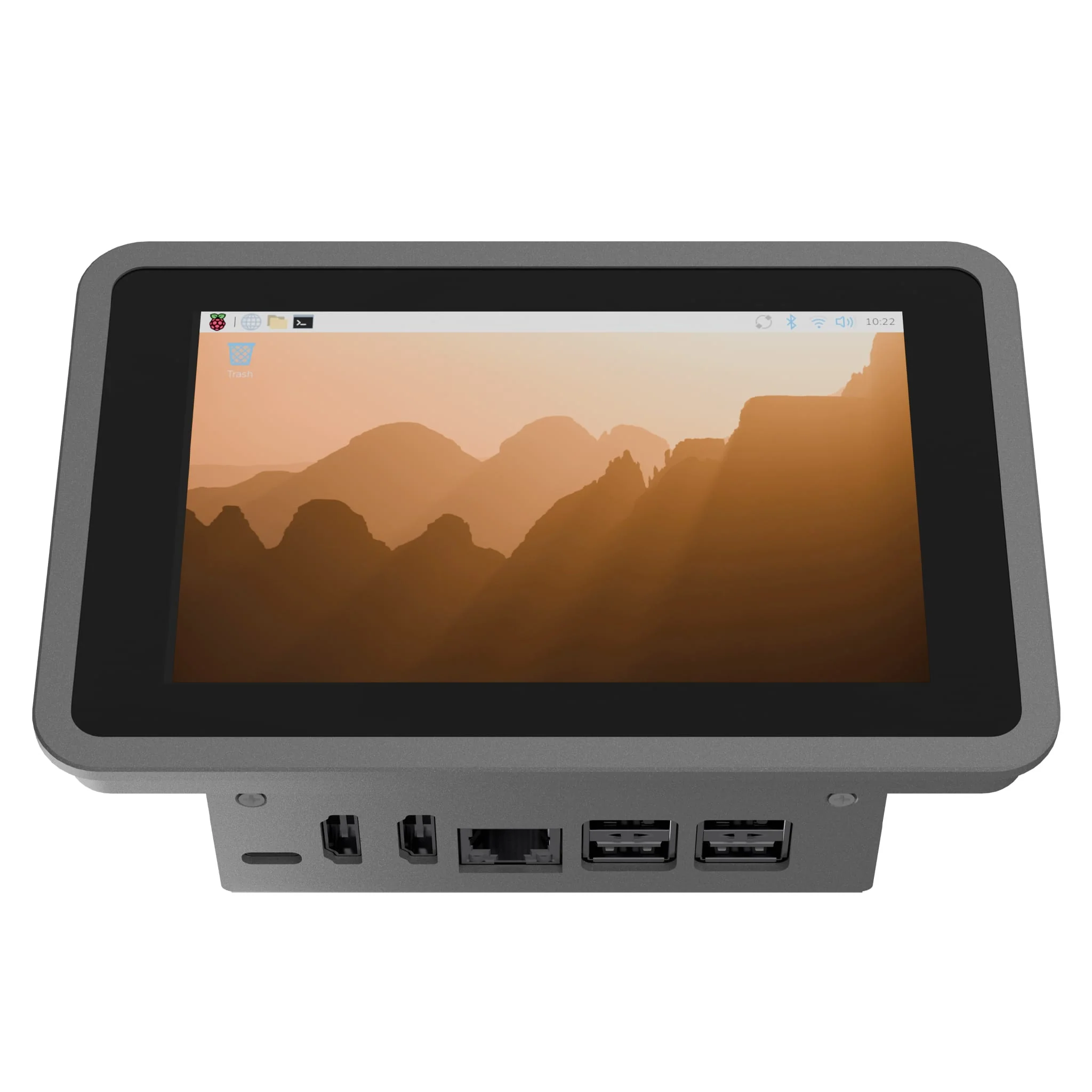

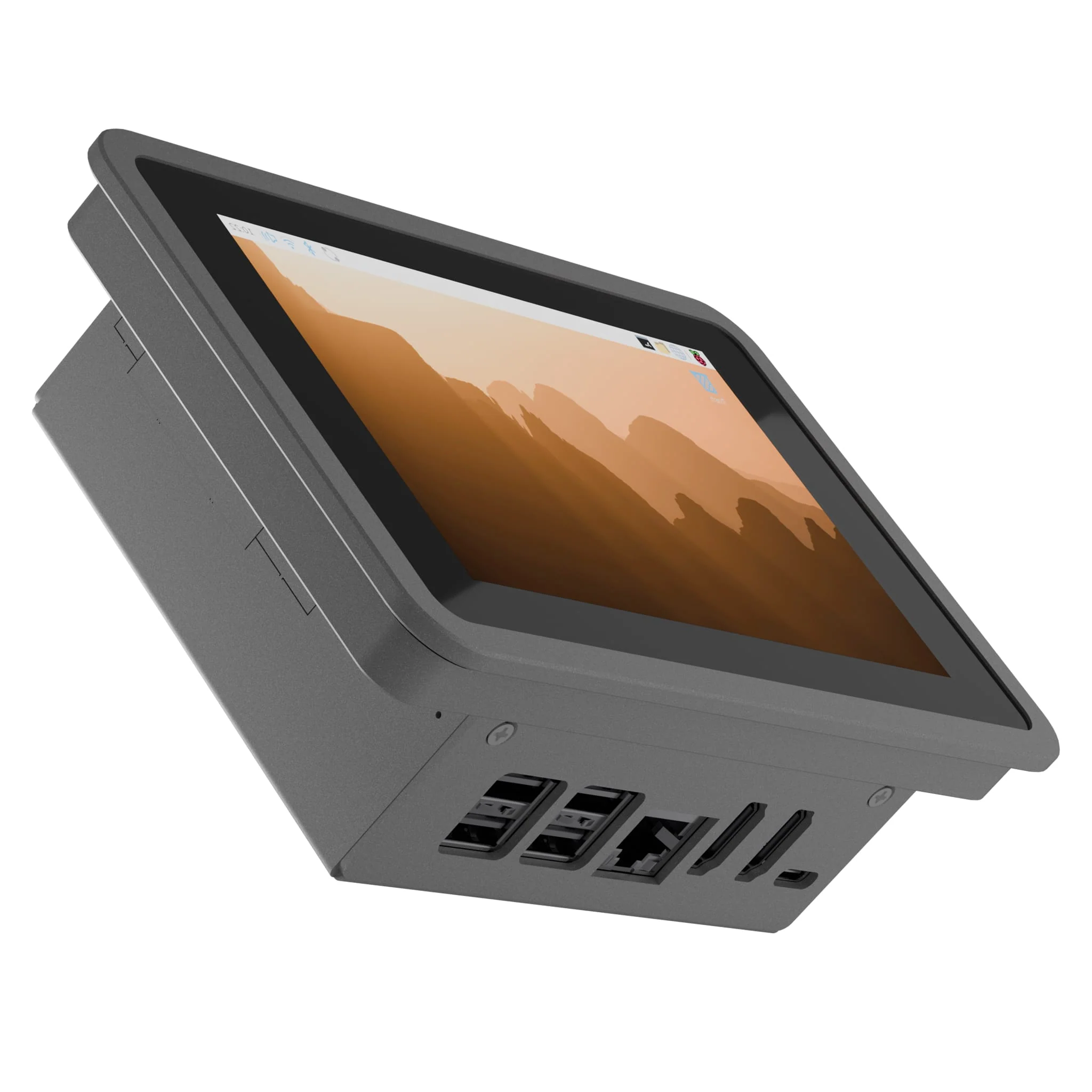

The included internal IO PCB re-routes HDMI and USB-C power inputs along the same edge as the USB and Ethernet ports - along the bottom of the enclosure - including converting from micro-HDMI to full-size HDMI for a more robust connection.

A range of optional internal M.2 accessory boards will soon be available, allowing you to attach M.2 devices via the PCIe interface, to the side of the board (above the IO PCB).

Raspberry Pi, 5" Display and cables not included.

Features

• Industrial-spec solid aluminium enclosure for Raspberry Pi 5 and 5" Raspberry Pi Touch Display 2
• Panel and VESA mounting support
• Lipped profile with soft foam gasket
• Passive cooling through the aluminium body
• Included optional CPU cooling column with thermal pad

  • Removes HAT compatibility when installed
• HAT compatible (when cooling column not installed)
• Internal IO PCB for re-routed port access

  • Converts micro-HDMI to full-size HDMI
• Cable punch-outs

Resources

• Argon Industria HMI Assembly Guide

Package Contents

• 1x Argon Industria HMI 5C Enclosure
  • Includes all required fixings.

Raspberry Pi, 5" Display and cables not included.
