Arducam ezBOX Klarity - 16MP AutoFocus USB 2.0 UVC Camera

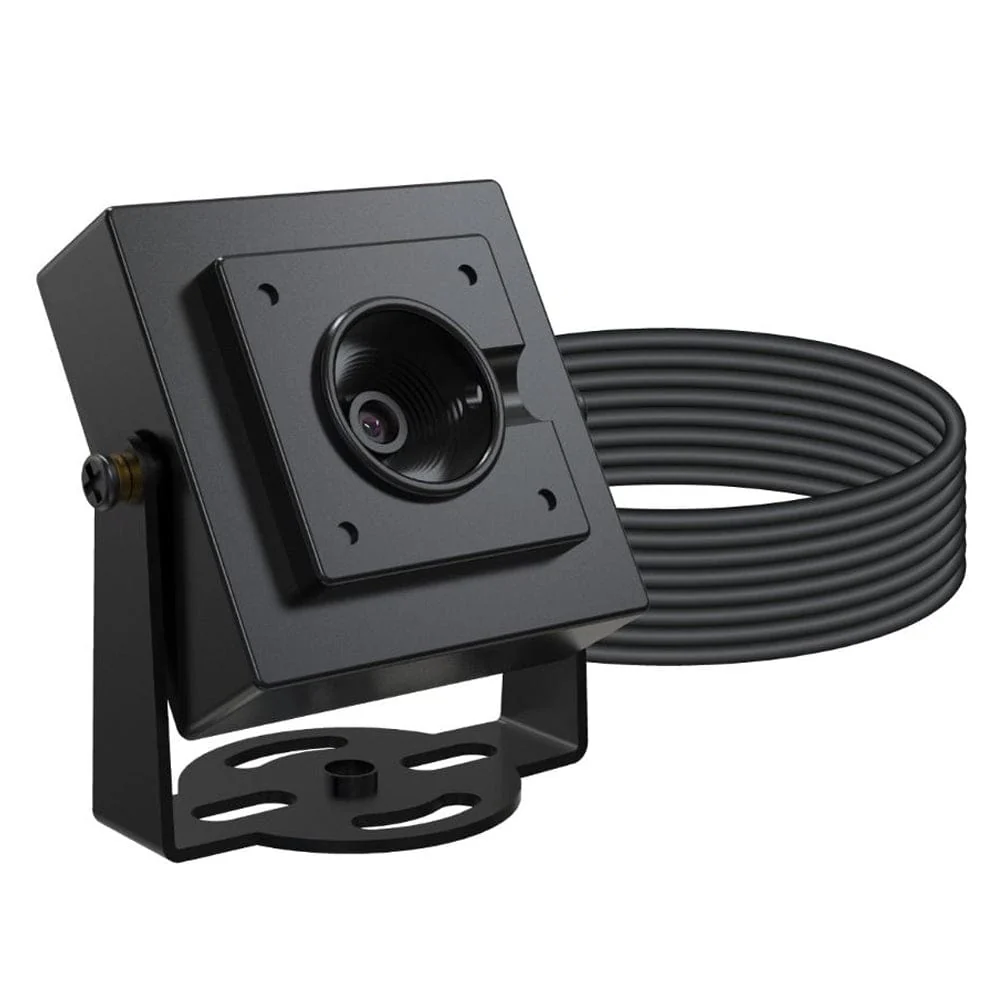

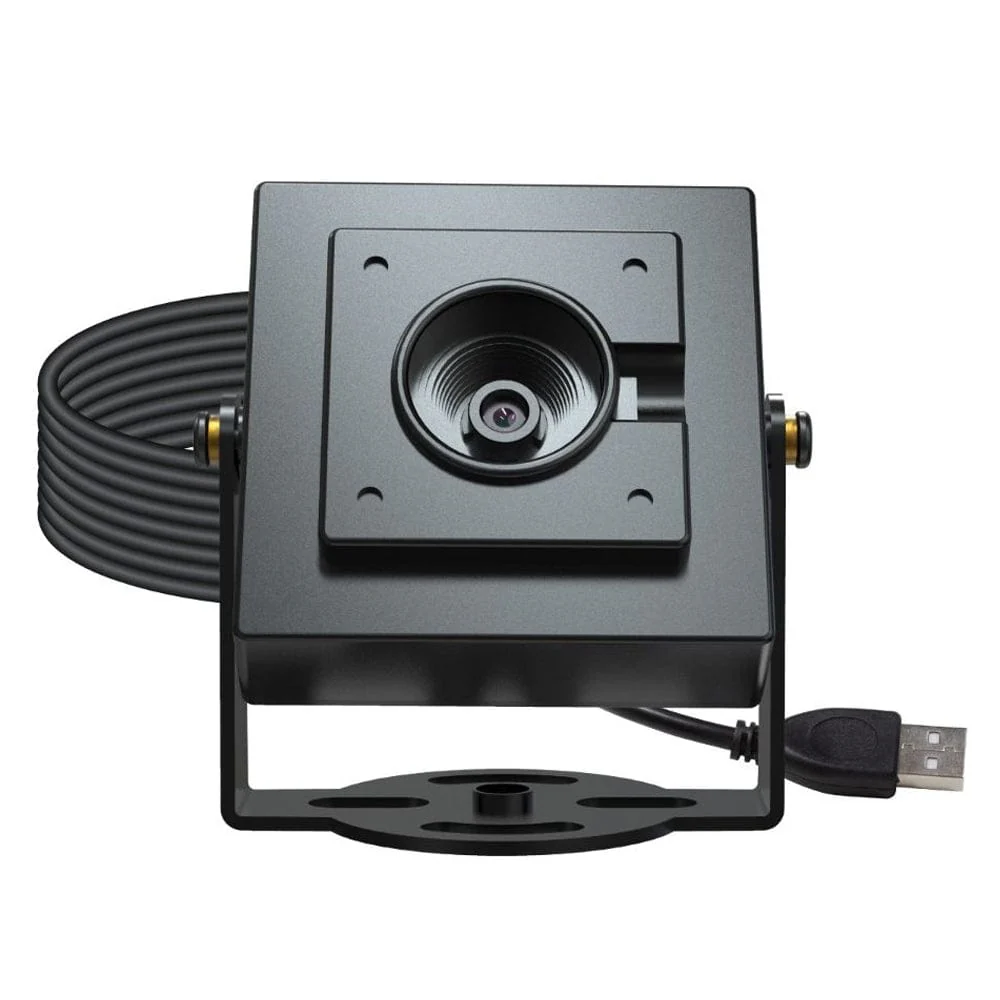

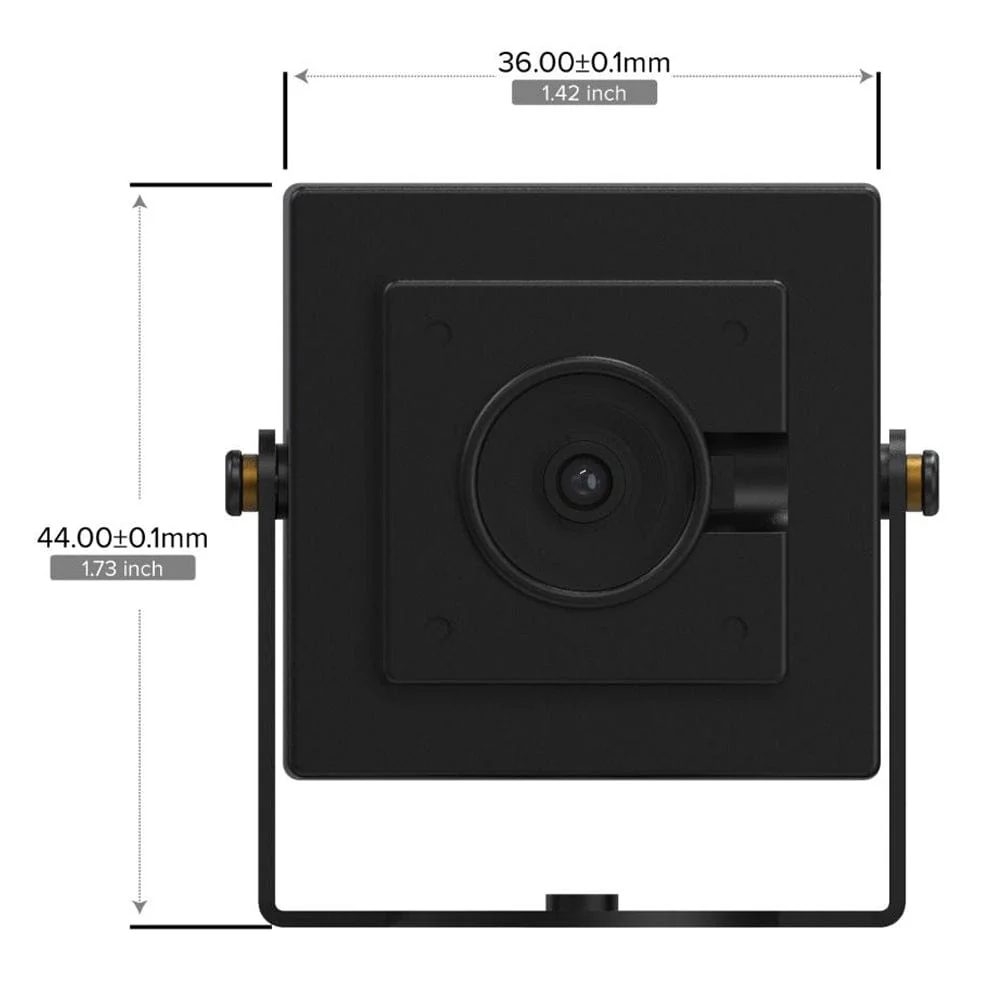

The Arducam ezBOX Klarity is a USB 2.0 UVC camera that offers precision in every pixel with its SONY 16MP Colour Sensor, featuring a 1.12um x 1.12um pixel size. It comes in a metal enclosure with mountable base.

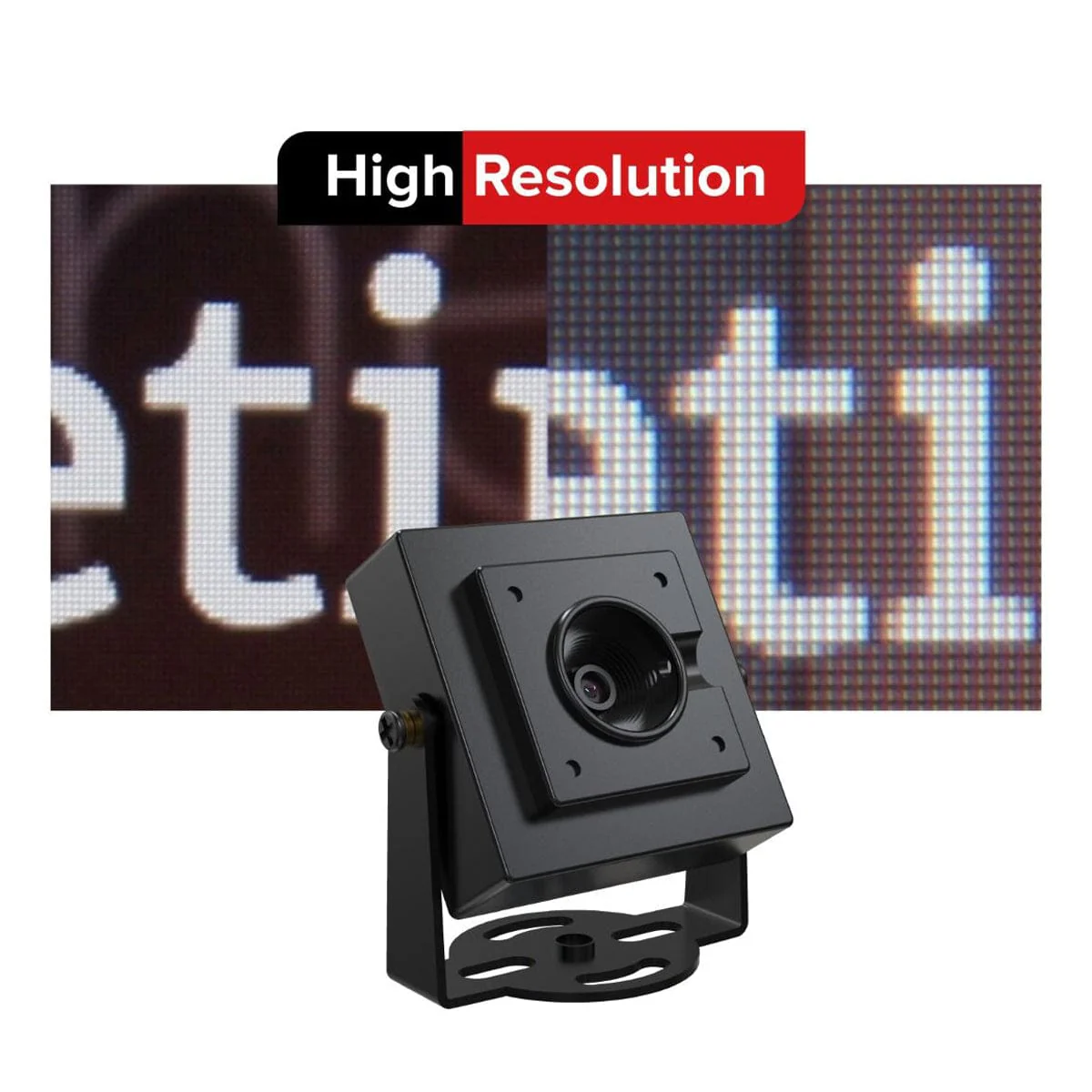

It maximizes the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. This camera is perfect for applications requiring exceptional clarity and precision, with resolutions up to 16MP. It also provides enhanced flexibility at lower resolutions (480p, 720p, 1080p), allowing for digital Pan-Tilt-Zoom (PTZ) adjustments to optimise composition.

As it's a UVC (USB Video Class) camera, it can work on a range of operating systems and hardware driver-free, such as Windows and Linux (including the Raspberry Pi).

Comes with a USB JST cable.

Features

• Sensor: SONY 16MP colour sensor with 1.12 µm x 1.12 µm pixel size
• Resolution: Still resolution up to 16 megapixels

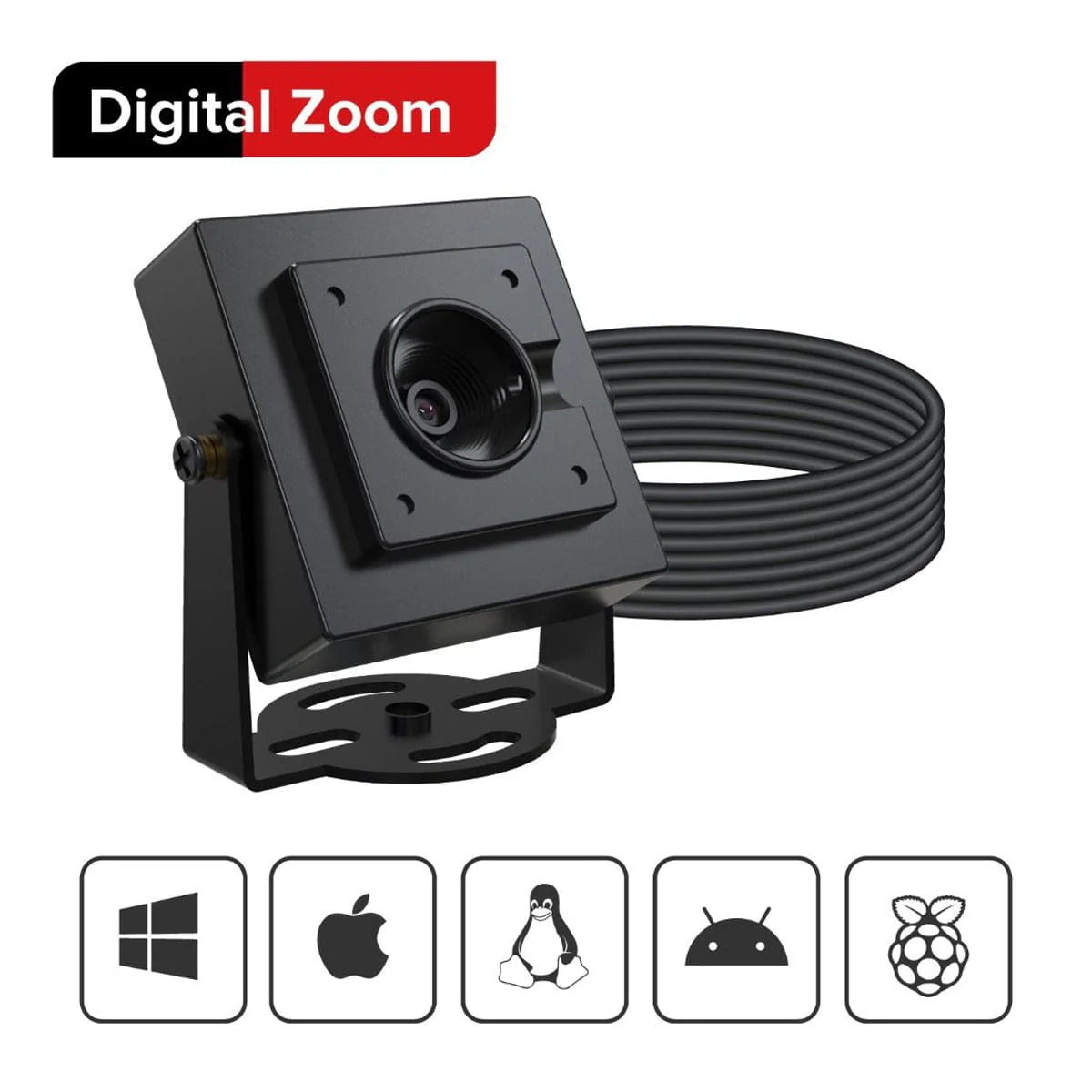

• Digital PTZ: Digital pan-tilt-zoom adjustments supported at 480p, 720p and 1080p
• Lens: Autofocus lens with F1.8 aperture and 3.95 mm EFL

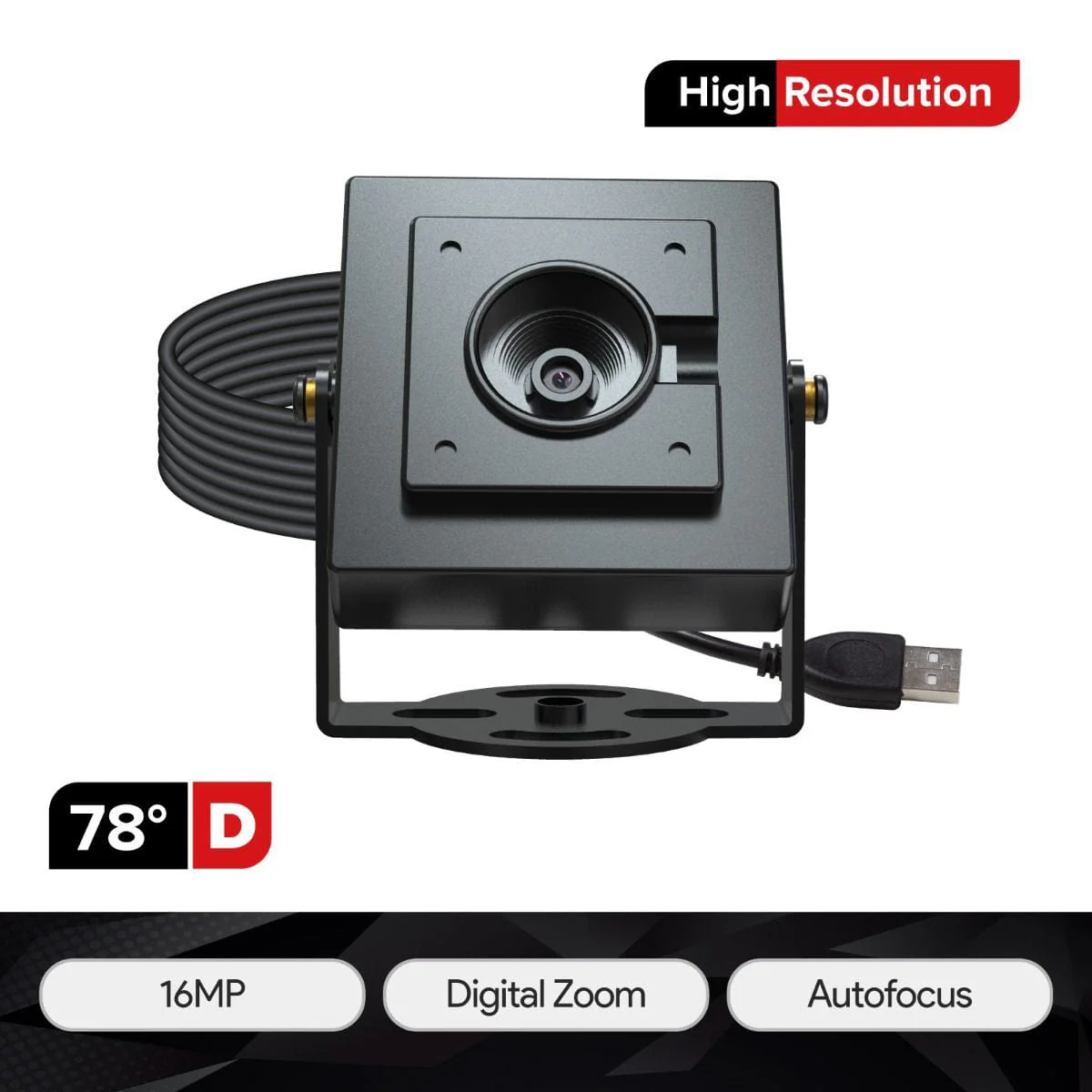

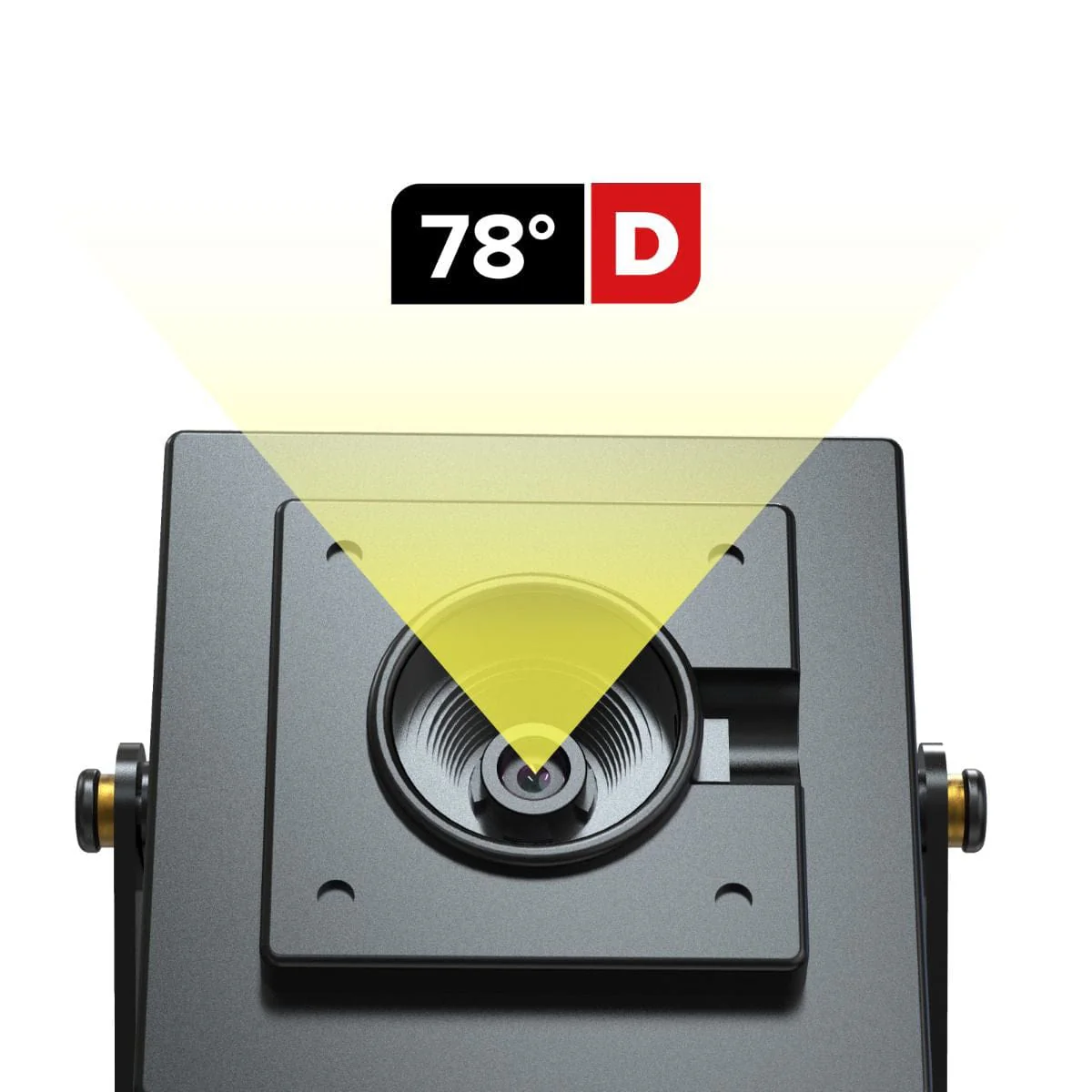

• Field of view: 78° diagonal, 65° horizontal and 52° vertical
• Focus range: Default focus range from 10 cm to infinity
• Output format: MJPG
• Frame rates:
  • 4656 × 3496 at 10 fps
  • 4000 × 3000 at 15 fps
  • 3840 × 2160 at 25 fps
  • 3264 × 2448 at 25 fps
  • 2592 × 1944 at 25 fps
  • 1920 × 1080 at 25 fps
• USB interface: USB 2.0 UVC device with plug-and-play support
• Controls: Proprietary ISP support for brightness, contrast, saturation, white balance, gain, focus and exposure
• IR filter: Integral 650 nm IR filter for visible light only
• Operating systems: Supports Windows and Linux
• Power: 5V operating voltage with 1.75W power consumption
• Board size: 32 × 32 × 1.6 mm
• Operating temperature: 0°C to 70°C

Specifications

Sensor	SONY 16MP colour sensor
Still resolution	16 megapixels
Colour filter type	Colour
Shutter type	Rolling
Optical format	1/2.8″
Output format	MJPG
Pixel size	1.12 µm × 1.12 µm
Sensor active area	4656 (H) × 3496 (V)
IR sensitivity	Integral 650 nm IR filter, visible light only
Frame rate	4656 × 3496 @ 10 fps, 4000 × 3000 @ 15 fps, 3840 × 2160 @ 25 fps, 3264 × 2448 @ 25 fps, 2592 × 1944 @ 25 fps, 1920 × 1080 @ 25 fps
Focus type	Autofocus
Field of view	78° (D) × 65° (H) × 52° (V)
Lens mount	Stock lens
F-number	F1.8
Effective focal length	3.95 mm
Default focus range	10 cm to ∞
Interface	USB 2.0 device

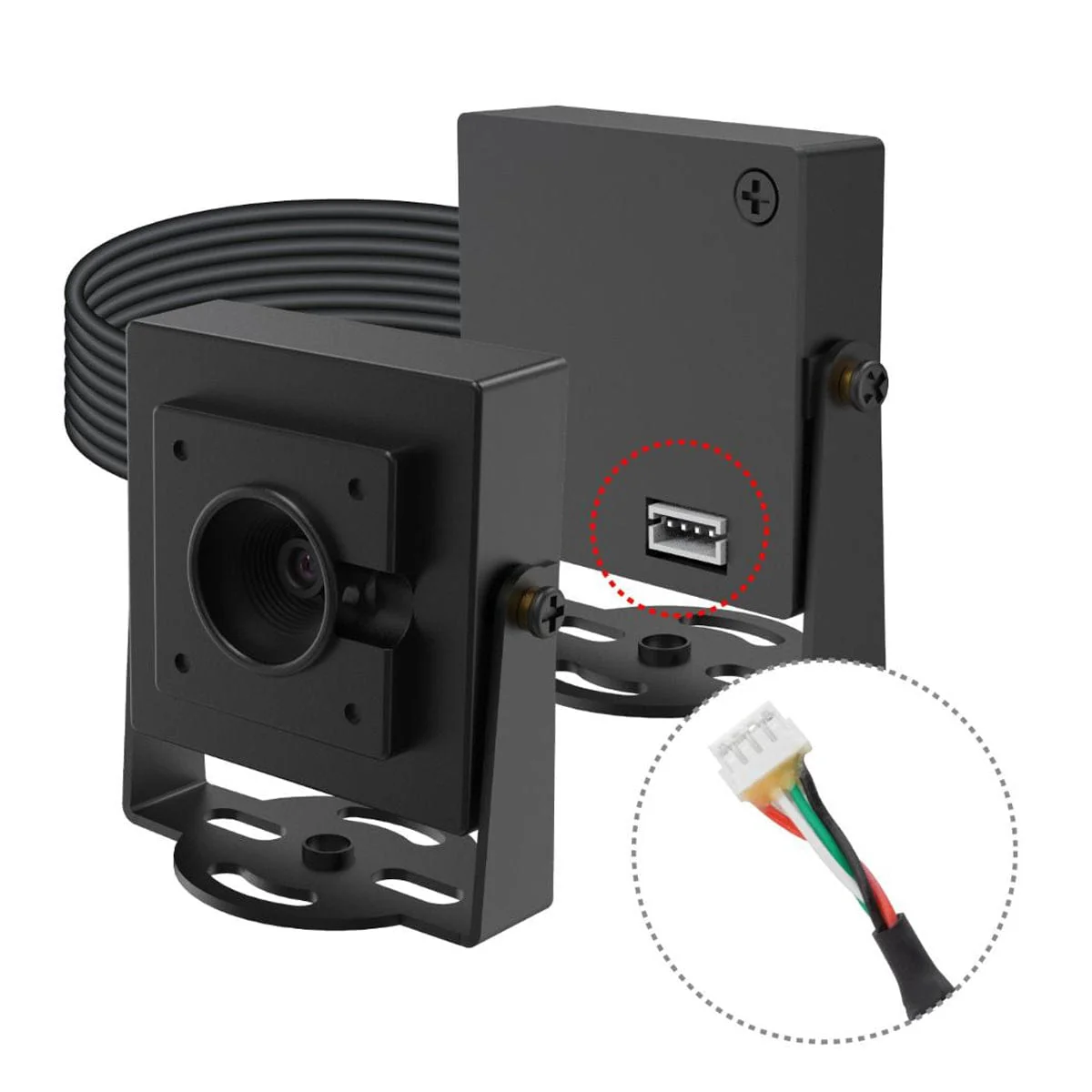

Connector	B4B-ZR JST
UVC compliance	No additional drivers required
Operating voltage	5 V
Operating temperature	0°C to 70°C
Power consumption	1.75 W
Camera board size	32 mm × 32 mm × 1.6 mm
Supported operating systems	Windows, Linux
Recommended sample application	Amcap for Windows, qv4l2 for Linux
UVC controls	Brightness, contrast, saturation, PTZ (pan/tilt/zoom), white balance (auto/manual), gain, focus (auto/manual), exposure (manual/auto)

Resources

• Quick Start Guide
• Datasheet
• 3D Drawing

Package Contents

• 1x Arducam ezBOX Klarity - 16MP AutoFocus USB 2.0 UVC Camera

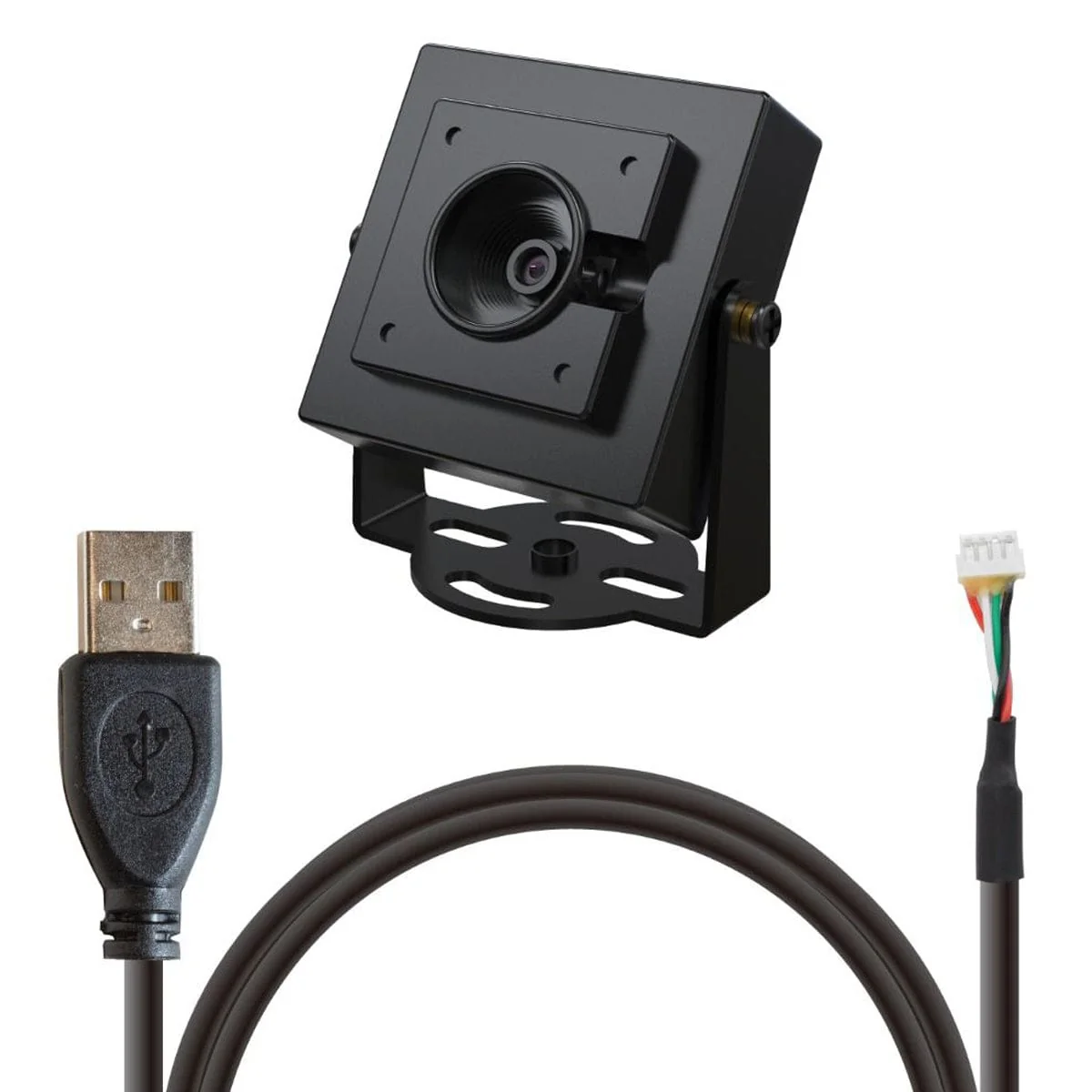

• 1x 1m USB to B4B-ZR JST Cable
