ANSMANN 15W TC315 Travel Charger

The ANSMANN USB charger provides a practical multi-device charging solution with three USB ports: one USB-A and two USB-C connectors. Its 15W power output lets you charge up to three devices simultaneously, making it useful for phones, tablets, and other portable electronics.

The charger includes intelligent charge control and Multi-safe technology to protect connected devices during charging. These safety features monitor power delivery and prevent overcharging. The unit also draws minimal power when not actively charging, reducing unnecessary energy consumption and lowering electricity costs over time.

Portability is a key design feature. Features interchangeable UK, EU and US plugs, allowing you to switch between different regional power standards within seconds. This modular approach means you can travel between countries without carrying multiple chargers, as the same device works in most locations worldwide.

The combination of three charging ports and swappable plugs makes this charger flexible enough to handle various travel scenarios and household setups where multiple devices need power at once.

Charging Currents

Mode	Voltage	Max. current	Max. power
USB-A	5,0 V	3,1 A	15,5 W
USB-C1/USB-C 2	5,0 V	3,1 A	15,5 W
USB-A + USB-C 1 / USB-2	5,0 V	3,1 A	15,5 W
USB-C 1 + USB-C 2	5,0 V	3,1 A	15,5 W
USB-A + USB-C 1 + USB-2	5,0 V	3,1 A	15,5 W

Features

• 3 USB ports (1× USB-A and 2× USB-C)
• 15W power rating
• Intelligent charge control with Multi-safe technology
• Low standby consumption for energy efficiency

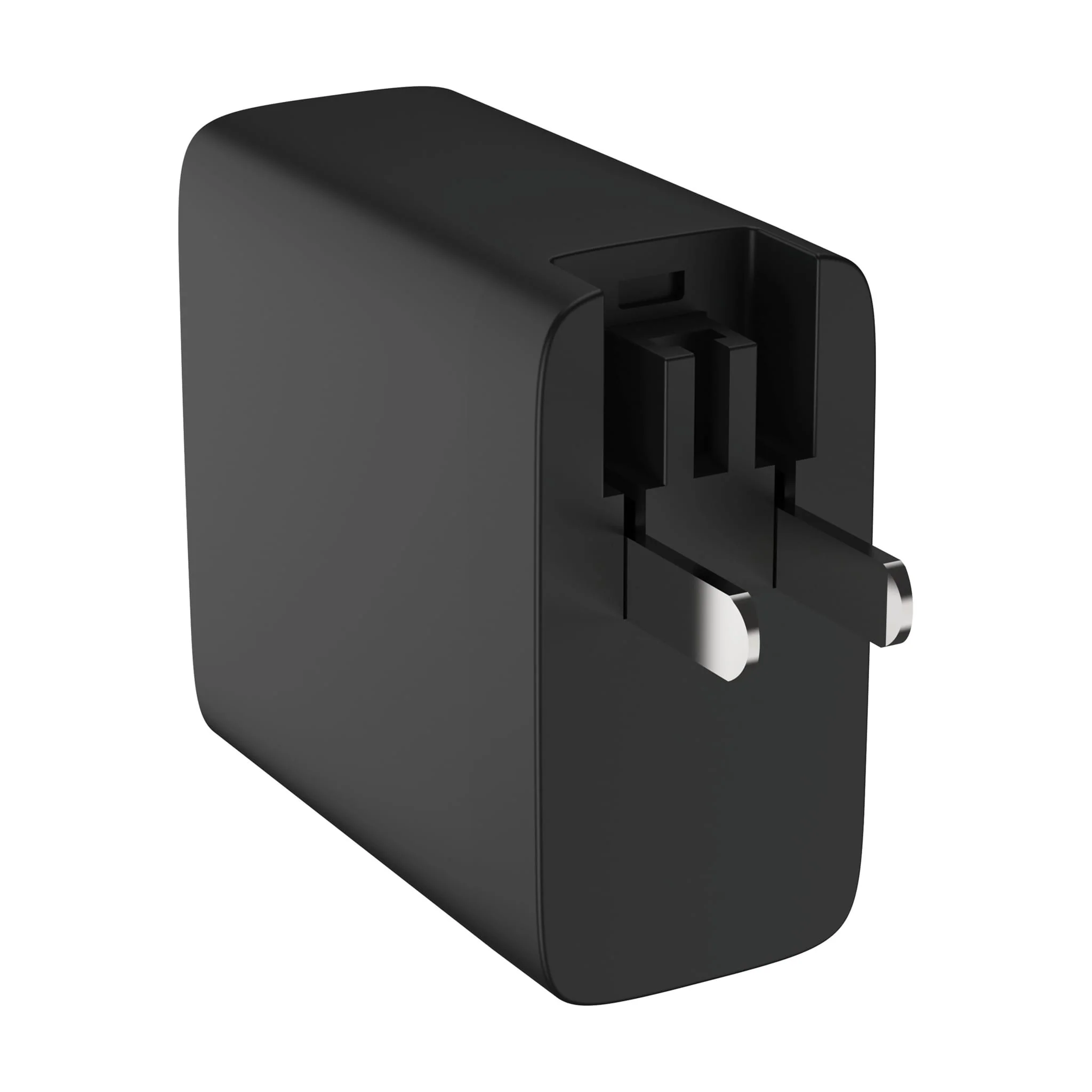

• Retractable US plug design

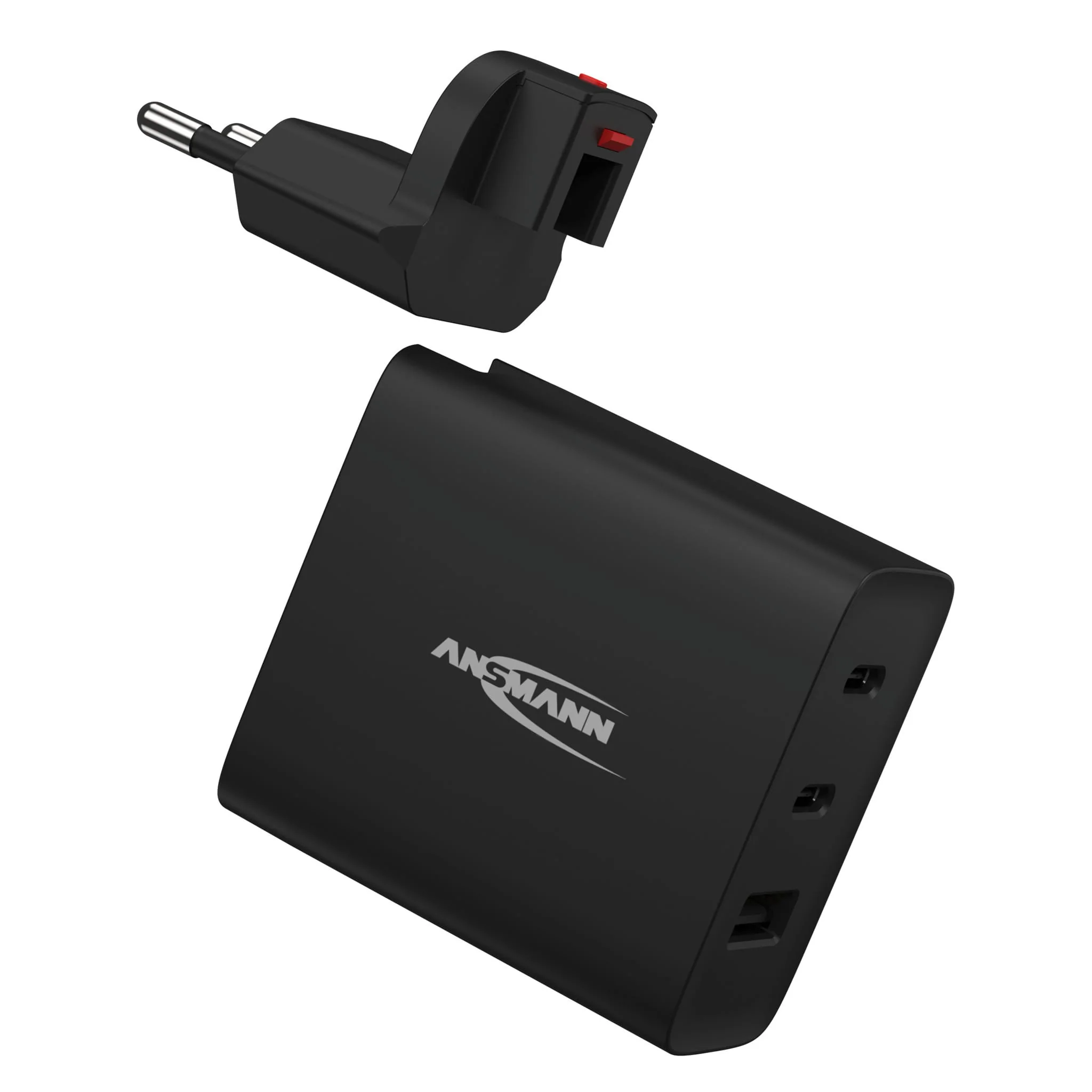

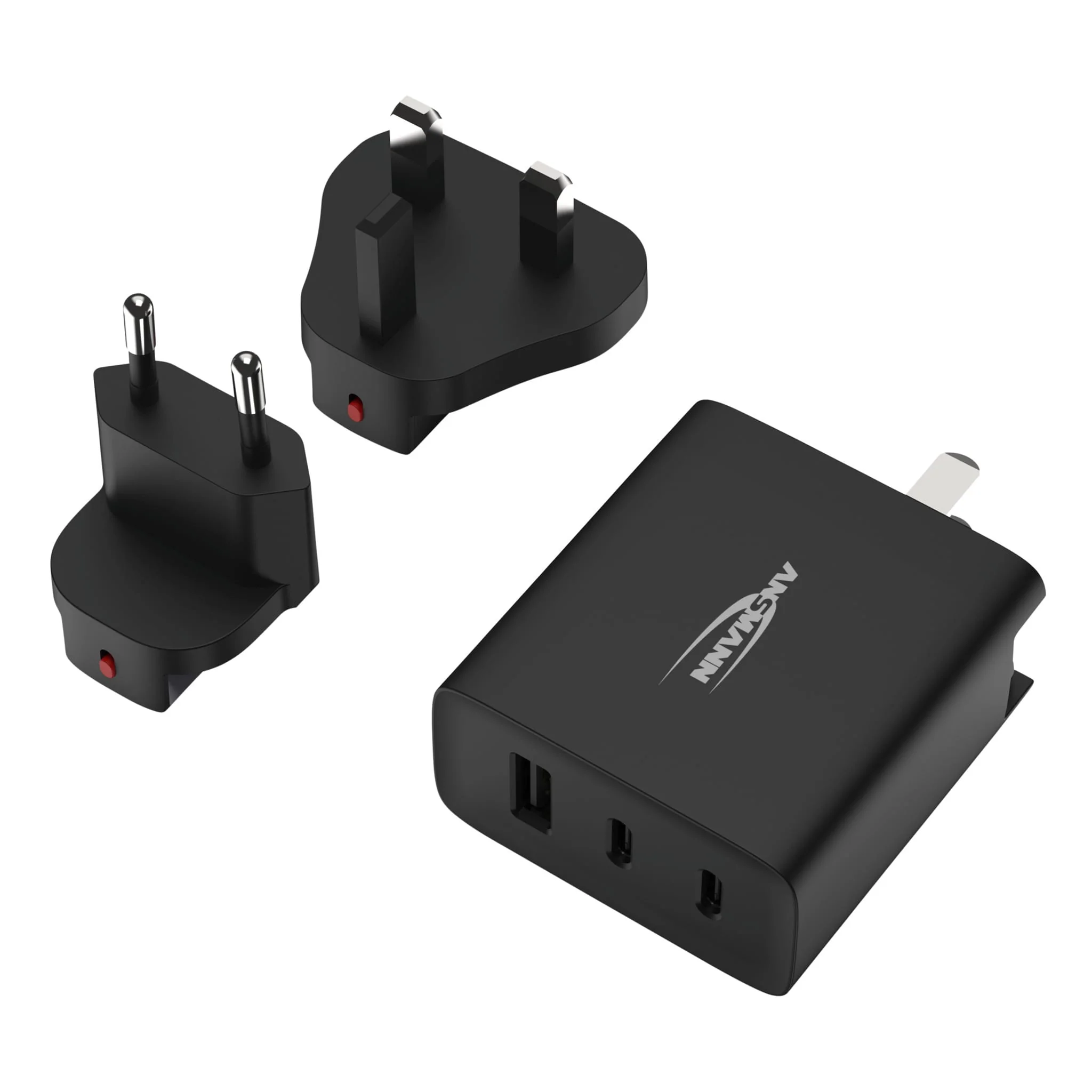

• Interchangeable UK and EU plugs included
• Compact
• Charges up to 3 devices simultaneously
• Works in multiple countries worldwide

Specifications

Input voltage	100 - 240V AC
Max. input current	1 A
AC frequency	50 / 60
Port	USB type C, USB-A
Output voltage	5V DC
Max. output current	3 A
Maximum power	15 W
Functions	Overcurrent protection, Overvoltage protection, Short circuit protection
Charging protocol	USB
USB-Ports	3
Average operational efficiency	81,6 %
Efficiency at low load	80,5 %
Power consumption at no load	0,100 W
Colour	black
Storage temperature	-25 - 75 °C
Operating temperature	0 - 25 °C

Resources

• Safety Instructions
• EAN: 4013674216215
• Product number: ANSMANN 1001-0178

Package Contents

• 1x ANSMANN 15W  TC315 Travel Charger
• 1x Operating instructions booklet
