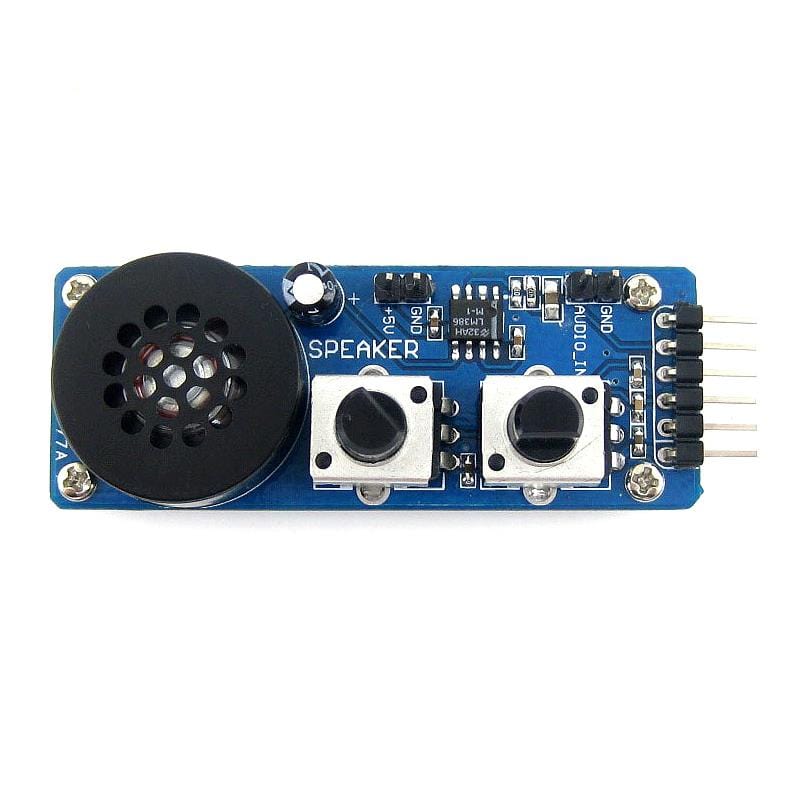

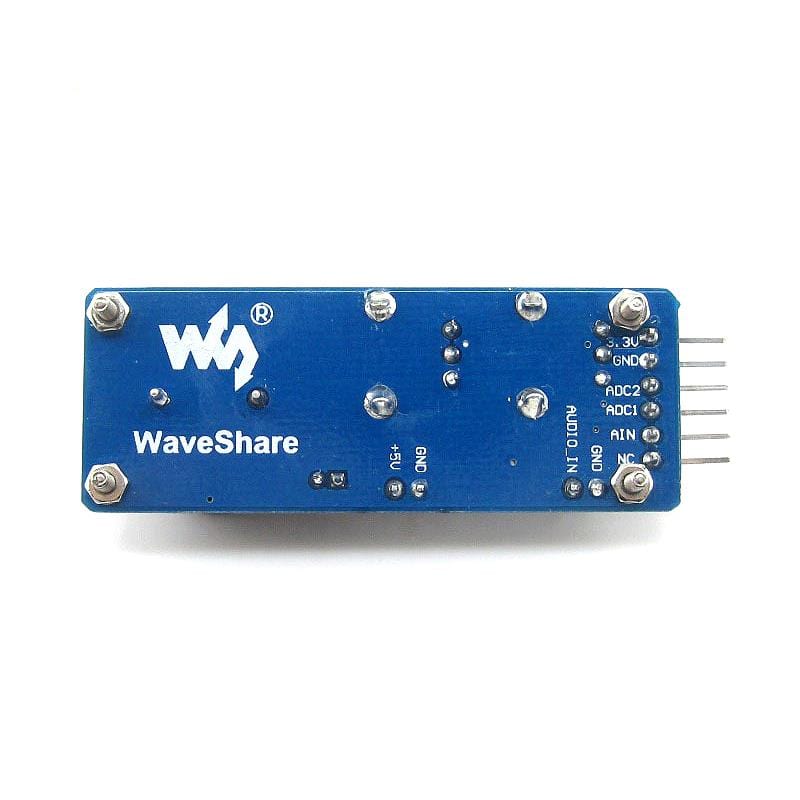

Analog Test Board
The Analog Test Board is an accessory board that includes an onboard Audio Power Amplifier (LM386M), two high-precision adjustable resistors used for adjusting the input voltage level (0-3.3V, 2 channel) and a speaker for indicating the output voltage level by sound volume (1 channel).
The board is ideal for testing AD/DA (ADC) functions that are integrated into many MCUs. The module also supports MP3 output to play music.
Don't forget to grab a handy pack of jumper wires for connecting to your development board!
Features
- LM386M Audio Power Amplifier
- Onboard speaker
- High-precision adjustable resistors
- Analog input/output
- Mounting holes
Resources
- Product Wiki including example code and schematics
Package Contents
- 1x Analog Test Board
Original: $6.54
-70%$6.54
$1.96Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Analog Test Board is an accessory board that includes an onboard Audio Power Amplifier (LM386M), two high-precision adjustable resistors used for adjusting the input voltage level (0-3.3V, 2 channel) and a speaker for indicating the output voltage level by sound volume (1 channel).
The board is ideal for testing AD/DA (ADC) functions that are integrated into many MCUs. The module also supports MP3 output to play music.
Don't forget to grab a handy pack of jumper wires for connecting to your development board!
Features
- LM386M Audio Power Amplifier
- Onboard speaker
- High-precision adjustable resistors
- Analog input/output
- Mounting holes
Resources
- Product Wiki including example code and schematics
Package Contents
- 1x Analog Test Board
