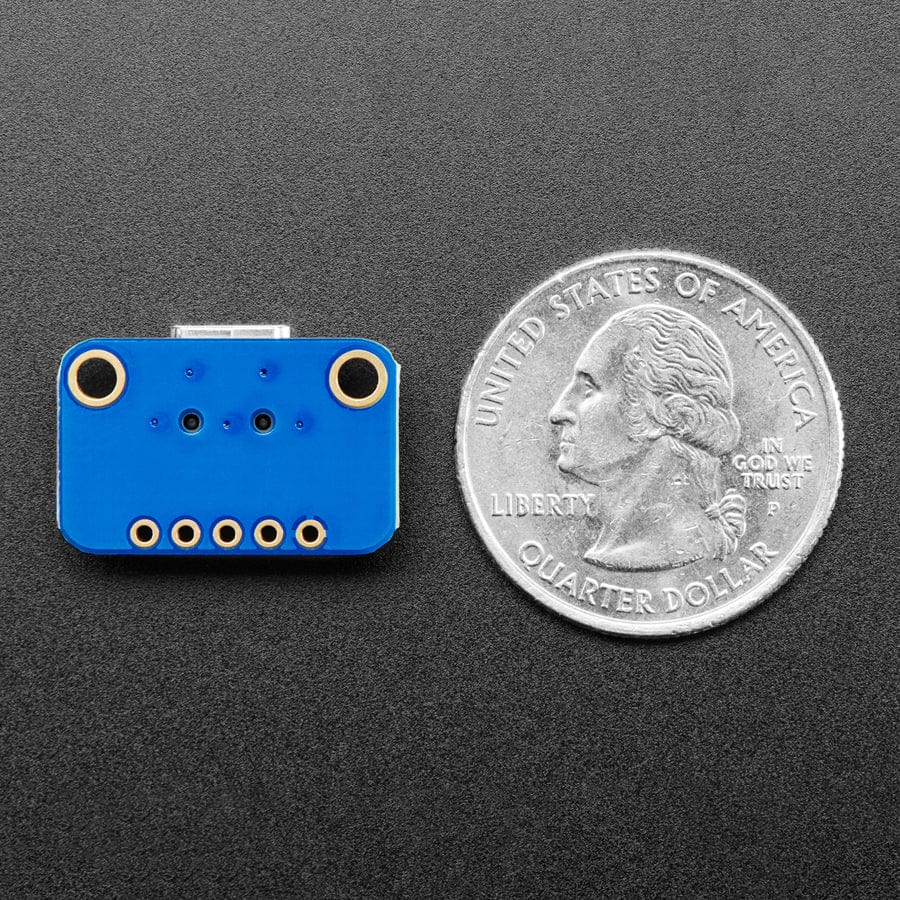

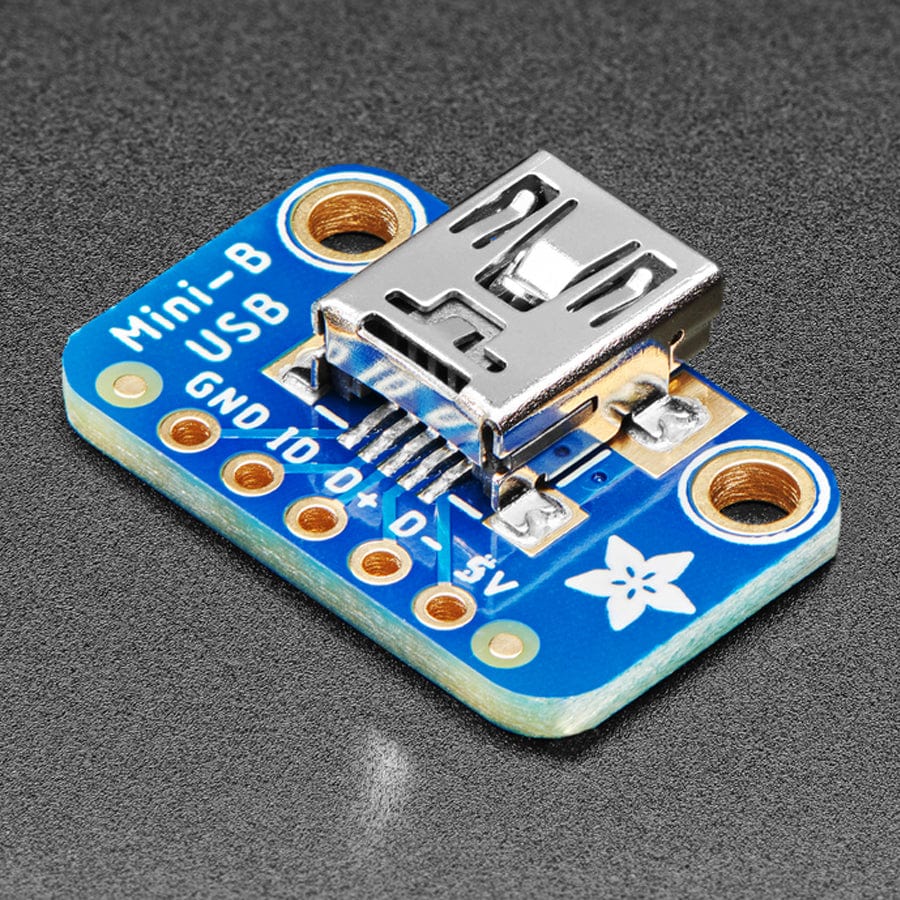

USB Mini-B Breakout Board

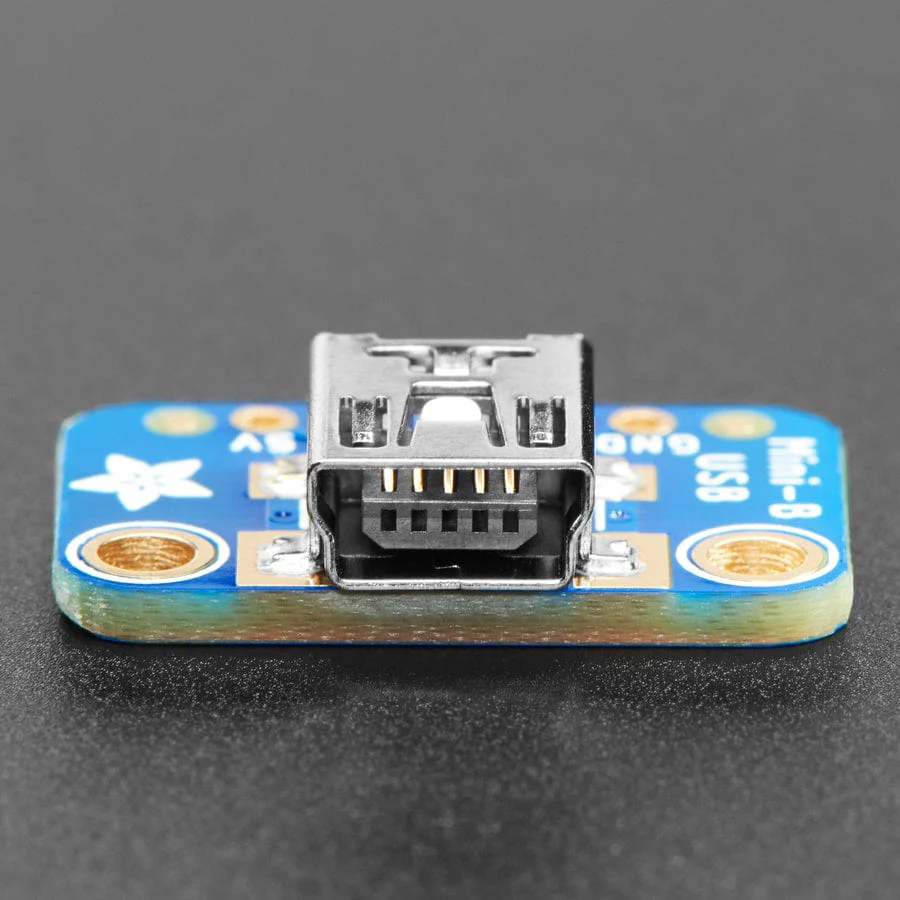

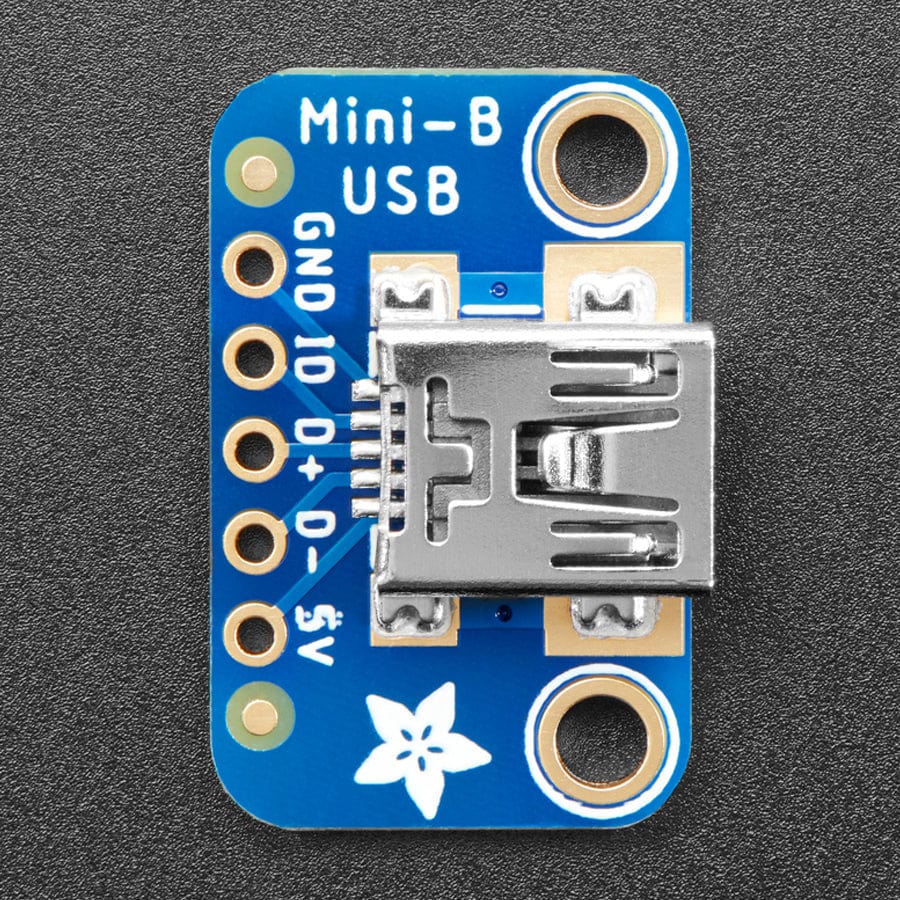

Simple but effective - this breakout board has a USB Mini-B connector, with all 5 pins broken out. Great for pairing with a microcontroller with USB support, or adding USB 5V power to a project.

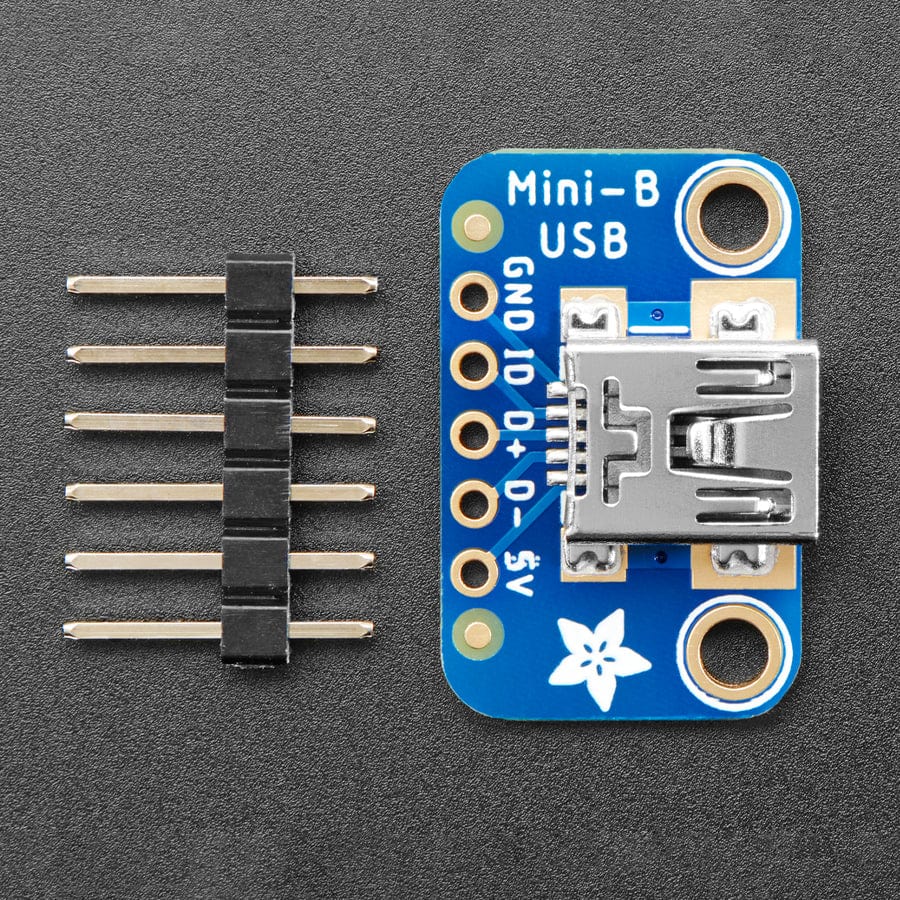

Comes with one fully assembled and tested mini B breakout PCB and a small stick of 0.1" header so you can solder it on and plug it into a breadboard.

Specifications

Dimensions (without 0.1" header or terminal blocks):

  • Length: 21mm
  • Width: 13mm
  • Height: 2mm
  • Weight: 1.6g

Resources

  • Mini B connector Datasheet
  • Fritzing object in the Adafruit Fritzing library
  • EagleCAD PCB files in GitHub
