Adafruit Proto Shield for Arduino Unassembled Kit - Stackable (Version R3)

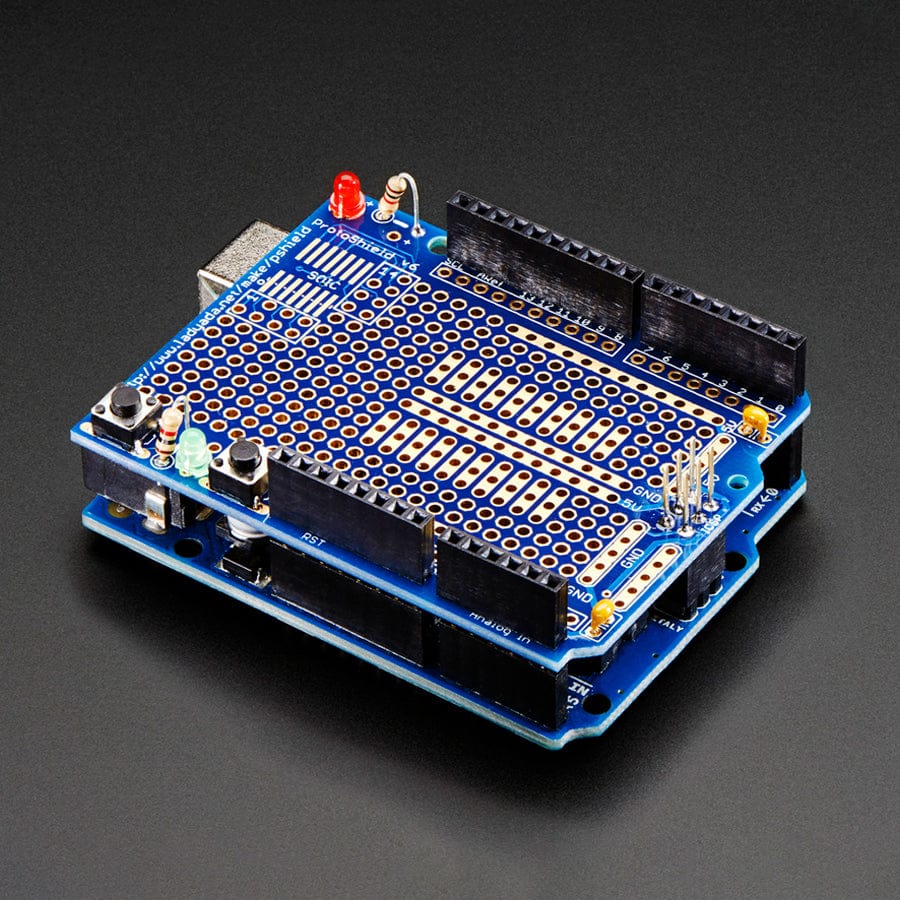

This prototyping shield is the best out there (well, we think so, at least), and now is even better with Version R3 - updated for the most compatibility with just about all the Arduinos!

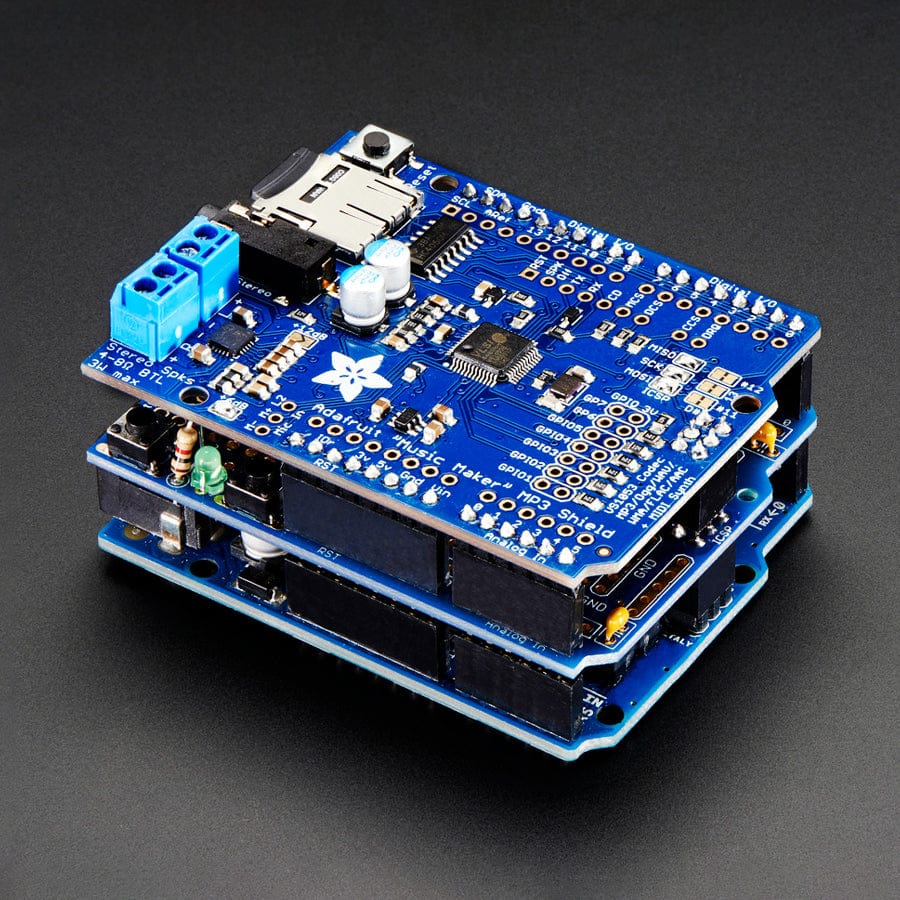

It works with UNO, Mega, Leonardo, NG, Diecimila, Duemilanove, and compatible Arduinos. Yun's and Arduino Ethernets have a chunky Ethernet jack that gets in the way of stacking, you can use the stacking headers included and it will work, just doesn't sit nice and flat.

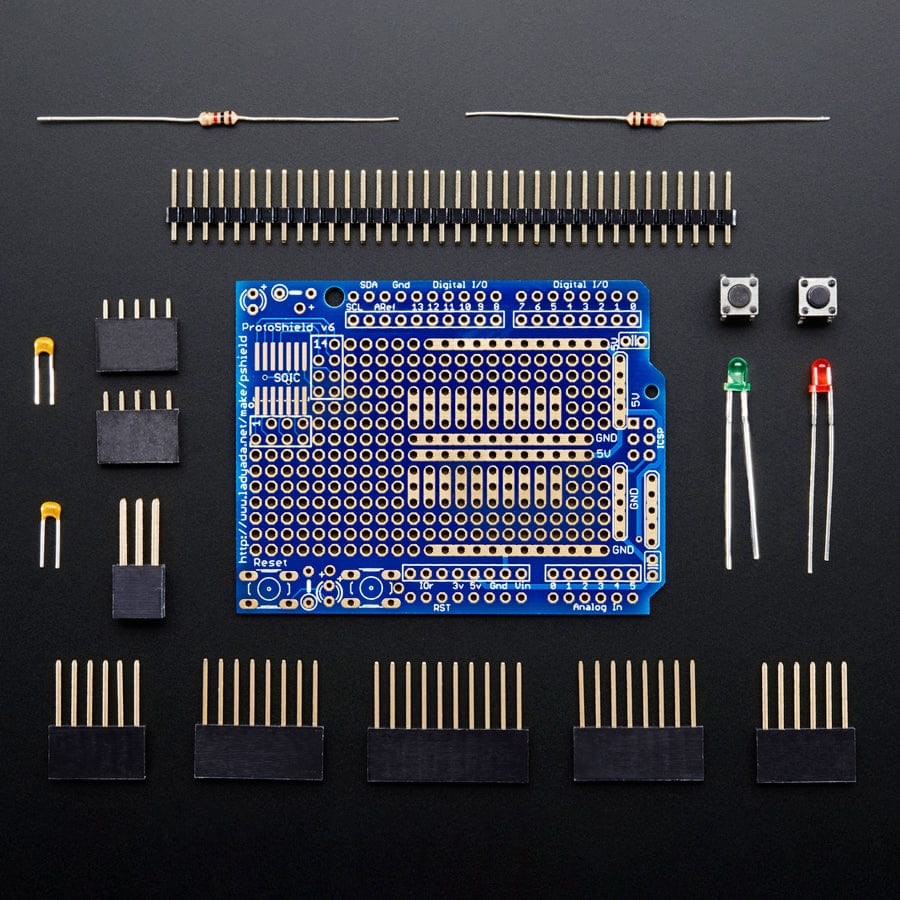

Comes as a kit of parts so you can choose how you want to configure your shield. However, it's very easy to assemble even for beginning solderers. More information & instructions are available here.

Arduino and breadboards are not included!

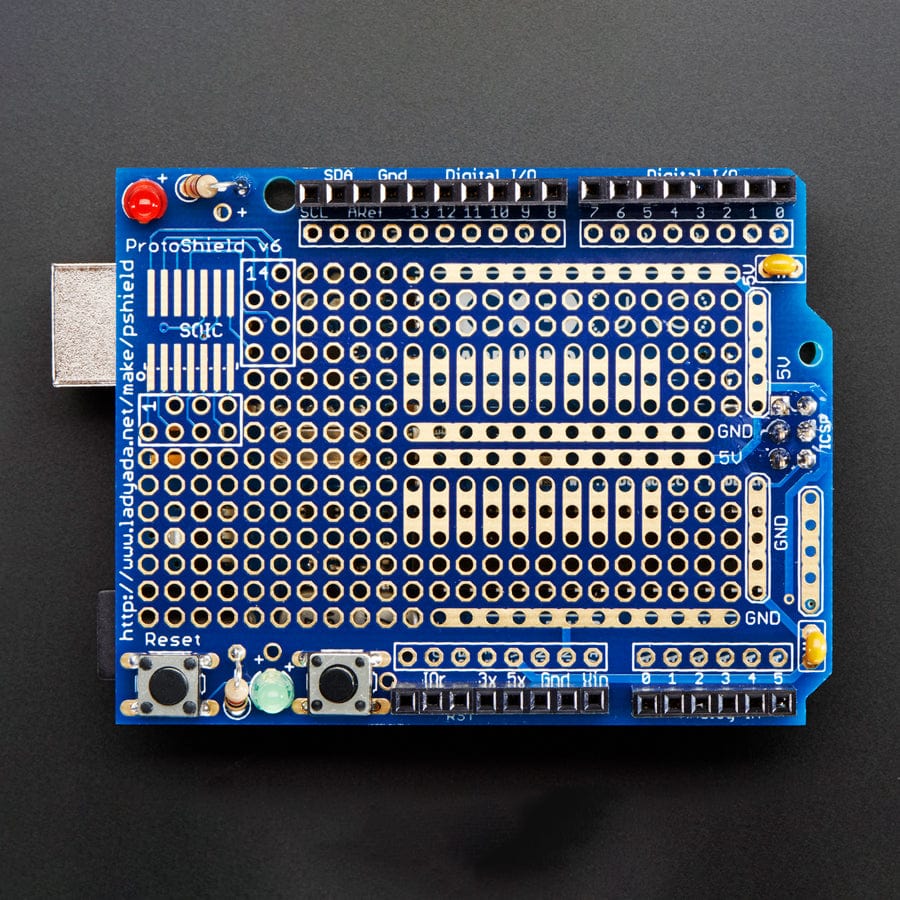

Features

• Standard 0.1"x0.1" prototyping grid with big pads

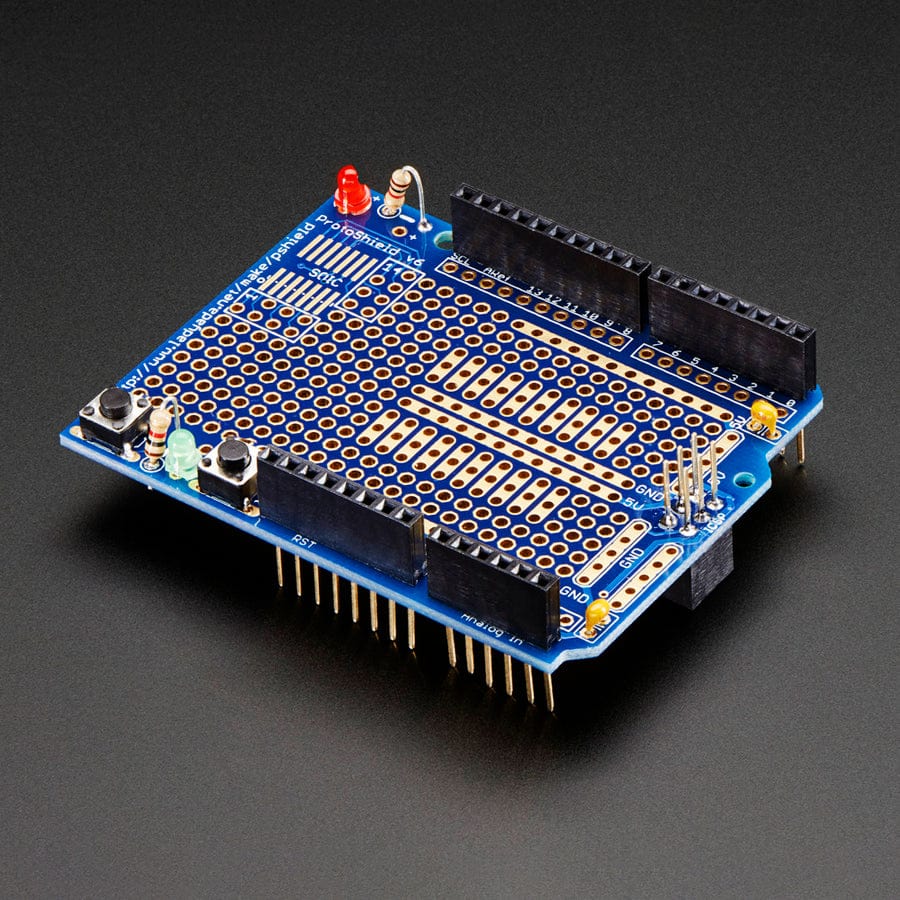

• Comes with Stacking headers and plain headers, choose whichever you want when soldering together
• An IC pattern for adding DIP ICs up to 20 pins
• Power rails down the middle and sides
• A reset button and an extra general-use button
• Two 3mm general-use LEDs, red and green, as well as 2 matching resistors
• A pass-thru ICSP stacking header so you can stack any kind of shield on top, and/or use an AVR programmer
• A surface-mount chip area for up to 14 SOIC-size parts
• Compatible with tiny breadboards
• Every pin is brought out!
• Gold-plated pads
• 2 x 0.1uF capacitors on either side for extra power stability
• Fits regular Arduino headers
• Dimensions (assembled): 69mm x 53mm x 13mm (2.7in x 2.1in x 0.5in)


Specifications

• Fits regular Arduino headers
• Dimensions (assembled): 69mm x 53mm x 13mm

Resources

• Tutorial and Downloads
