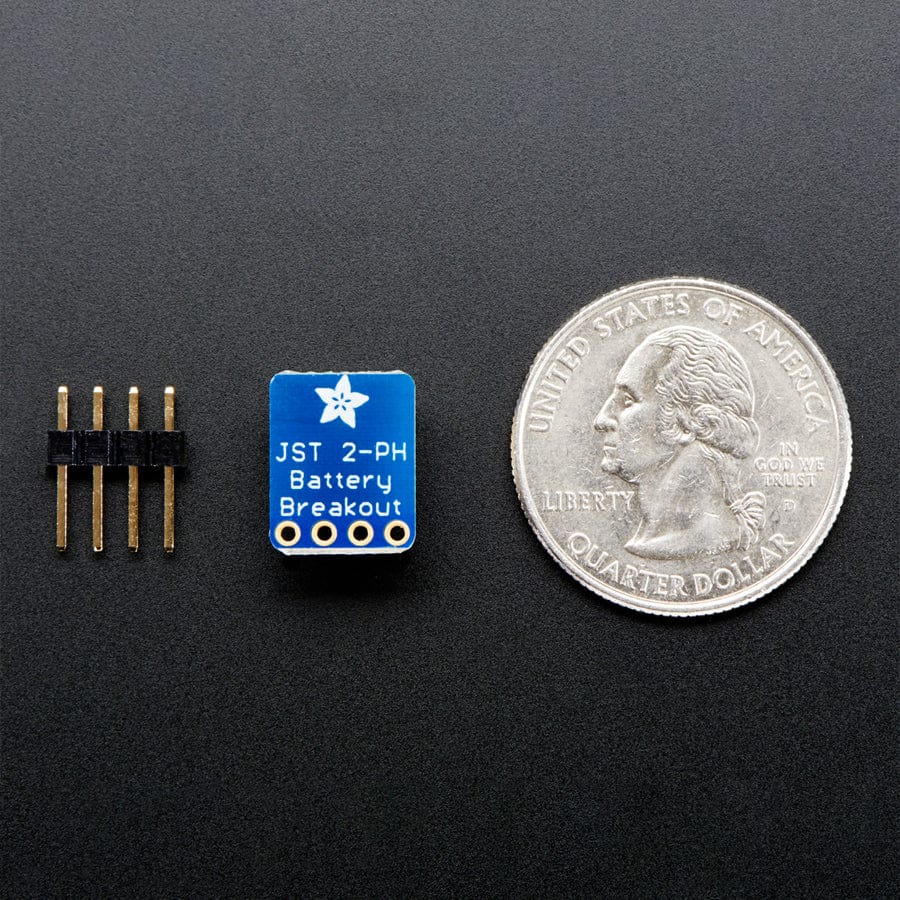

JST-PH 2-Pin SMT Right Angle Breakout Board

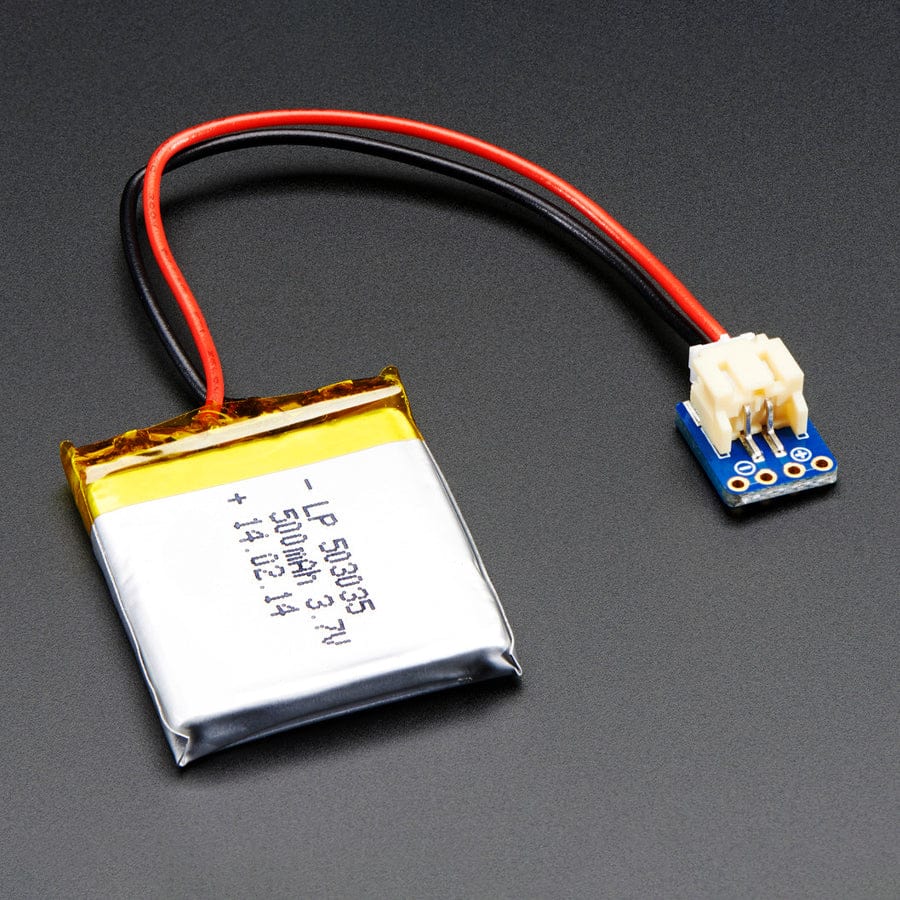

A simple 2-pin connector soldered onto a breadboard-friendly breakout. This is compatible with the "JST PH 2-pin" connector. Mates perfectly with all our 1-cell LiPoly and LiIon batteries as well as our 6V coin cell holder and 3x AAA battery pack. We also have simple JST pigtails that mate with this connector.
Note:Ā You may get an off-white or black JST connector.
Specifications
- Dimensions: 13mm x 10mm x 2mm / 0.5" x 0.4" x 0.08"
- Height with JST: 7.3mm
- Weight: 0.7g
Resources
- Datasheet for 2-pin R/A connector
- EagleCAD PCB files on GitHub
- Fritzing object in the Adafruit Fritzing library
