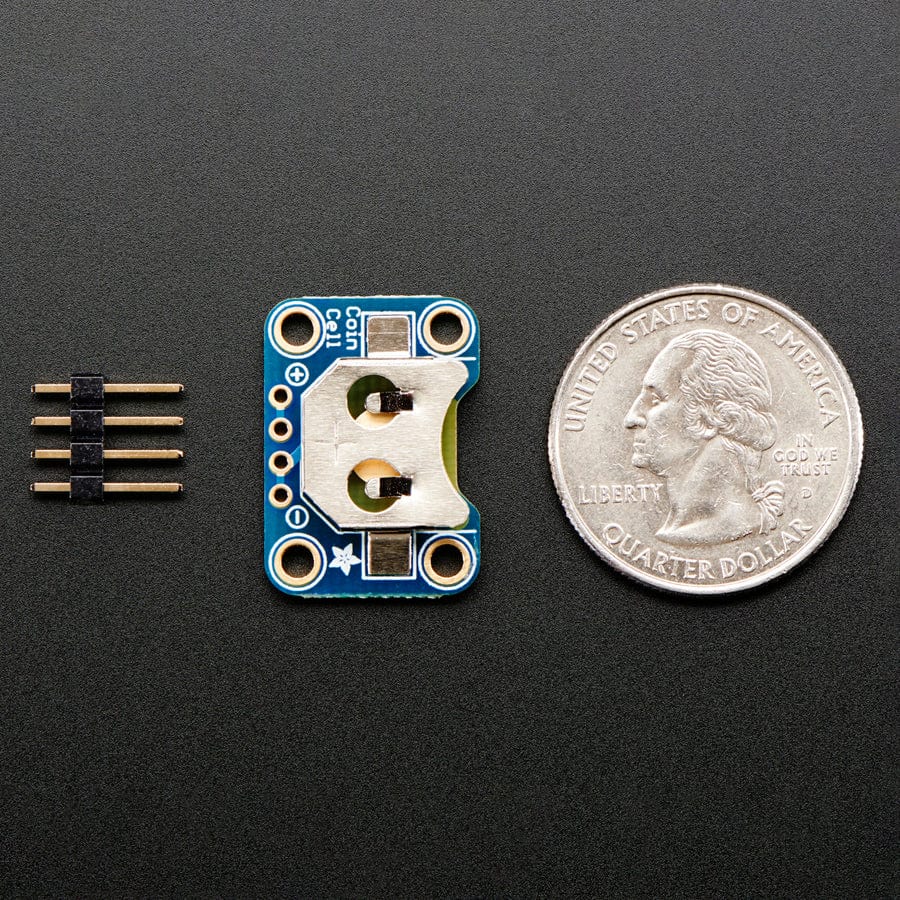

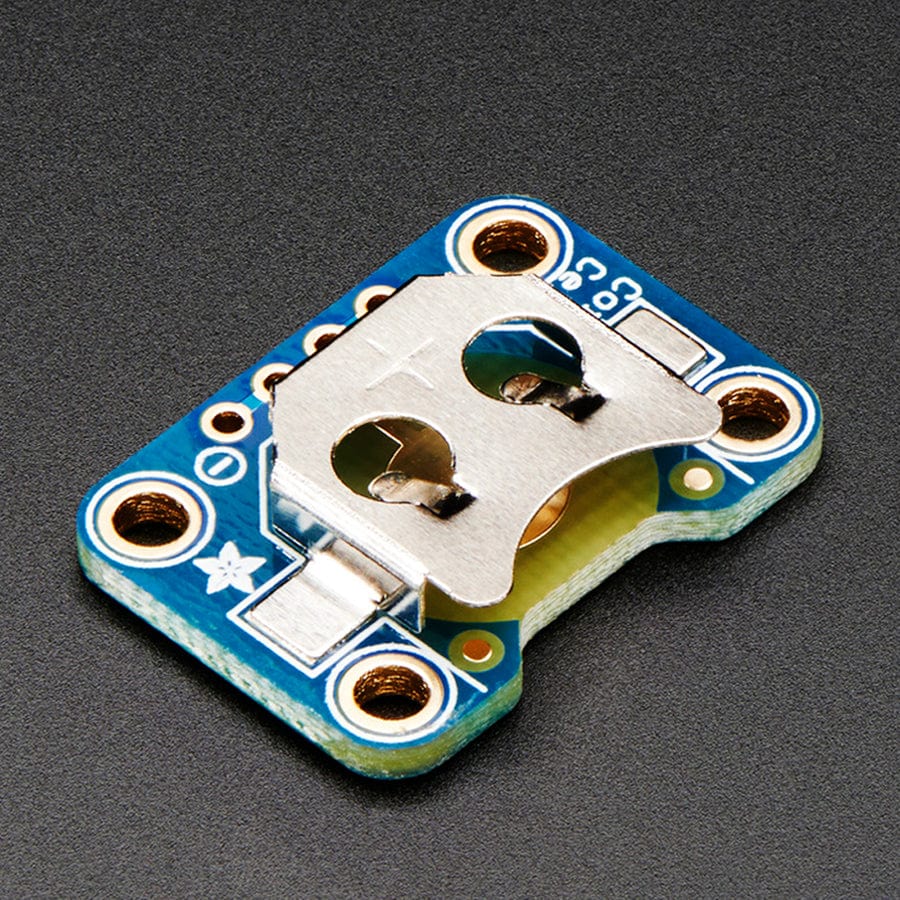

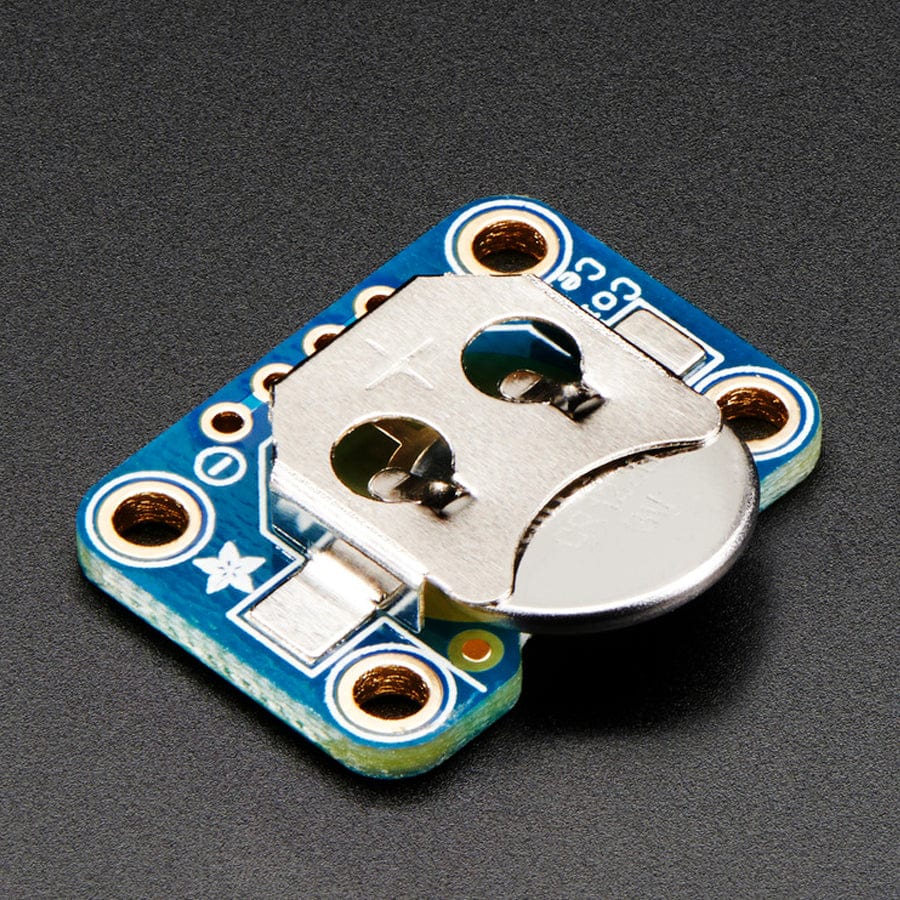

12mm Coin Cell Breakout Board
Simple but effective - this breakout board has a CR1220 coin cell battery holder soldered on and 0.1" pitch breakout pins for easy connecting. Great for powering very low-current projects, or adding a battery backup circuit to a real-time clock or similar.
Comes with one fully assembled and tested coin cell battery holder and a small stick of 0.1" header so you can solder it on and plug it into a breadboard.
We also have a version with an on/off switch
Note: The CR1220 battery is NOT available
Specifications
Dimensions:
- 16.5mm x 23mm x 2mmÂ
- Mounting hole distance: 10mm x 16mm
- Weight: 1.5g
Resources
- EagleCAD PCB files on GitHub
- Fritzing object in the Adafruit Fritzing library
Original: $2.59
-70%$2.59
$0.78Product Information
