7″ Touch Display Kit for Raspberry Pi Zero

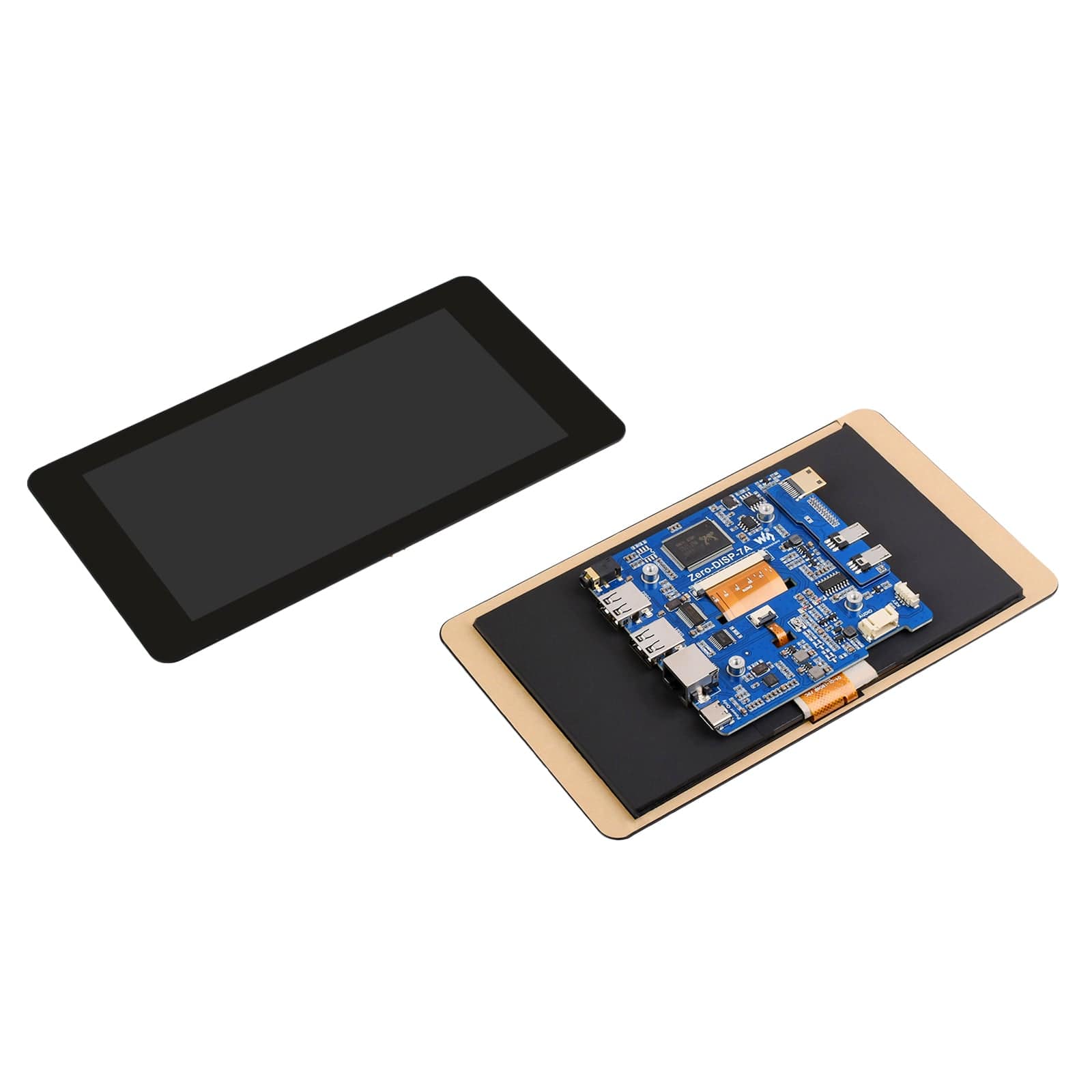

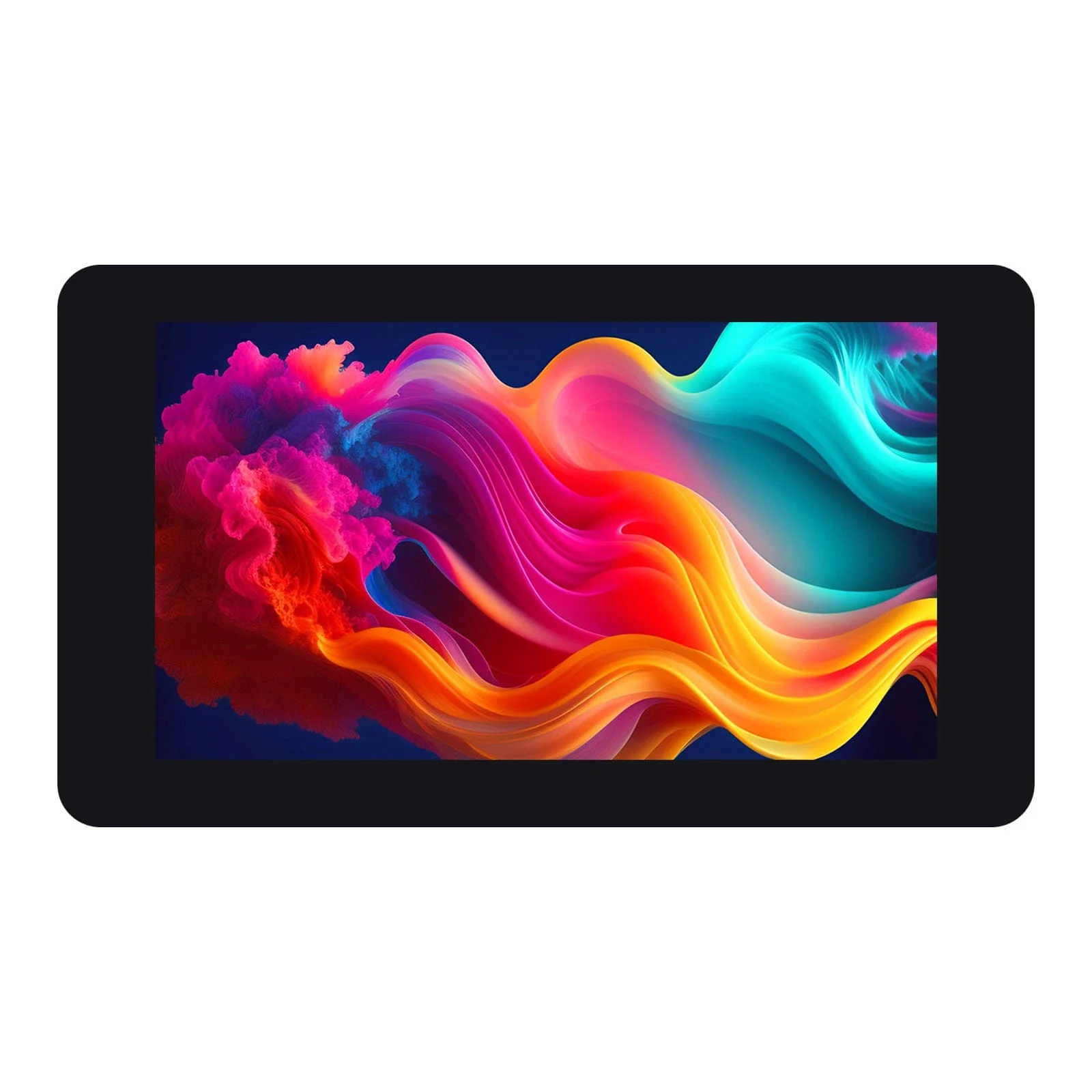

The 7″ Touch Display Kit for Raspberry Pi Zero is an all-inclusive solution that brings stunning visuals and interactive touch capabilities to your Raspberry Pi Zero projects. This comprehensive kit includes a high-quality IPS display with a resolution of 1024x600, delivering crisp and vibrant visuals with a wide 170° viewing angle.

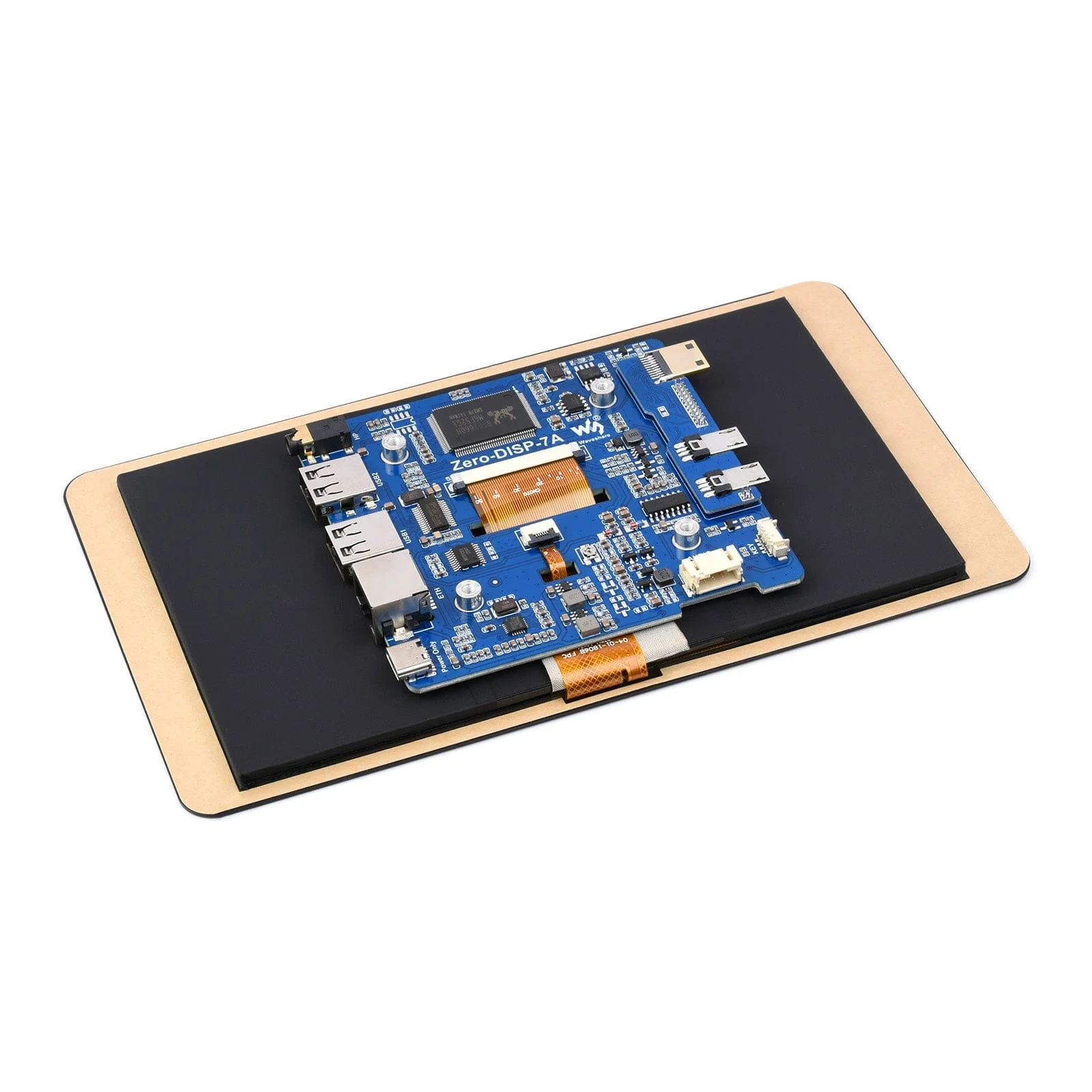

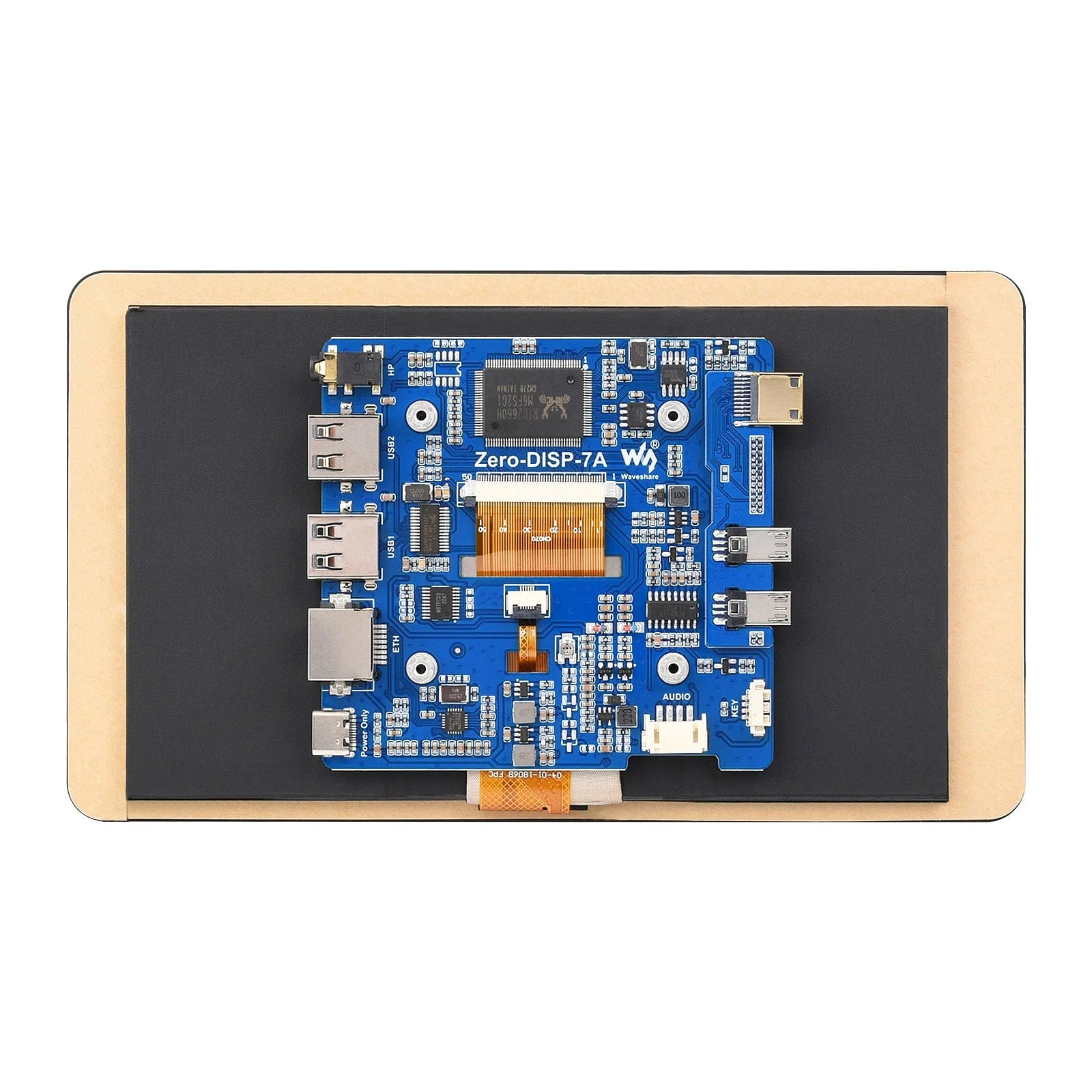

The 5-point capacitive touch feature allows for precise and responsive touch control. Designed specifically for the Raspberry Pi Zero, the included IPS display expansion board ensures easy and hassle-free plug-and-play connectivity, eliminating the need for complex wiring. It comes equipped with an audio jack, allowing you to integrate audio output seamlessly into your projects. Additionally, with 2 USB ports, you have the flexibility to connect various USB devices.
This Display Kit offers a winning combination of impressive visuals, responsive touch control, audio and USB functionalities, and an expansive viewing angle.
Note: The Raspberry Pi Zero is NOT included
Features
- 7" IPS touch display with a hardware resolution of 1024 x 600
- 5-point touch control, toughened glass panel with up to 6H hardness
- When working with Raspberry Pi Zero, supports Raspberry Pi OS, Ubuntu, Kali, and Retropie systems
- Onboard ETH/USB HUB function, adapting RJ45 and USB port serving as an all-in-one mini computer
- Onboard 4-pin speaker header with 3.5mm audio and support for HDMI audio output
Specifications
| Item | Description | Unit |
| Dimensions | 7 | Inch |
| Viewing Angle | 170 | Deg |
| Resolution | 1024x600 | Pixels |

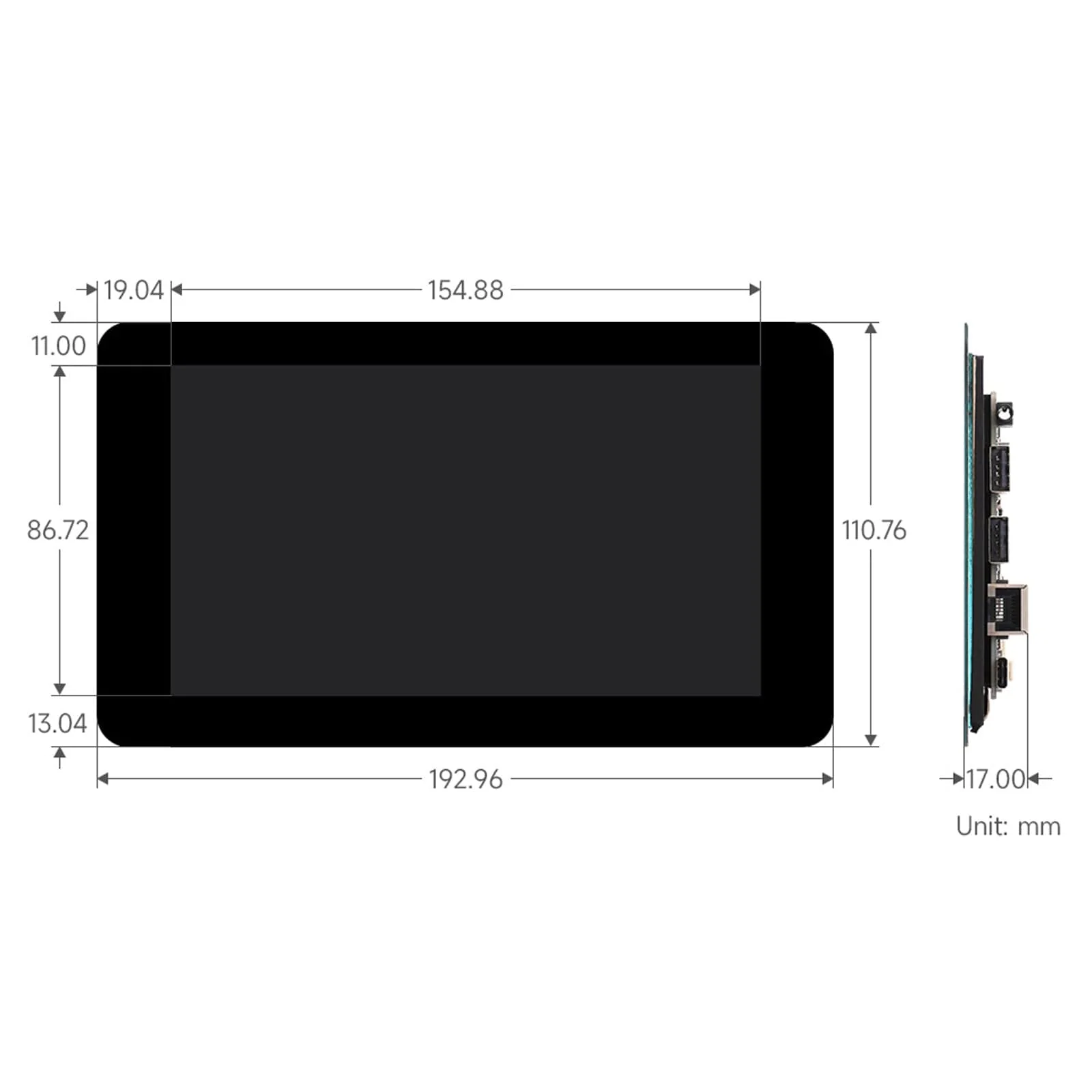

| Overall Dimensions | 192.96(H)Ă—110.76(V)Ă—17.00(D) | mm |
| Display Area | 154.88(H)Ă—86.72(V) | mm |
| Pixel Pitch | 0.1506(H) x 0.1432(V) | mm |
| Color Gamut | 0.45 | NTSC |
| Max. Brightness | 300 | cd/m² |
| Contrast | 33.33402778 | / |
| Backlight Adjustment | OSD Menu | / |
| Refreshing Rate | 60 | Hz |
| Display Interface | Mini HDMI Interface | / |
| Power Port | 5V Type-C | / |
| Weight | 227 | g |
Resources
- Product Wiki
Pinout
Package Contents
- 1x 7″ Touch Display Kit
- 1x Button Board
- 1x Button board cable - 9cm
- 1x White nylon spacer (4 Pieces)
