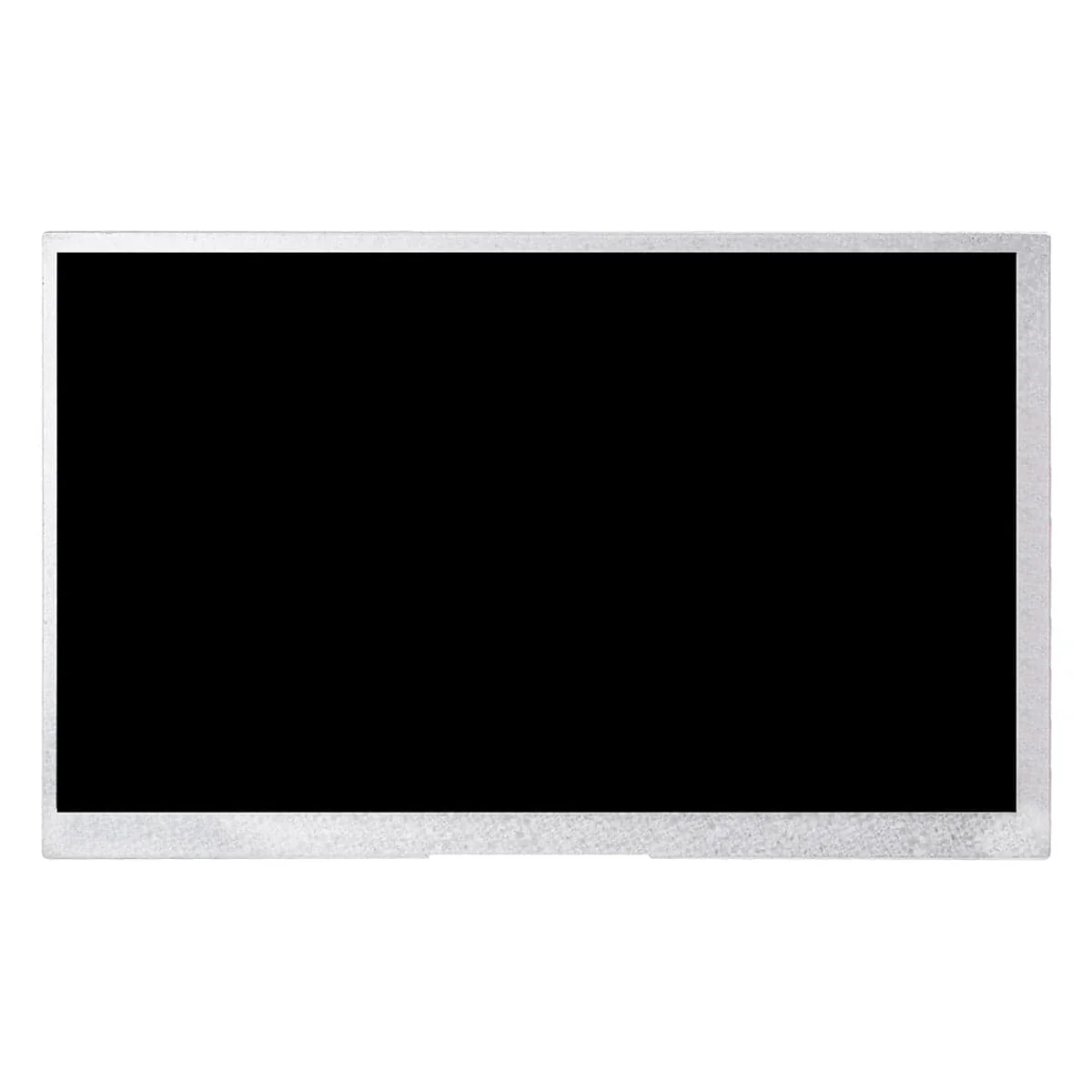

7" IPS DVI Display Module for Raspberry Pi Pico

This 7" DVI display module is designed for the Raspberry Pi Pico (but the Waveshare RP2040 Plus is also compatible) with a high-quality IPS panel and a 1024 x 600 resolution that gives clear and vibrant colours. It offers a wide 170° viewing angle, providing consistent colours and clarity from almost any perspective. The DVI interface improves communication speed for smoother and faster image processing. It includes a 40-pin header based on the Raspberry Pi Pico for easy integration and customisation. Additionally, the built-in OSD menu allows for on-the-fly adjustments to brightness and contrast. It also comes with online development resources and a manual, including examples for Raspberry Pi Pico C/C++, making it a great choice for anyone looking to add a bright and colourful display to their projects.

The 10.1" version can be found here

Note: Raspberry Pi Pico and RP2040 PLUS are NOT included

Features

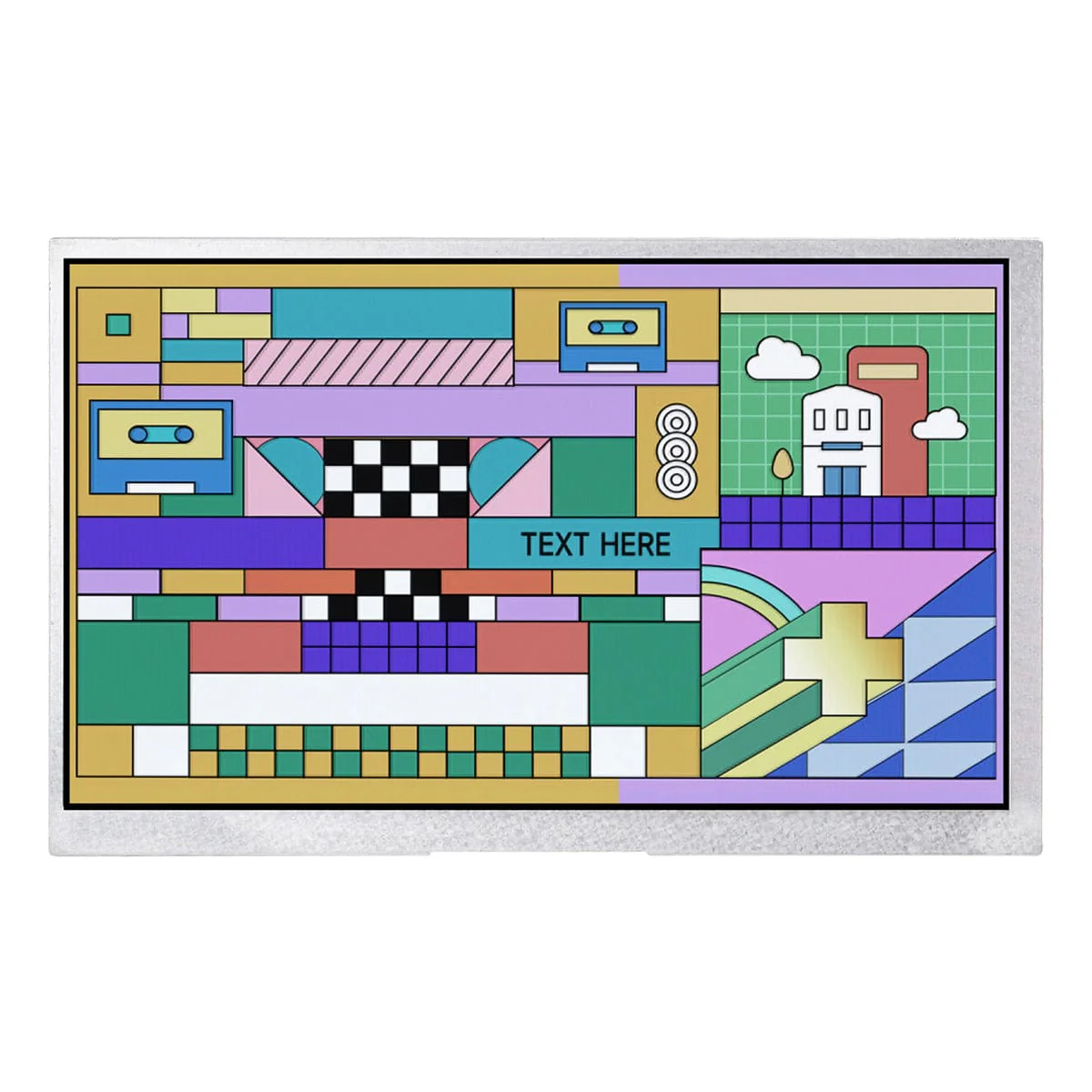

• IPS panel, 1024 x 600 resolution, with 170° viewing angle
• DVI interface for higher communication speed

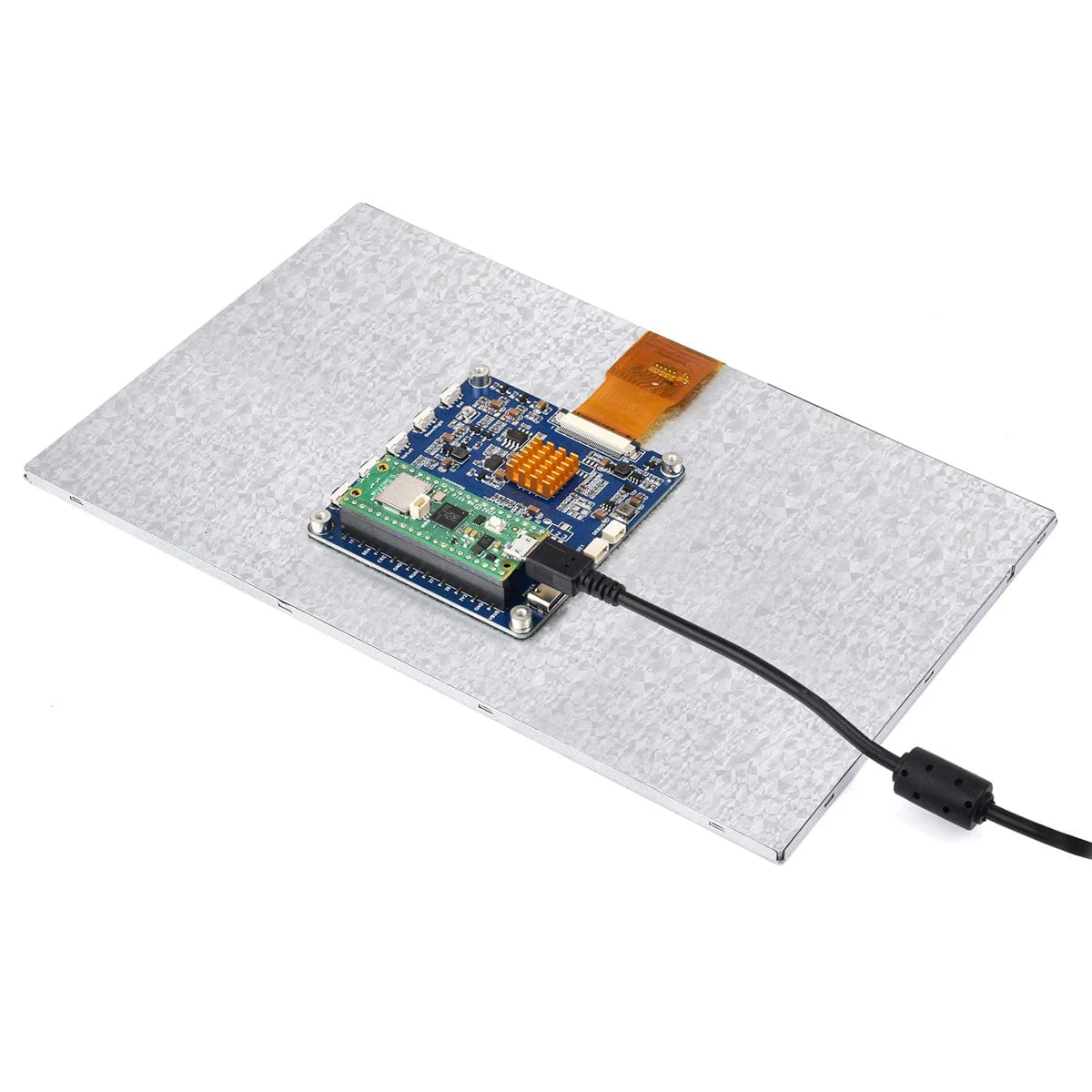

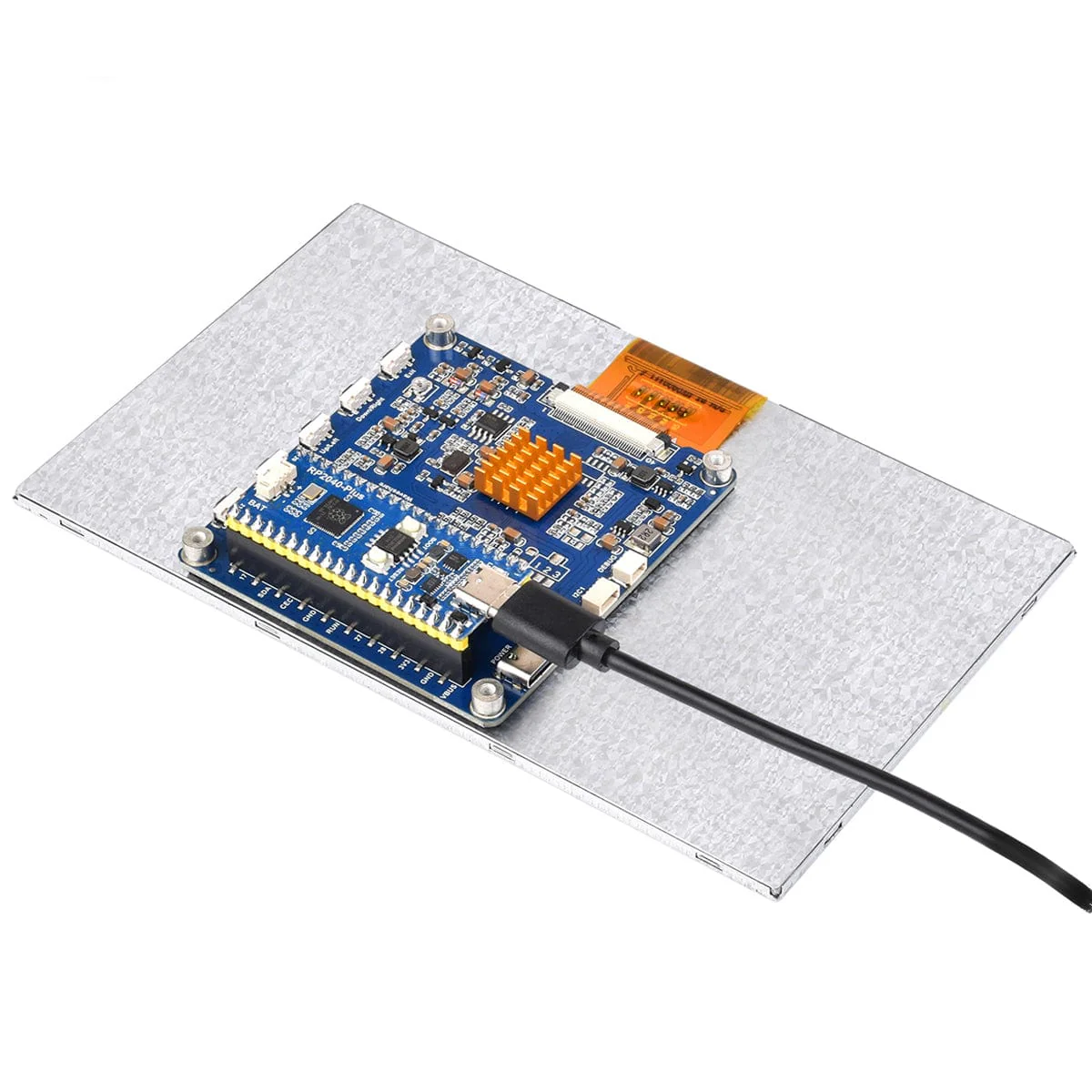

• Based on the Raspberry Pi Pico with an onboard 40-pin header
• Built-in OSD menu for brightness/contrast adjustment
• Available in 7" and 10.1" display sizes
• Suitable for advertisement picture display and other application scenarios
• Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++)

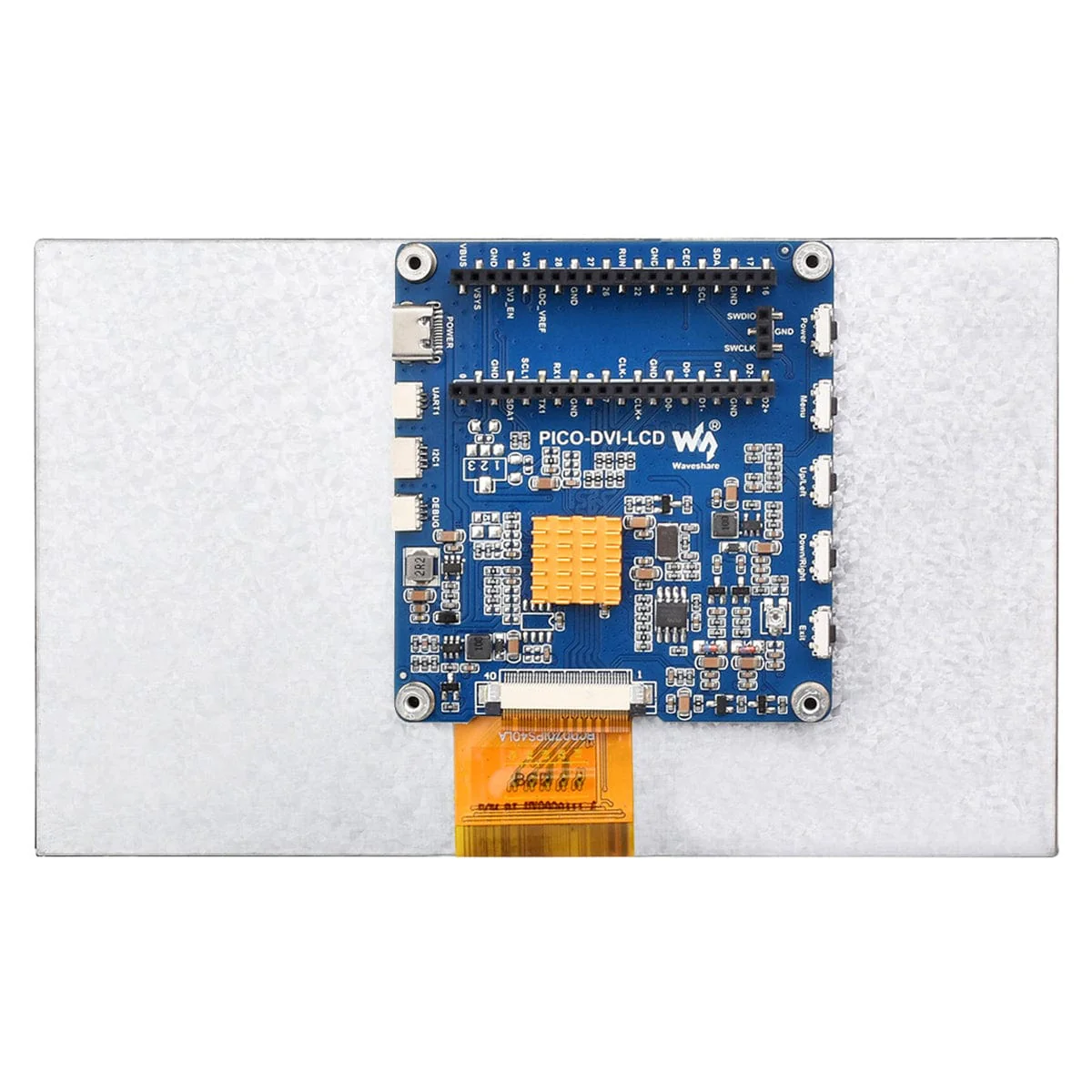

What's on Board

Specifications

Operating Voltage	5V
Resolution	1024 x 600 pixels
Communication Interface	DVI
Display Panel	IPS

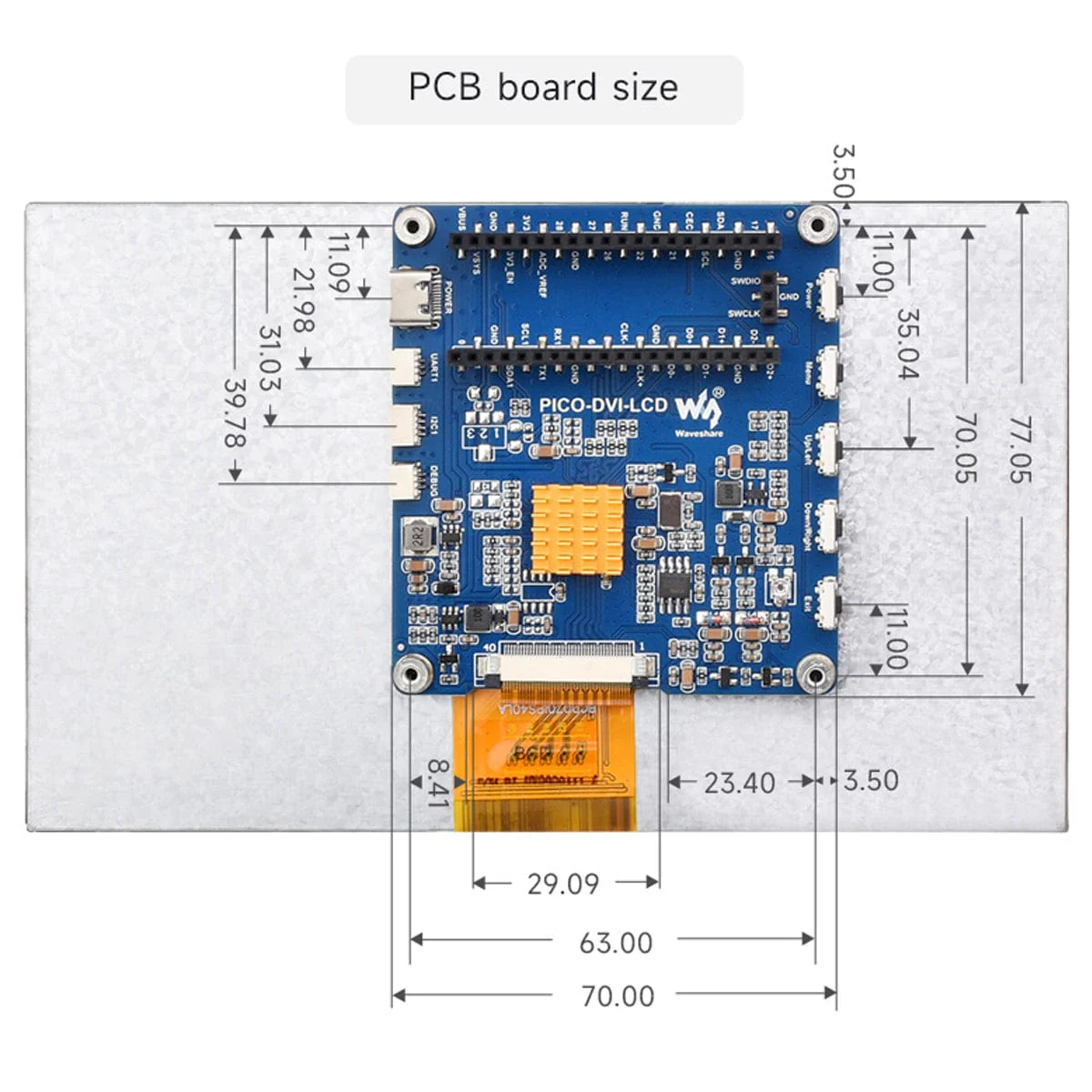

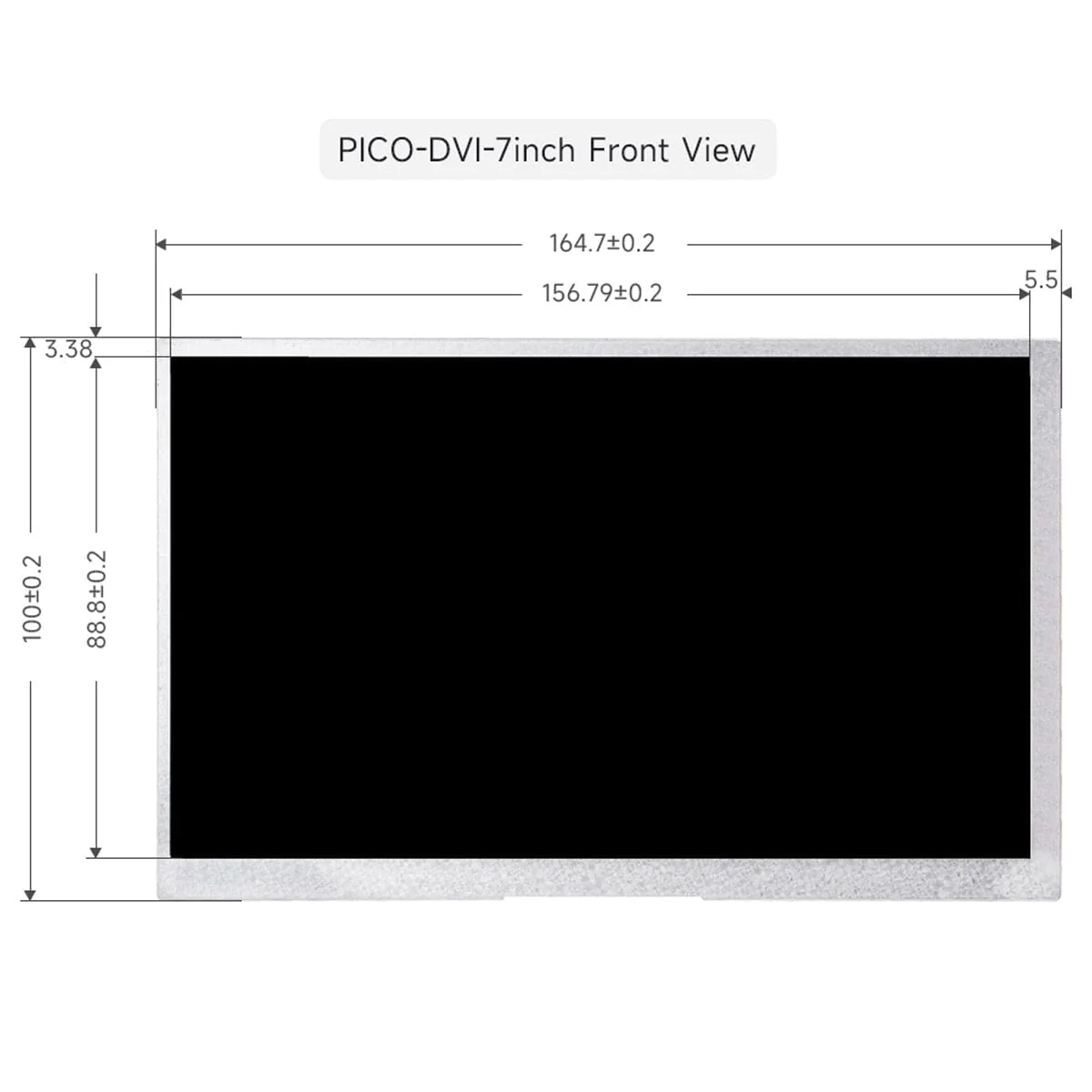

Display Size	154.21 x 85.92mm
Pixel Size	0.1506 x 0.1432mm

Resources

• Product Wiki
• Schematic

Pinout

Package Contents

• 1x 7" DVI Display Module for Raspberry Pi Pico
