6-Pin Female Header [discontinued]

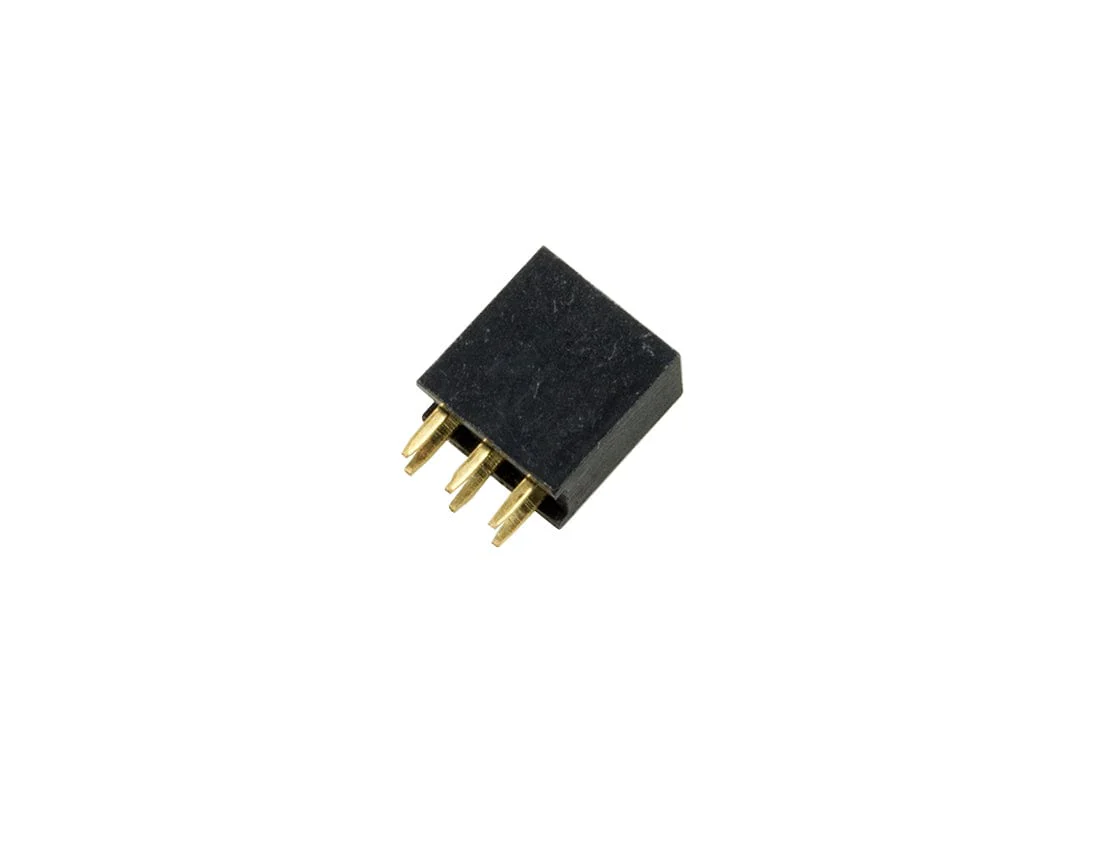

6-pin female 2.54mm dual row header. They can be useful for connecting our boards to the Raspberry Pi or to cables onto other boards.
Matches our 6-Pin Male Header for board interconnect.
Technical Details
- PCB Double row socket 2.54mm pitch (2 x 3 Pin)
- Material: Thermoplastic (UL 94V-0)
- Contact: Copper alloy
- Contact plated: Full gold flash
- Operating temperature: -45°C to +105°C
- Contact resistance: 30m? max.(initial)
- Insulation resistance: 1000m? min.
- Dielectric withstanding voltage: AC 500V per minute
$1.36
6-Pin Female Header [discontinued]—
$1.36
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
6-pin female 2.54mm dual row header. They can be useful for connecting our boards to the Raspberry Pi or to cables onto other boards.
Matches our 6-Pin Male Header for board interconnect.
Technical Details
- PCB Double row socket 2.54mm pitch (2 x 3 Pin)
- Material: Thermoplastic (UL 94V-0)
- Contact: Copper alloy
- Contact plated: Full gold flash
- Operating temperature: -45°C to +105°C
- Contact resistance: 30m? max.(initial)
- Insulation resistance: 1000m? min.
- Dielectric withstanding voltage: AC 500V per minute
