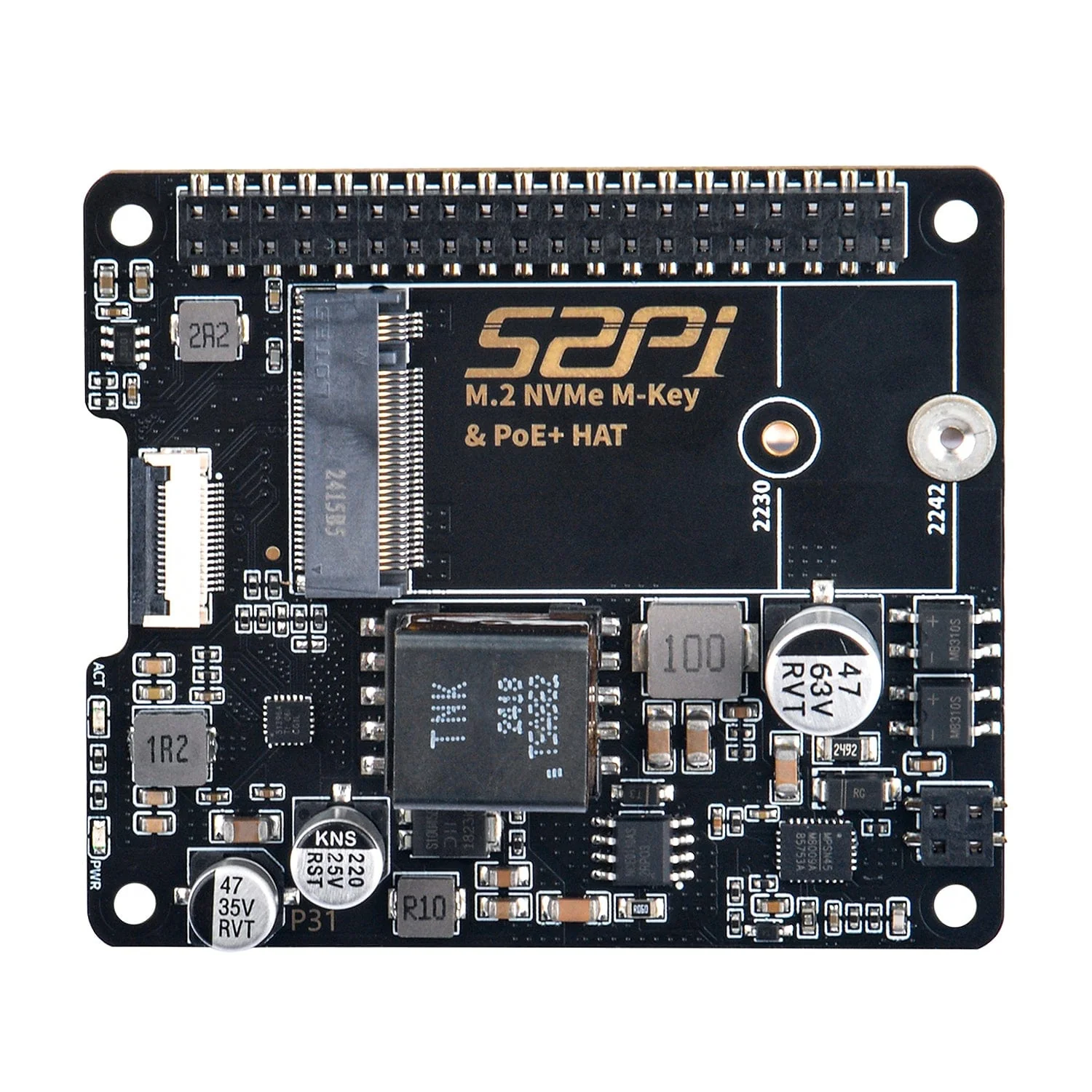

52Pi M.2 NVME M-Key PoE+ HAT for Raspberry Pi 5

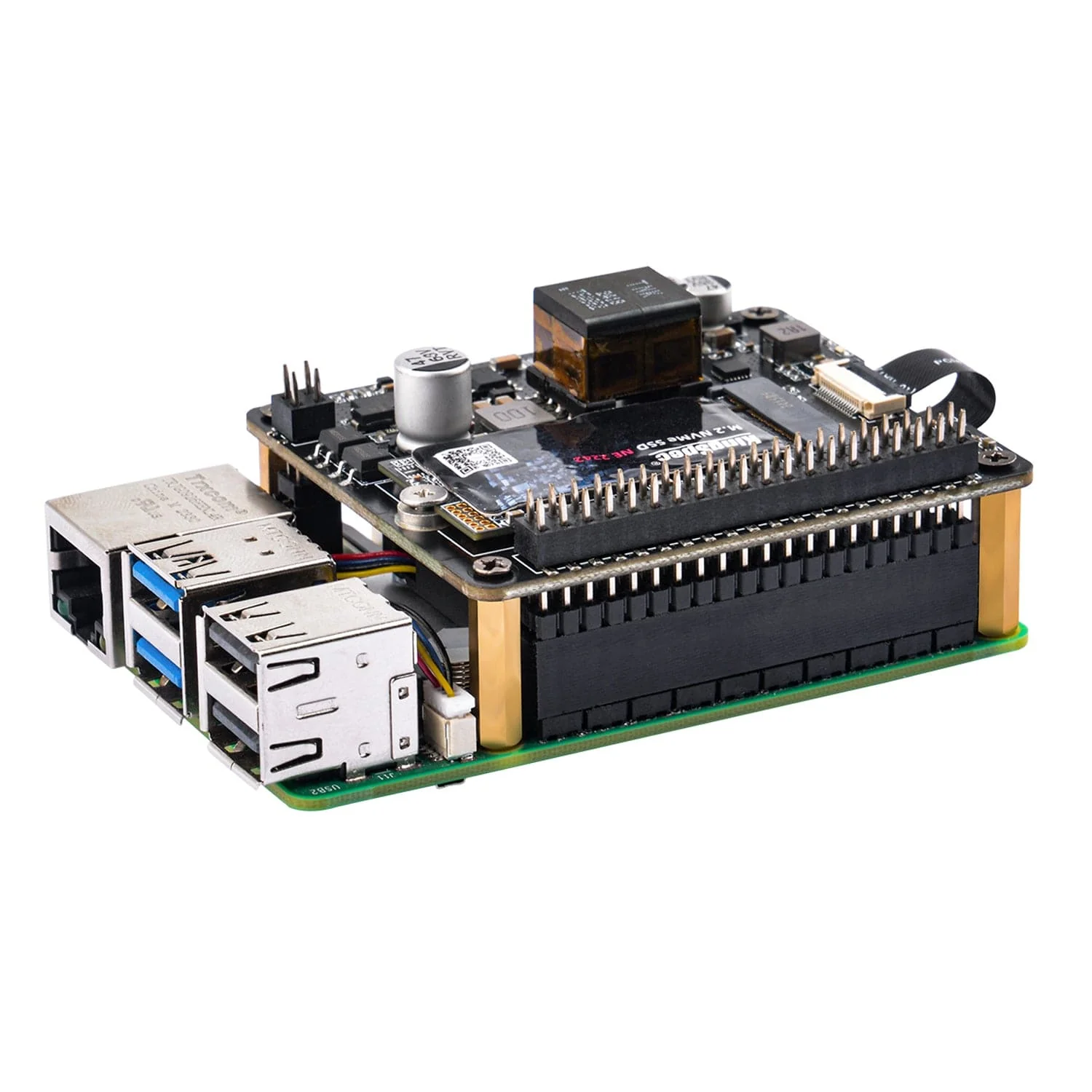

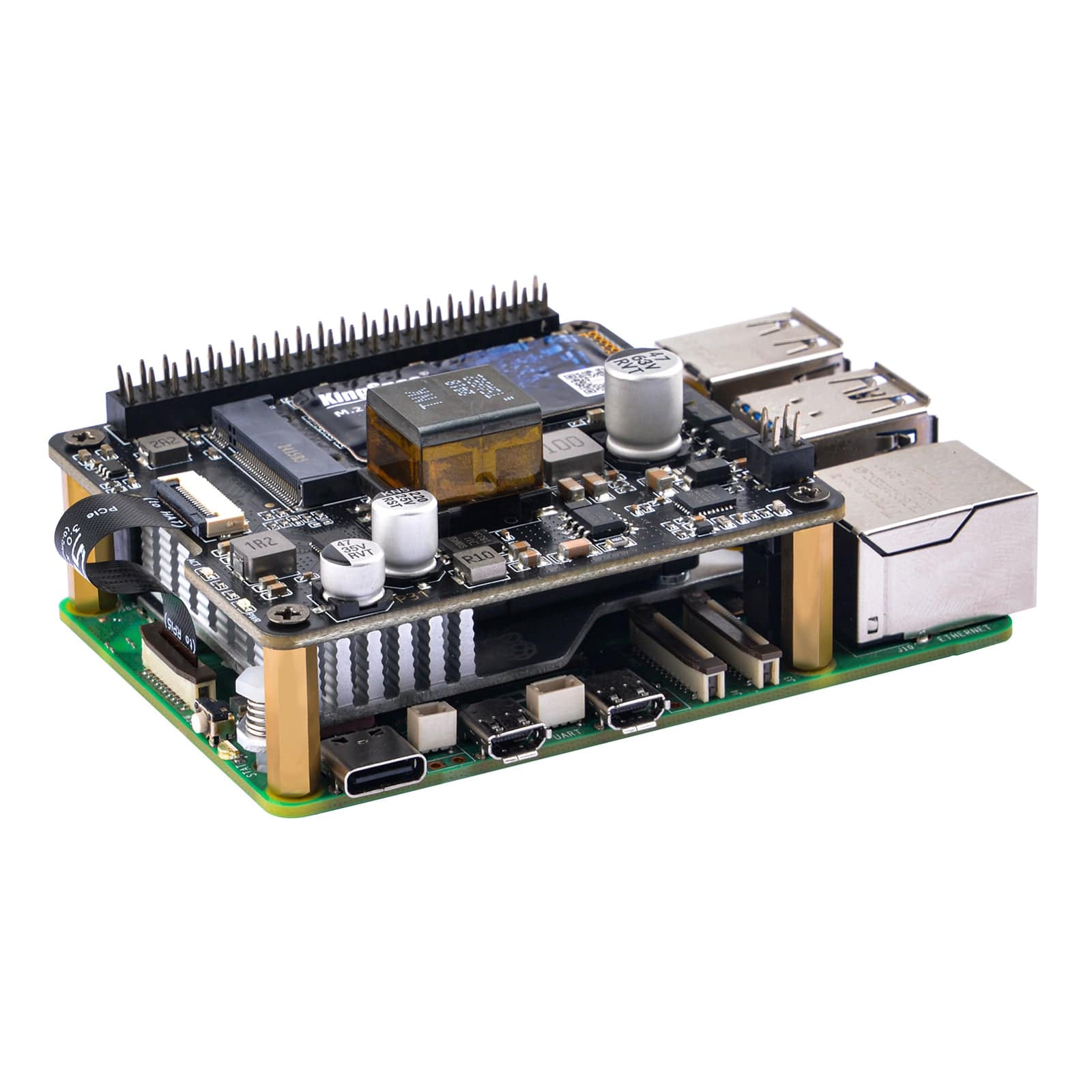

The 52Pi M.2 NVMe PoE+ HAT is designed for Raspberry Pi 5, combining high-speed NVMe M-Key storage support with Power over Ethernet functionality. It provides a direct PCIe M-key interface for connecting 2230 or 2242-format NVMe SSDs, such as the Raspberry Pi SSD.

Power is delivered via the 802.3at PoE+ standard, allowing the Raspberry Pi 5 and the connected SSD to be powered entirely through an Ethernet cable - ideal for compact, cable-free deployments. PoE supports up to 25W at 5.1V/4.5A when used with a compatible 802.3at PoE switch or injector.

Important: Do not connect power to the Pi 5's USB-C port while this PoE+ HAT is in use, as it may cause damage.

Raspberry Pi and SSD not included.

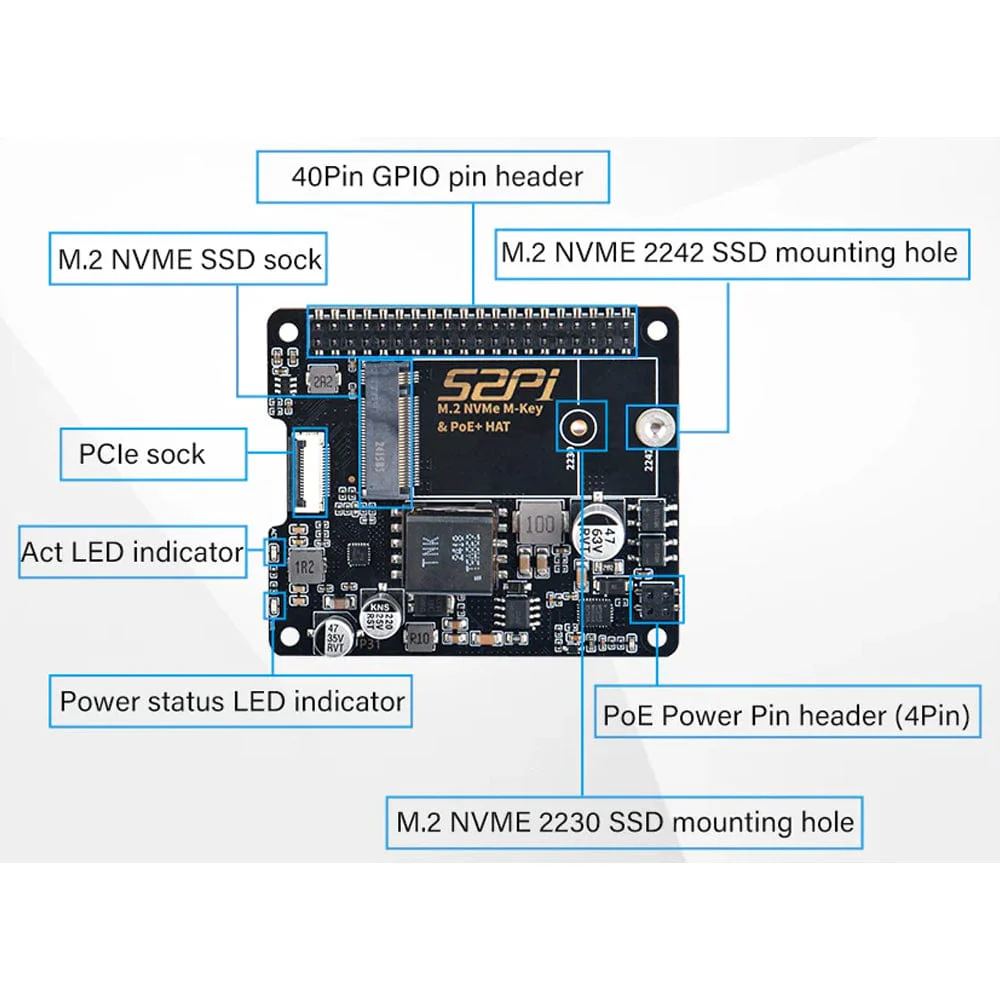

Features

• Supports M.2 NVMe SSDs for fast data storage
• PCIe M.2 interface for direct connection to Raspberry Pi 5
• Compatible with 2230 or 2242-size SSDs
• Power over Ethernet (PoE+)
  • Requires 802.3at PoE switch for full 30W input
  • Delivers up to 25W at 5.1V/4.5A
• Power status LED indicator
• Designed for use with Raspberry Pi 5 only

Specifications

Interface	M.2 PCIe NVMe
Form Factor Compatibility	2230/2242
Host CPU Compatibility	Raspberry Pi 5
PoE+ (Power over Ethernet) Support	Yes
PoE+ Standard	802.3at (requires 802.3at PoE switch for full power delivery)
Maximum Power Output	25W at 5.1V/4.5A
SSD Interface	PCIe
Operating Temperature	0–80°C
Power Requirements	Requires a PoE switch capable of delivering up to 30W for full functionality

Resources

• Product Wiki
• Assembly

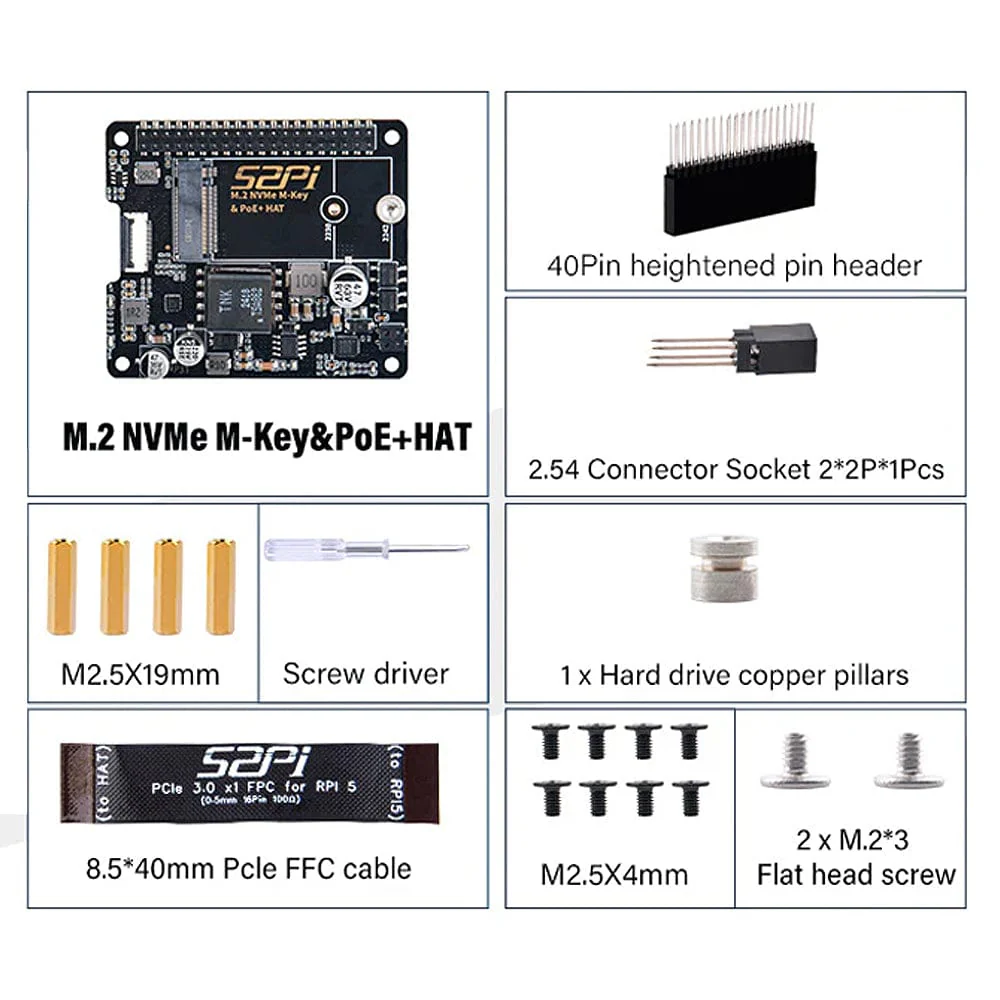

Package Contents

• 1x 52Pi M.2 NVME M-Key PoE+ HAT
• 1x 40m PCIe flex cable
• 1x 40-pin GPIO header
• 1x PoE header
• Standoffs and fixings

Raspberry Pi and SSD not included.
