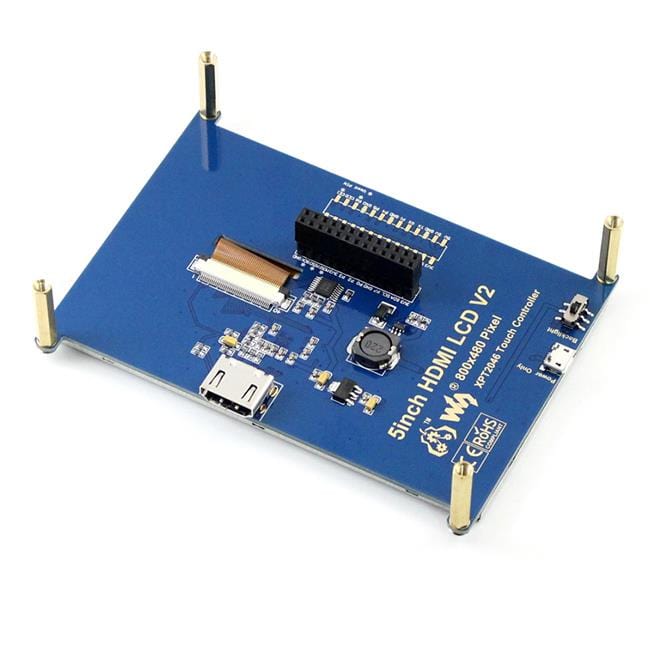

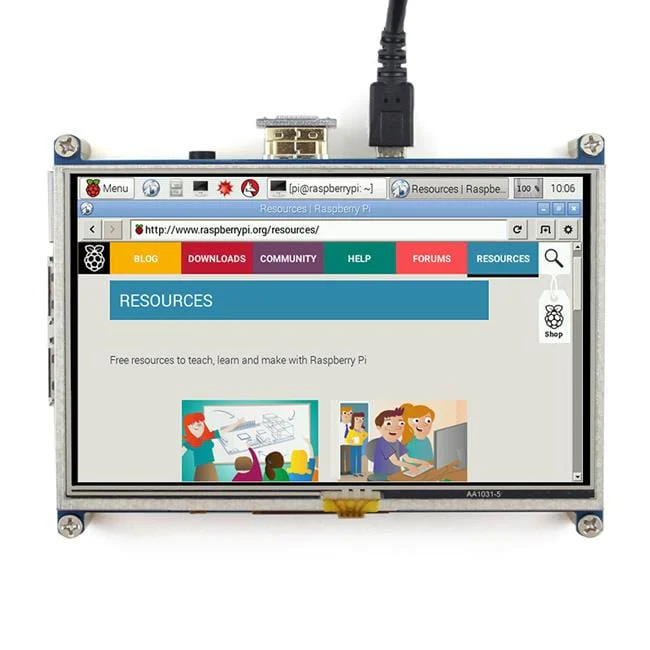

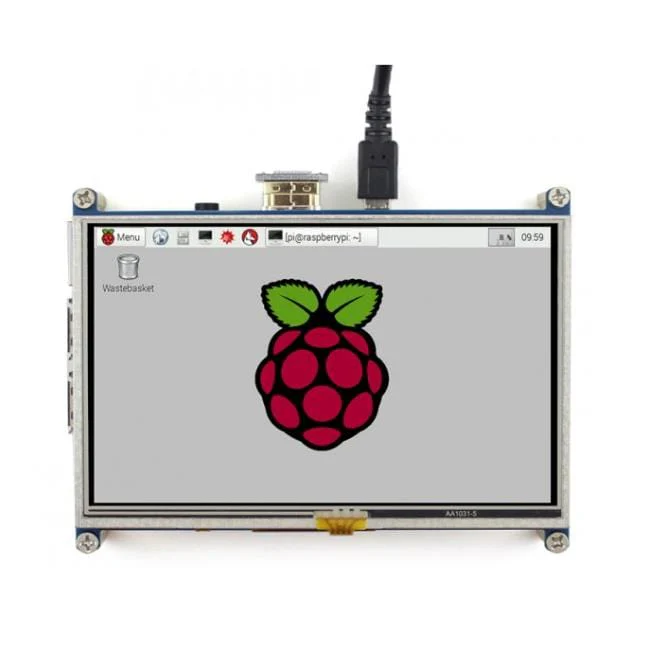

5" HDMI LCD with Touch (800x480) for Raspberry Pi [Discontinued]

A quality 5" LCD display for use with the Raspberry Pi, with drivers for the Raspberry Pi OS, Ubuntu, Kali and RetroPie.

Great for mounting in your own Raspberry Pi project or enclosure!

Note: Please read the setup guide before attempting to use.

Features

• 800x480 high hardware resolution
• Resistive touch control

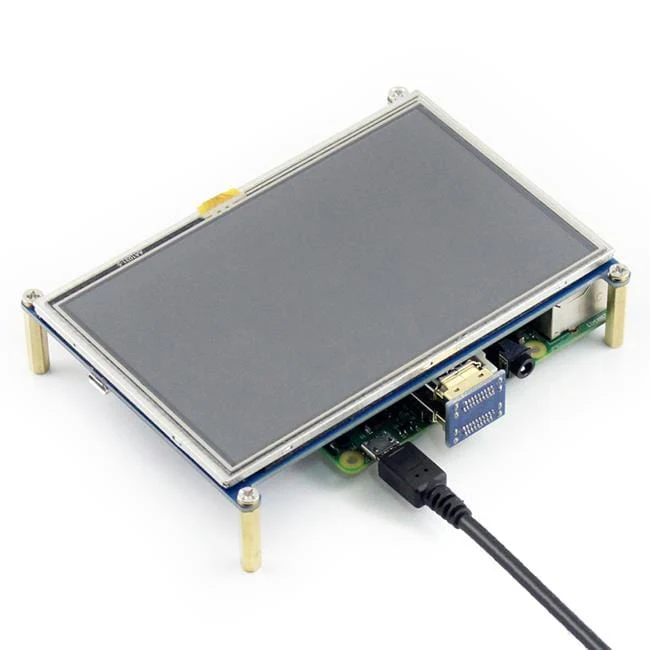

• Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 Model B or Pi Zero, which requires an HDMI cable)
• Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
• HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
• Backlight can be turned off to lower power consumption
• High-quality immersion gold surface plating

Resources

Product Wiki: https://www.waveshare.com/wiki/5inch_HDMI_LCD

Interface/Pin Mapping

Pin Number	Symbol	Description
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24	NC	NC
6, 9, 14, 20, 25	GND	Ground
19	TP_SI	SPI data input of Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
23	TP_SCK	SPI clock of Touch Panel
26	TP_CS	Touch Panel chip selection, low active
