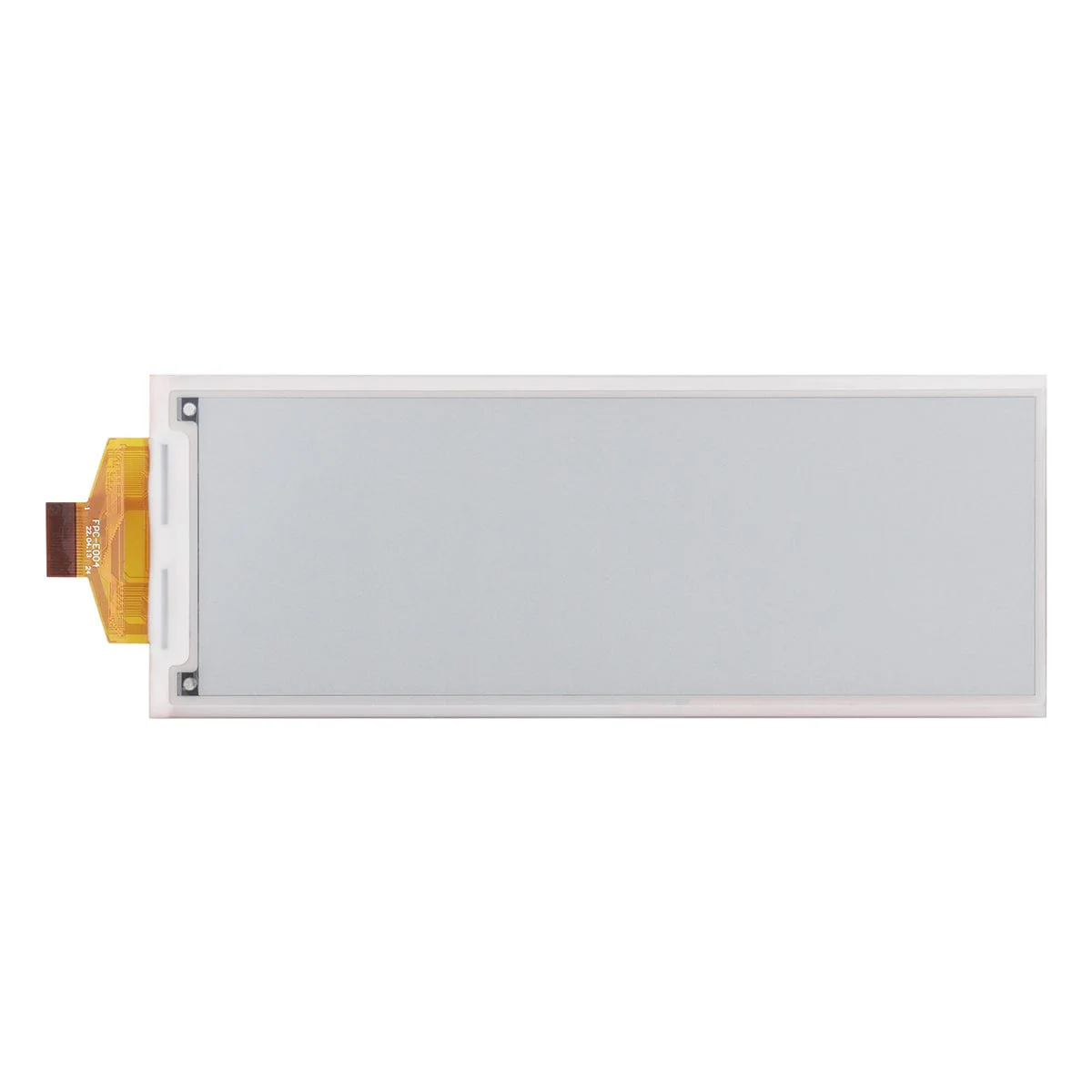

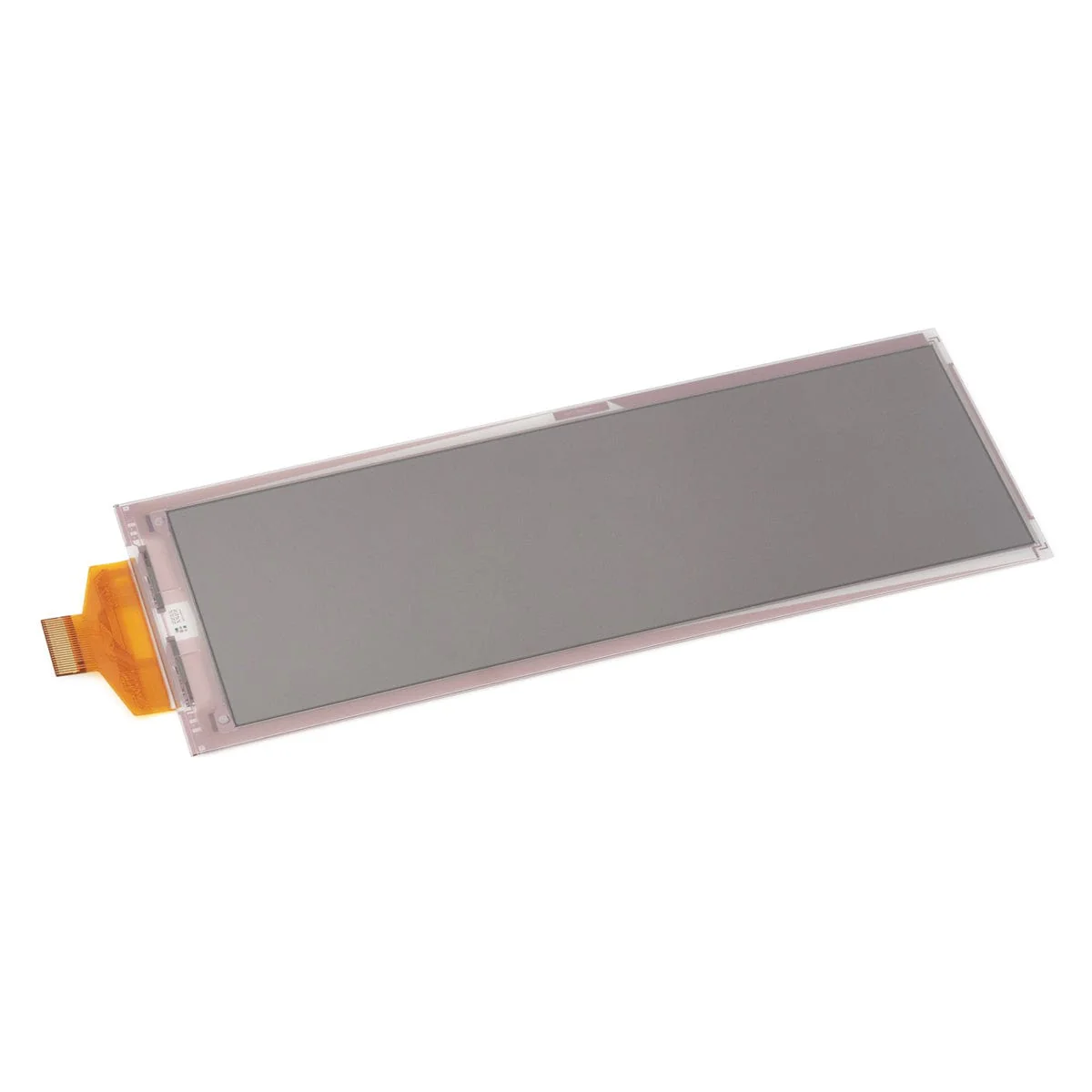

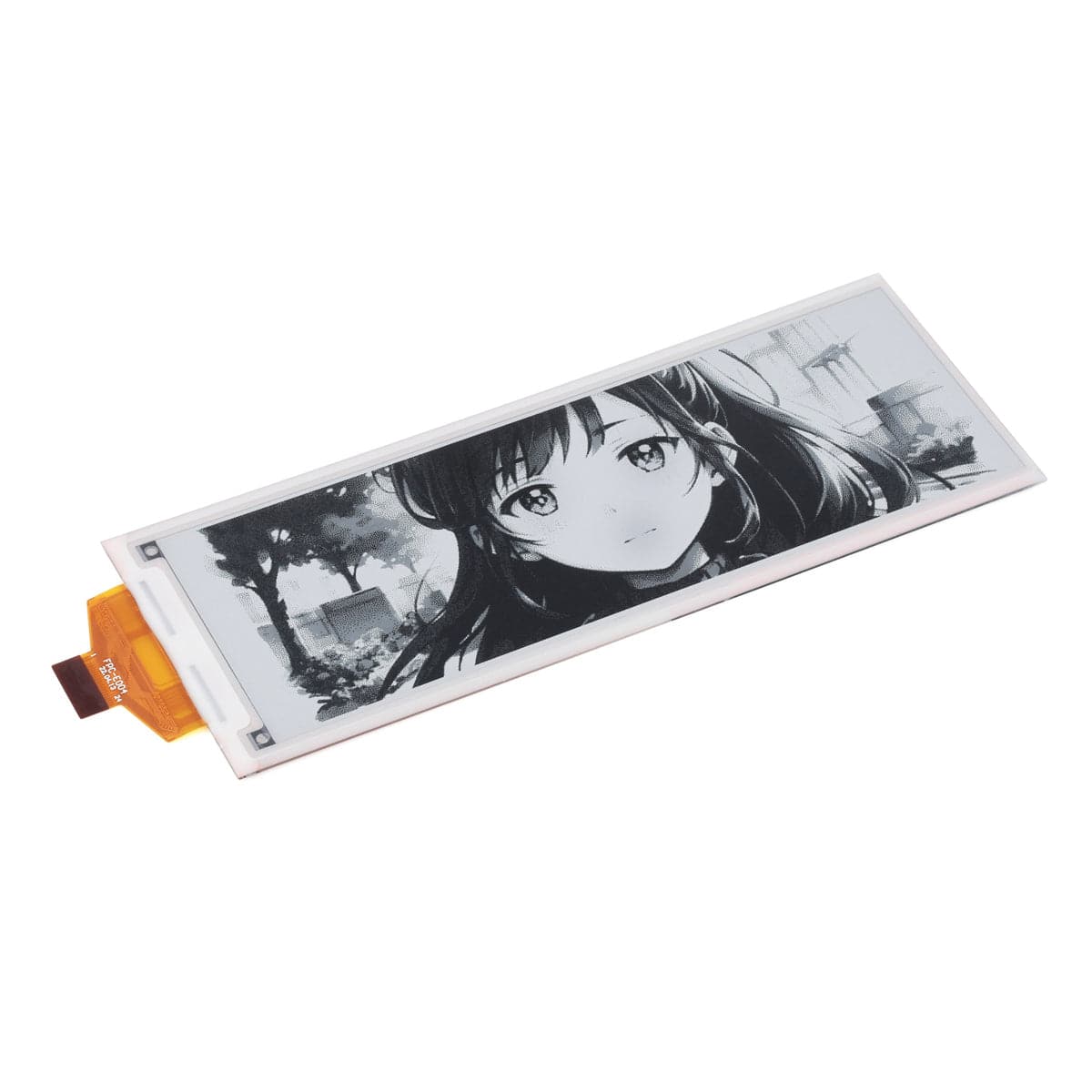

5.79" ePaper Display Raw Panel (792x272)

This 5.79" E-Paper raw display, is a versatile and energy-efficient e-ink display that is ideal for a variety of projects, including price tags, shelf labels, and industrial instruments. This black-and-white display has a resolution of 792 x 272 pixels for a sharp image, a grey scale of 4, a wide viewing angle of over 170°, and a paper-like appearance that remains visible even when powered off.

It supports SPI communication and has ultra-low power consumption with a full refresh time of 3.5 seconds and a partial refresh in just 0.8 seconds. Online development resources and a manual are also included, featuring examples for Raspberry Pi, Jetson Nano, Arduino, and STM32. This display is ideal for projects requiring minimal energy and clear, static displays.

For the same display with an SPI board attached to the back of it click here

Note: An e-Paper Raw Panel Driver HAT will be needed to run this display. You can find one in our store

Features

• No backlight, keeps displaying last content for a long time even when powered down
• Ultra-low power consumption, basically power is only required for refreshing
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
• SPI Interface

Specifications

Operating Voltage	3.3V
Interface	3-wire SPI, 4-wire SPI

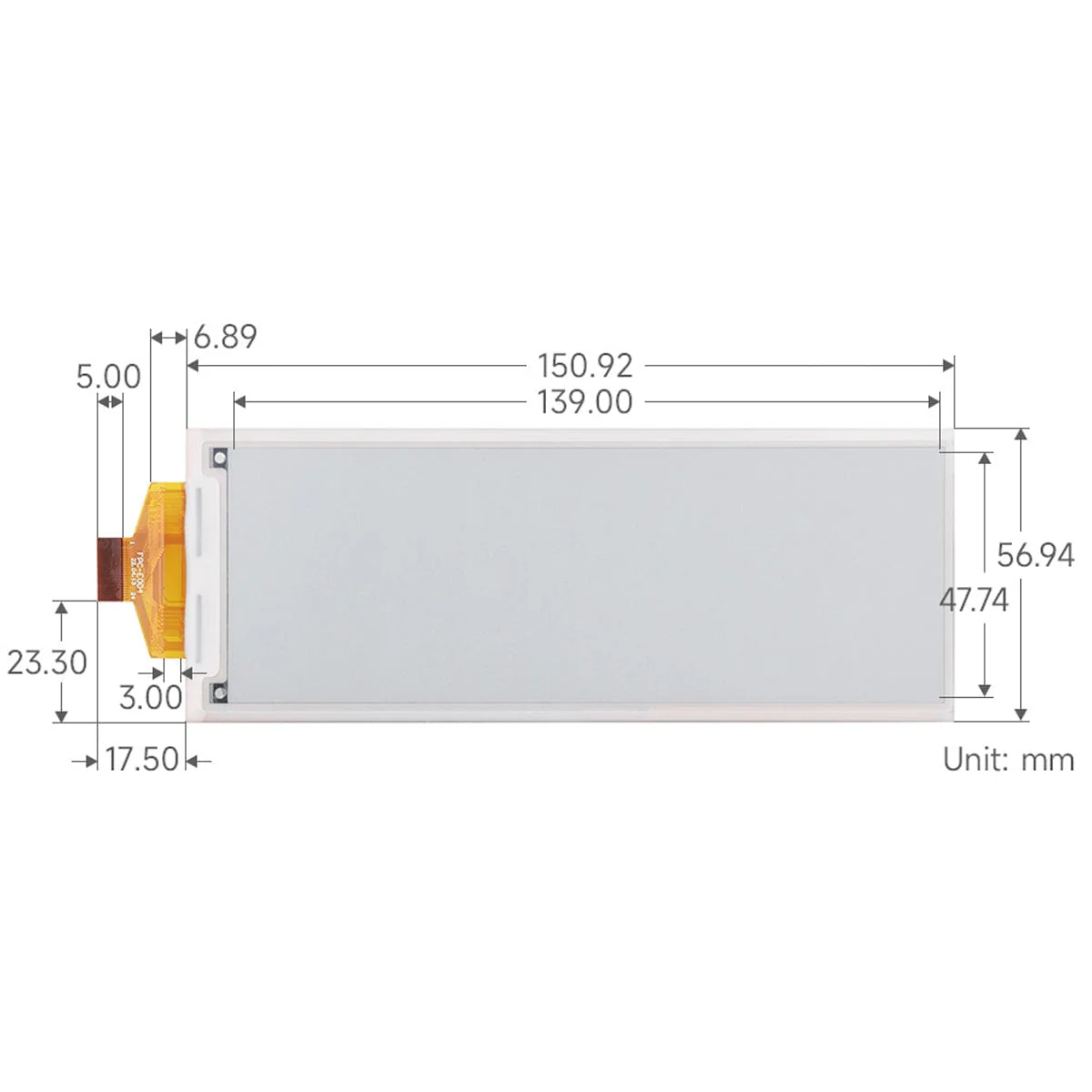

Outline Dimensions	150.92 x 56.94 x 1.00mm
Display Size	139.00 x 47.74mm
Dot Pitch	0.1755 x 0.1755mm
Viewing Angle	>170°
Resolution	792 x 272 pixels
Display Colour	Black/White
Grey Scale	4
Full Refresh Time	3.5s
Partial Refresh Time	0.8s
Refresh Power	<50mW
Standby Current	<0.01uA (almost none)

Resources

• Product Wiki
• User Manual
• Schematic

Package Contents

• 1x 5.79" E-Paper raw display
