4x4 Matrix Keypad
Add data entry, passwords and more to your projects with this numeric matrix keypad.

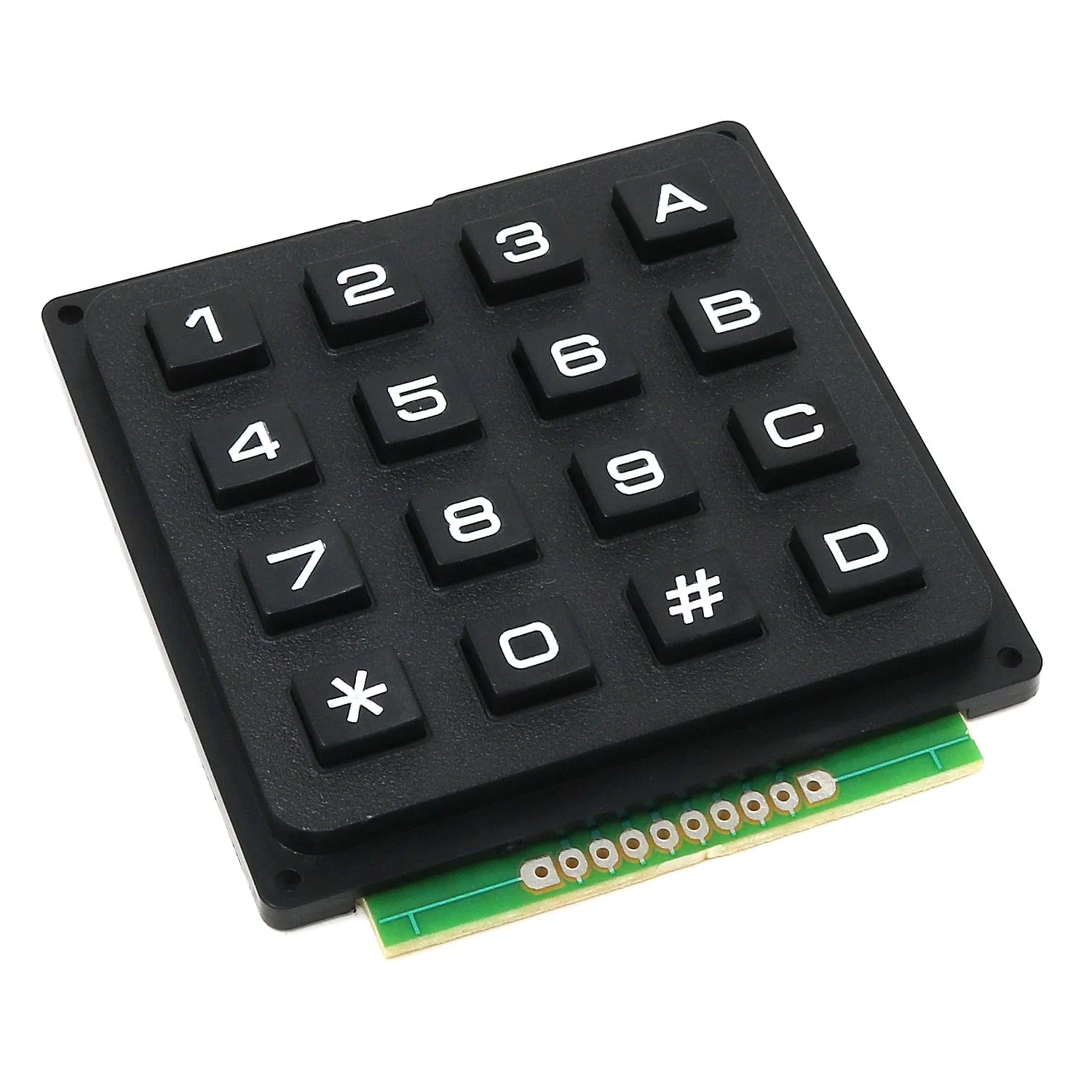

The keypad has sixteen buttons in an old-school telephone-style grid. Each button is connected to a matrix so you can use 8 GPIO on your microcontroller of choice to scan through the pad for entry.
Either solder thin wires directly to the pads, or fit some 2.54mm/01" headers and solder them downwards for using with a breadboard.
Adafruit have a great tutorial for using this style of matrix over on their website
We also sell a 3x4 version of this matrix keypad
Pinout
From the left there are four row pins followed by four column pins.
Specifications
- Force: 160-180g
- Contact Resistance: <100Ω
- Dimensions (approx): 69.0mm x 66mm x 10mm
- Weight: ~21g
Revision History
- As of 20/03/2024, we no longer provide a pin header strip with this keypad (due to a supplier change)
