3V Relay HAT for Raspberry Pi Pico [Discontinued]

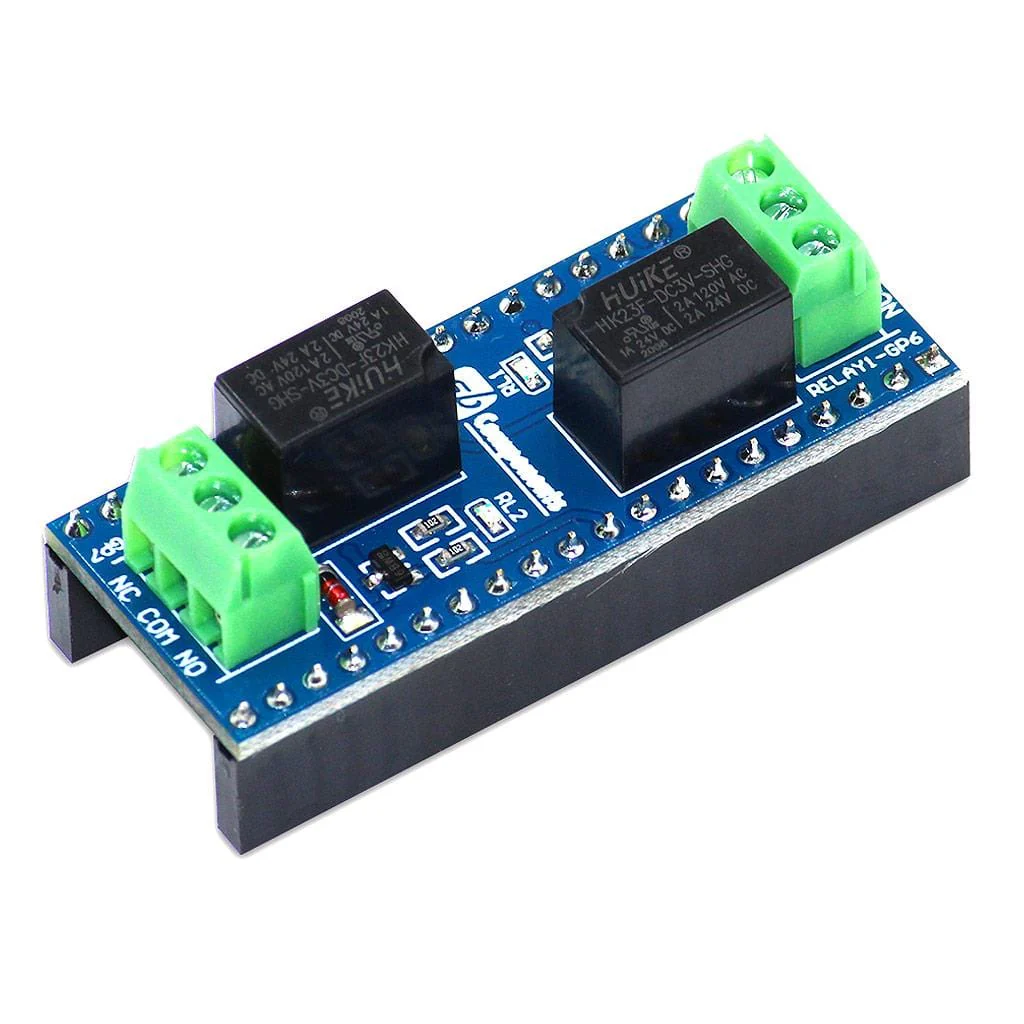

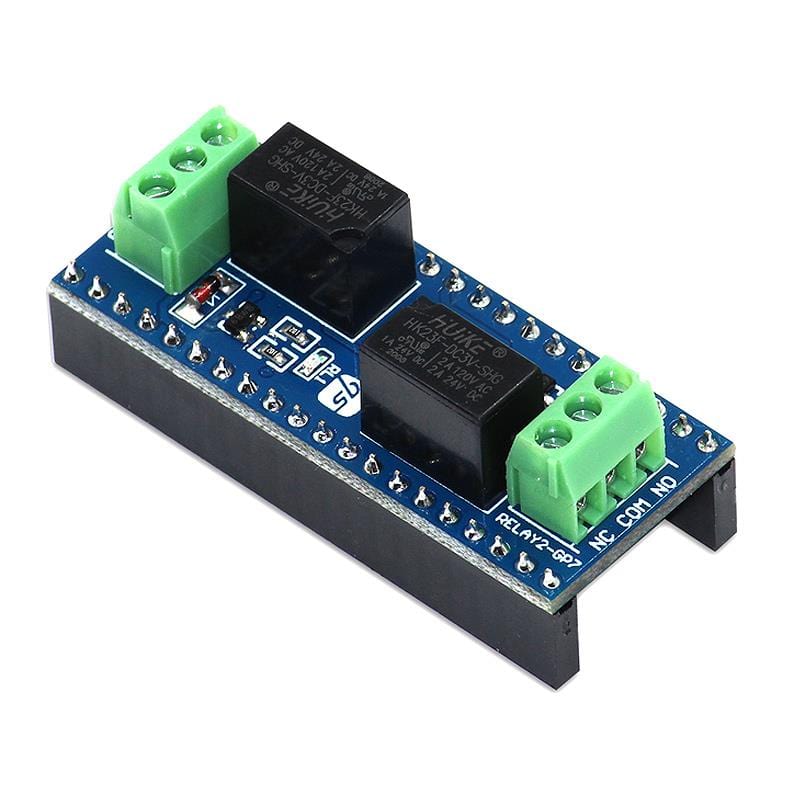

The 3V Relay HAT is a compact two-channel relay board designed specifically for the Raspberry Pi Pico.

The board can switch up to 2A/120VAC and 2A/24VDC (maximum) with an operating voltage of 3.3V. Indication LEDs are included on the board to indicate relay on/off status.

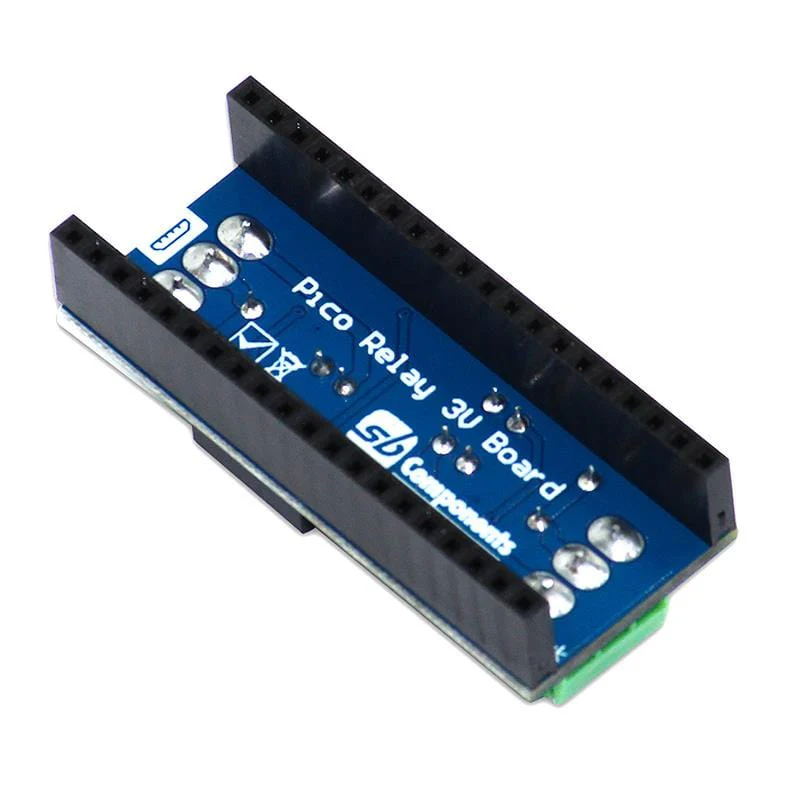

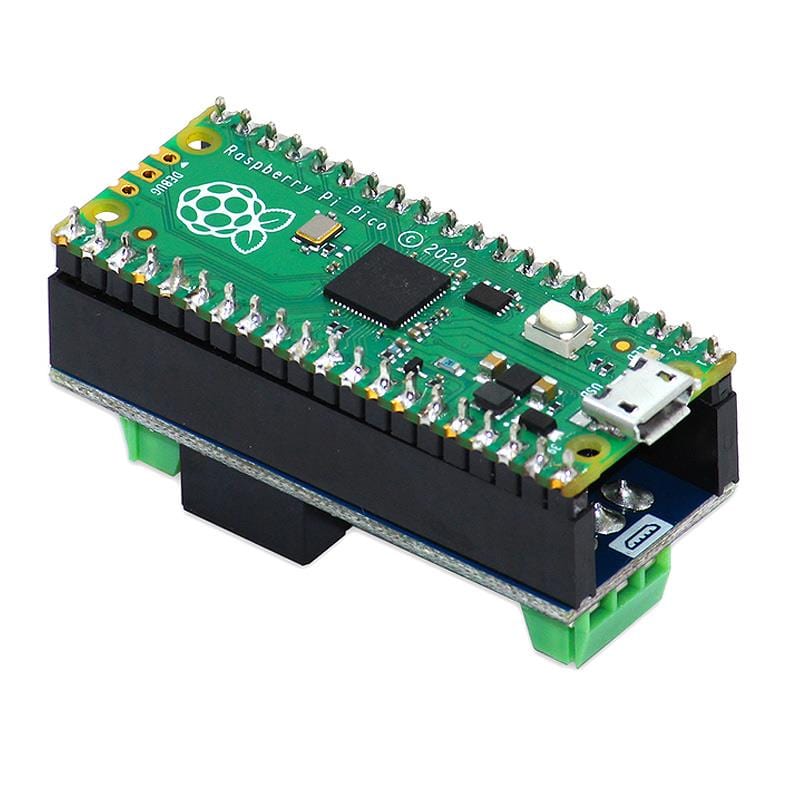

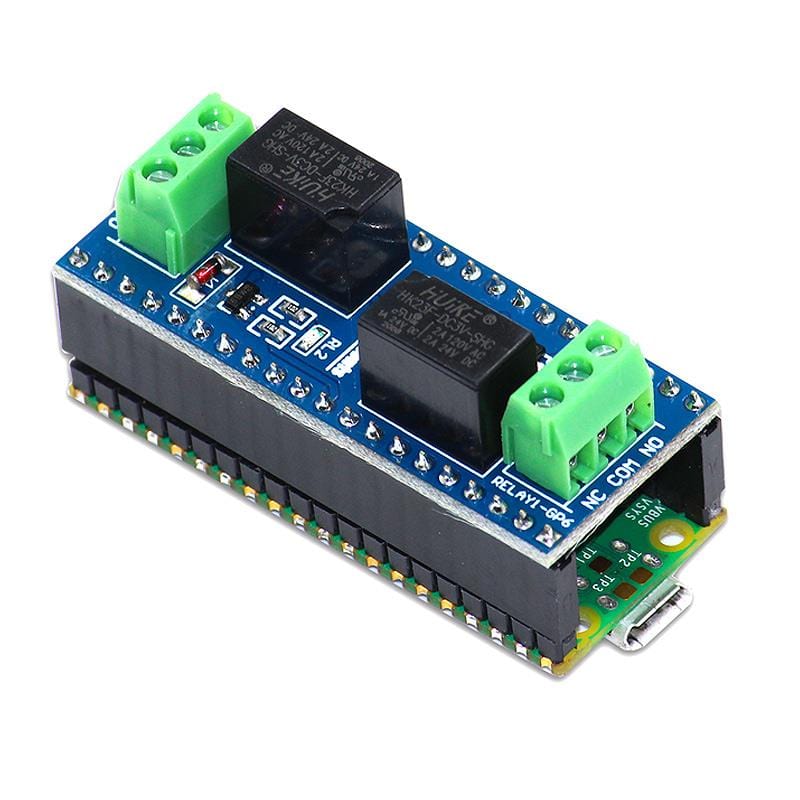

Assembly is simple - connect your external components to the pre-soldered terminal blocks and slot your Raspberry Pi Pico into the pre-soldered female headers.

A Raspberry Pi Pico is not included - click here if you'd like to buy one. Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our pre-soldered Picos).

Features

• Compatible with Raspberry Pi Pico
• Two high-quality relays switch up to 2A/120VAC and 2A/24VDC
• Easy to use screw terminals for external components
• Indication LED for relay on/off status
• Pre-soldered

Specifications

• Channels: 2
• Operating Voltage: 3.3V
• Switching Voltage (VAC): 2A/ 120V
• Switching Voltage (VDC): 2A/ 24V
• Dimensions: 21mm x 51 mm

Resources

• Product Wiki
• GitHub

Package Contents

• 1x 3V Relay for Pico

Raspberry Pi Pico not included
